Edelkrone Pan Pro

Quantity must be 1 or more

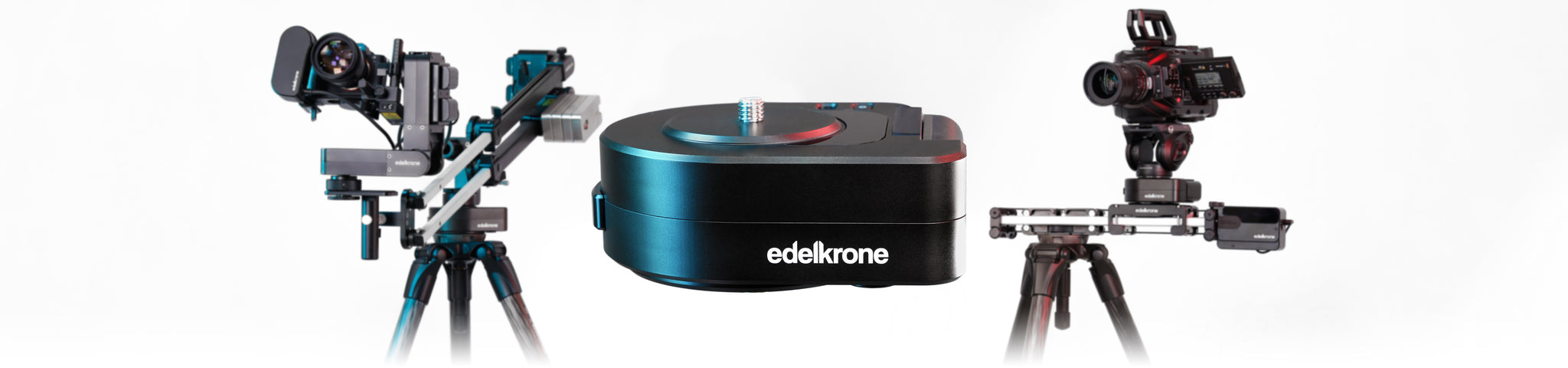

Motorized single-axis panning solution that can be attached to edelkrone JibONE, edelkrone Sliders & Dollies, and tripods. Achieve an unlimited JibONE experience or ultimate panning ability for heavier camera setups.


Box Contents

Pan PRO, Allen key


(W x D x H) 4.33 x 5.31 x 2.36 in (110 x 135 x 60 mm)


1.89 lb / 858 gr

Mounting options

3/8"-16 mounting port on bottom, 3/8"-16 mounting screw on camera plate

Recommended maximum setup load

30 lb / 13.5 kg or less (Jib + Head + Camera + 4 kg Counter)

Min. step size

0.022 degree

Max. speed

18 degree/sec (when Panning Head), 5 degree/sec (when Panning Jib)

Max. rotation

∞ x 360°

Number of axes


Additional features

Safety lock, Instant feedback screen

Supported fps


Motor type

Step motor with ultra high-res encoder

Power inputs

x1 LP-E6 type battery (not included) or DC Adapter (Does not charge batteries)

Battery life

With x1 Canon LP-E6 battery (not included) (14.4 Wh)

Operates 6 hours (continuously at full speed)

Can be paired with

JibONE, DollyONE, DollyPLUS, SliderONE, SliderPLUS & Slide Module (PRO models are suggested)

Can be controlled via

edelkrone App, edelkrone Controller

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later


CNC machined aluminum and stainless steel components, high contrast sharp OLED screen

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
