HeadPLUS - HD Source

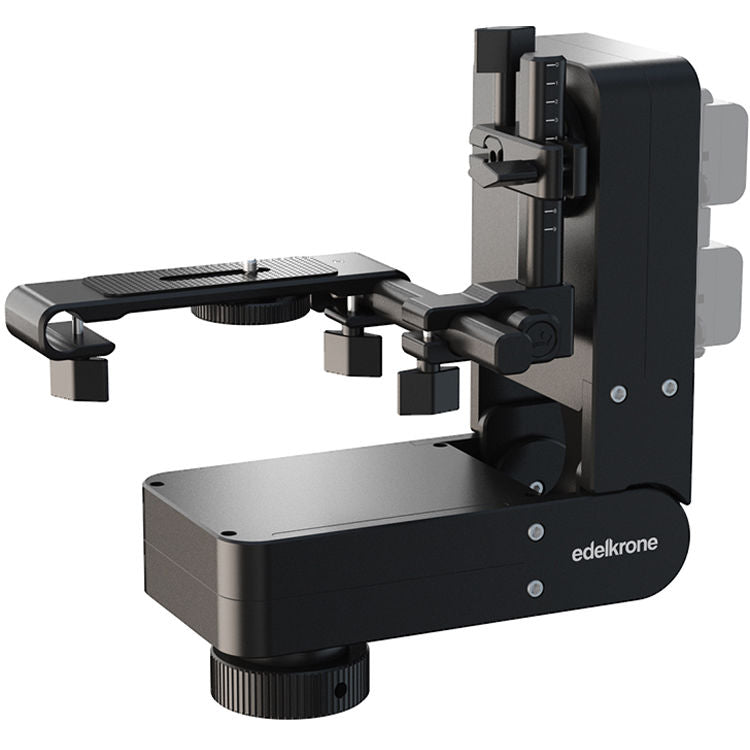

HeadPLUS

82290
Regular price
$2,609.00
Sale price
$2,609.00
Quantity must be 1 or more

HeadPLUS



BOX CONTENTS

HeadPLUS, L Bracket for cameras up to 10 lb (4.5 kg), width extenders for SliderPLUS legs, link cable, allen keys

Size

HeadPLUS: (L x W x H) 13.8 x 3.9 x 2.7 in (353 x 100 x 70 mm) L Bracket (folded) (L x W x H) 6.7 x 5.6 x 2.9 in (170 x 143 x 75 mm)

Weight

HeadPLUS: 4.85 lb (2.20kg) L Bracket: 15 oz (426 gr)

Recommended Camera Load

10 lb (4.5kg)

Mounting options

3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.

Min. step size

0.022 degree

Max. speed

360° in 20 sec

Number of axes

2 (Pan & Tilt)

Motor type

2 x ultra precise step motors with ultra high-res encoders.

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 5 hours (continuously at full speed)

Shoots 36000 photographs (in Time-Lapse mode)



1 Sony NP-F970 battery is 47.4 Wh

Power input

LP-E6 type battery, NP-F type battery, AC/DC adapter (NOT included)

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Compatibility

Slide Module, Focus Module, Laser Module, SliderPLUS, SliderONE, DollyONE, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.

Mobile device connection

Bluetooth low-energy communication.

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
