Slide Module V2 - HD Source

Slide Module V2

82436
Quantity must be 1 or more

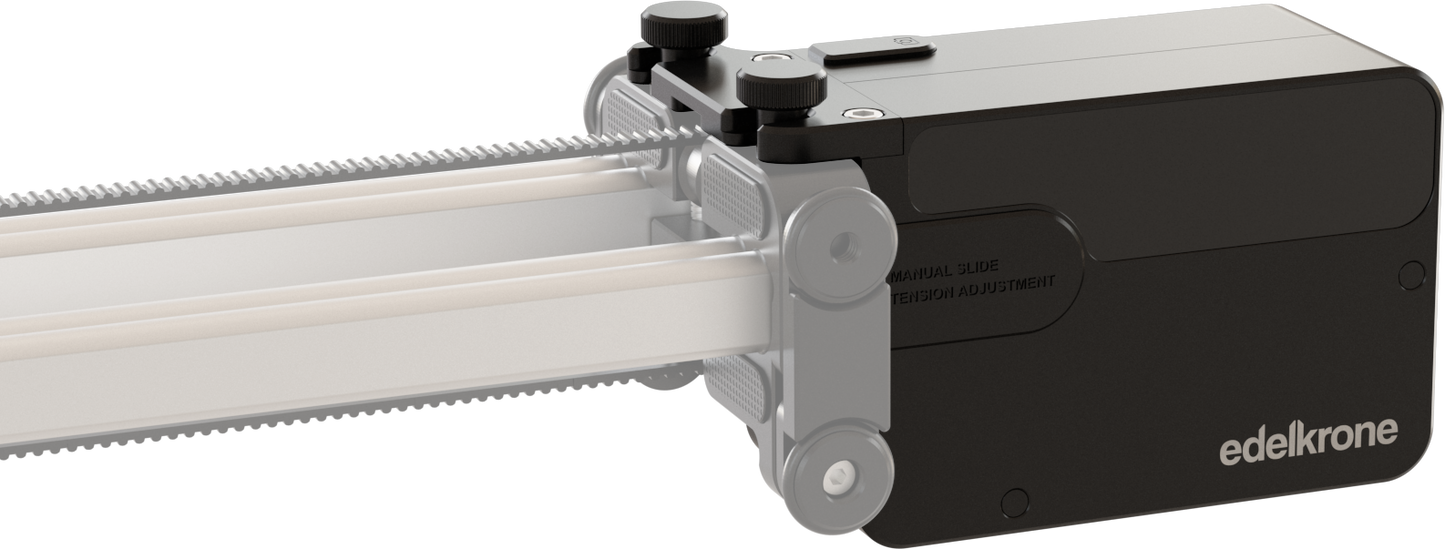

Slide Module v2

BOX CONTENTS

Slide Module, connection screws for Slide Module, allen keys.

Size (L x W x H)

5.3 x 3.18 x 2.59 in (135 x 81 x 66 mm)

Weight

1.87 lb (0.85 kg)

Incline Capacity

Only horizontal

Min. step size on tripod

22.4 μm

Min. step size on ground

11.2 μm

Max. speed on tripod

2.52 in/sec (6.42 cm/sec)

Max. speed on ground

1.26 in/sec (3.21 cm/sec)

Supported fps

All

Number of axes

Single (the slide motion)

Motor type

Step motor with ultra high-res encoder.

Power inputs

x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 2 hours (continuously at full speed)

Shoots 12000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (Shutter trigger cable is sold separately).

Compatibility

SliderPLUS, SliderPLUS PRO, previous generation SliderPLUS, SliderPLUS Pro, SliderPLUS X, SliderPLUS M.

Can be paired

HeadONE (Both in single or dual modes), HeadPLUS, HeadPLUS PRO

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

×
