  • DECIMATOR 2: 3G/HD/SD-SDI to HDMI with De-Embedded Analogue Audio - HD Source
  • DECIMATOR 2: 3G/HD/SD-SDI to HDMI with De-Embedded Analogue Audio - HD Source
1 2

HD SOURCE

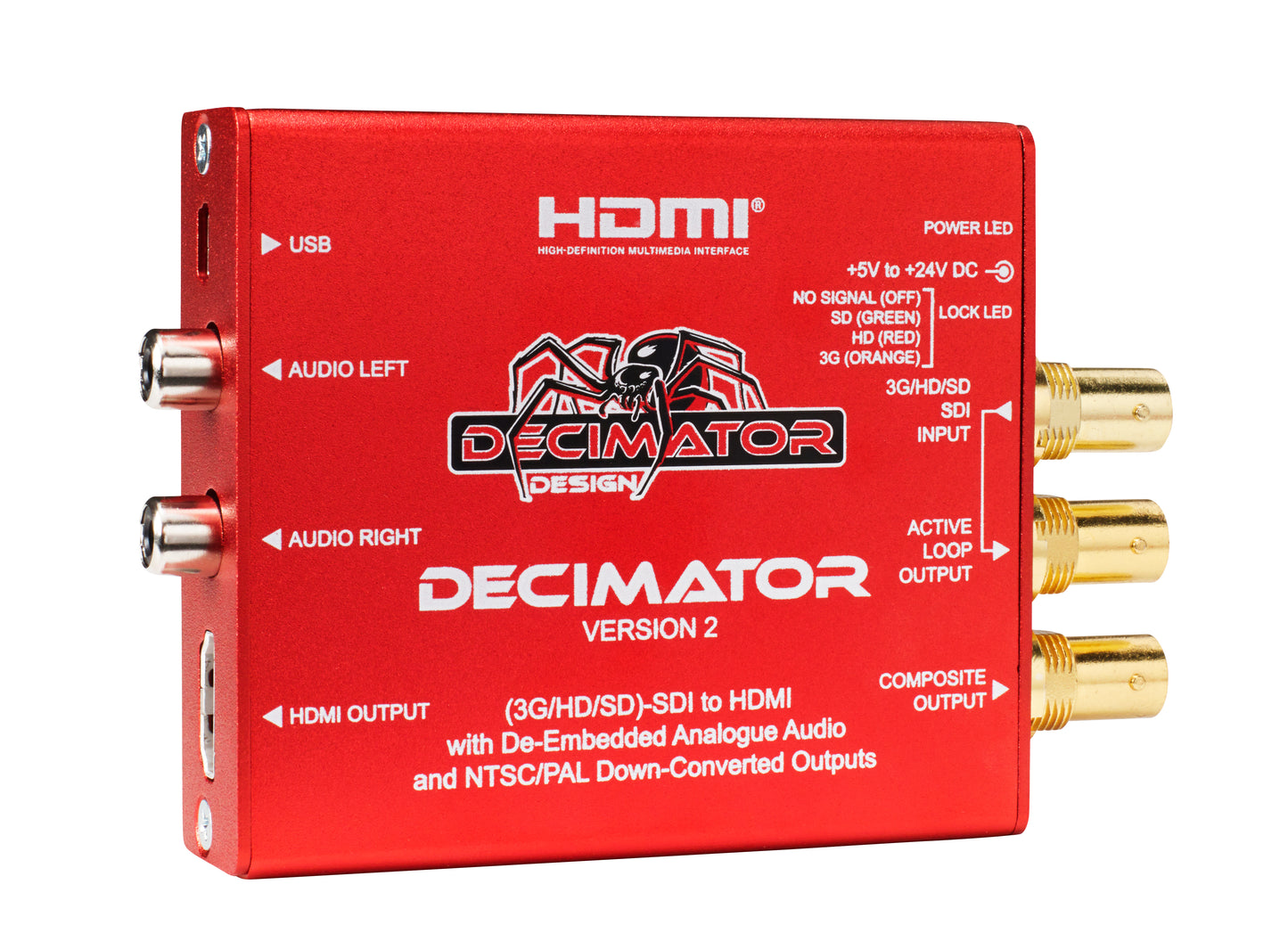

Decimator 2 3G/HD/SD-SDI to HDMI

Decimator 2 3G/HD/SD-SDI to HDMI

$533.00 CAD
$533.00 CAD
Sale Sold out

DD-DEC-2

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

Miniature (3G/HD/SD)-SDI to both HDMI and NTSC/PAL
with simultaneous scaling on both outputs and
De-embedded Analogue Audio
MSRP US$345


  • Auto-detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources

  • Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame

  • HDMI output with optional full scaling and aspect ratio conversion.

  • Down-converted Composite output with:

  • NTSC or PAL is selectable for 3G/HD inputs

  • SD will be passed unchanged

  • Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:

  • 16:9 to 16:9 Anamorphic

  • 16:9 to 4:3 Letterbox

  • 16:9 to 4:3 Centre Cut (Crop to 4:3)

  • Full 10-bit data path and multipoint interpolation

  • 16 times over-sampling for Composite Output

  • Passes EIA-708/608 Closed Captions to the Composite Output

  • Full 16-Channel Audio metering displayed on the HDMI output with:

  • Any of the 4 audio groups individually selectable

  • Vertical or Horizontal Bars

  • AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales

  • Bar & Float, Bar only or Float only

  • Transparency adjustment

  • Separate Bar and Float Ballistics control

  • Adjustable Reference level

  • Red, Yellow and Green Range adjustment

  • Bar thickness adjustment

  • Margin adjustment

  • Adjustable Graticules Generator displayed on the HDMI output with:

  • Separate enables for Safe Action, Safe Title and Centre Cross

  • Adjustable position for either Safe Action or Safe Title

  • Adjustable colours for Safe Action, Safe Title and Centre Cross

  • Text Overlays displayed on the HDMI output with:

  • Adjustable Foreground and Background colours

  • Adjustable 16 character text

  • Current input format status

  • De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS

  • 3G/HD/SD-SDI Active loop-through Output External Dip-Switch Configuration

  • USB port for control and firmware updates

  • Locking DC Power Socket

  • The following is also included with the unit:

  • Power Supply

  • HDMI Cable

  • USB Cable

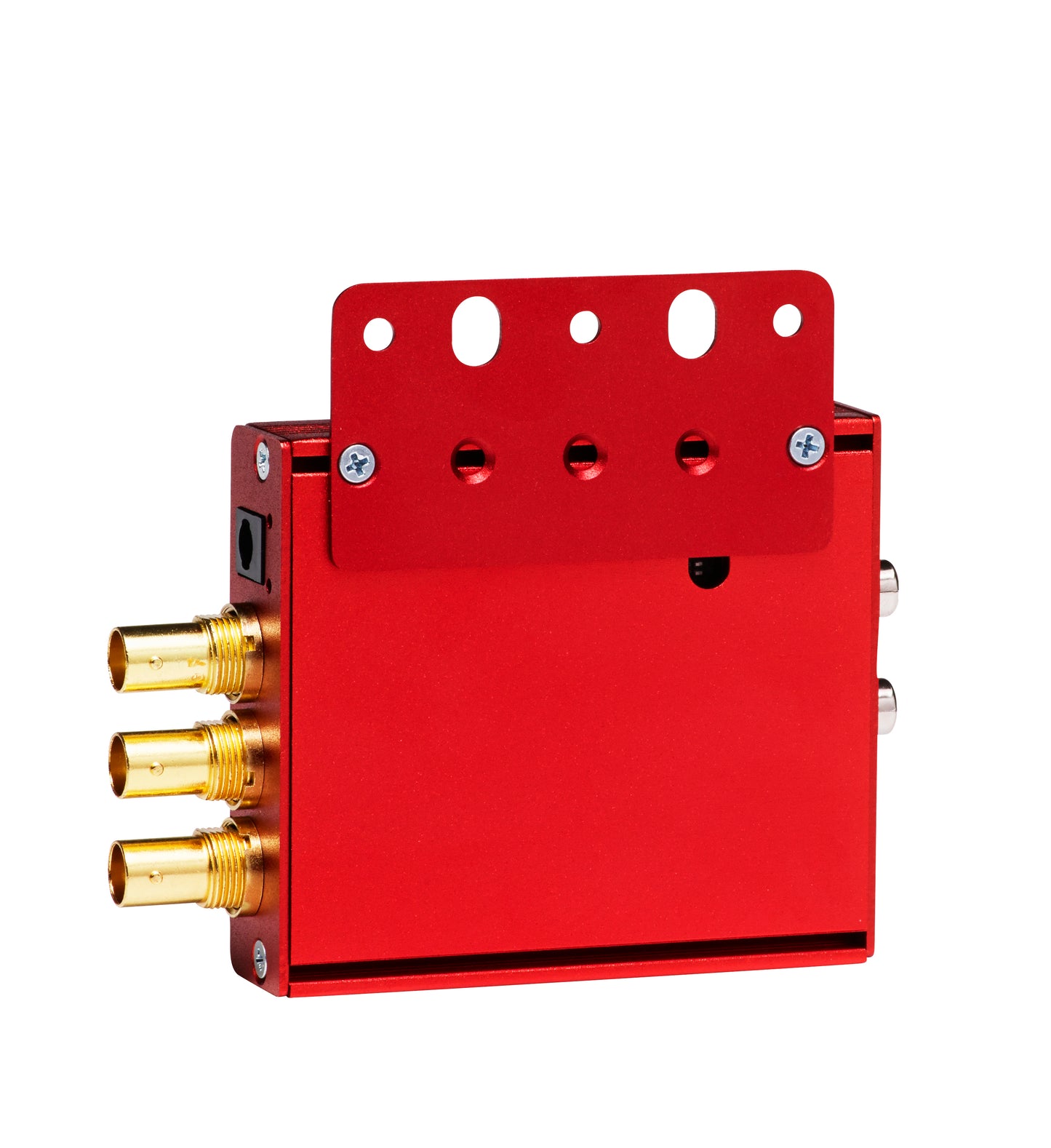

  • Mounting Bracket
View full details
