Digital Forecast Bridge X TS Mini Portable Tester/Converter

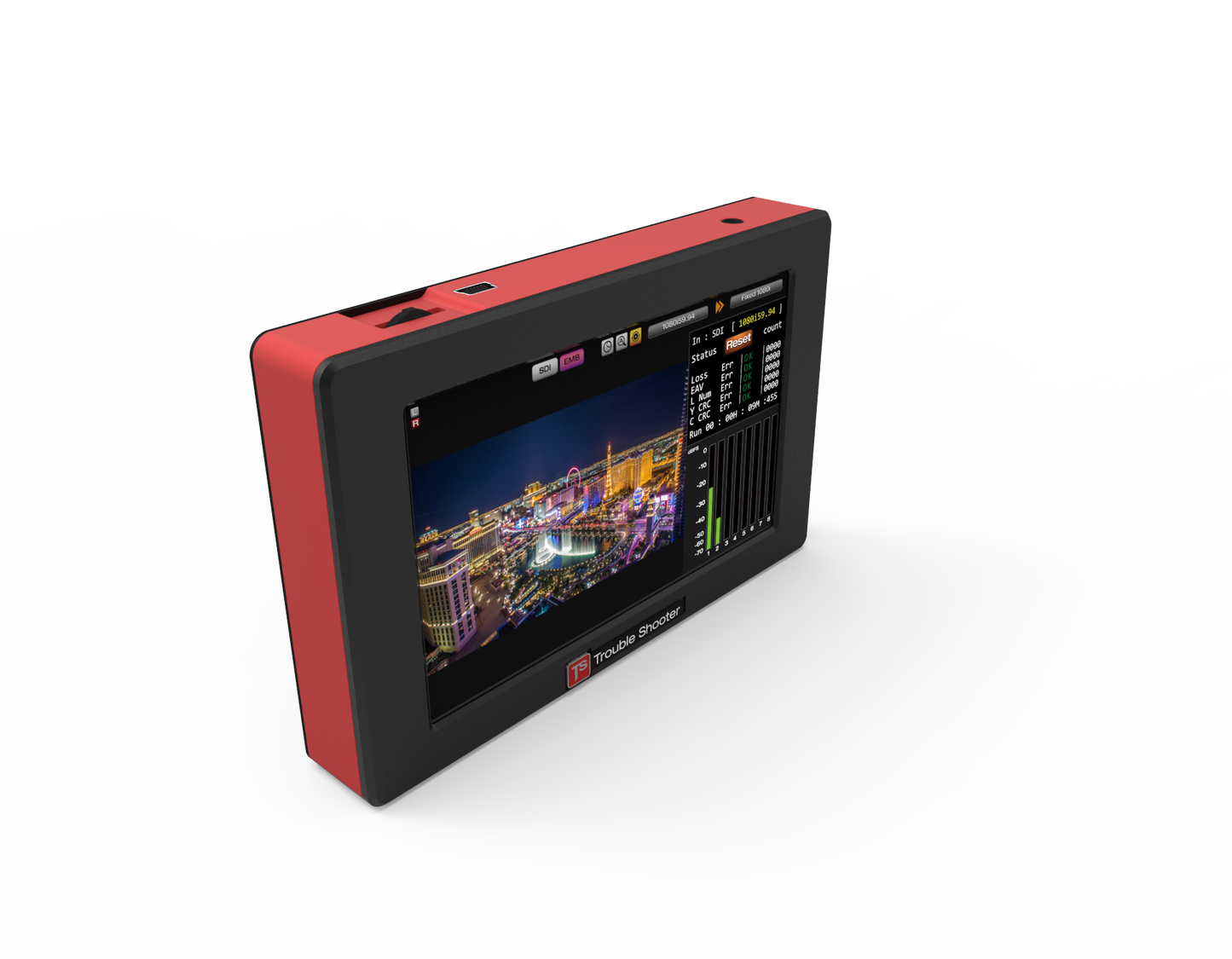

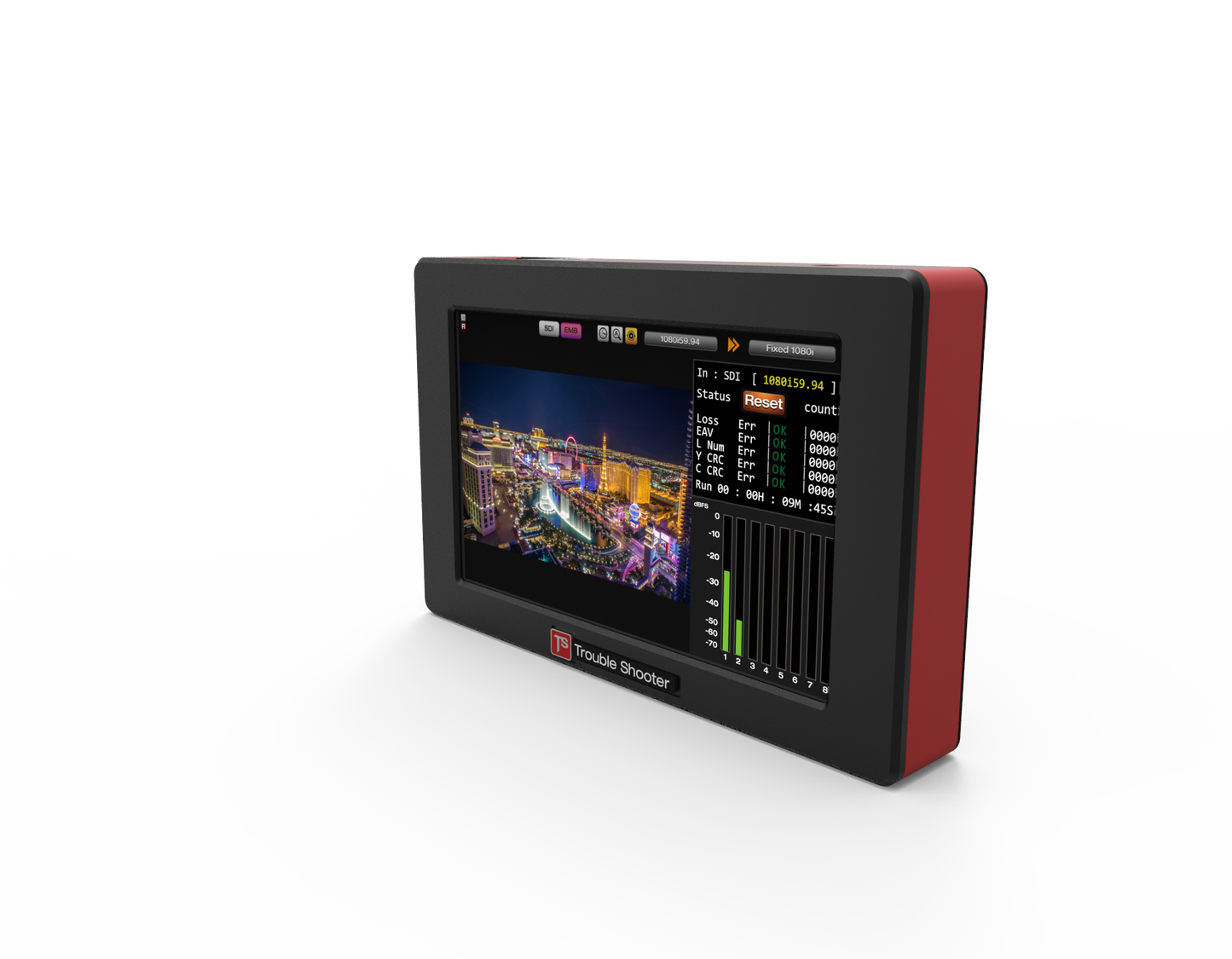

Bridge X_TS series is Unique Portable Signal Converter with Measurement.
Bridge X_TS series can be effectively used in the installation and maintenance service of video and audio signal. Very handy but powerful
functions of Bridge X_TS series enables to conveniently check a variety of signal status through 5” LCD touch screen from video display
up to SDI Jitter and Cable conditions.
Key Features:

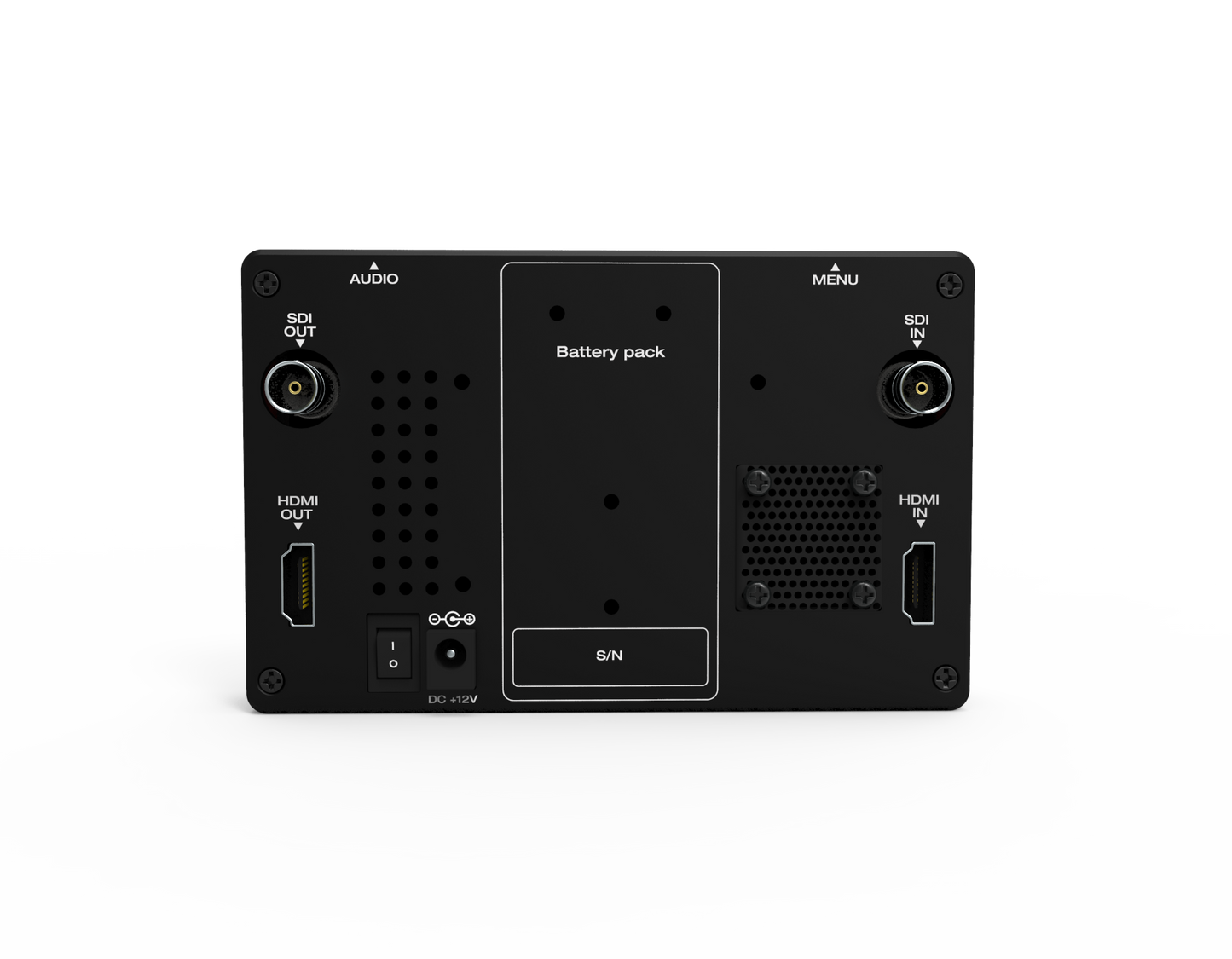

• SDI to HDMI cross conversion
• SDI in/Output : SD/HD/3G - all standard format supported
• HDMI In/Output : SD/HD/3G - all standard format supported
• Test Pattern Generator : 8 types provided
• Test pattern generation and measurement at the same time
• Eye Pattern Diagram for SDI input
• SDI signal integrity check (Loss, TSR, CRC, Line number)
• HDMI signal integrity check (Loss, Resolution, HDCP)
• Audio Level Monitoring (up to 8 channels)
• Audio Monitoring Earphone Output

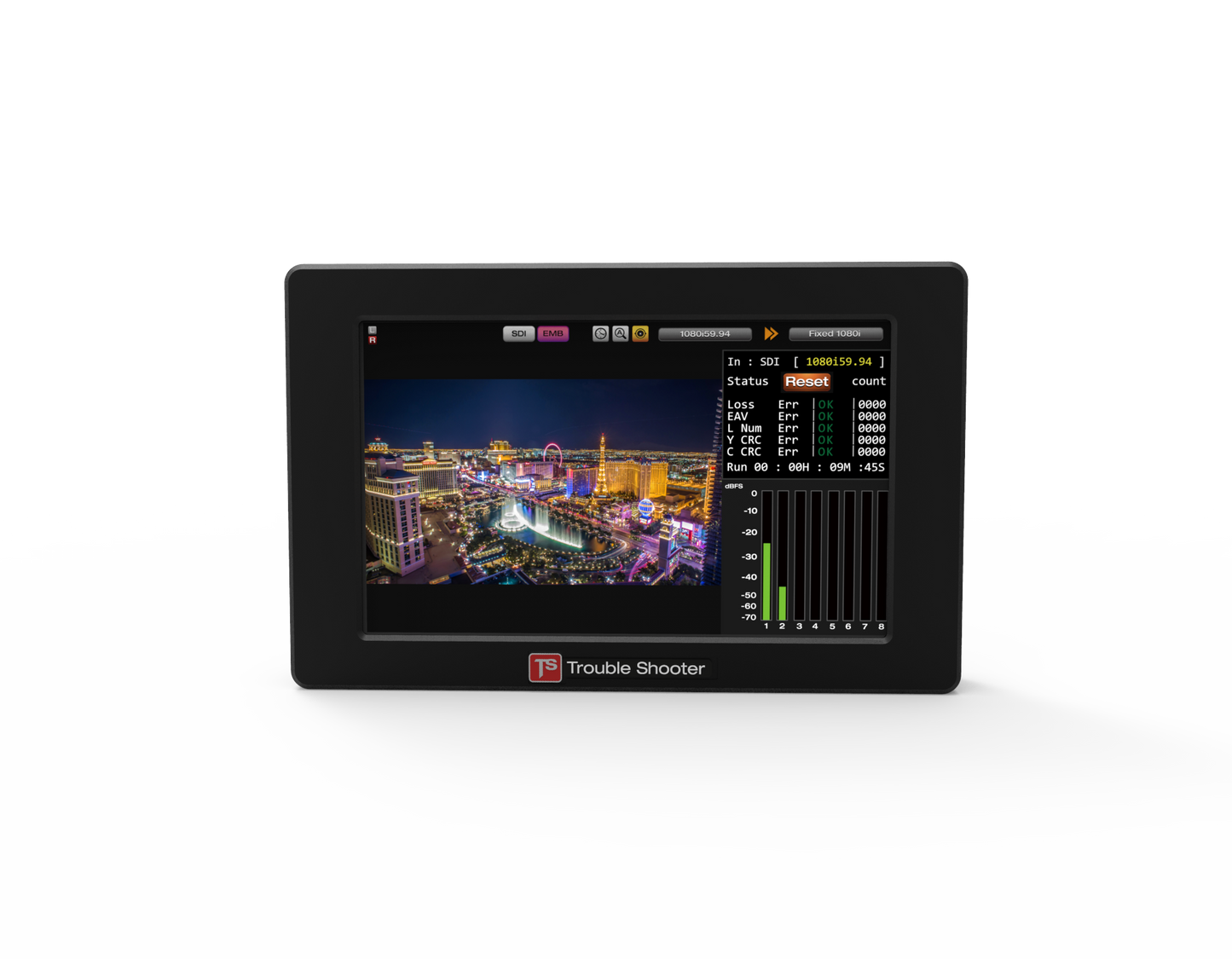

• 5” Touch Screen LCD (800x480)
• Battery Mounting Plate for Sony and Cannon type (optional)
• 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)
