DSC Labs - Chroma Du Monde 24+4R Chart

DSC Labs - Chroma Du Monde 24+4R Chart

$2,125.00 CAD
$2,125.00 CAD
Sale Sold out

JW23

Size
Cavi Black Option

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

DSC Labs - Chroma Du Monde - Please Select your Size

PLEASE NOTE:  These are made to order with a lead time of 1-2 weeks, so if you have any questions regarding sizing, please contact our sales team at: sales@hdsource.ca

"Cavi Black Option is Extra.   Please select the option when ordering***

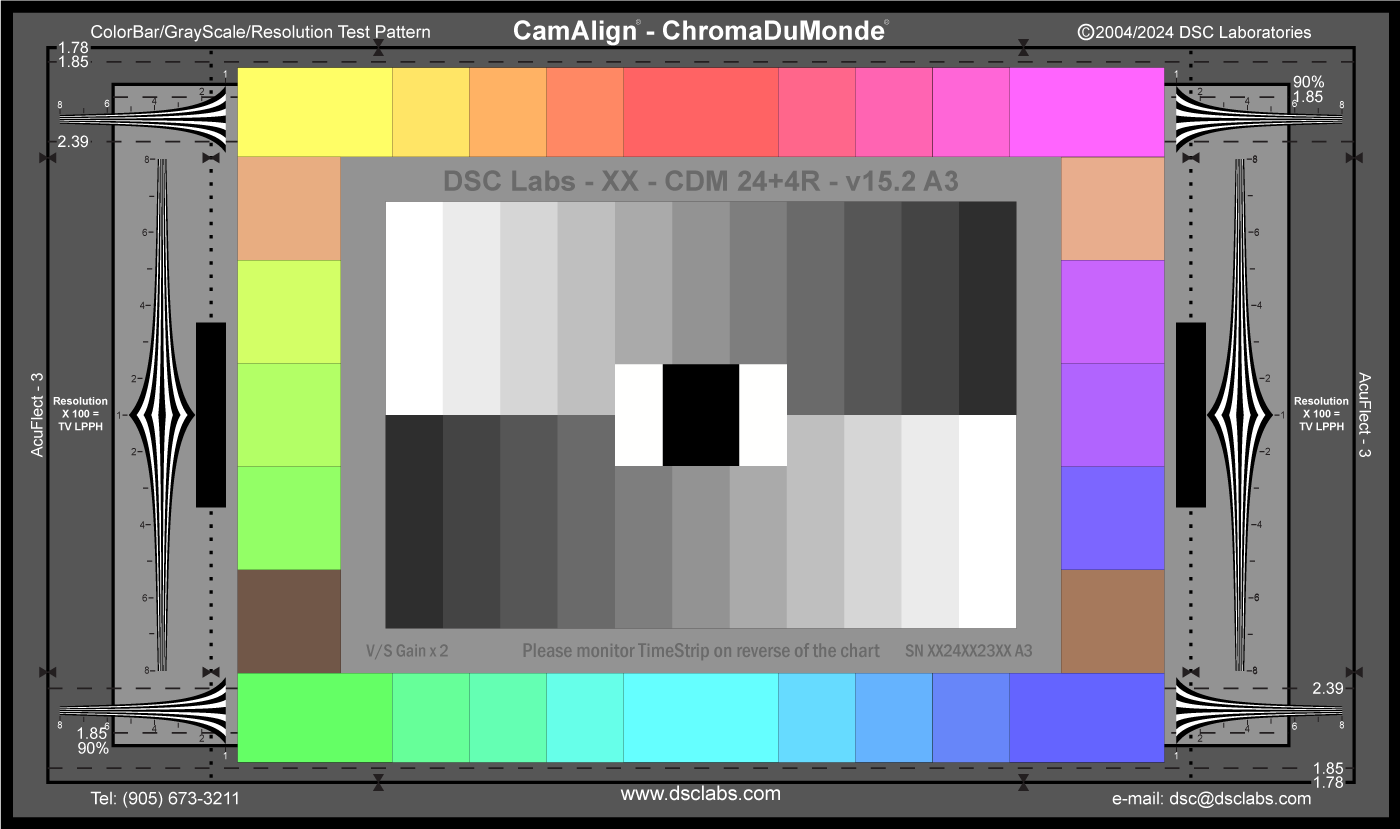

ChromaDuMonde Color Charts Generate DSC’s unique hexagonal Rec. 709 vectorscope display. CDMs also include a precision crossed grayscale for quick adjustment of gammas. CDM’s are invaluable as on-the-set reference in post production.

  • Six Vector Colors
  • plus 18 evenly spaced, intermediate colors
  • plus 4 skin tone reference patches
  • DSC 11-step crossed grayscales
  • 100 IRE white and true black chips
  • Hyperbolic resolution wedges to 800 TV LPPH
  • 16:9 (1.78) and 4:3 framing bowties plus motion picture framing lines for 2.35, 1.85 and 90% of 1.85.

Cavi-Black Option:

Cavi-Black (Cavity Black) offers a neutral, super-black patch for accurate black balancing of video cameras.  This optional accessory is a three-dimensional, black-velvet-lined box, placed behind the cut-away centre black chip on CamAlign charts.

This accessory MUST be included when first ordering a chart as it requires that the chart be mounted on metal with an aperture pre-cut in the centre.

Order with any DSC CamAlign model (in position of center black chip)

  • Provides the ultimate black reference, unobtainable with conventional front lit systems
  • Folds flat for easy transport and storage
  • Can be used in conjunction with the DSC’s CamStand for quick setup and display
