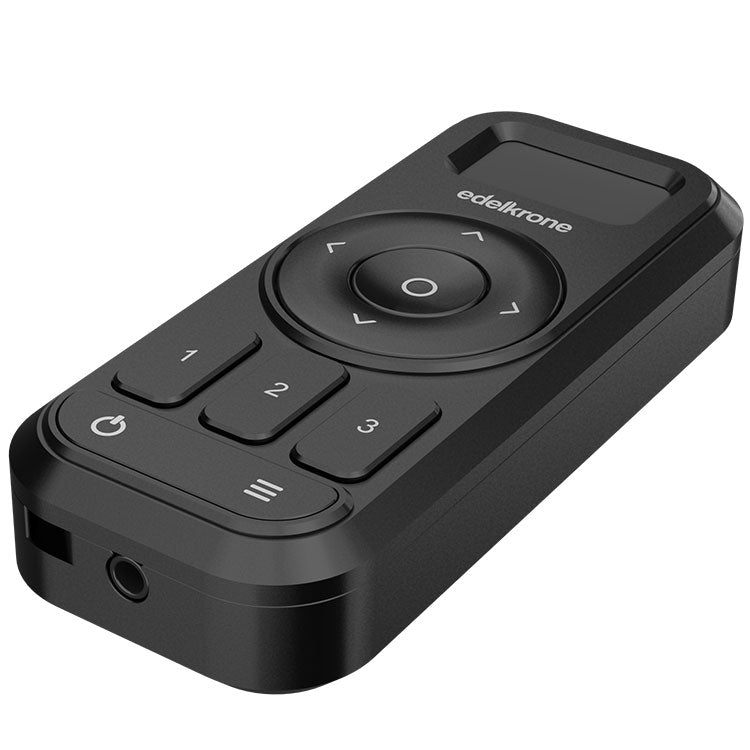

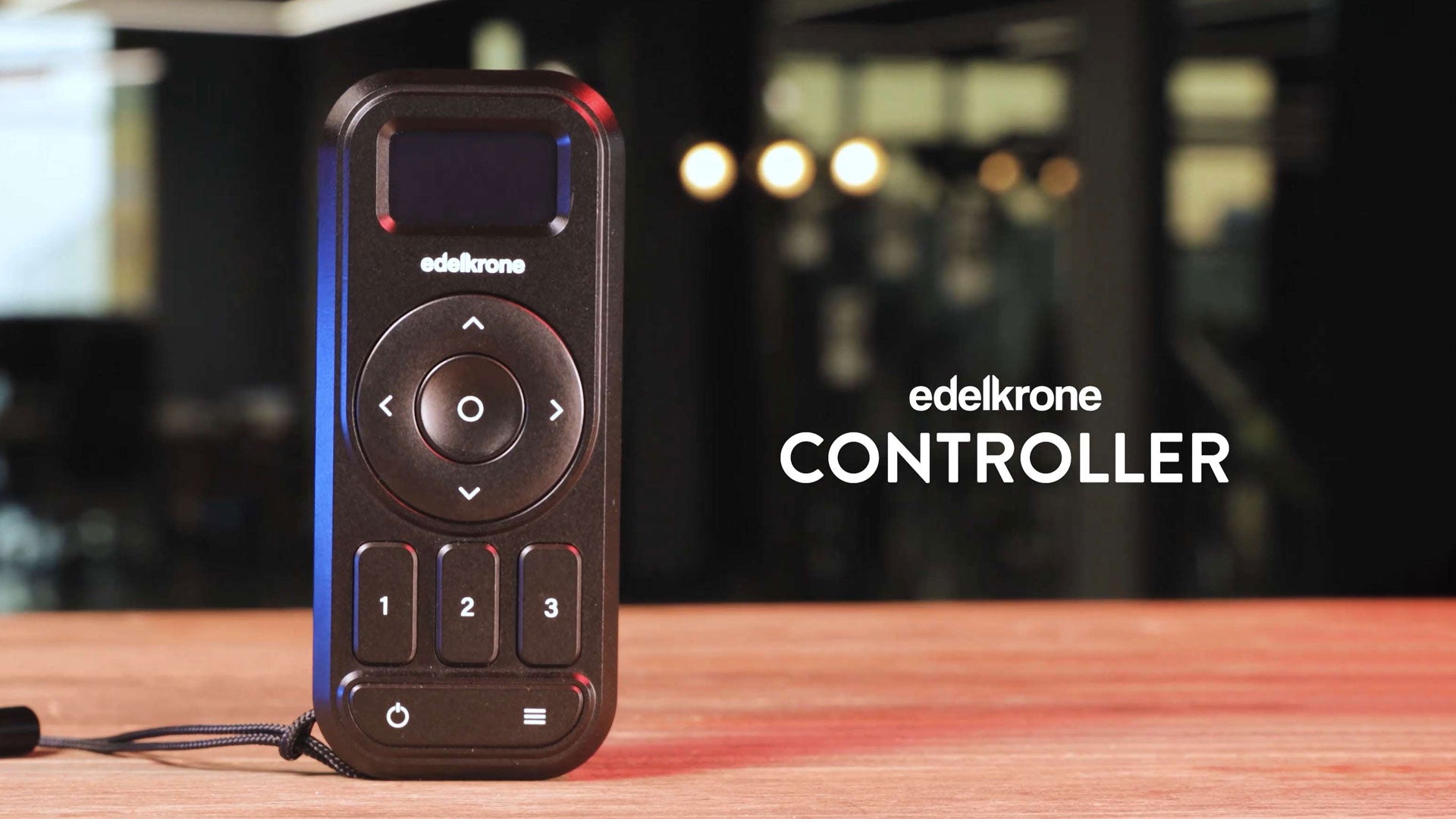

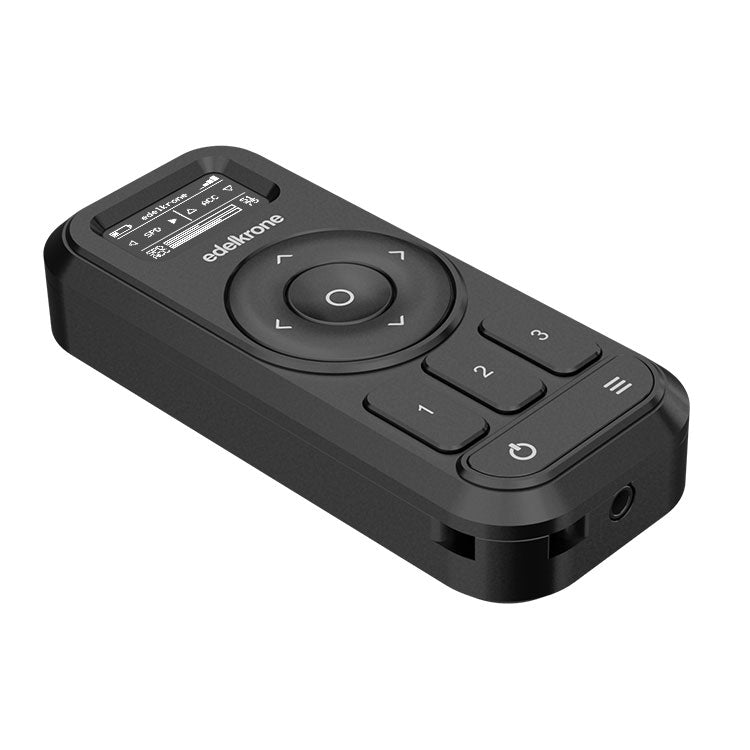

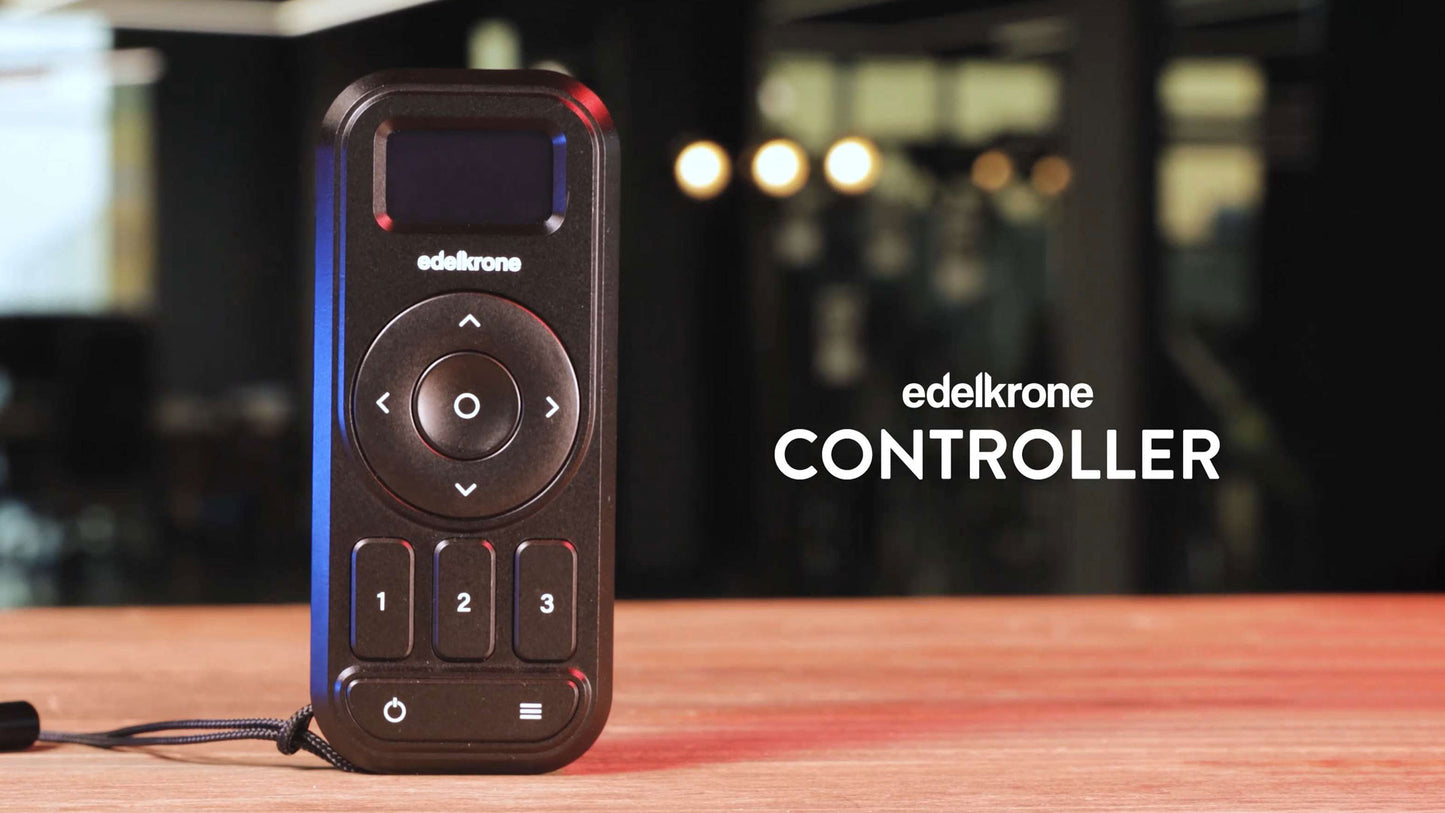

Edelkrone Controller

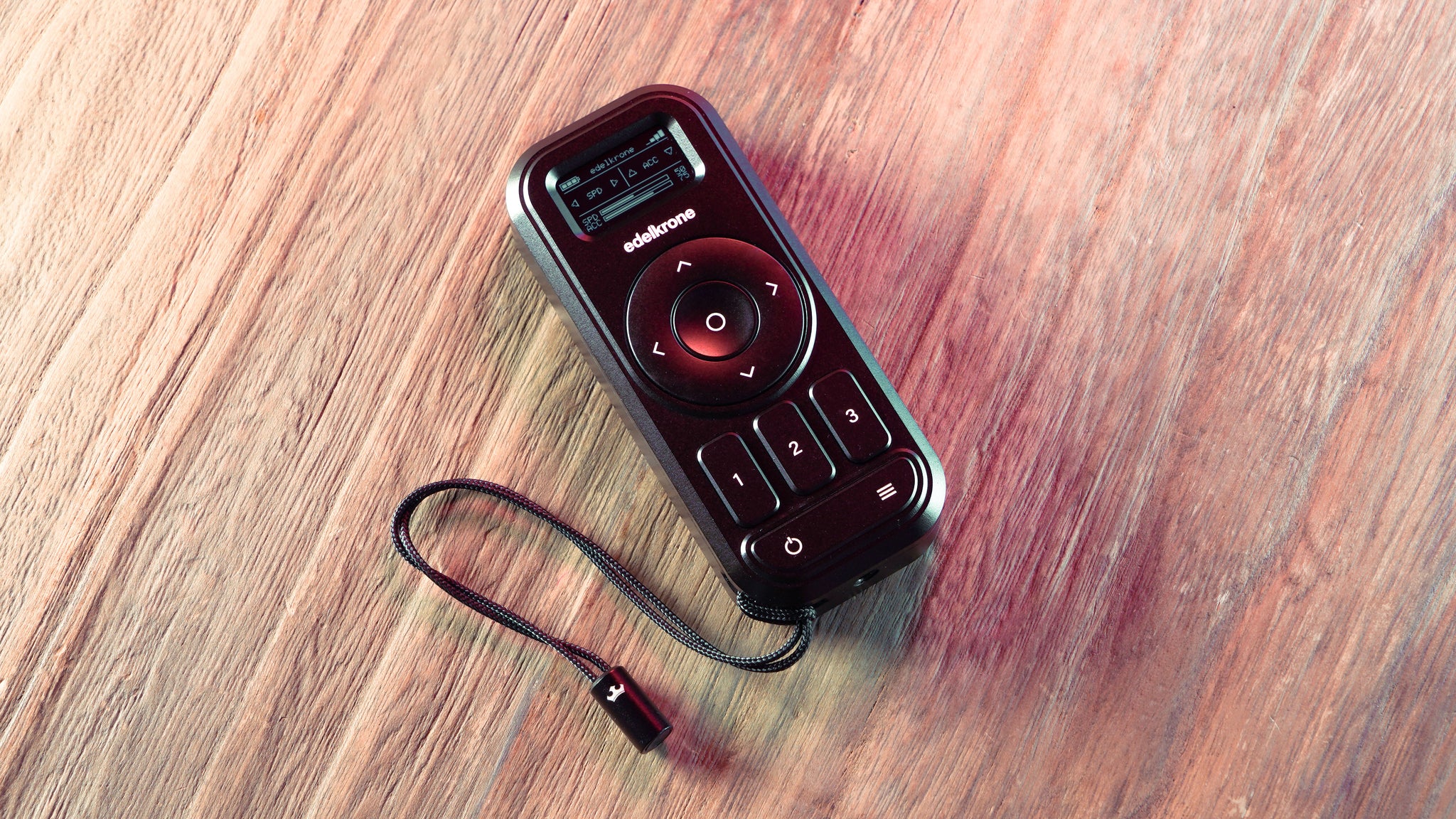

edelkrone Controller, Hand strap

Size

(L x W x H) 3.93 x 1.69 x 0.78 in (100 x 43 x 20 mm)

Product Weight

3.52 oz. (100 gr.)

Power input

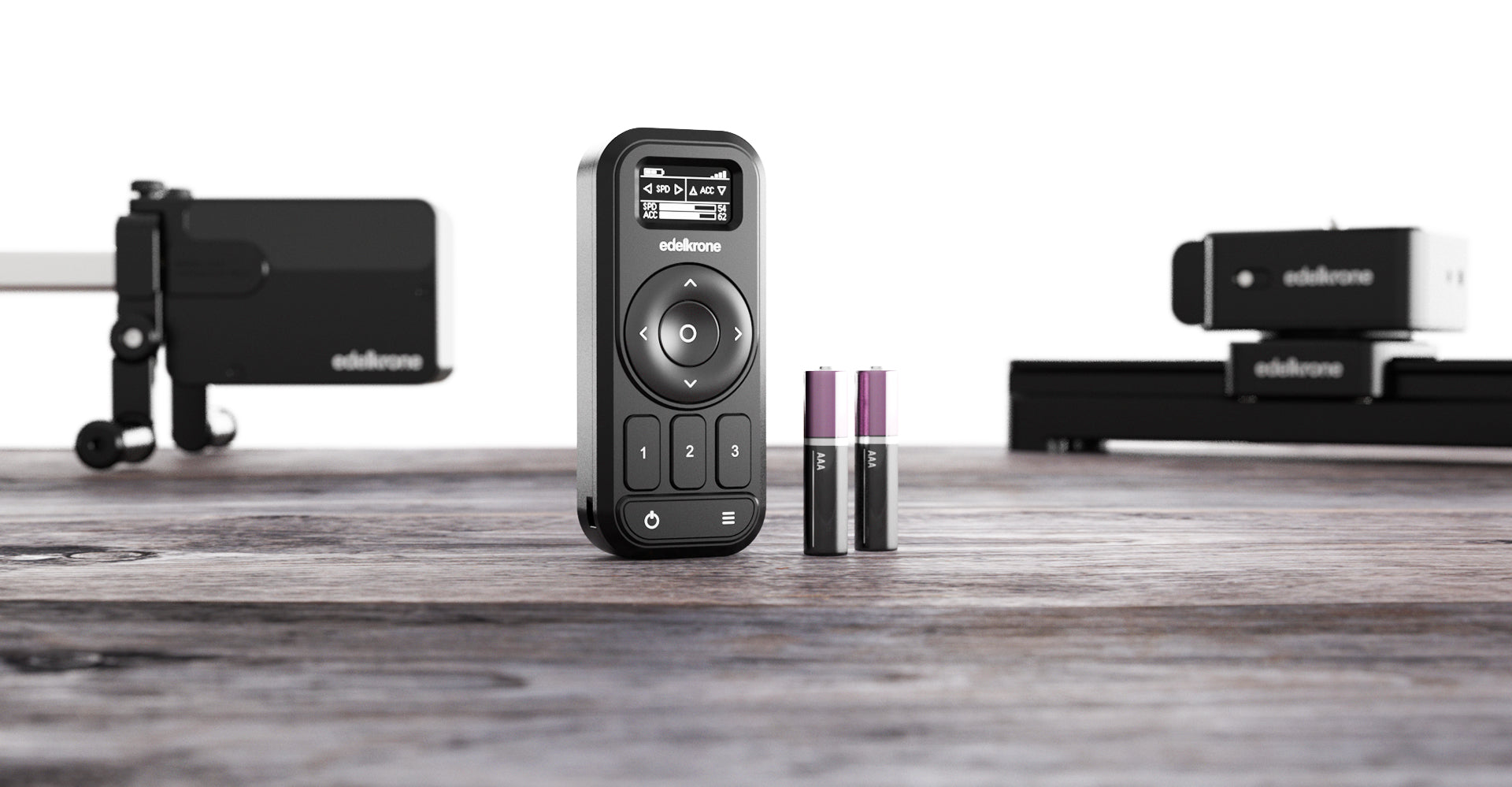

x2 AAA batteries (Batteries are sold separately)

Battery life

4.5 hours continuous operation (with 1100 mah rechargeable x2 AAA batteries)

Operatian Range

Up to 82 ft. (25m.)

Compatibility

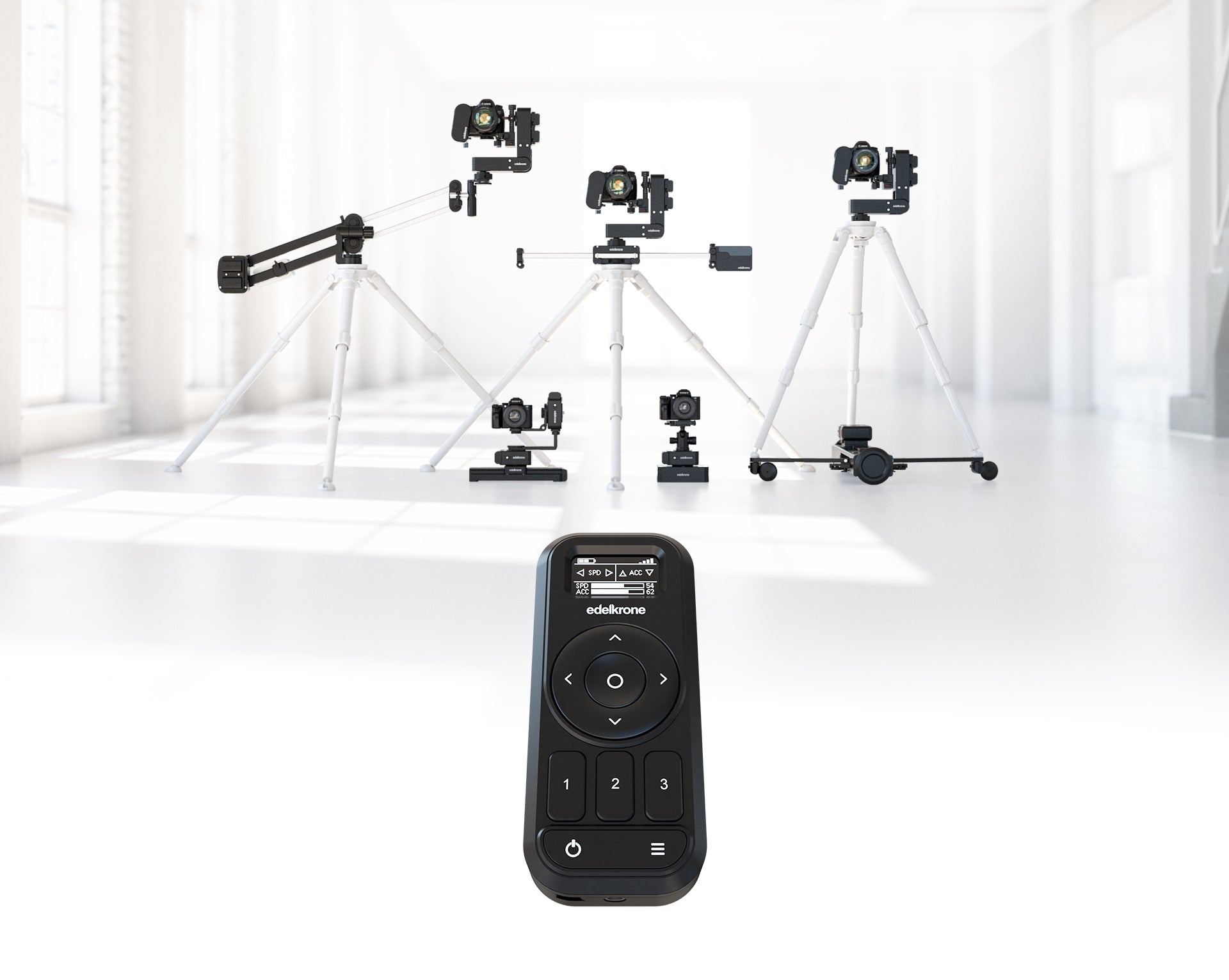

Slide Module v2, JibONE, SliderONE v2, SliderONE PRO v2, HeadONE, HeadPLUS *, HeadPLUS PRO *, DollyONE, DollyPLUS, DollyPLUS PRO

* (with or without Focus Module)

Controller is designed to provide the following basic functions**:

• Manual axis control (slide, swing, pan, tilt, and focus)
• Speed and acceleration adjustment
• Ability to save up to three poses for easy recall
• Transition between poses
• Basic time-lapse setup

**For more advanced features such as automatic target tracking, sequencer mode, record mode, and stop motion, the user will still need access to the edelkrone App.

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

Materials

CNC machined aluminum and stainless steel components
