NBX-DA-2X4-AA
1x8/2x4 Analog Audio Distribution Amplifier
The NBX-DA-2X4-AA is an analog audio distribution amplifier designed for broadcast use. It provides up to 8 copies of the incoming balanced analog audio signal on pluggable terminal block connectors.

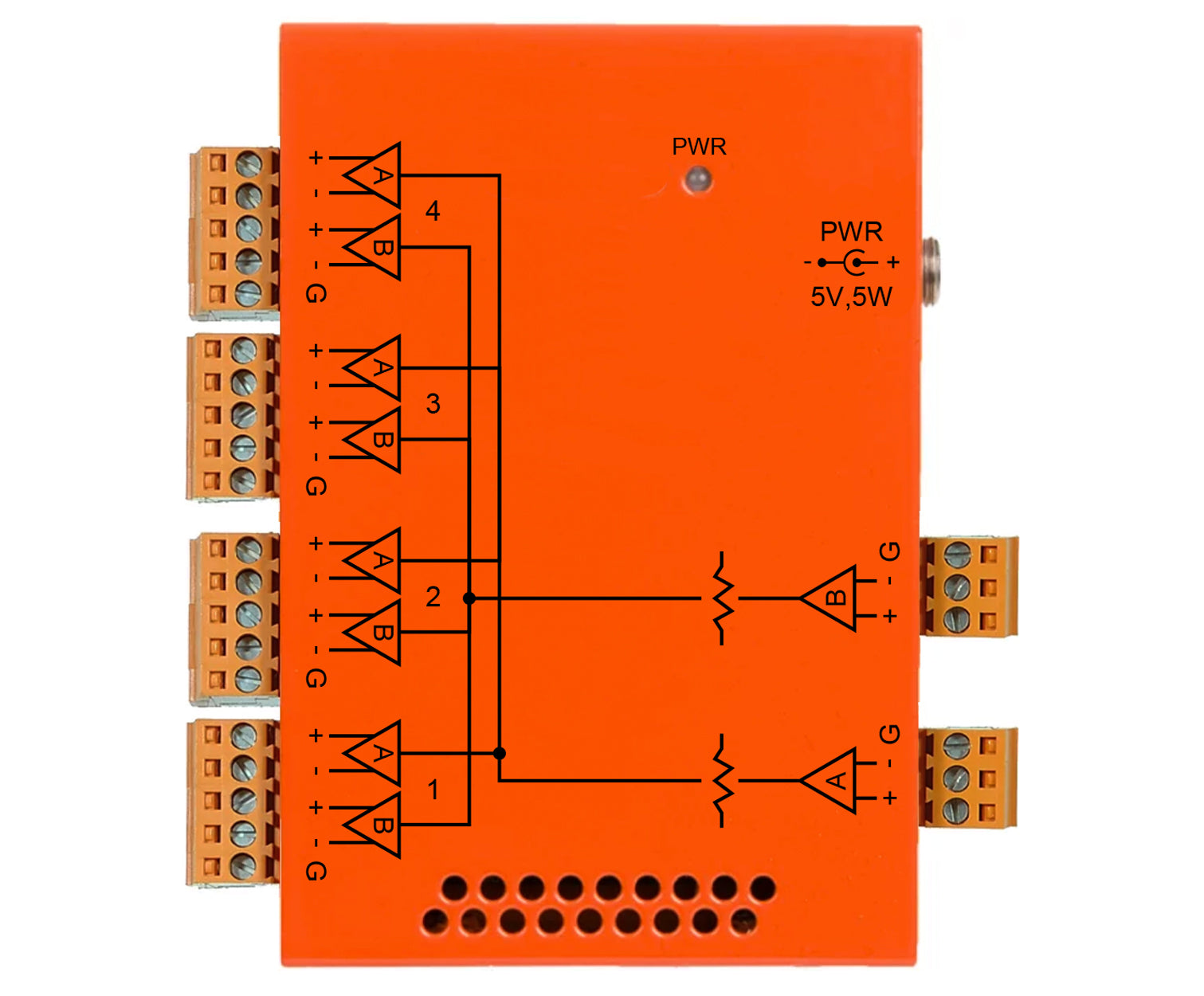

The NBX-DA-2X4-AA has 2 modes of operation either as a mono 1 input 8 output or 2 input 4 output stereo distribution amplifier.

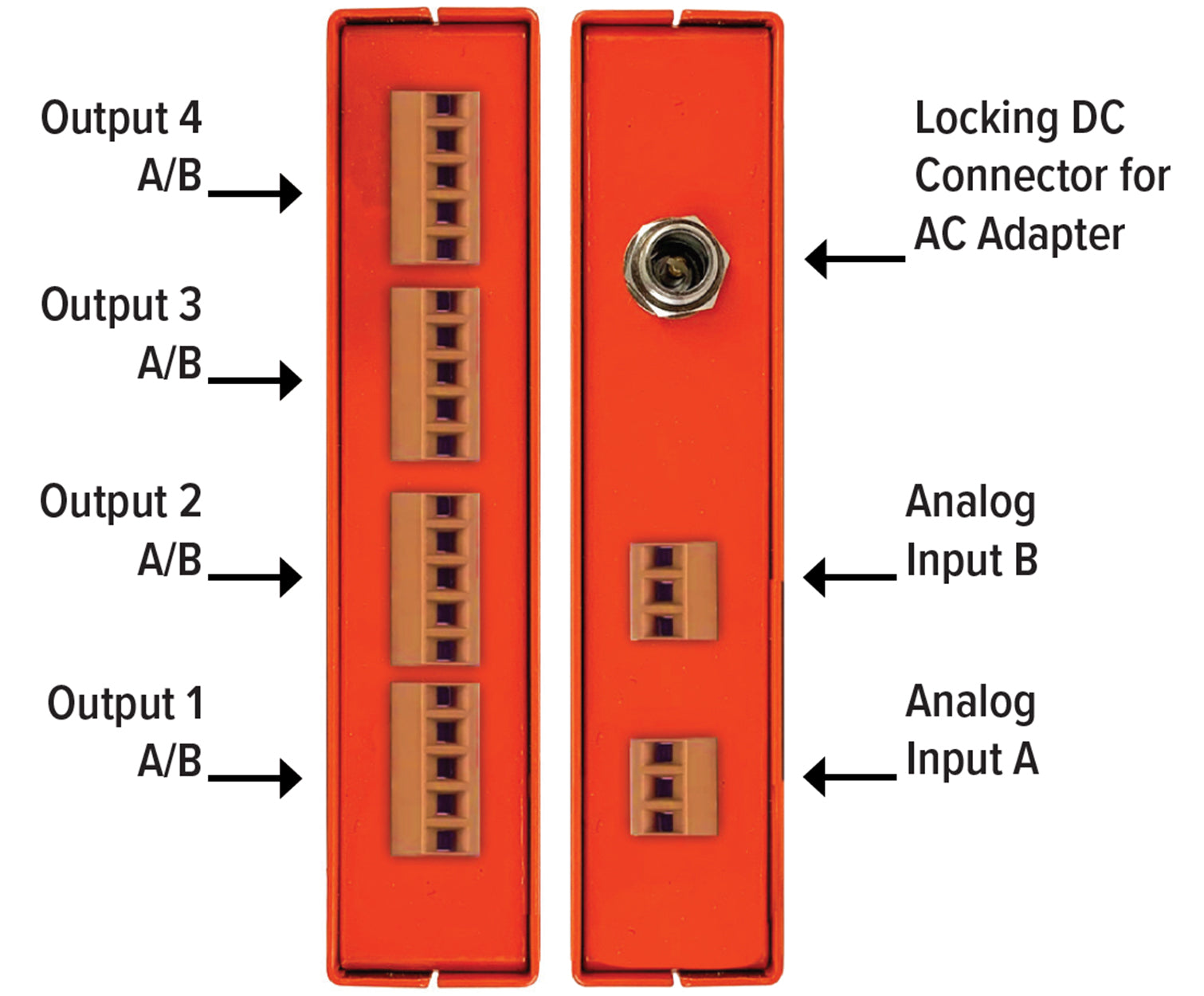

The NBX-DA-2X4-AA has 2 inputs on 3 pin terminal blocks each with an input trim control potentiometer for signal calibration. The outputs on the NBX-DA-2X4-AA are on 5 pin terminal blocks.
An LED located on the front panel is illuminated green when the NBX-DA-2X4-AA is powered.
The NBX-DA-2X4-AA has a rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.
