RED KOMODO-X | 6K Global Shutter- Next evolution in Komodo line

RED KOMODO-X | 6K Global Shutter- Next evolution in Komodo line

Regular price $999,999.00 CAD
Regular price Sale price $999,999.00 CAD
Sale Sold out

SKU:710-0356-00

Package

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

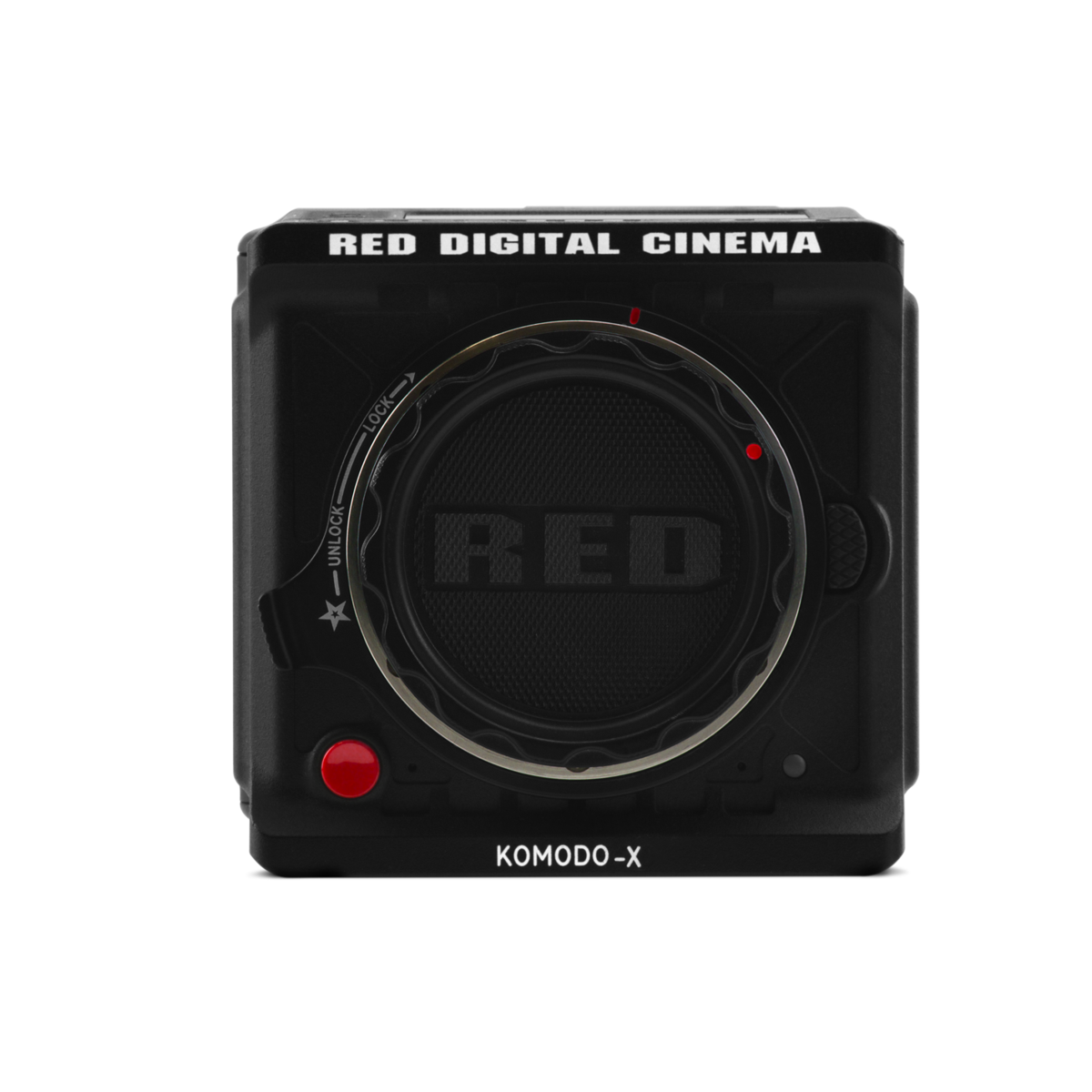

Komodo-X (Body Only):

  • KOMODO-X Camera Body
  • DSMC AC Power Adaptor Pack (150W)
  • RED Logo Sticker​
  • KOMODO-X Information Card (incl. registration and support info)​
  • 1 Year Standard Warranty

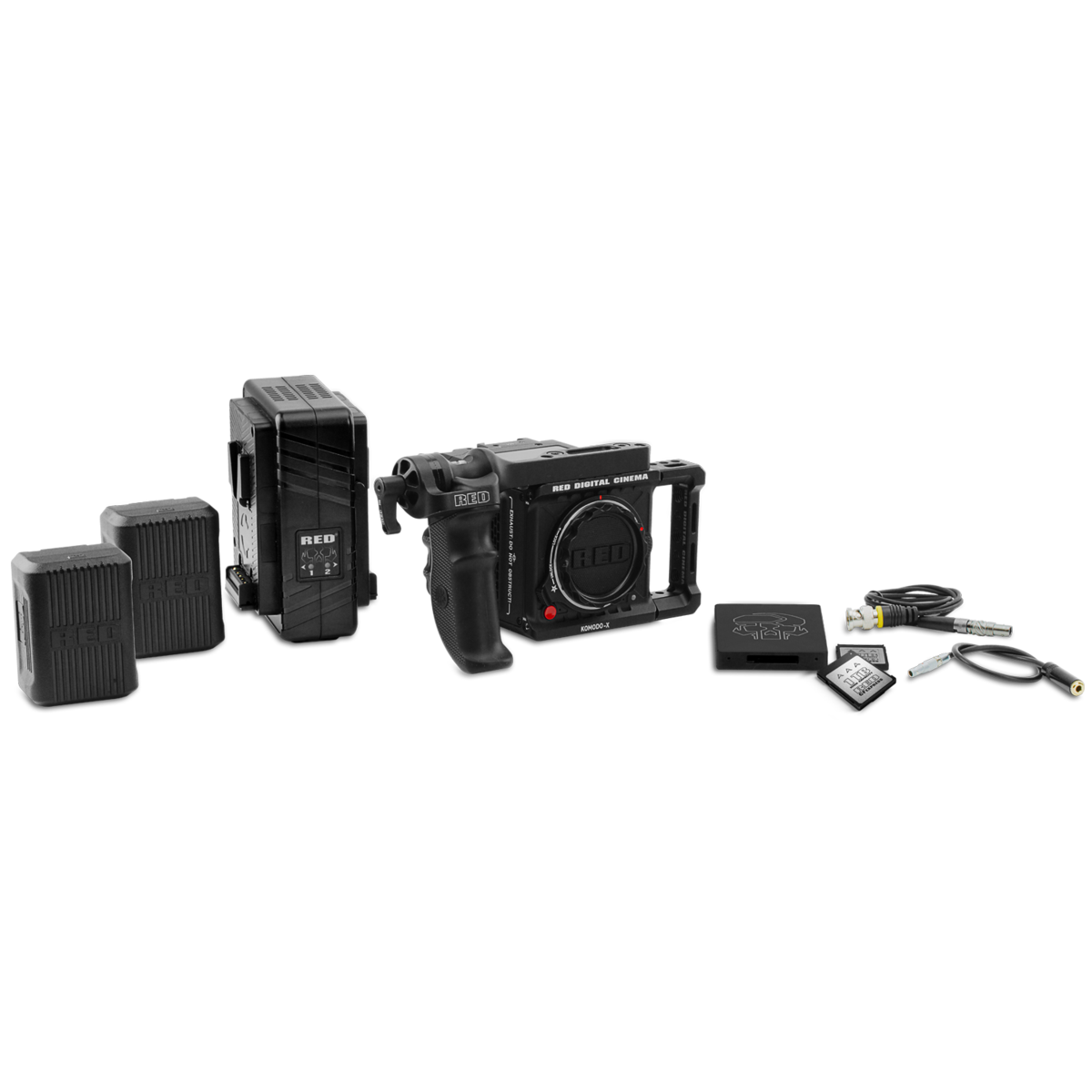

Komodo-X Starter Pack:

  • 1x KOMODO-X Camera System
  • 2x RED PRO CFexpress 1TB
  • 1x RED CFexpress Card Reader
  • 2x REDVOLT NANO-V
  • 1x RED Compact Dual V-Lock Charger
  • 1x KOMODO® Wing Grip
  • 1x KOMODO® Outrigger Handle​
  • 1x DSMC3™ 5-Pin to Single 3.5mm Adapter
  • 1x RED® EXT-to-Timecode Cable 3'
  • 1 Year Standard Warranty (camera only)
  • For Accessory Warranty information, please visit Terms and Conditions of Sale

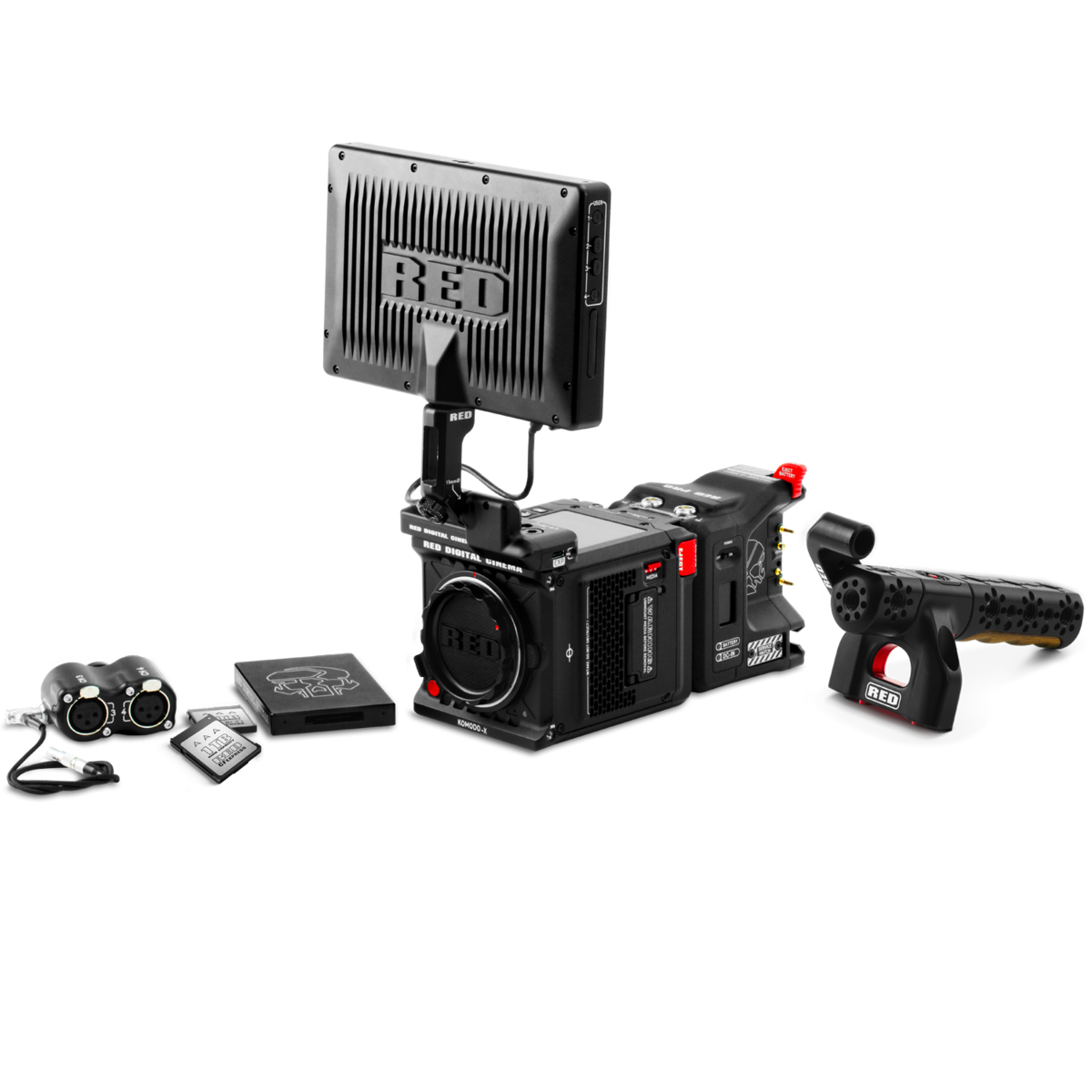

Komodo-X Production Pack (V-Lock):

  • 1x KOMODO-X Camera System
  • 1x DSMC3 RED Touch 7” LCD
  • 2x RED PRO CFexpress 1TB
  • 1x RED CFexpress Card Reader
  • 1x RED Pro V-Lock I/O Module
  • 1x RED Compact Top Handle
  • 1x DSMC3 RED 5-Pin to Dual XLR Adapter
  • 1 Year Standard Warranty (camera only)
  • For Accessory Warranty information, please visit Terms and Conditions of Sale

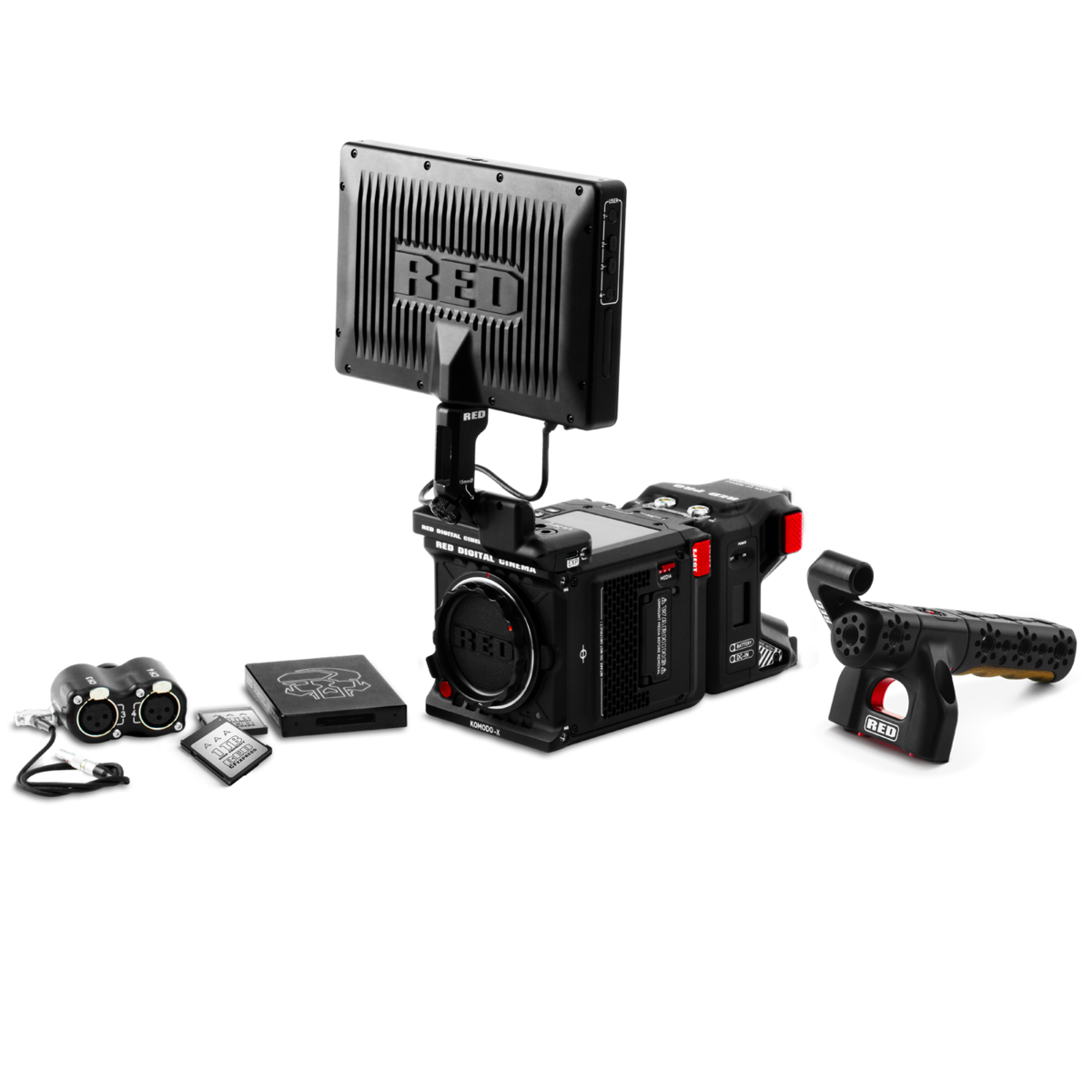

Komodo-X Production Pack (Gold-Mount):

  • 1x KOMODO-X Camera System
  • 1x DSMC3 RED Touch 7” LCD
  • 2x RED PRO CFexpress 1TB
  • 1x RED CFexpress Card Reader
  • 1x RED Pro Gold Mount I/O Module
  • 1x RED Compact Top Handle
  • 1x DSMC3 RED 5-Pin to Dual XLR Adapter
  • 1 Year Standard Warranty (camera only)
  • For Accessory Warranty information, please visit Terms and Conditions of Sale

TECHNICAL SPECIFICATIONS

SENSOR SPECS
SENSOR

KOMODO-X™ 19.9MP Super 35mm Global Shutter CMOS

EFFECTIVE PIXELS

6144 × 3240

SENSOR SIZE

27.03mm x 14.26mm (Diagonal: 30.56mm)

DYNAMIC RANGE

16.5+ stops

KEY FEATURES
LENS MOUNT

Integrated locking RF mount with electronic communication

Supports /i PL lenses with RED RF to PL Adapters

Supports Canon EF Adapter with communication and other adapters based on the RF mount

RECORDING
MAX DATA RATES

Up to 560 MB/s using RED branded or other qualified CFexpress media cards1

REDCODE® RAW
MAX FRAME RATES

80 fps at 6K 17:9 (6144 x 3240)

96 fps at 5K 17:9 (5120 x 2700)

120 fps at 4K 17:9 (4096 x 2160)

240 fps at 2K 17:9 (2048 x 1080)

PLAYBACK FRAME RATES
(PROJECT TIME BASE)

23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

BEST AVAILABLE
REDCODE® SETTINGS

REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps

REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps

REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps

REDCODE® RAW
ACQUISITION FORMATS

6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x

5K 17:9 (5120 x 2700) and 16:9

4K 17:9 (4096 x 2160) and 16:9

2K 17:9 (2048 x 1080)

APPLE PRORES

Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps

GENERAL
CONSTRUCTION

Aluminum Alloy

DIMENSIONS

129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.)

WEIGHT

2.62lbs (without body cap and CFexpress card)

MEDIA TYPE

CFexpress Type B

BATTERY TYPE

Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1

DC POWER INPUT

11-17 V via 6-Pin DC-IN

OPERATING TEMPERATURE

0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE

-20°C to 50°C (-4°F to 122°F)

STORAGE RELATIVE HUMIDITY

0% to 85% non-condensing

FEATURES
COLOR MANAGEMENT

Image Processing Pipeline 2 (IPP2)

Supports 33×33×33 3D LUTs

Supports import and adjustment of CDLs

AUDIO

Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

3.5mm stereo headphone port

AUTOFOCUS

Phase Detect and Contrast

MONITOR OPTIONS

Proprietary Top Accessory Port for Monitoring and Control

Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control

Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes

12G-SDI: Up to 4096 x 2160 4:2:2 for 60p

6G-SDI: Up to 4096 x 2160 4:2:2 for 30p

3G-SDI: Up to 2048 x 1080 4:2:2 for 60p

1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p

SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

ADDITIONAL I/O

Tri-Level Genlock Input via 9-Pin EXT

LTC Timecode Input via 9-Pin EXT

RS232 CTRL (using RCP2) via 9-Pin EXT

IP CONNECTED

Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading

Ethernet via USB Type-C for camera control, video preview, and media offloading

MJPEG 1080p live stream accessible through Wi-Fi and USB Type-C.

PTP for frame level synchronization

R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter

SOFTWARE
RED CONTROL &
RED CONTROL PRO

Access full camera controls and live preview from iOS or Android devices.

Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.

Standard app available from the Apple App Store and Google Play Store.

RED Control Pro available via Apple App store only and requires additional purchase.

RED Control works wirelessly or wired via USB Type-C
