MSE - Matthews GOBO Plate With Baby Pin

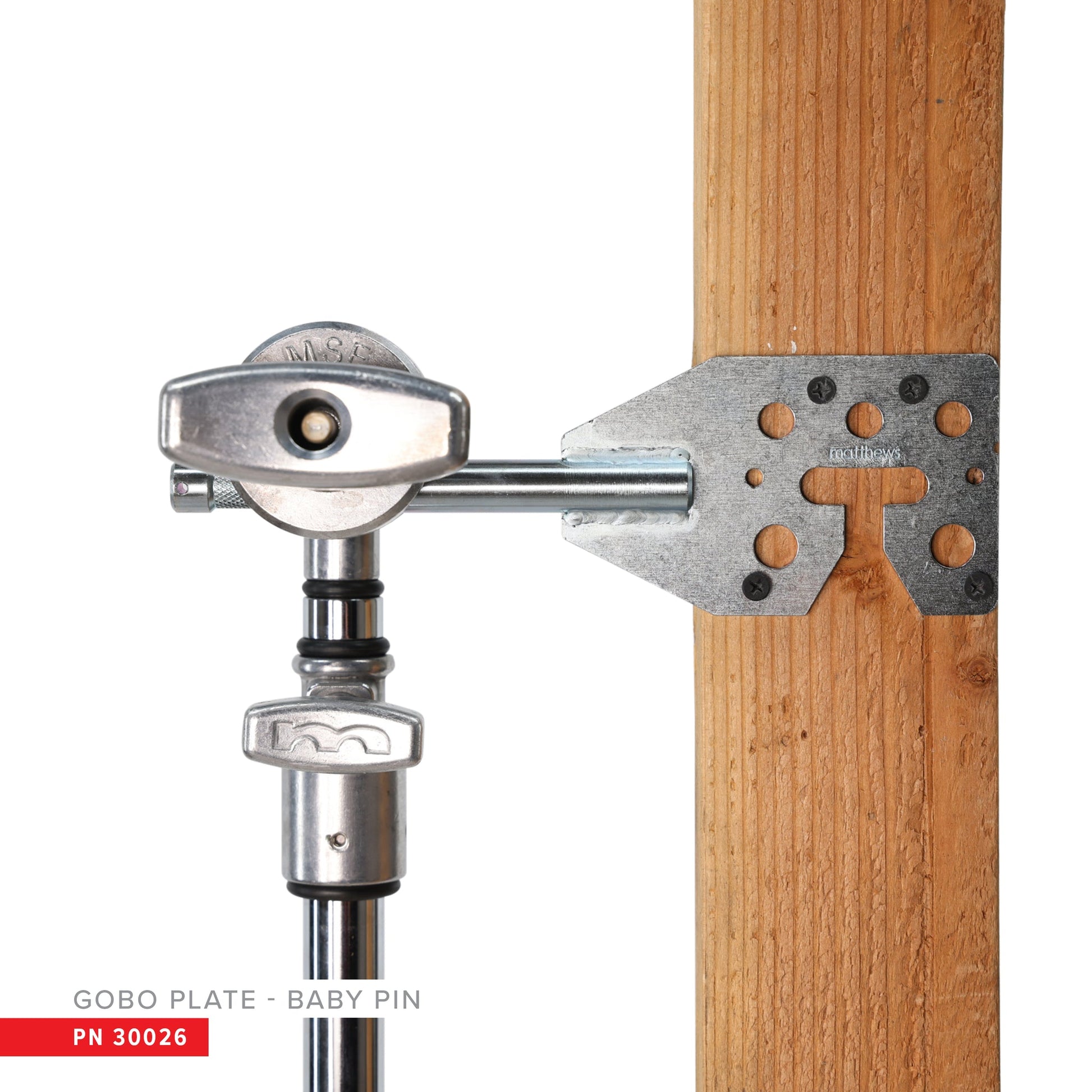

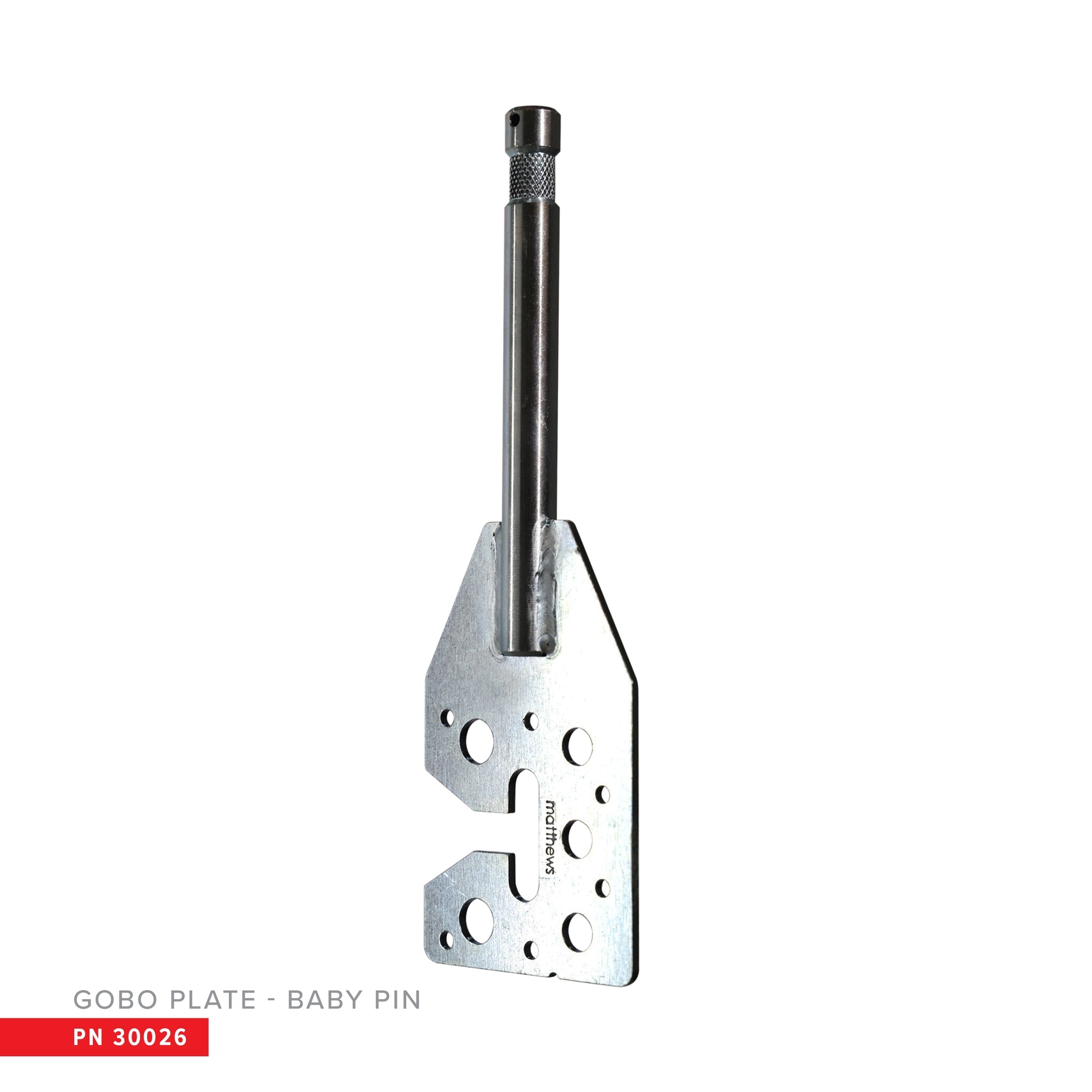

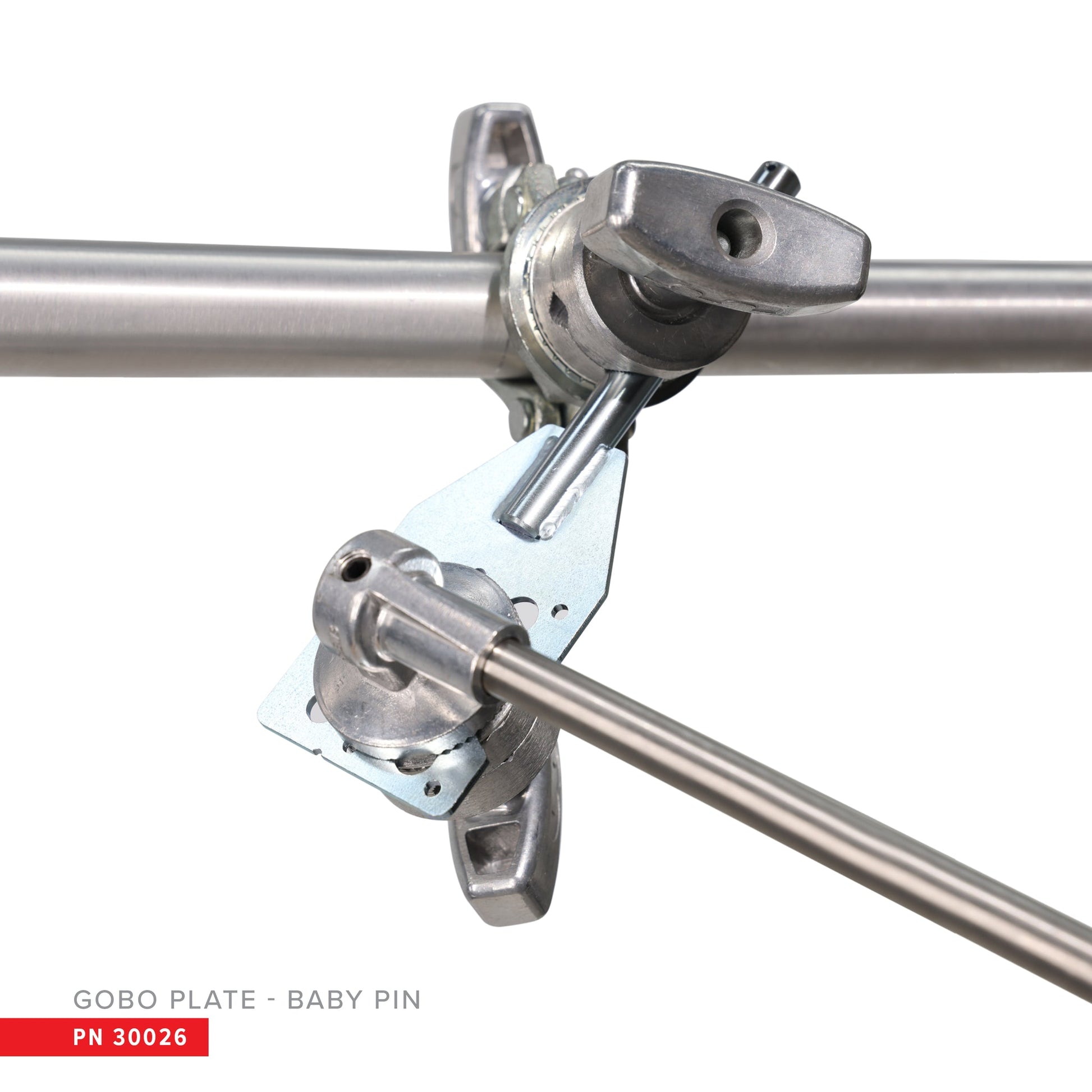

Matthews Studio Equipment, Inc. adds to the Gobo Plate™ line with another clever product featuring the industry standard 5/8” pin debuted by Matthews decades ago. Gobo Plate™ Baby Pin is designed to mount onto standard 2.5” Grip heads; bolt onto Cheeseplates; and screw or nail onto set walls, Apple Boxes, lumber and beams; with its well-thought-out Gobo Plate bracket. Add an industry standard 5/8” Baby Pin wherever it’s needed, whether supporting a lighting unit or a grip modifier, or simply trying to join gear in unconventional angles.

CHARACTERISTICS

• T-slot with V centering quickly secures grip head mounting
• Two each ½” diameter, three each 3/8” diameter, and six each ¼” diameter spaced circular cutouts allow mounting to heads, lumber, beams, set walls, and more.
• Safety hole on baby pin allows mounted units to be secured.
• Carabiner hole placement prevents plate from coming out of grip head as well as allowing plate to be safely tethered when rigged.
• Pin finds center when used with a grip head as a drop down.
• Knurled baby pin ensures whatever is being mounted stays put.

SPECIFICATIONS

• Machined out of a single sheet of 1/8” thick steel with a welded baby pin
• Clear zinc coating
• Weight: 13.1 oz.
• Dimensions: 3” x 9.5”
