AJA Bridge Live IP

AJA Bridge Live IP

High Density SMPTE ST 2110 IP Streaming Solution

For full specifications in PDF, please click HERE

• BRIDGE LIVE IP supports bidirectional multi-channel ST 2110-20 UHD (up to 4x channels) and HD (up to 16x channels)
• ST 2110-30 audio support: up to 64 channels per stream at 48 or 96 kHz
• Bidirectional Encode/Decode/Transcode Codecs: H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), NDI®*, JPEG 2000* (TR-01), and JPEG XS* (TR-07)
• Synchronous Multi-Channel / Multi-System Transport Backhaul or Cloud Delivery
• Protocols: SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
• Transports: MPEG-TS, NDI*, AVC-TS, Fragmented MP4
• NDI 10-bit HDR manual marking, multiple Discovery Server and NDI Groups support
• Multibitrate/format distribution, ABR Ladder Profiles for OTT hand-off
• Selectable profiles for 8, 10, and 12-bit, 4:2:2 and 4:2:0 depending on the codec
• Unmatched metadata capabilities including ST 2110-40, MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21), H.264 SEI)
• Hitless Redundancy via ST 2022-7 for ST 2110 and MPEG-TS as well as SRT Network Bonding

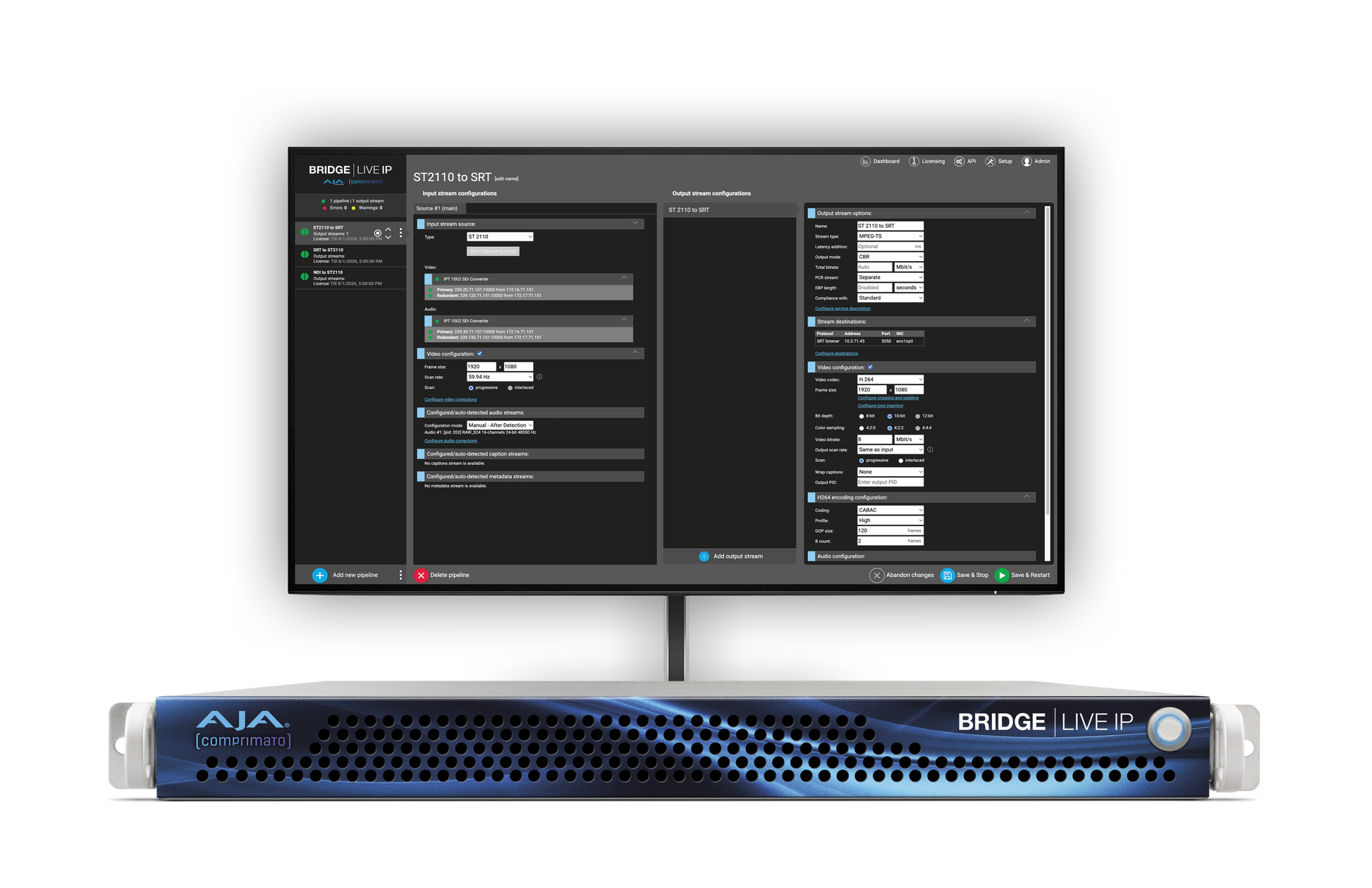

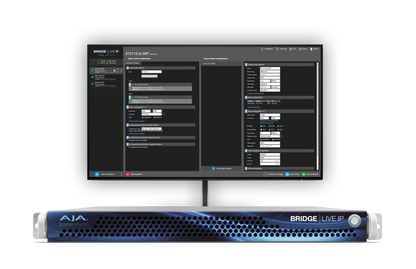

• Remote WebUI or local GUI for easy administration, control, and operation
• Monitoring, Control, and Automation supported via REST API or SNMP

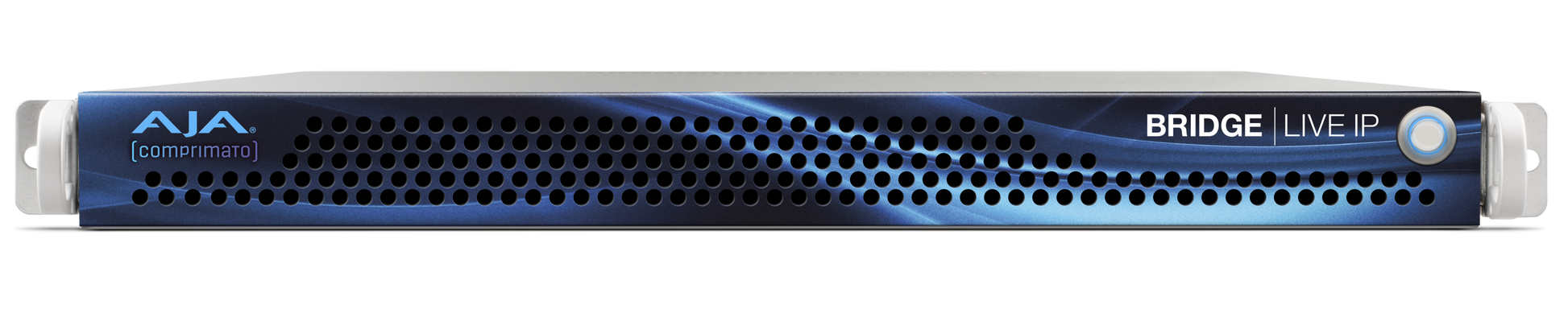

• Turnkey 1RU rack-mountable, enterprise class form factor

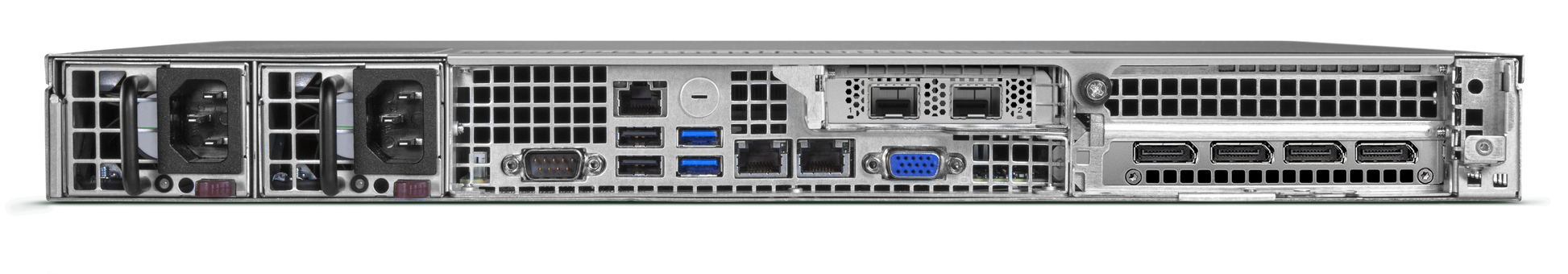

• Dual 10 GigE interface for configuration, NMOS control, compressed transport
• Dual 10/25GigE SFP cages for in-band NMOS control and ST 2110 transport**
• Dual power supplies for critical application redundancy
• Three-year warranty option to extend hardware warranty to five-years, with active Maintenance License

*NDI, JPEG 2000, and JPEG XS I/O options are available as purchasable licenses.

**SFPs not included
