Atomos Ninja Phone
Atomos Ninja Phone
SKU:ATOMNJPB01

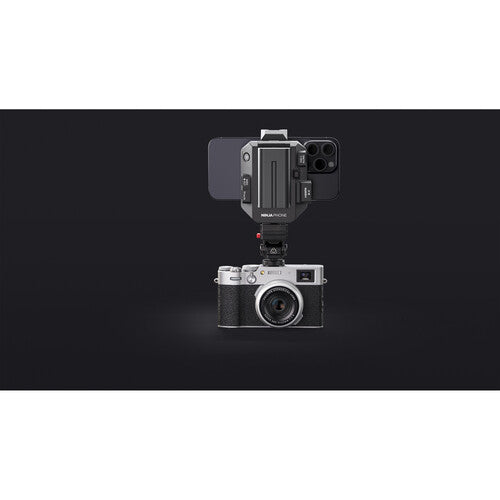

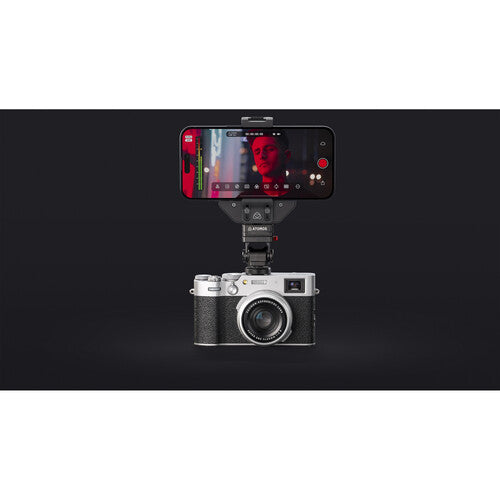

Now your phone can be a Ninja too

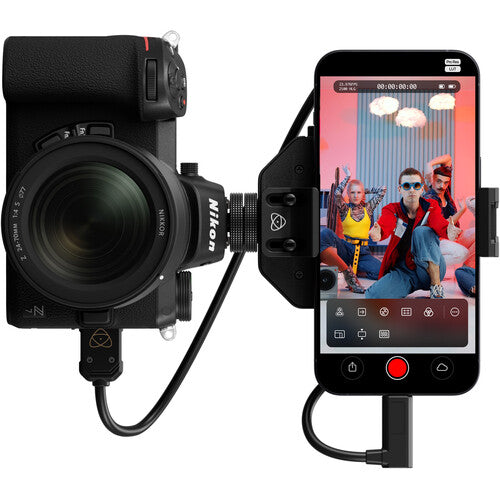

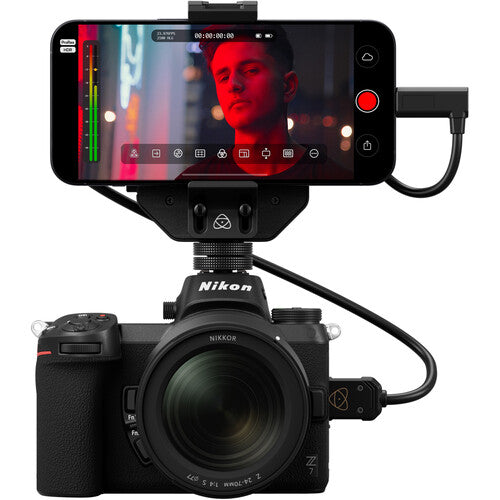

Turn your smartphone into a high‑end 10‑bit recorder, monitor and streamer for your pro HDMI video camera.
Tech Specs
Video
Video Input Format
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps
720p 60 / 59.94 / 50fps
Video CODEC
ProRes* HQ / ProRes* 422 / ProRes* LT / ProRes* Proxy / H.265 Main 10 / H.265 8b / H.264 8b
Video Input Port
HDMI-A
Video Output Port
USB 3.1 Gen1
ProRes* HQ / ProRes* 422 / ProRes* LT / ProRes* Proxy / H.265 Main 10 / H.265 8b / H.264 8b
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps
720p 60 / 59.94 / 50fps
*iPhone only
Audio
HDMI
2 Channel 48KHz PCM
USB-C Mic
Matches Microphone Sample Rate
Locks Audio to Video
Power
USB Power In
USB-C 5V 3A – Ninja Phone charges phone and accessories when attached
Accessory Port
USB-C 5V/1A + USB 3.0 Data
Battery Compatibility
NP-F550 / F750 / F970 – Ninja Phone charges phone and accessories when attached
2.4W (without charging iPhone)
4W (with iPhone 15 Pro)
Power Consumption
10W (with iPad Air Gen5)
Operating Environment Temperature
0℃~40℃
Recommended 35℃ operating with iPhone
Dimensions
Height
110.7mm
Width
85.4mm
Depth
42.4mm
Weight
Ninja Phone
149g / 5.2 ounces
iPhone 15 Pro
187g / 6.6 ounces
iPhone 15 Pro Max
221g / 7.81 ounces
Silicon
Chip
AtomIC 5
Mounting
Aluminium
1/4″/20 with guide pins
Screen
iPhone Monitor Specs
Super Retina XDR display
6.7‑inch (diagonal) all‑screen OLED display
2796‑by‑1290-pixel resolution at 460 ppi
Dynamic Island
Always-On display
ProMotion technology with adaptive refresh rates up to 120Hz
HDR display
True Tone
Wide color (P3)
Haptic Touch
2,000,000:1 contrast ratio (typical)
1000 nits max brightness (typical); 1600 nits peak brightness (HDR); 2000 nits peak brightness (outdoor)
Fingerprint-resistant oleophobic coating
Support for display of multiple languages and characters simultaneously
Screen Weather Proofing
iPhone Splash, Water, and Dust Resistant
Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529
iPhone Silicon
A17 Pro
New 6‑core CPU with 2 performance and 4 efficiency cores
New 6‑core GPU
New 16‑core Neural Engine
iPhone Recording
Video recording w/Ninja Phone
Video formats recorded: HEVC, H.264, and ProRes
1080p HD video recording at 25 fps, 30 fps, or 60 fps
720p HD video recording at 30 fps
ProRes video recording up to HDp60 Internal
Log video recording
iPhone Connectivity
Wireless
5G (sub‑6 GHz and mmWave) with 4×4 MIMO
Gigabit LTE with 4×4 MIMO and LAA
Wi‑Fi 6E (802.11ax) with 2×2 MIMO
Bluetooth 5.3
*Ninja Phone has no wireless connectivity
