Physical:
Dimensions (W x H x D mm):
42mm x 67mm x 120mm (TX & RX)
Weight:
231gms (TX & RX)
Mount points:
1 x 1/4-inch 20 screw mount on bottom of device
Environmental:
Ambient operating temperature:
Up to 50 degrees Celsius
Construction & Control:
Body:
Aluminium alloy,
Rotary control:
For channel selection
Power switch:
On/off
Power:
Input voltage:
9-16V
Operating power:
4W (TX & RX)
Compatible batteries:
NP-F970/750/550 battery (not included)
Built in battery:
No
Display:
Resolution:
128 x 64 pixels
Size:
21.8mm x 10.8mm

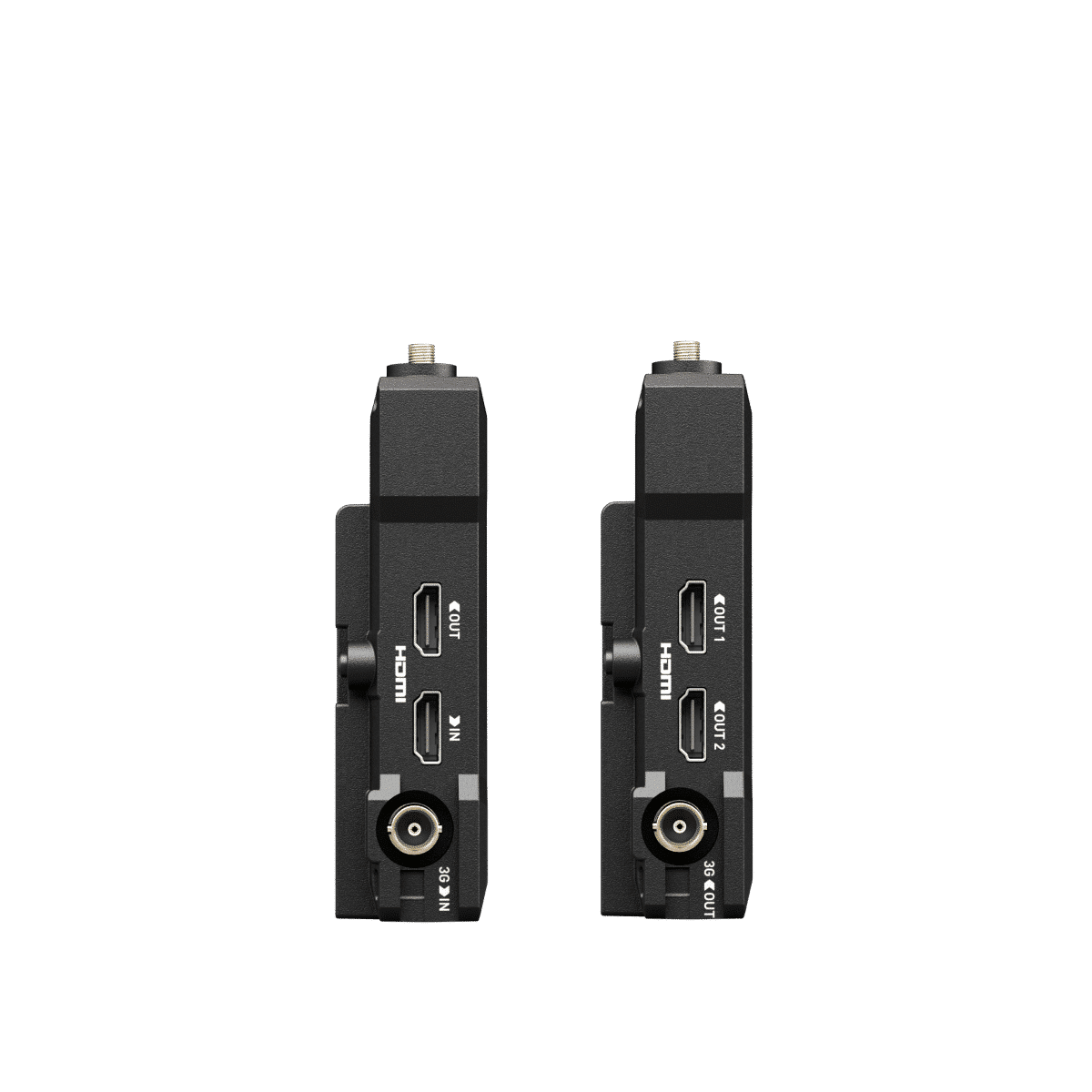

Video Input/Output:
TX:
1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through
RX:
1 x 3G-SDI output and 2 x HDMI dual output
Wi-Fi:
Frequency:
5GHz
Channels:
9 (CH0-CH08)
Latency:
60ms
Transmission distance (line of sight):
Up to 300m (985ft)
Audio In/Out:
Audio Format:
PCM dual channel
Resolution & Frame Rates Supported:
HDMI
4KP30, 4KP25 (converted to 4KP30), 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50
3G-SDI:
1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50
