Canon Cine Prime Lenses - RF Mount

Specifications in detail

• Image Circle
  Φ43.3 mm
• Mount
  RF Mount

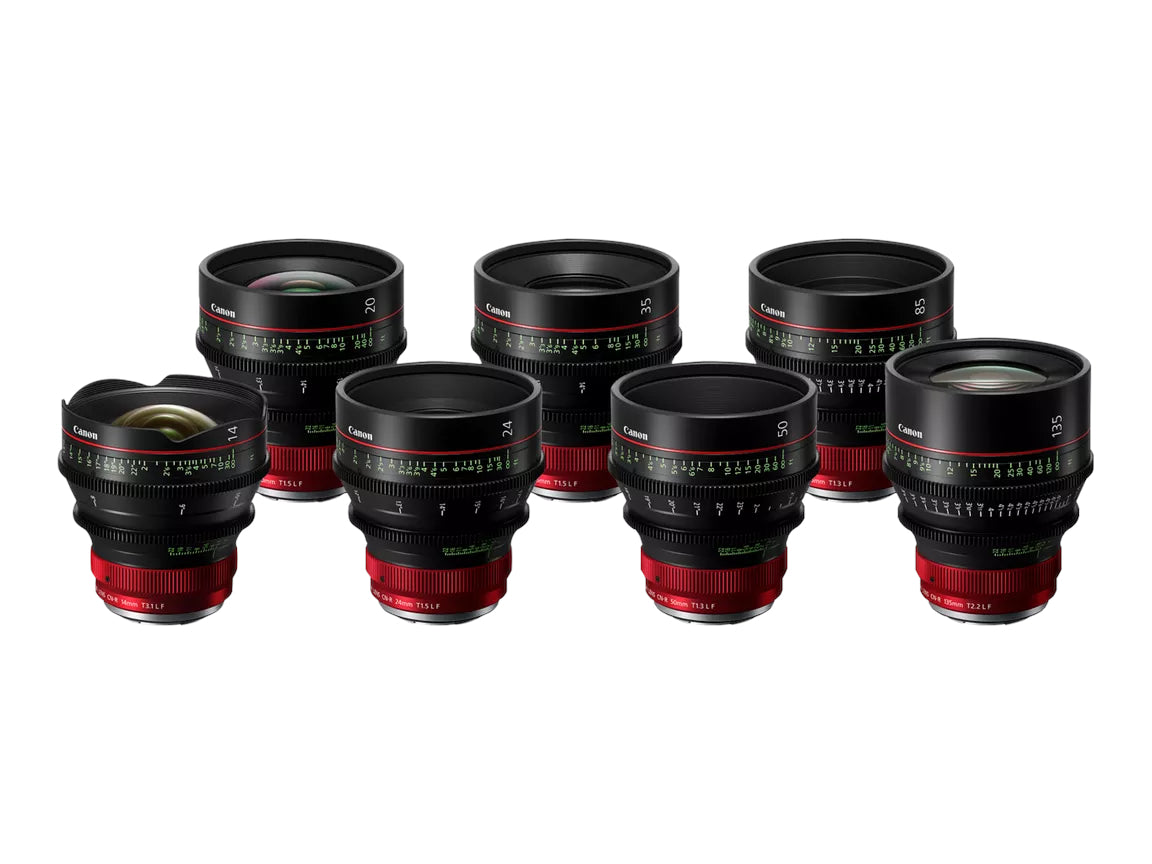

• Focal Length
  CN-R 14mm T3.1 L F
  CN-R 20mm T1.5 L F
  CN-R 24mm T1.5 L F
  CN-R 35mm T1.5 L F
  CN-R 50mm T1.3 L F

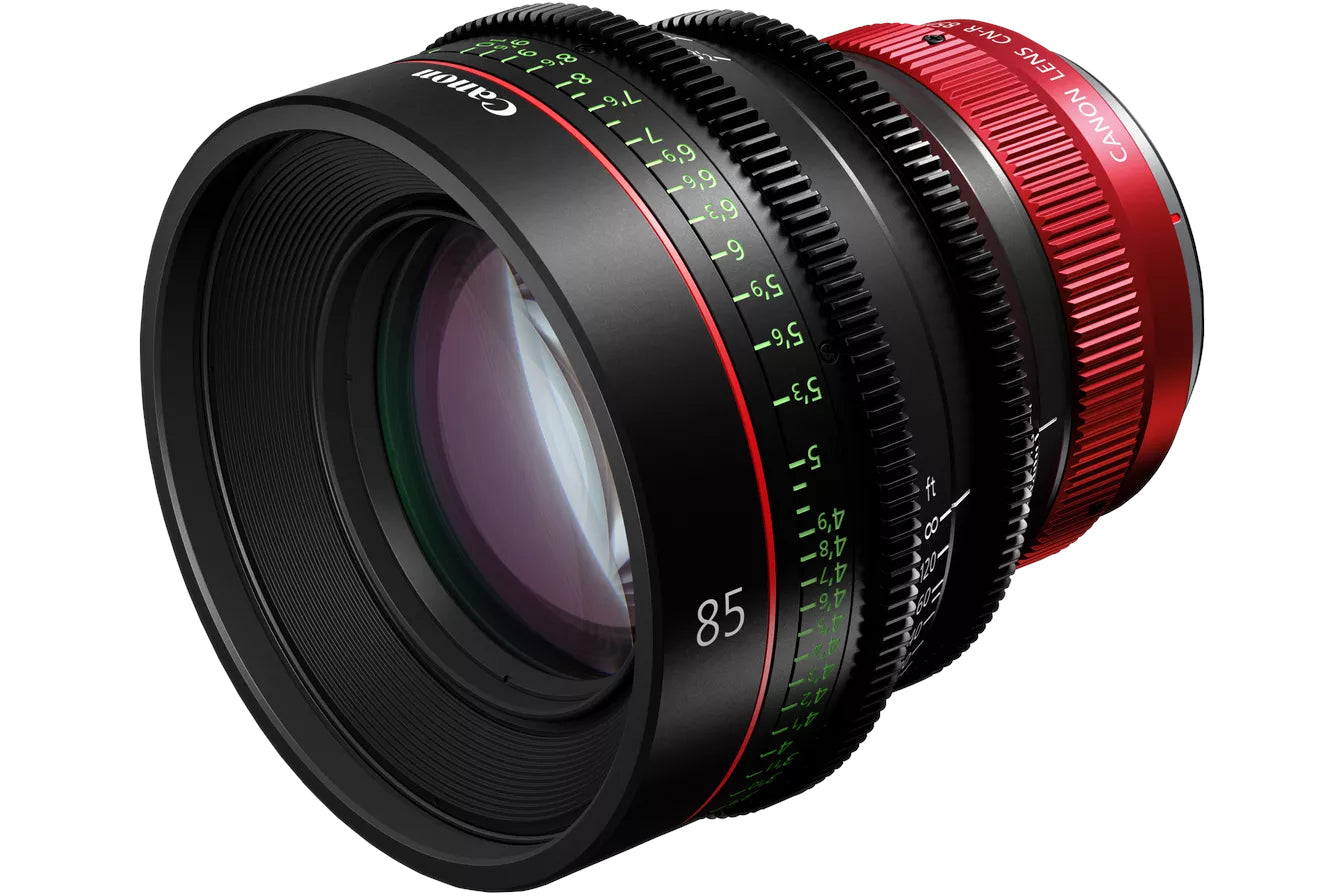

  CN-R 85mm T1.3 L F
  CN-R 135mm T2.2 L F
• Maximum Diameter Ratio (T-Number)
  T 3.1 (CN-R 14mm T3.1 L F X)
  T 1.5 (CN-R 20mm T1.5 L F X)
  T 1.5 (CN-R 24mm T1.5 L F X)
  T 1.5 (CN-R 35mm T1.5 L F X)
  T 1.3 (CN-R 50mm T1.3 L F X)
  T 1.3 (CN-R 85mm T1.3 L F X)
  T 2.2 (CN-R 135mm T2.2 L F X)
• Number of Iris Blades
  11 blades
• Angle View
  Aspect ratio 1.5:1
  Screen dimensions 36.0 × 24.0mm
  104.3° x 81.2° (CN-R 14mm T3.1 L F X)
  84.0° x 61.9° (CN-R 20mm T1.5 L F X)
  73.7° x 53.1° (CN-R 24mm T1.5 L F X)
  54.4° x 37.8° (CN-R 35mm T1.5 L F X)
  39.6° x 27.0° (CN-R 50mm T1.3 L F X)
  23.9° x 16.1° (CN-R 85mm T1.3 L F X)
  15.2° x 10.2° (CN-R 135mm T2.2 L F X)

  Aspect ratio 1.78:1
  Screen dimensions 24.6 × 13.8mm
  82.6° x 52.5° (CN-R 14mm T3.1 L F X)
  63.2° x 38.1° (CN-R 20mm T1.5 L F X)
  54.3° x 32.1° (CN-R 24mm T1.5 L F X)
  38.7° x 22.3° (CN-R 35mm T1.5 L F X)
  27.6° x 15.7° (CN-R 50mm T1.3 L F X)
  16.5° x 9.3° (CN-R 85mm T1.3 L F X)
  10.4° x 5.9° (CN-R 135mm T2.2 L F X)
• Minimum Shooting Distance
  0.2 m / 8 (CN-R 14mm T3.1 L F X)
  0.3 m / 12 (CN-R 20mm T1.5 L F X)
  0.3 m / 12 (CN-R 24mm T1.5 L F X)
  0.3 m / 12 (CN-R 35mm T1.5 L F X)
  0.45 m / 18 (CN-R 50mm T1.3 L F X)
  0.95 m / 3'2 (CN-R 85mm T1.3 L F X)
  1 m / 3’4 (CN-R 135mm T2.2 L F X)
• Shooting Range at Closest Approach
  Aspect ratio 1.5:1
  Screen dimensions 36.0 × 24.0mm
  24.8 x 16.5 cm (CN-R 14mm T3.1 L F X)
  33.8 x 22.5 cm (CN-R 20mm T1.5 L F X)
  28.8 x 19.2 cm (CN-R 24mm T1.5 L F X)
  20.1 x 13.4 cm (CN-R 35mm T1.5 L F X)
  24.9 x 16.6 cm (CN-R 50mm T1.3 L F X)
  34.3 x 22.9 cm (CN-R 85mm T1.3 L F X)
  21.1 x 14.1 cm (CN-R 135mm T2.2 L F X)

  Aspect ratio 1.78:1
  Screen dimensions 24.6 × 13.8mm
  16.9 x 9.5 cm (CN-R 14mm T3.1 L F X)
  23.1 x 13.0 cm (CN-R 20mm T1.5 L F X)
  19.7 x 11.0 cm (CN-R 24mm T1.5 L F X)
  13.7 x 7.7 cm (CN-R 35mm T1.5 L F X)
  17.0 x 9.5 cm (CN-R 50mm T1.3 L F X)
  23.4 x 13.1 cm (CN-R 85mm T1.3 L F X)
  14.4 x 8.1 cm (CN-R 135mm T2.2 L F X)
• Front Lens Diameter (mm)
  Φ114 mm
• Outer Dimensions (W x D x H)
  118.4 x 118.4 x 118.0 mm (CN-R 14mm T3.1 L F X)
  118.4 x 118.4 x 125.5 mm (CN-R 20mm T1.5 L F X)
  118.4 x 118.4 x 125.5 mm (CN-R 24mm T1.5 L F X)
  118.4 x 118.4 x 125.5 mm (CN-R 35mm T1.5 L F X)
  118.4 x 118.4 x 125.5 mm (CN-R 50mm T1.3 L F X)
  118.4 x 118.4 x 125.5 mm (CN-R 85mm T1.3 L F X)
  118.4 x 118.4 x 139.6 mm (CN-R 135mm T2.2 L F X)
• Weight
  1.3 kg (CN-R 14mm T3.1 L F X)
  1.4 kg (CN-R 20mm T1.5 L F X)
  1.3 kg (CN-R 24mm T1.5 L F X)
  1.3 kg (CN-R 35mm T1.5 L F X)
  1.2 kg (CN-R 50mm T1.3 L F X)
  1.5 kg (CN-R 85mm T1.3 L F X)
  1.5 kg (CN-R 135mm T2.2 L F X)
