Home Our Products Chrosziel Chrosziel Zoom Servo- CDM-SFR for Sony ILME-FR7 PTZ Camera
  • SONY ILME-FR7 PTZ CDM-SFR fits seamlessly into the operating functions of the Sony PTZ ILME-FR7 camera. The FR7 Zoom Servo Drive is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on the 15mm rods of the Sony PTZ head. By Chrosziel.
1 1

Chrosziel

Chrosziel Zoom Servo- CDM-SFR for Sony ILME-FR7 PTZ Camera

Chrosziel Zoom Servo- CDM-SFR for Sony ILME-FR7 PTZ Camera

$2,656.00 CAD
$2,656.00 CAD
Sale Sold out

CDM-SFR

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

SONY ILME-FR7 PTZFR7 zoom motor unit CDM-SFR fits seamlessly into the operating functions of the Sony PTZ ILME-FR7 camera.



FR7 zoom motor unit CDM-SFR seamlessly integrates with the Sony PTZ ILME-FR7 camera, enhancing its operating functions. This compact and universal zoom motor can be easily mounted on the 15mm rods of the PTZ head, accommodating a wide range of lenses. Controlled through the Option port of the ILME-FR7, it utilizes Sony's camera-specific protocol, ensuring compatibility with the complete Sony FR7 ecosystem for a seamless user experience.

CDM-SFR's versatility is amplified by the Chrosziel Flexi toothed ring (#206-30), enabling its use with various zoom lenses, even without standard cine gearing. This expands the options for creatives, offering compatibility with a wide range of lenses, from wide-angle to long-zoom, to meet their specific needs.

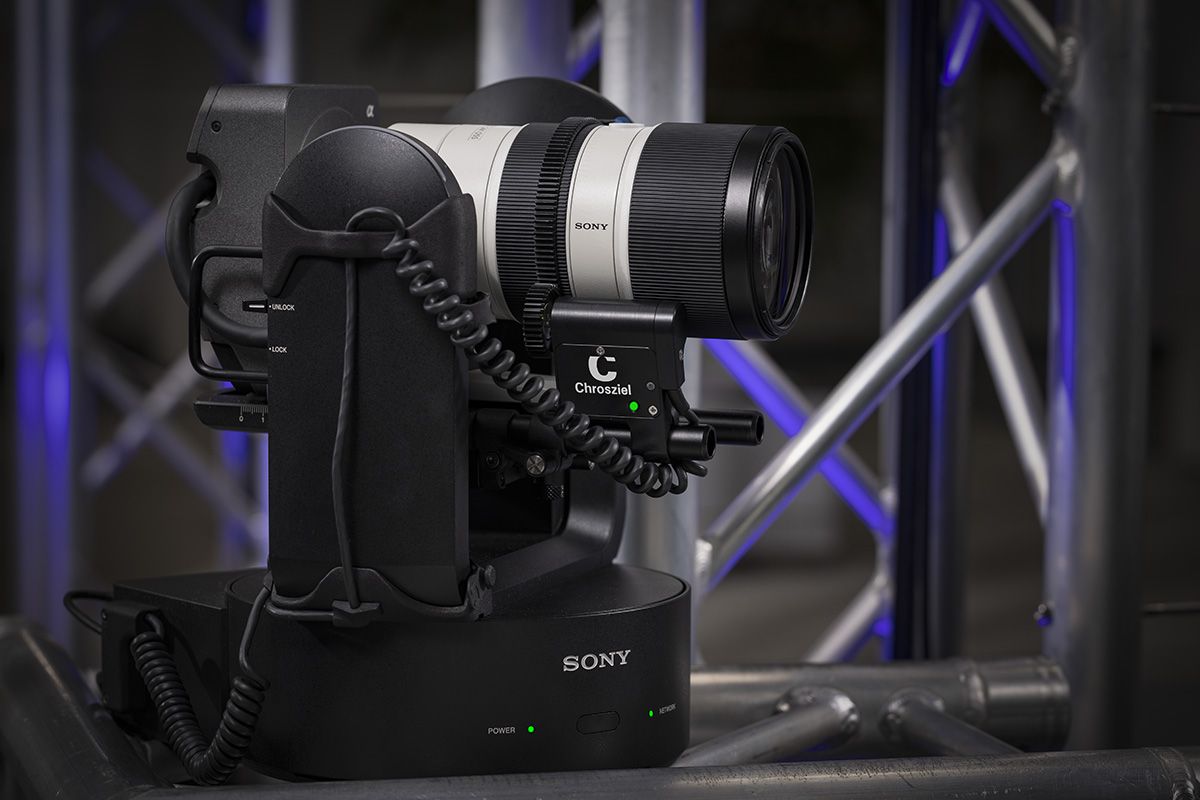

FR7 Zoom servo drive unit is slid onto the 15mm rod and swiveled onto the zoom lens. The curly cables ensure safe operation within the full tilt and pan range of the Sony FR7. The tiny distribution box is mounted to the side of the FR7 base and has a built-in power input. Simply unplug the power supply of the FR7 and plug it into the distribution box. Then plug the power plug of the distribution box into the power input of the Sony FR7. Connect the RJ45 connector of the distribution box into the OPTION port of the cameras base unit (do not connect to the Ethernet port since you need this for the ILME-FR7 communication).

IMPORTANT NOTICE: THIS IS A PREORDER PRODUCT. THE CDM-SFR WILL BE SHIPPED UPON THE NEW SONY ILME-FR7 FIRMWARE RELEASE.


FEATURES

Universal zoom motor

The CDM-SFR is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on the 15mm rod.

Controlled via Sony ILME-FR7

The Sony ILME-FR7 base unit controls directly the servo drive unit. What ever remote panel or web access you use to control the Sony ILME-FR7, the zoom motor will receive its signal directly from the base unit of the FR7.

No extra cables or power supply needed

The CDM-SFR inherits all cables, clamps, distribution box and plugs to use it right out of the box with the Sony ILME-FR7. No extra power supply needed.




TECHNICAL DATA

  • Power IN 19.5V (Sony ILME-FR7 power supply used)
  • Power OUT (Sony ILME-FR7 power plug, same voltage as power in passed through)
  • RJ45 plug (control command In (OPTION port))
  • Torque 0.5Nm
  • Power consumption max. approx. 10W
  • product code CDM-SFR
  • EAN/GTIN number: 4250618848648


IN THE BOX

  • 1x CDM-SFR Digital motor unit
  • 1x 206-30 Flexi Gear Ring (Ø 60-120mm)
  • 1x Gear Drive, mod. 0.8 (Ø 40mm)
