Chroma-Q STAGE CL Control Console Compact Lighting Console
Chroma-Q STAGE CL Control Console Compact Lighting Console
SKU:
STAGE CL by Chroma-Q Control Console
Compact Lighting Console
Â

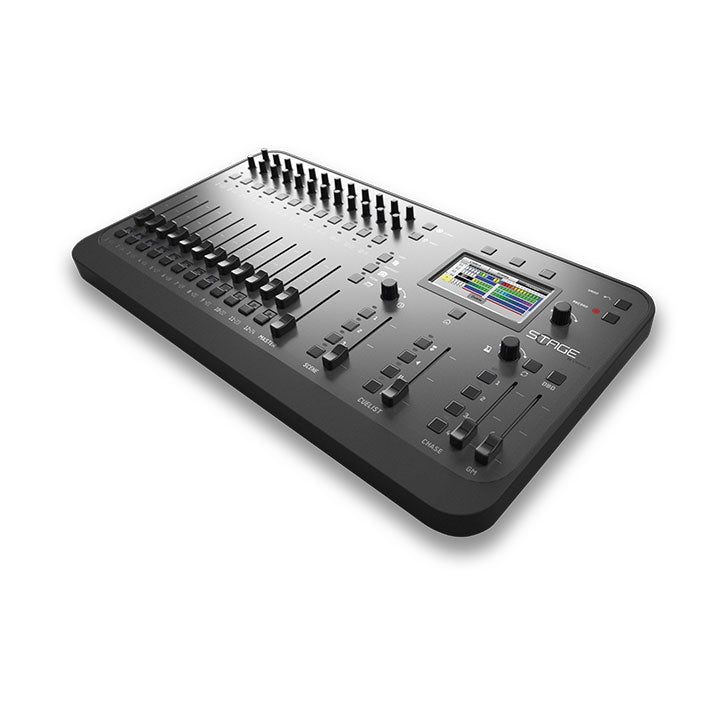

The Stage CL by Chroma-Q is a lighting control console intended for the control of intensity-only fixtures and multi-colour LEDs. It has been specifically designed and optimised for easy control of full-colour LED fixtures for all users from beginners to the advanced professionals. Intended for use by rental companies, corporate event suppliers, schools, community theatres, and Houses of Worship, the Stage CL is suitable where full control of up to 24 LED and/or in-tensity-only fixtures is required.Â

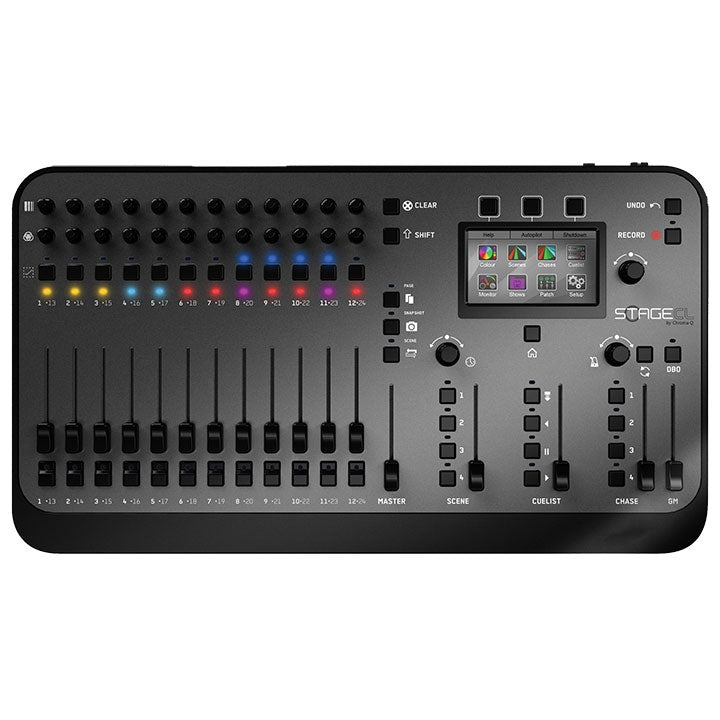

The Stage CL includes 12 fixture control channels complete with intensity fader, Hue and Saturation controls, select button, and full colour RGB mimic LED. Additionally, a limited number of noncolour parameters can be controlled, for example "strobe" and "zoom".
The Stage CL includes dedicated scene, chase, and cuelist controls to provide immediate access to those facilities. Extensive use has been made of multicolour LED indicators to provide console feedback. Programming is based around an integrated full-colour TFT LCD touch screen.

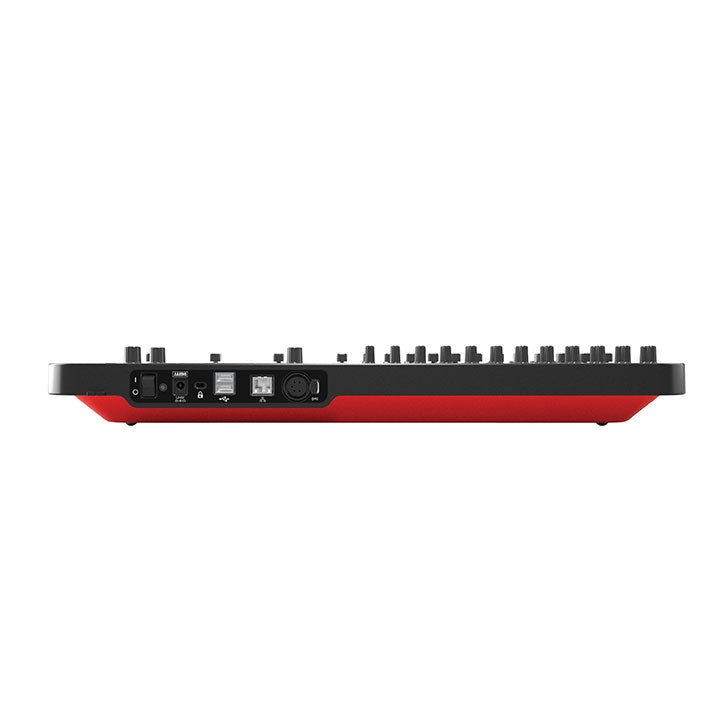

The Stage CL includes a DMX port, an Ethernet port for use with Artnet and sACN receivers, and USB ports for use with standardÂ
USB FLASH drives.
Power supply | 12VDC +/-10% 2A |
---|---|
Power consumption | 24W max |
Mains connector | 5.5/2.1mm coaxial DC power socket |
Processor | Atmel ARM9 |
DRAM | 128MB |
FLASH | 256MB |
Ambient temperature | 0°C – 40°C |
Graphics Display | 4.3 inch (480x272) TFT |
Touchscreen | Resistive |
Maximum Fixtures | 24* |
DMX512 | 5 pin XLR |
Ethernet | 100Mbit RJ45 |
USB | Two Type A High Speed |
Dimensions | 520 x 300 x 70 mm |
Net / Shipping weight | 4.5 / 6.3kg |
