Kino Flo

Kino Flo | DIVA-LITE 21/31/41 LED Variant Sizes

Kino Flo | DIVA-LITE 21/31/41 LED Variant Sizes

$999,999.00 CAD
$999,999.00 CAD
Sale Sold out

Kit Variant

Diva-Lite 21 LED

Diva-Lite 21 LED

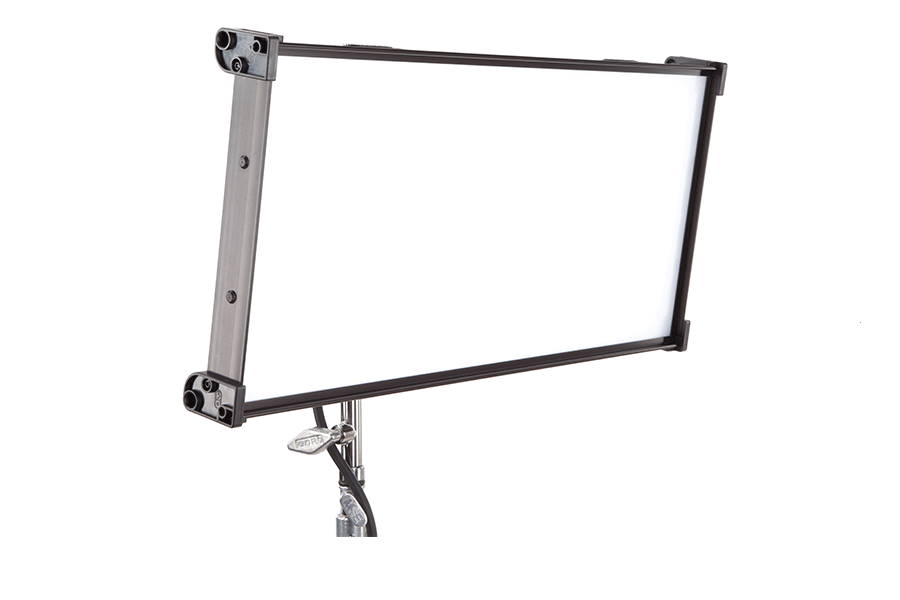

Kino Flo’s newly redesigned Diva-Lite 21 is another addition to the Diva-lite family and continues to be Kino Flo's most popular Interview and small studio fixture. Introduced in April at NAB 2018, its new form factor fits into a smaller travel case to save space for location work.

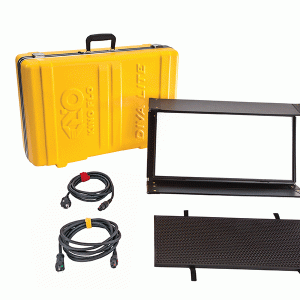

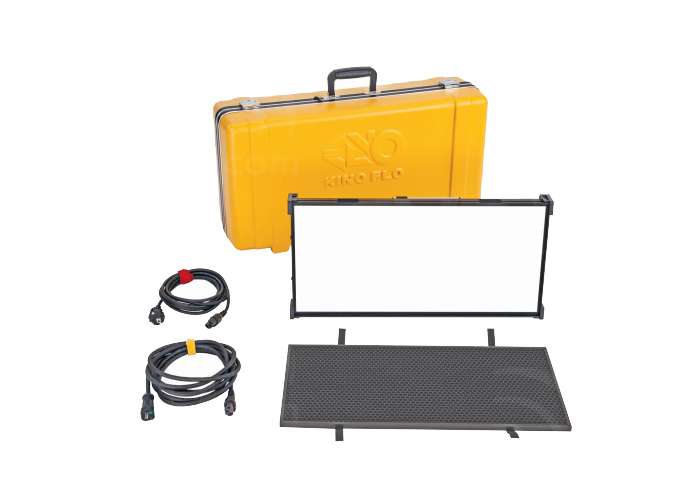

Diva-Lite 21 LED DMX Center Kit w/ Travel Case, Univ KIT-DL21XU

1 Diva-Lite 21 LED DMX Center, Univ (DIV-L21XCU)
1 Travel Case (KAS-DL21-C)

Dimensions
28.5 x 8.5 x 16” (72.5 x 22 x 41cm)

Weight
22.5 lb (10kg)

FIXTURE FEATURES

It also provides a smaller profile for studios that have low ceilings. The Diva-Lite 21 comes as center mount with a carry handle or yoke mount option. Both versions feature four corner bumpers that can be used to hang from rope or wire. A honeycomb Louver (90° or 60°) is held in place with Velcro and gives direction to the light or can be easily removed to give broad coverage over the set. For those that like the plastic fixture shell, Diva-Lite 20 is also available.

The Diva-Lite 21’s “All in One” design includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio®). Additional specifications include universal AC voltage input 100-240vac (1.25 Amps at 120vac) as well as a 3-Pin XLR for 24vdc operation (6.25A).

Diva-Lite 21 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB Control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Center Mt Dims: 23.5 x 4.5 x 11.5” (60 x 11.5 x 29cm)
  • Center Mt Weight: 12 lb (5.5kg)
  • Yoke Mt Dims: 28.5 x 4.5 x 14.5” (72.5 x 11.5 x 37cm)
  • Yoke Mt Weight: 13 lb (6kg)

Diva-Lite 21 LED Design

  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • No color shift while dimming
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Center Mount, Yoke Mount
  • Molded Corner Mounts
  • Mounts to stand, light enough to be hand-held
  • Lightweight, slim profile

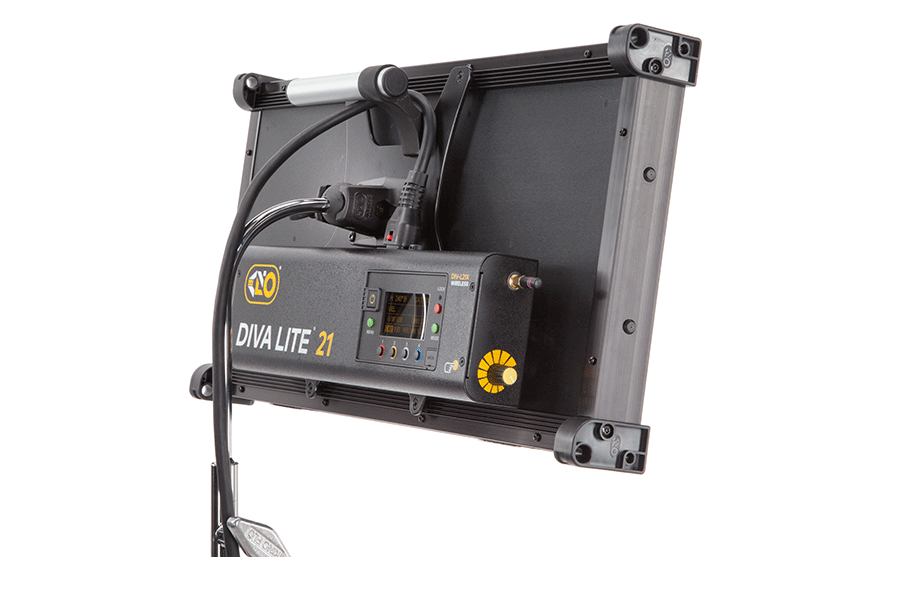

Diva-Lite LED DMX Control Panel

The firmware is updatable from a PC using the Mini B USB data port.

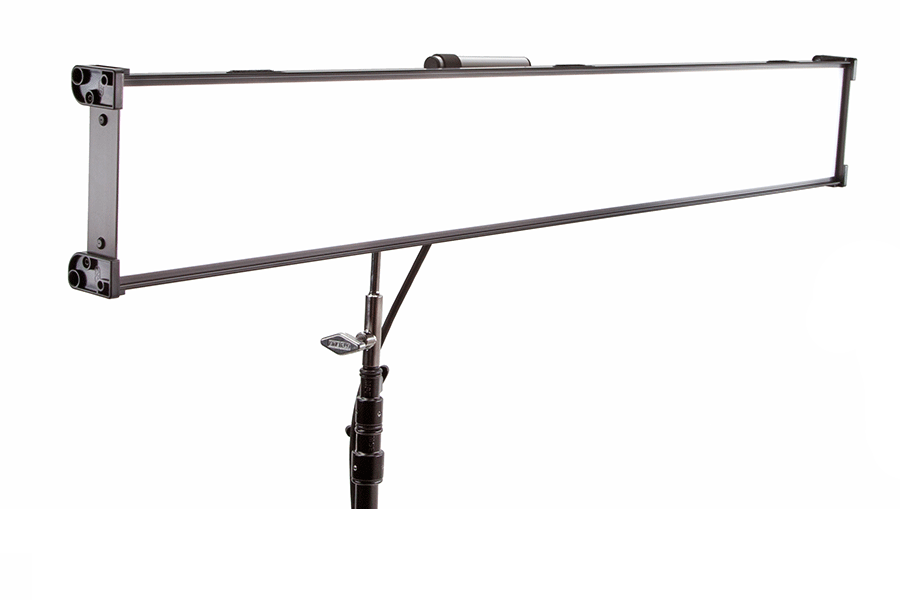

Diva-Lite 31 LED

Kino Flo’s newly redesigned Diva-Lite 31 is another addition to the Diva-Lite family and continues to be one of Kino Flo's most popular Interview and small studio fixture. Introduced in April at NAB 2018, its new form factor fits into a smaller travel case to save space for location work.

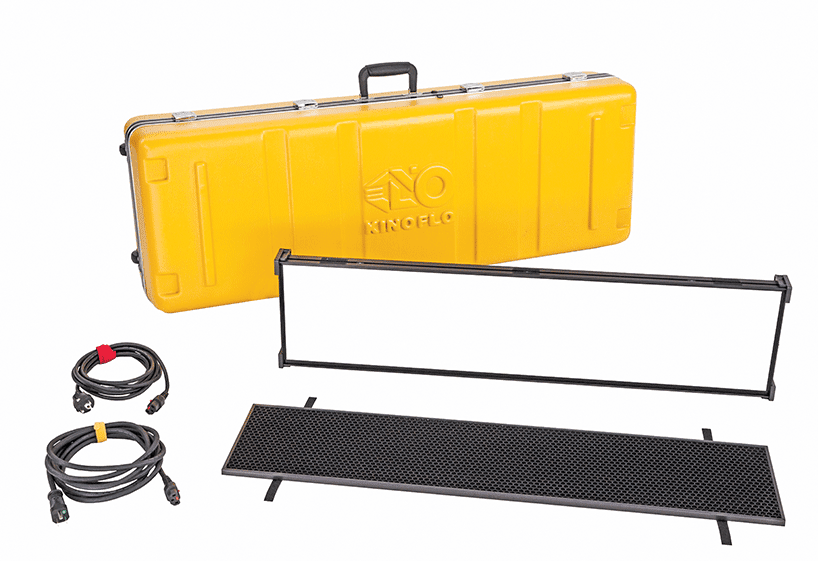

Diva-Lite 31 LED DMX Center, Univ (DIV-L31XCU)KIT-DL31XU

1 Diva-Lite 31 LED DMX Center, Univ (DIV-L31XCU)
1 Travel Case (KAS-DL31-C)

Dimensions
45.5 x 9 x 16.5” (116 x 23 x 42cm)

Weight
33.5 lb (15kg)

FIXTURE FEATURES

It also provides a smaller profile for studios that have low ceilings. The Diva-Lite 31 comes as center mount with a carry handle or yoke mount option. Both versions feature four corner bumpers that can be used to hang from rope or wire. A honeycomb Louver (90° or 60°) is held in place with Velcro and gives direction to the light or can be easily removed to give broad coverage over the set. For those that like the plastic fixture shell, Diva-Lite 30 is also available.

The Diva-Lite 31’s “All in One” design includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio®). Additional specifications include universal AC voltage input 100-240vac (1.25 Amps at 120vac) as well as a 3-Pin XLR for 24vdc operation (6.25A).

The Diva-Lite LED fixture includes built-in DMX electronics with wireless capability, removable 90° Honeycomb Louver and center mount with baby receiver lollipop. It is also available as a Yoke Mount. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

Diva-Lite 31 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB Control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Center Mt Dims: 37.5 x 4.5 x 9.5” (95 x 11.5 x 24cm)
  • Center Mt Weight: 14 lb (6.5kg)
  • Yoke Mt Dims: 42 x 4.5 x 12” (107 x 11.5 x 30.5cm)
  • Yoke Mt Weight: 14.5 lb (6.5kg)

Diva-Lite 31 LED Design

  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • No color shift while dimming
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Center Mount, Yoke Mount
  • Molded Corner Mounts
  • Mounts to stand, light enough to be hand-held
  • Lightweight, slim profile

Diva-Lite LED DMX Control Panel

The firmware is updatable from a PC using the Mini B USB data port.

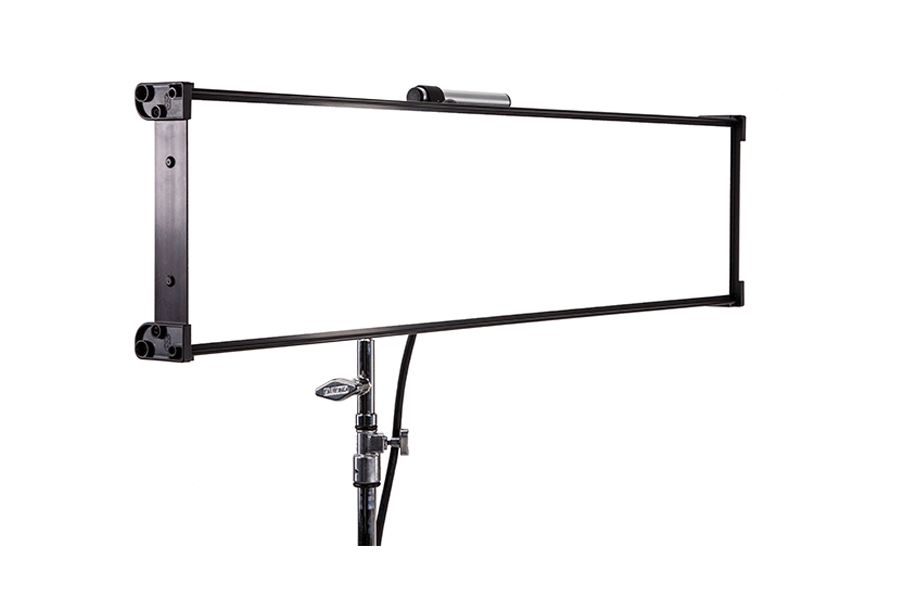

Diva-Lite 41 LED

FIXTURE FEATURES

The Diva-Lite 41 comes as center mount with a carry handle or yoke mount option. Both versions feature four corner bumpers that can be used to hang from rope or wire. A honeycomb Louver (90° or 60°) is held in place with Velcro and gives direction to the light or can be easily removed to give broad coverage over the set.

The Diva-Lite LED fixture includes built-in DMX electronics with wireless capability, removable 90° Honeycomb Louver and center mount with baby receiver lollipop. It is also available as a Yoke Mount. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

Diva-Lite 41 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB Control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Center Mt Dims: 49.5 x 4.5 x 7.5” (126 x 11.5 x 19cm)
  • Center Mt Weight: 15 lb (7kg)
  • Yoke Mt Dims: 56 x 4.5 x 10” (142 x 11.5 x 25.5cm)
  • Yoke Mt Weight: 15 lb (7kg)

Diva-Lite 41 LED Design

  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • No color shift while dimming
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Center Mount, Yoke Mount
  • Molded Corner Mounts
  • Mounts to stand, light enough to be hand-held
  • Lightweight, slim profile

Diva-Lite LED DMX Control Panel

The firmware is updatable from a PC using the Mini B USB data port.
