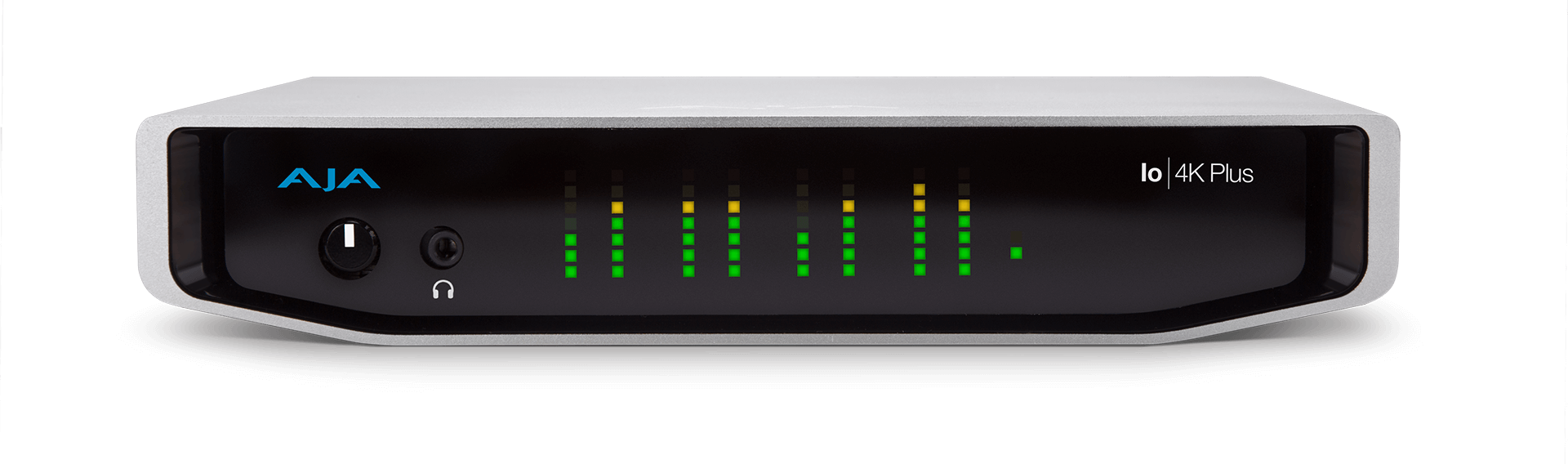

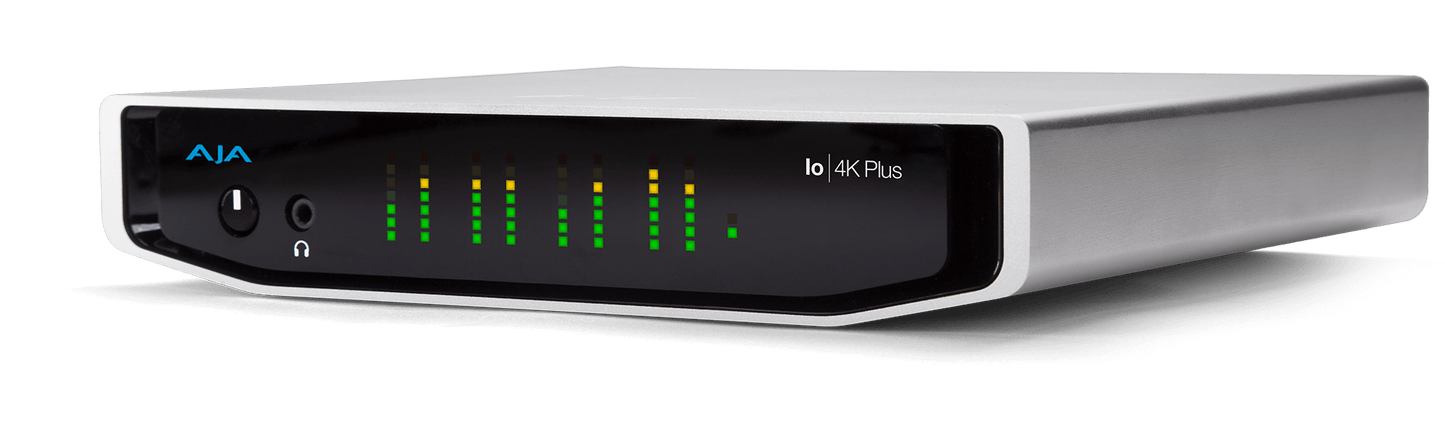

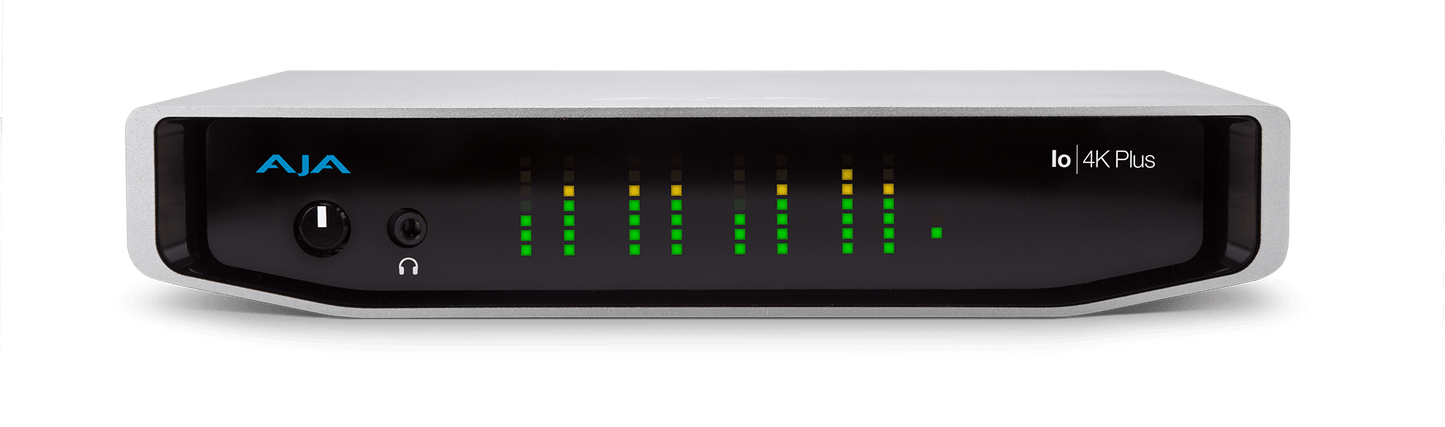

AJA IO-4K-PLUS-R0 12-bit 4K/UltraHD/HD I/O via Thunderbolt 3, with 12G-SDI and HDMI 2.0 I/O, AC adapter (Thunderbolt cable not included)

IO-4K-PLUS-R0
Regular price
$3,618.00
Sale price
$3,618.00
Quantity must be 1 or more

Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity , plus HDR 10 and HLG support over HDMI for emerging HDR workflows.



Tech Specs

Print Tech Specs    View Workflow Diagram



Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94



Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.

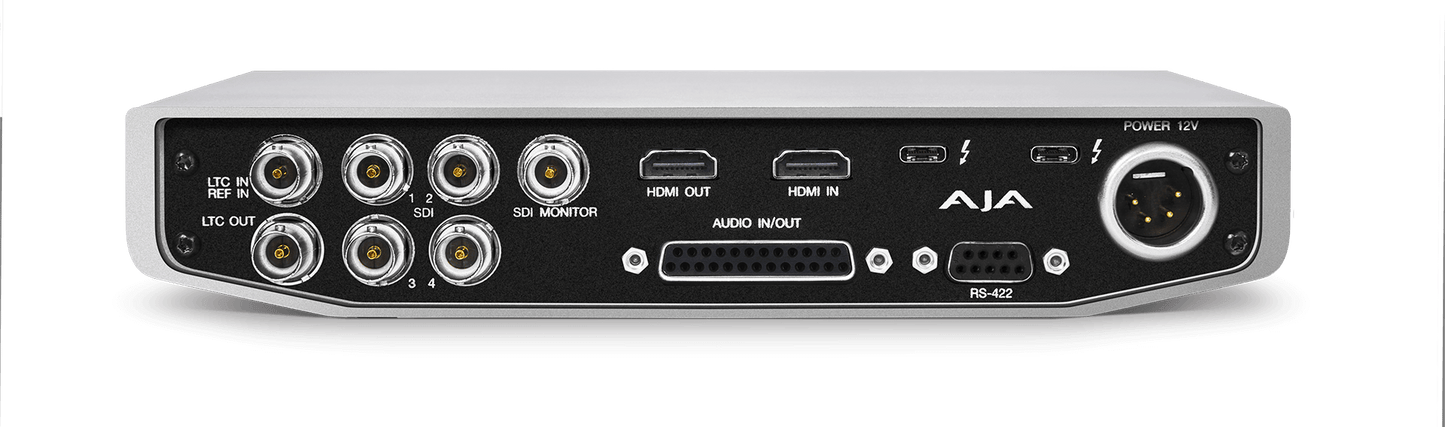

Video Inputs

  • 12G-SDI*, SMPTE-2082, 12-bit**, 10-bit and 8-bit
  • 6G-SDI*, SMPTE-2081, 10-bit and 8-bit
  • 3G-SDI, SMPTE-259/292/296/424/425, 12-bit*, 10-bit and 8-bit
  • 4K/UltraHD 4:4:4 (4x BNC)
  • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit**, 10-bit and 8-bit
  • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit
  • HDMI v2.0
  • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
  • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit



*SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous.  For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured inputs support UltraHD / 4K only.

**Bit depth support is application dependent. Check with your software manufacturer for compatibility.



Video Outputs

  • 12G-SDI*, SMPTE-2082, 12-bit**, 10-bit and 8-bit
  • 6G-SDI*, SMPTE-2081, 10-bit and 8-bit
  • 3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit
  • 4K/UltraHD 4:4:4 (4x BNC)
  • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit**, 10-bit and 8-bit
  • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit
  • HDMI v2.0
  • 30/36 bits/pixel, RGB or YUV, 6 Gbps per color component
  • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
  • HDR 10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HLG Support - compatible with HDMI 2.0b/CTA-861-G***


*SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous.  For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only.

**Bit depth support is application dependent. Check with your software manufacturer for compatibility.

***HLG support is application dependent. Check with your software manufacturer for compatibility.



Audio Inputs Digital

  • 16-Channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 24 and 16-bit HDMI embedded audio, 48 kHz sample rate, synchronous



Audio Inputs Analog

  • 8-Channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 to 20 kHz frequency response
  • Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen



Audio Outputs Digital

  • 16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous



Audio Outputs Analog

  • 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 to 20 kHz frequency response
  • Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen



Downstream Keyer

  • Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte



Down-Conversion 4K/UltraHD

  • Real time, dedicated 4K down-conversion output (1x BNC)
  • 4K to 2K down-conversion
  • UltraHD to HD down-conversion



Reference and LTC I/O

  • 1x BNC LTC output
  • 1x BNC assignable to Reference video or LTC input



Reference

  • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
  • Reference input is terminated into 75 ohms when Genlock is set to Ref In



Electrical Interface

  • Thunderbolt 3 (2x)



Machine Control

  • RS-422, Sony 9-pin protocol
  • 9-pin D-connector pinout is as follows:

Shell

GND

1

GND

2

RX-

3

TX+

4

GND

5

No Connection

6

GND

7

RX+

8

TX-

9

GND

     Shell

     GND



Size (w x d x h)

  • 8.74” x 8.11” x 1.65” (222.0 x 206.0 x 41.9 mm)



Weight

  • 3.4 lbs (1.6 kg)



Power (device only)

  • 10-20V, 30W typical, 36W max, 70W max with USB-C power delivery to external devices



Environment

  • Safe Operating Temperature Range: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
