Kino Flo

Kino Flo | DIVA-LITE 20/30 LED Series

Kino Flo | DIVA-LITE 20/30 LED Series

Regular price $999,999.00
Regular price Sale price $999,999.00
Sale Sold out

SKU:

Model

Diva Lite LED Series

No Kit (Fixture Only)

Kino Flo debuted the Diva-Lite 30 & 20 LED DMX at NAB 2016 which received Best of Show awards for video production lighting. The awards are three of the industry’s most prestigious technology honors presented at the NAB 2016 show from Videomaker magazine, Digital Video magazine and Video Edge online magazine.

Diva-Lite 30 LED DMX Kit, Univ w/ Soft Case KIT-DL20XU

1 Diva-Lite 20 LED Fixture (DIV-L20XU)
1 Travel Case (KAS-DL20-C)

Dimensions
28.5 x 8.5 x 19.5” (72 x 22 x 49.5cm)

Weight
26 lb (12kg)

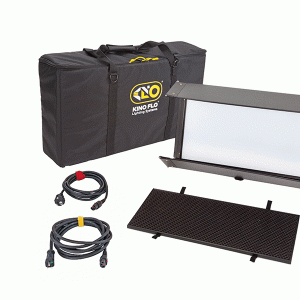

Diva-Lite 20 LED DMX Center Kit, Univ w/ Soft Case KIT-DL20XBU

1 Diva-Lite 20 LED Fixture (DIV-L20XU)
1 Soft Case (BAG-SL20)

Dimensions
31 x 7.5 x 18” (79 x 19 x 46cm)

Weight
19.5 lb (9kg)

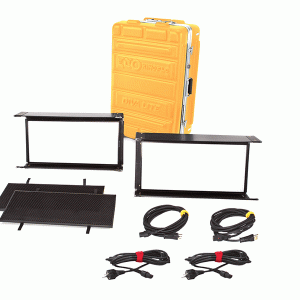

Diva-Lite 20 LED DMX Kit, Univ (2-Unit) w/ Flight Case KIT-DL22XU

2 Diva-Lite 20 LED Fixture (DIV-L20XU)
1 Flight Case (KAS-DL22)

Dimensions
22.5 x 16 x 33.5” (57 x 41 x 85cm)

Weight
58 lb (26kg)

Diva-Lite 20 LED DMX Kit, Univ w/ Travel Case KIT-DL30XBU

1 Diva-Lite 30 LED Fixture (DIV-L30XU)
1 Soft Case (BAG-SL30)

Dimensions
42.5 x 7.5 x 16.5” (108 x 19 x 42cm)

Weight
23 lb (10kg)

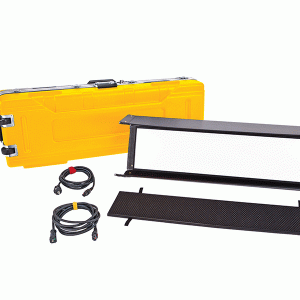

Diva-Lite 30 LED DMX Kit, Univ w/ Flight Case KIT-DL30XU

1 Diva-Lite 30 LED Fixture (DIV-L30XU)
1 Flight Case (KAS-DL30)

Dimensions
46 x 11 x 16.5” (117 x 28 x 42cm)

Weight
43 lb (19.5kg)


FIXTURE FEATURES

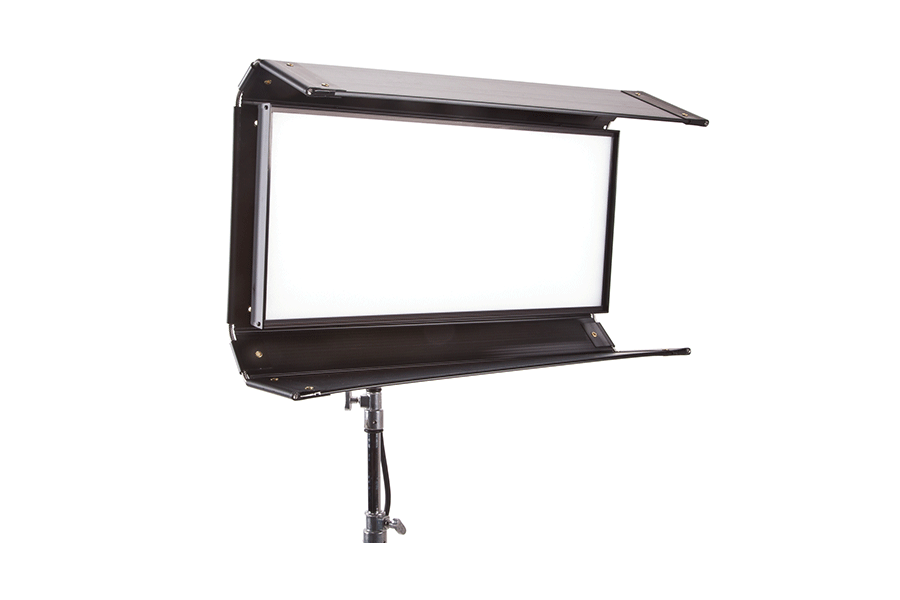

Kino Flo’s Diva-Lite LED comes in a Center Mount with a 90° honeycomb louver and includes standard DMX and wireless DMX
(Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (1.25 Amps at 120VAC). SnapBag Softbox and SnapGrid accessories are also available.

Diva-Lite 20/30 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles (LUTs)
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Diva-Lite 20 Dims: 25 x 13 x 6” (63.5 x 33 x 15cm)
  • Diva-Lite 20 Weight: 14.5 lb (6.5kg)
  • Diva-Lite 30 Dims: 39 x 10.5 x 6” (99 x 27 x 15cm)
  • Diva-Lite 30 Weight: 17 lb (8kg)

Diva-Lite 20/30 LED Design

  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Built-in Barndoors
  • KinoGrip Center Mount
  • Mounts to stand, light enough to be hand-held

Diva-Lite LED DMX Control Panel

The firmware is updatable from a PC using the Mini B USB data port.
