Leader LPX500 Quad-input Waveform Monitor
Leader LPX500 Quad-input Waveform Monitor
SKU:
Leader LPX500 Quad-input Waveform Monitor Â
Full Technical PDF Available for download HERE.
4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | HDR | IP

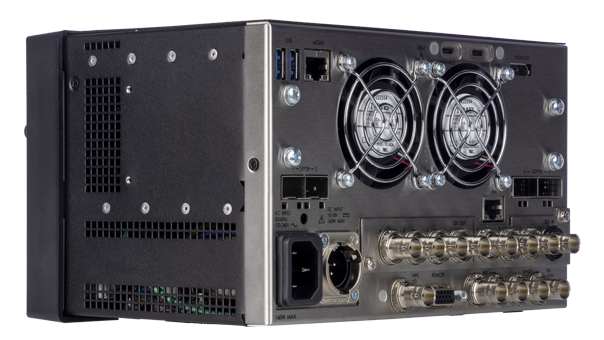

The LPX500 Hybrid IP/SDI waveform monitor is the first in a powerful new family of video analysis and generation instruments, encompassing next generation technology from the renowned Leader and PHABRIX Test and Measurement brands. The LPX500 offers a bank of four autonomous analyzers, enabling the simultaneous display of four 4K SDI or IP video source inputs.
A second, compact screen unit can now optionally extend the unit’s local display capabilities, allowing you to control the unit from either physical screen. The second screen is also touch-enabled and supports the same gestures as the primary screen on the main unit. Connection to the second display is over a dedicated USB-C connector. Further remote screen output combinations are also available to output either screen, from either the DisplayPort or SDI Mon BNC display outputs. In addition, dual built-in VNC clients considerably improve the performance of the remote connection to either display over noVNC.

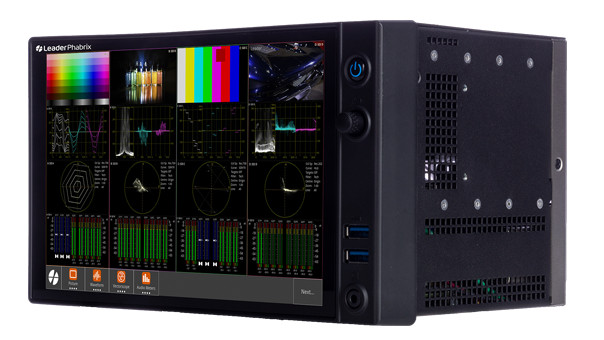

Following the innovative app style interface of PHABRIX instruments, the LPX500 hides the complexity of modern SDI and IP systems providing an uncluttered view of critical information. The enhanced layouts designed for the LPX500 not only extend the available screen real estate but now feature swipe gestures to navigate left or right through configured layouts and precise tap, hold and slide for instrument placement. Multiple screen layouts provide a huge canvas of extended screen real estate enabling you to move smoothly between instrument layouts, optimizing the viewing and touch experience on the unit.
