Matthews 5/8" Grip Rail - Telescoping Baby Rail
Matthews 5/8" Grip Rail - Telescoping Baby Rail
SKU:429040
All efforts are made to ensure accuracy of stock and pricing info on site. There may be delays in updates from time to time. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca
Matthews 5/8" Grip Rail - Telescoping Baby Rail
- One telescoping baby pin rail replaces multiple fixed-length 5/8" rods - 24" closed to 42.5" fully extended
- Adjustable rail works in tight spaces where standard grip arms can't - extend only as far as you need, no excess arm to manage
- Solid stainless steel inner rod resists bowing and bending under load

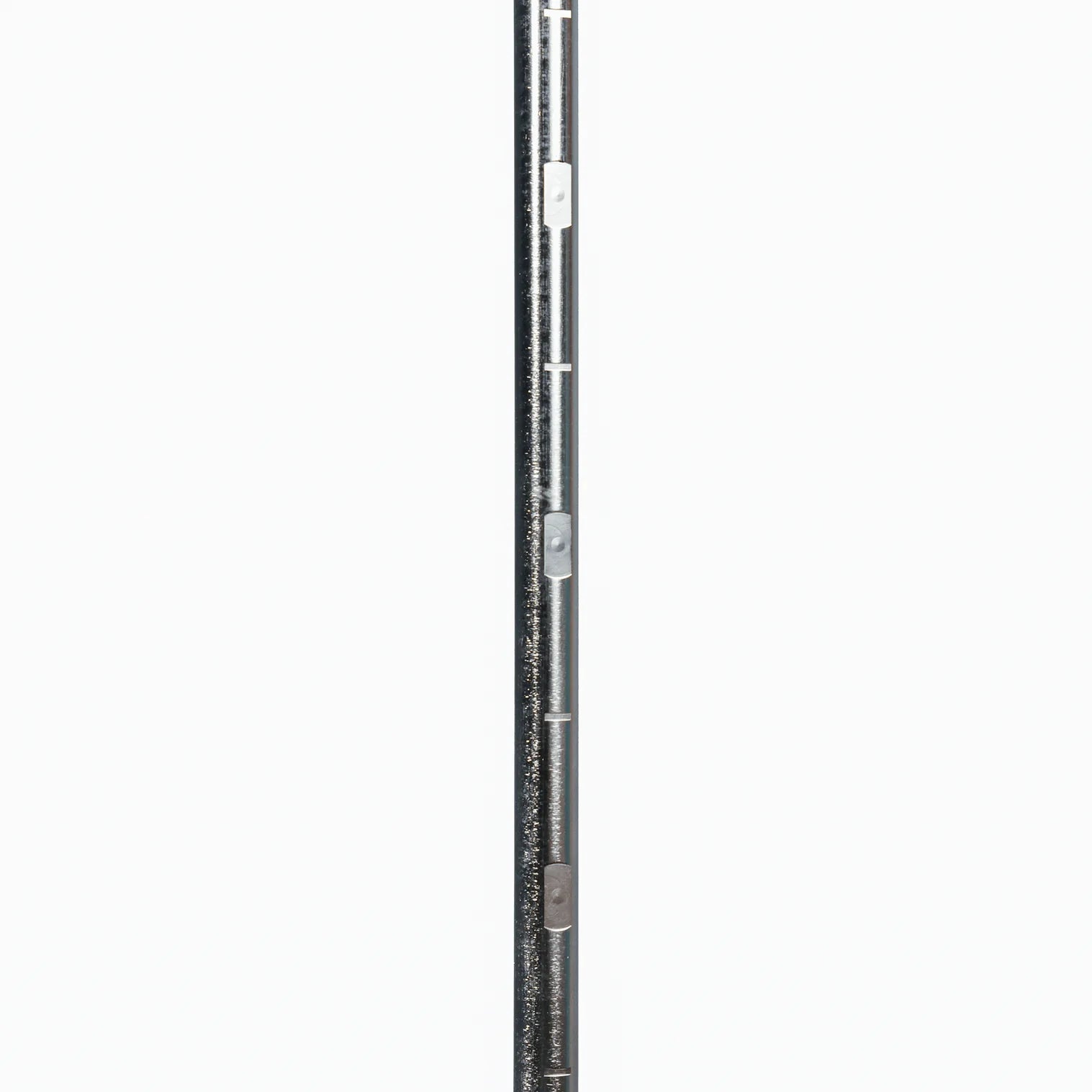

- Hash marks and flat spots every 2" for precise, repeatable positioning with anti-roll locking
Detailed Specifications
Detailed Specifications
Material: Stainless steel / steel
Diameter: 5/8" throughout

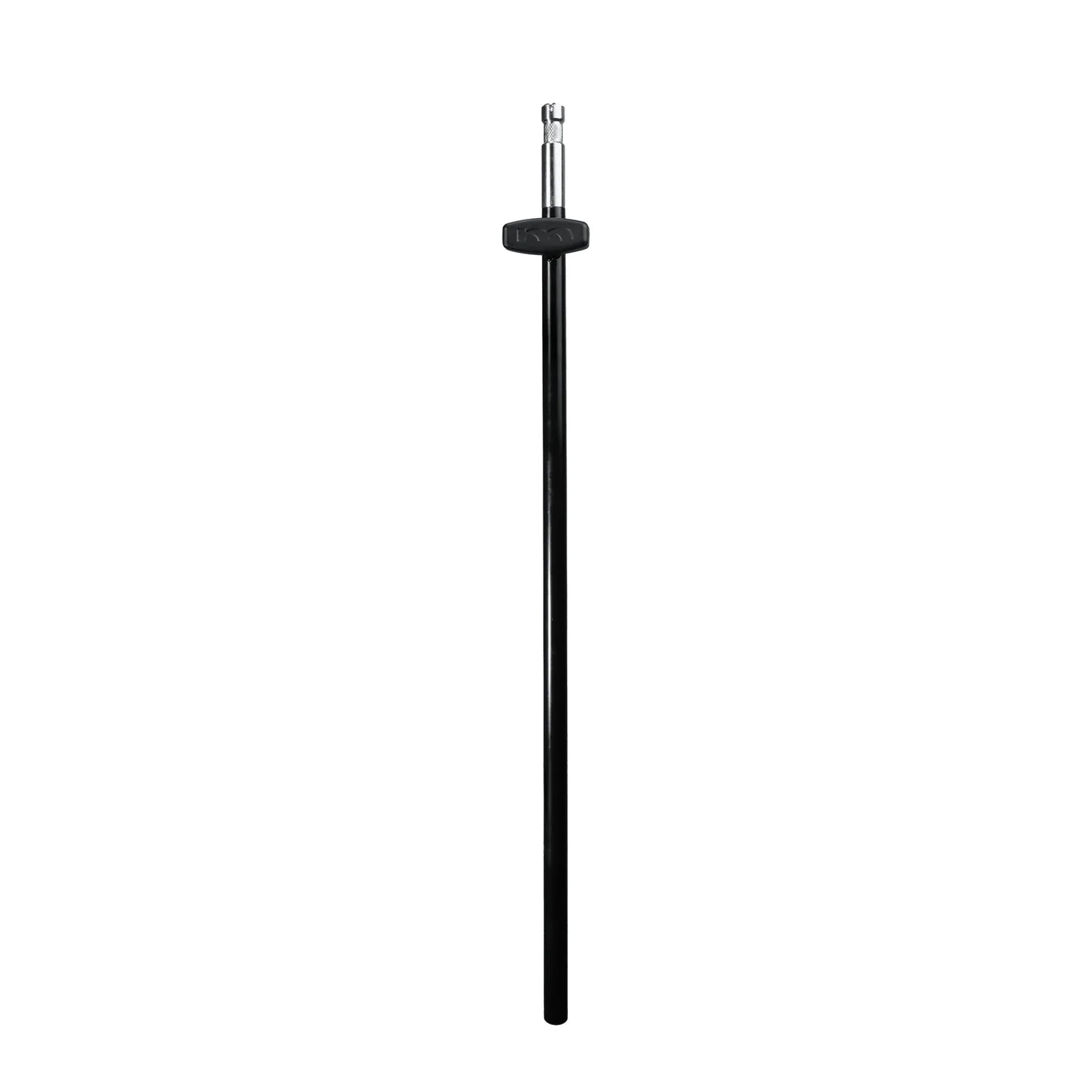

Closed length: 24" (61 cm)

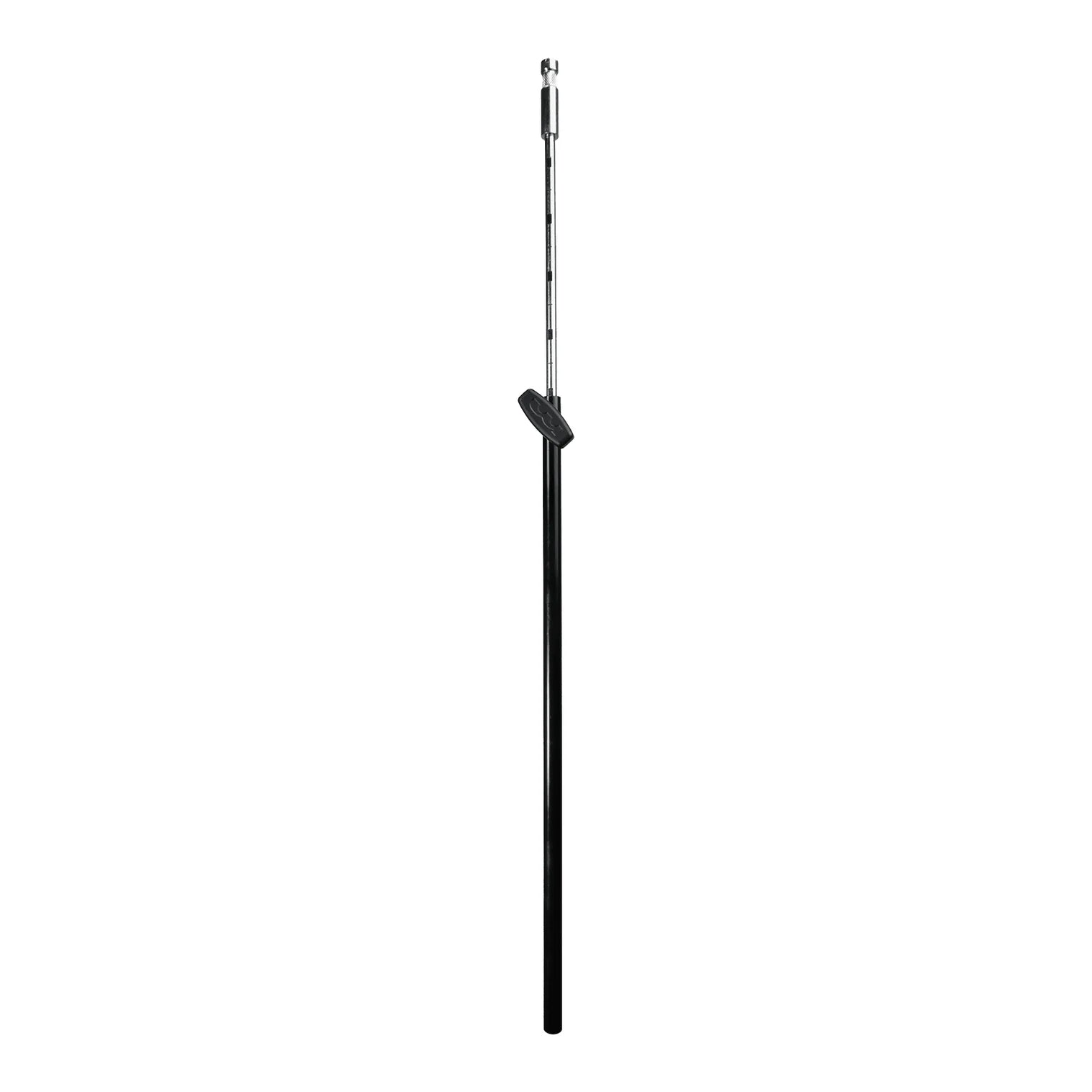

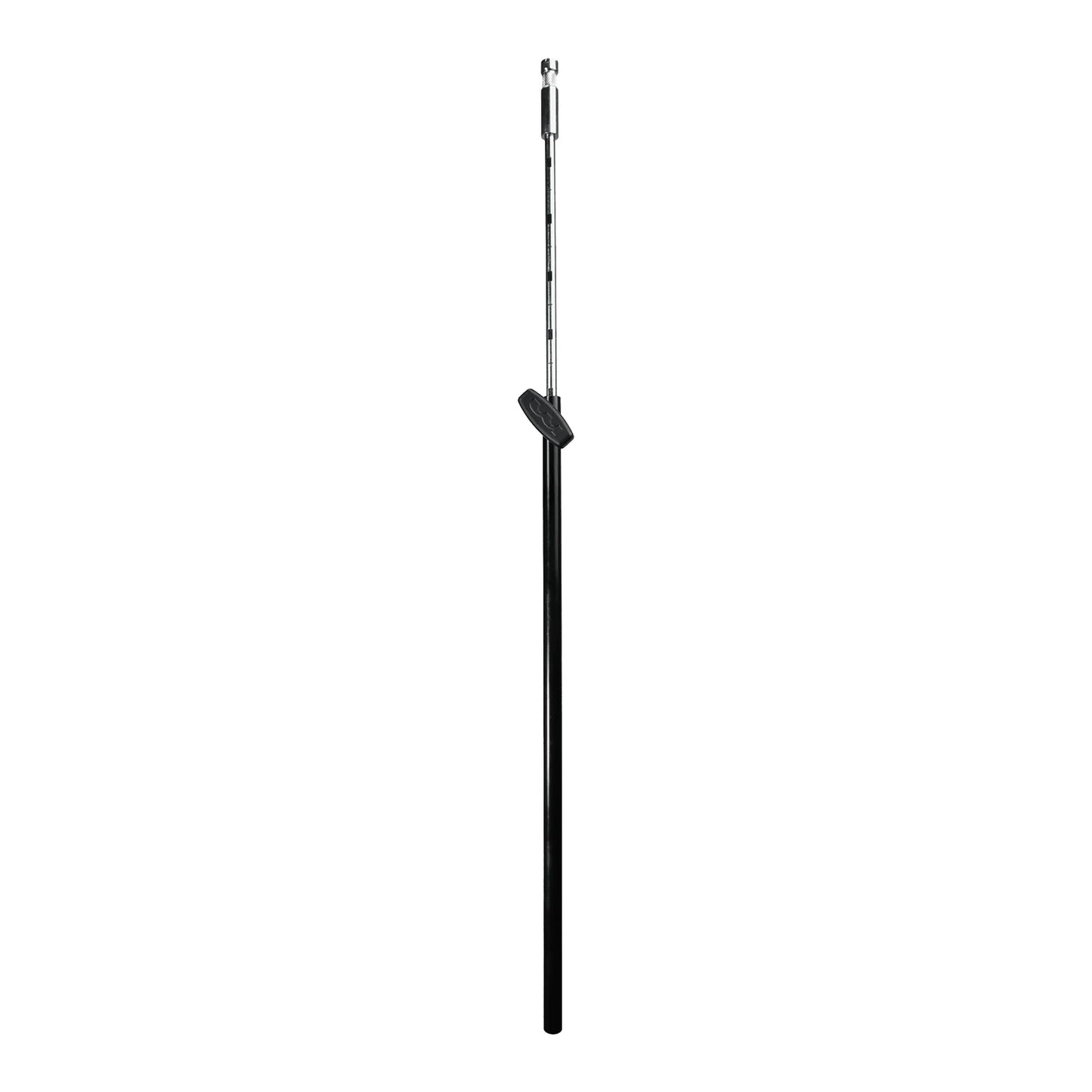

Extended length: 42.5" (108 cm)
Weight: 2 lbs (0.91 kg)
Horizontal load rating: 10 lbs (4.5 kg)
Vertical load rating: 20 lbs (10 kg)

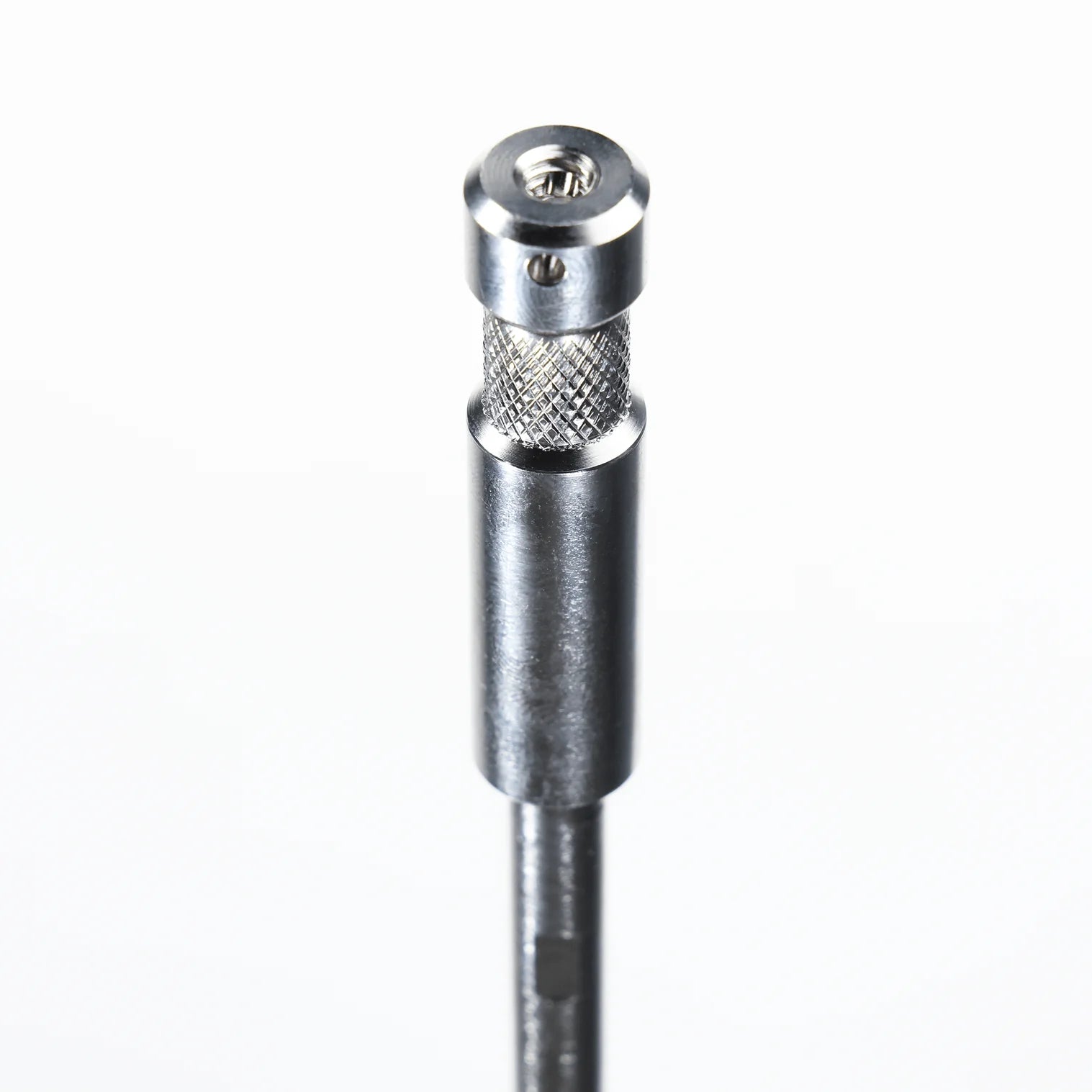

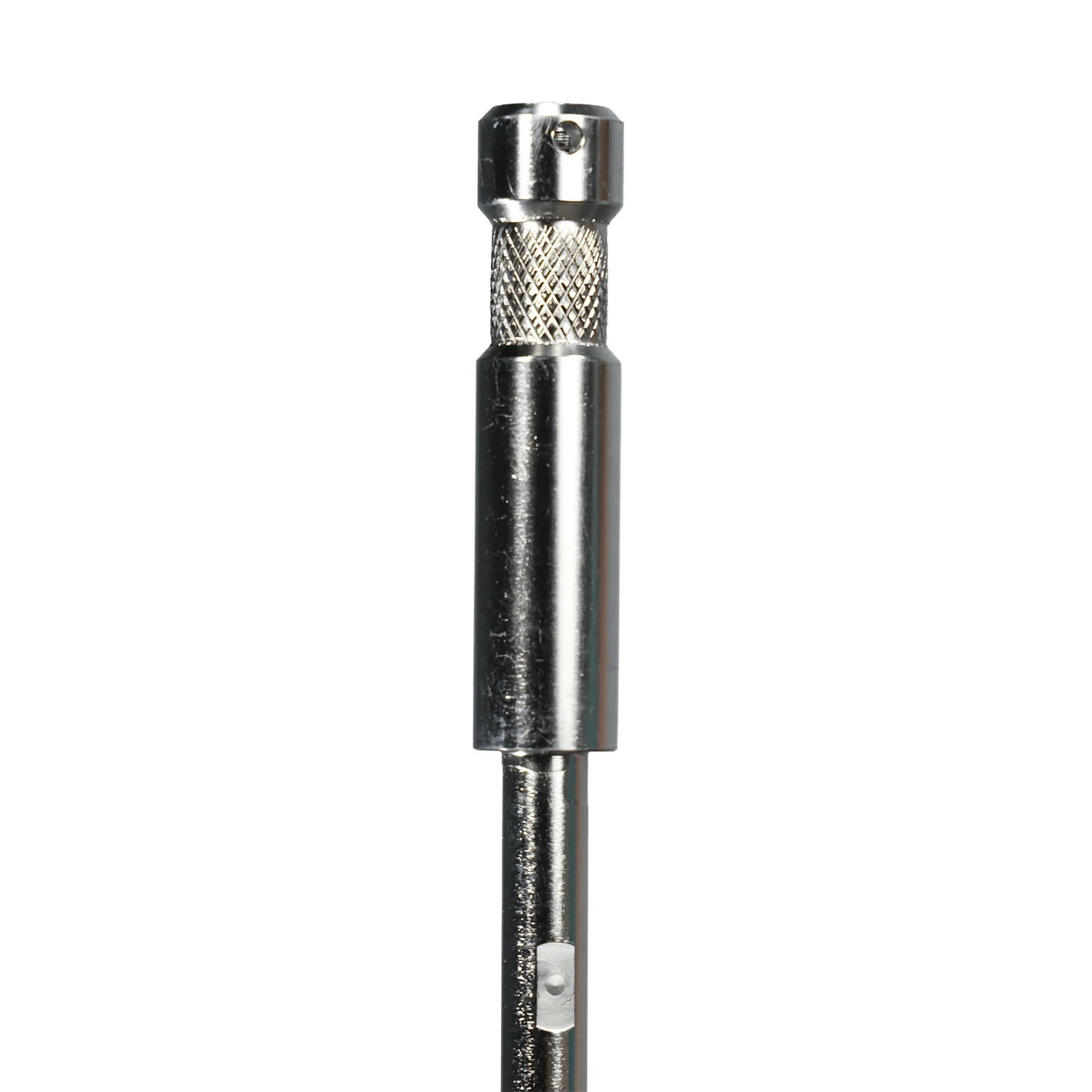

Telescoping baby pin thread: Female 1/4"–20 industry standard; includes set screw to convert to male 1/4"–20

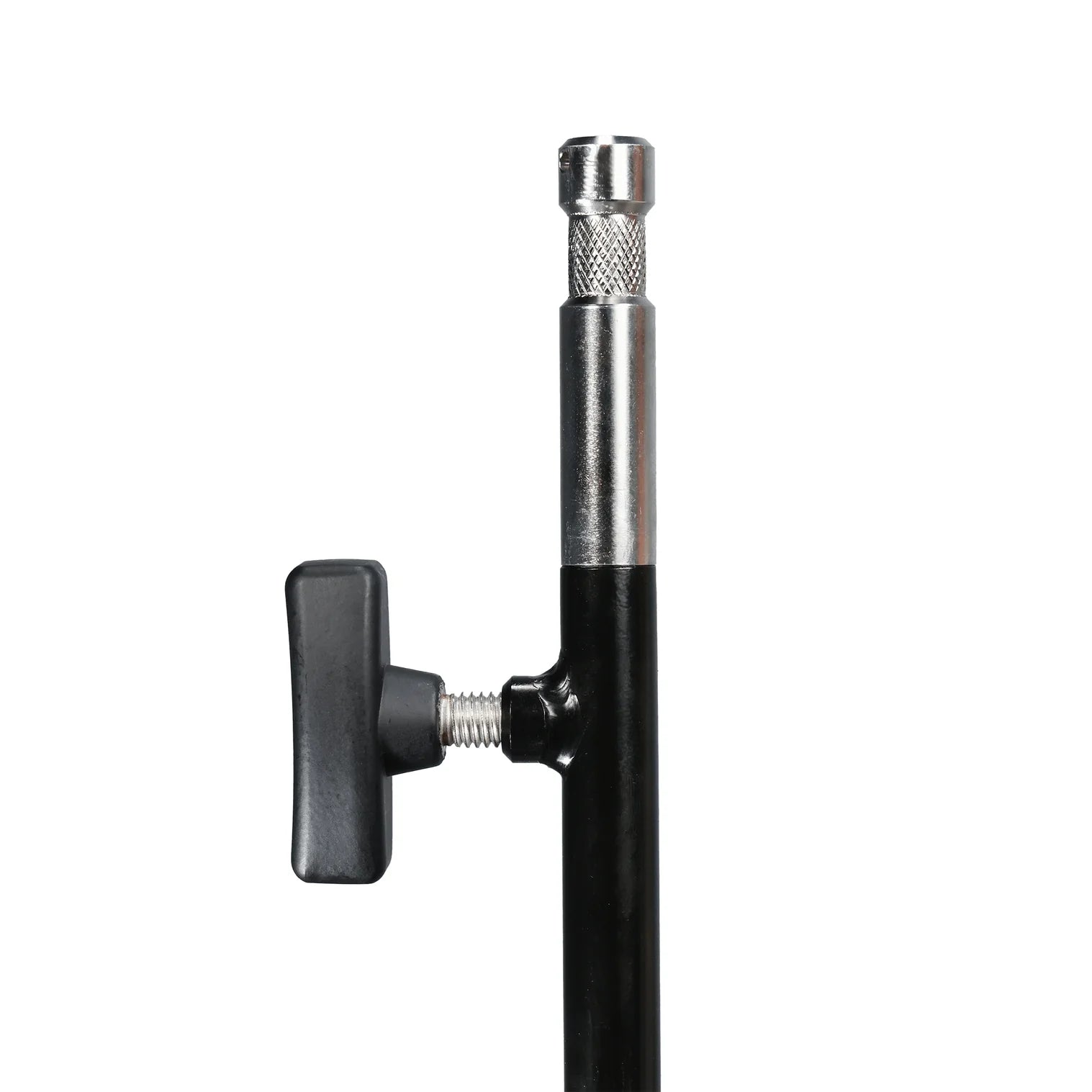

Locking: T-handle (included) or field-swappable grub set screw
Positioning: Hash marks and flat spots every 2"
Safety: Internal stop; safety hole for cotter or lynch pin
