MID-49 Power Distribution Box DB-9 (Blackmagic PYXIS)

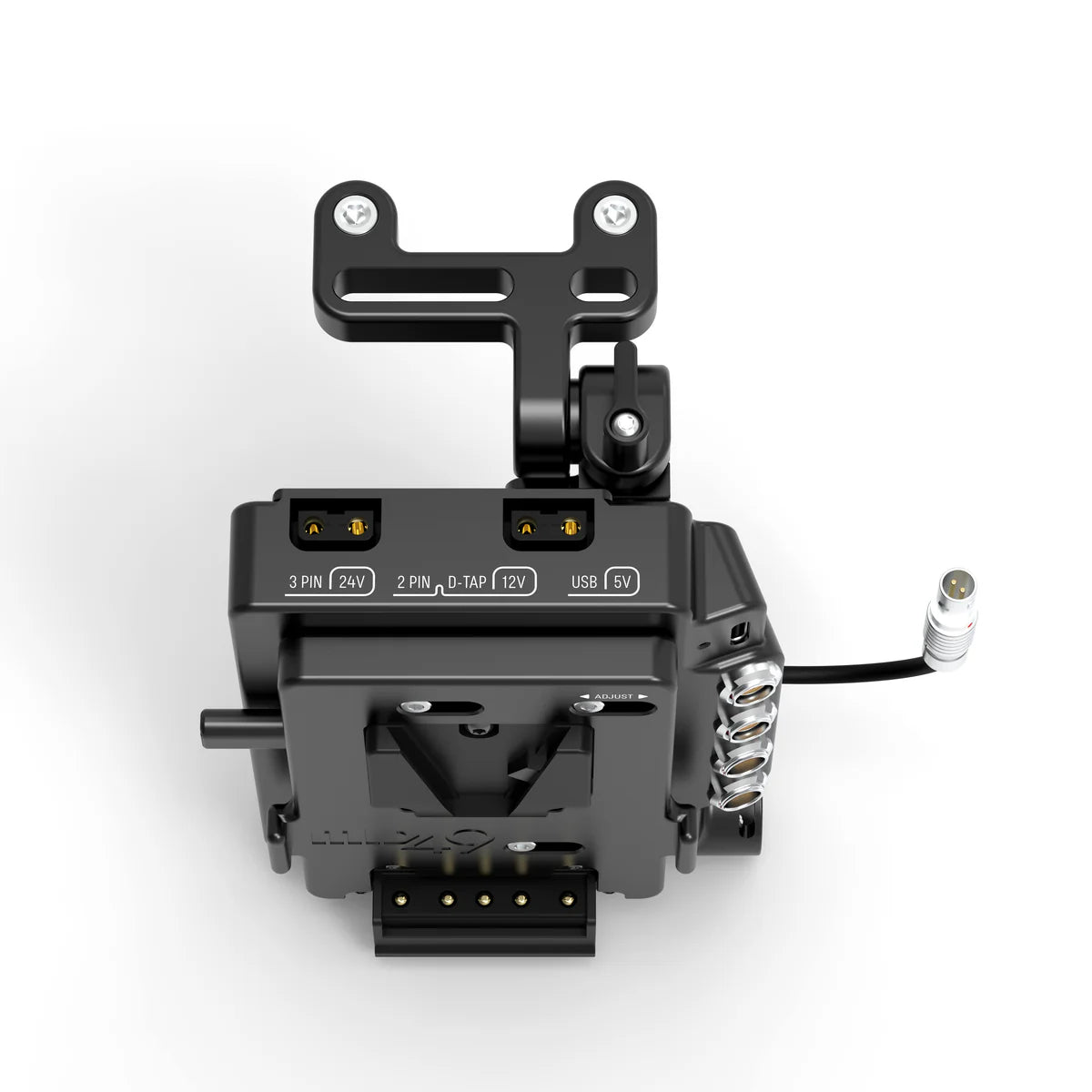

Available in V-Mount (Camera/Rod Mount) & Gold Mount (Camera/Rod Mount)

Hot-swap between on-board battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-9 will switch to an onboard battery.

The mount design allows a Sony BP-U35 battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-9 up and release the battery.

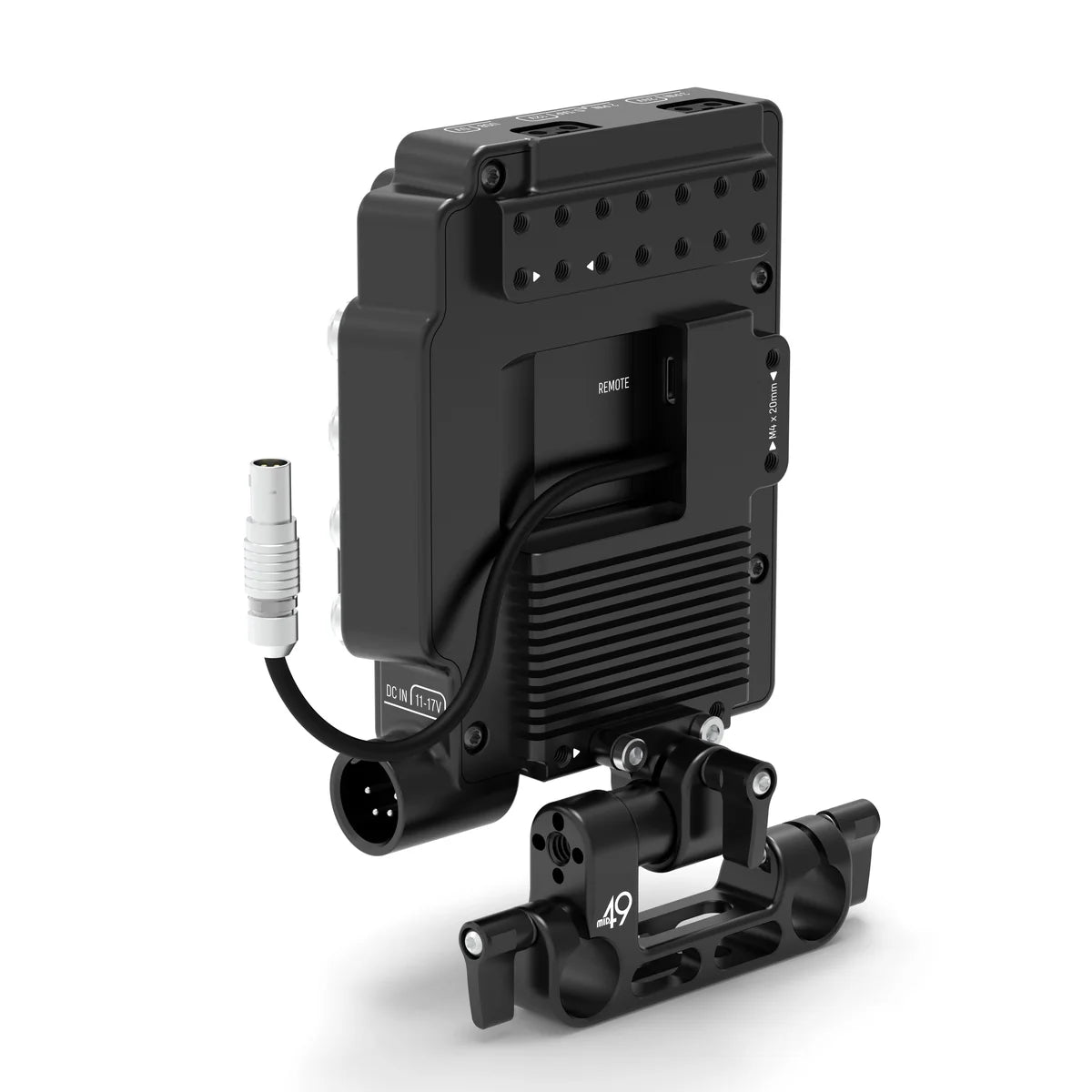

The DB-9 can also be separated from its camera mount, revealing a 15mm rod clamp with an internal friction sleeve.

With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the PYXIS uses approximately 1.8A at 14V so when using a 10A capable battery, the remaining 8.2A is allocated for accessory use. If an accessory configuration exceeds the 8.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 8.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.

In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.
