Multidyne 12G-SDI 1x4 Reclocking Distribution Amplifier

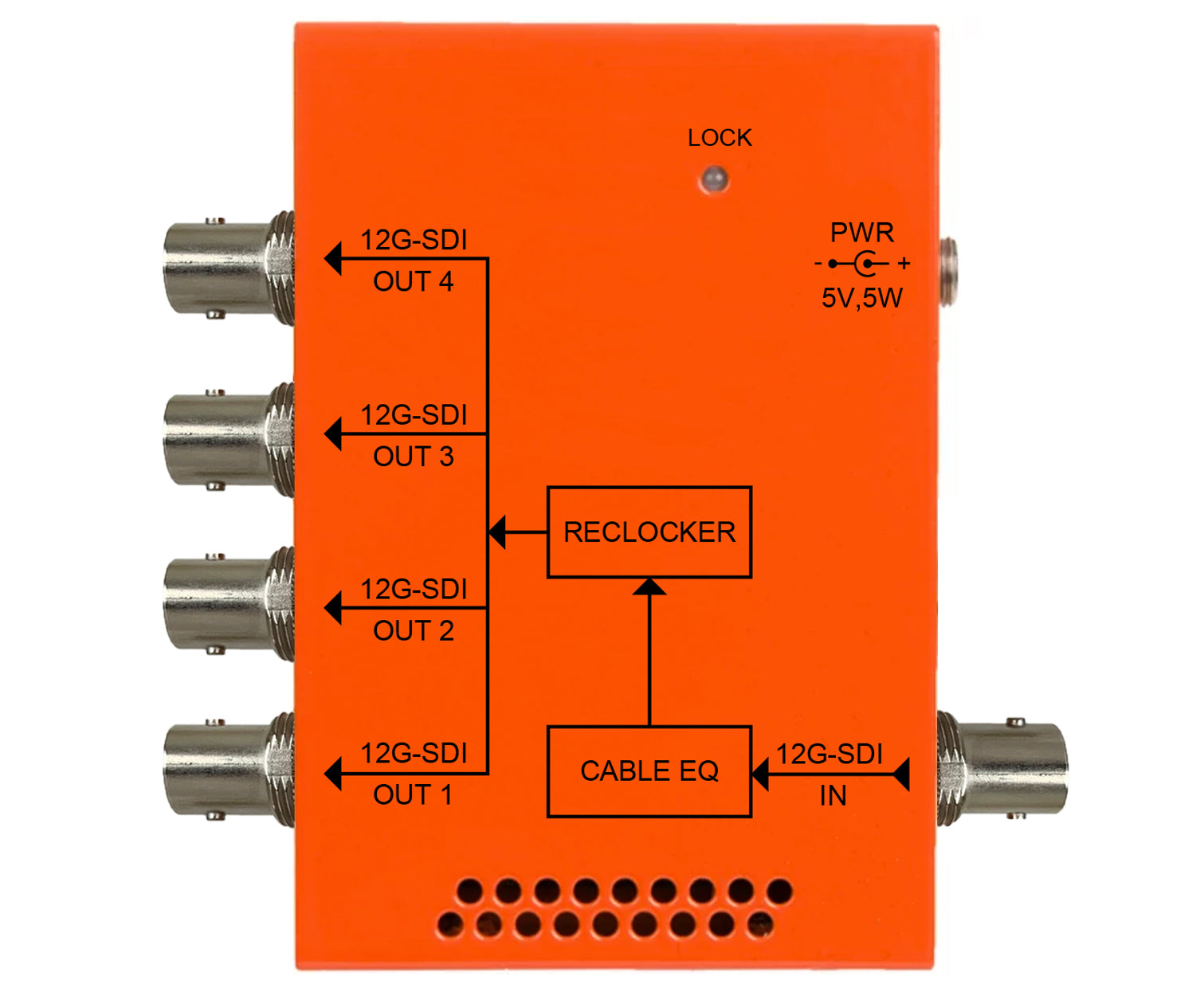

The Multidyne NBX-DA-1X4-12G is a 4K/3G/HD/SD-SDI 1x4 Reclocking Distribution Amplifier designed for broadcast use. The Multidyne NBX-DA-1X4-12G will provide up to 4 outputs of the incoming SDI signal on 75 Ohm BNC connectors.

Featuring the latest multi-rate 12G-SDI cable equalizing and reclocking technology the Multidyne NBX-DA-1X4-12G can automatically switch between all SDI formats up to 2160p60 making the NBX-DA-1X4-12G ideal to distribute SDI signals to multiple destinations.

A dual-color LED indicator will illuminate green indicating the NBX-DA-1X4-12G is locked to a valid SDI signal at the input or it will be illuminated red indicating the NBX-DA-1X4-12G is not locked to a valid SDI signal.

The NBX-DA-1X4-12G has a rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.
