MultiDyne | NBX-TRX-3G-ST 3G/HD/SD-SDI Fiber Optic Transceiver ST Connectors

MultiDyne | NBX-TRX-3G-ST 3G/HD/SD-SDI Fiber Optic Transceiver ST Connectors

Regular price $999,999.00 CAD
Regular price Sale price $999,999.00 CAD
Sale Sold out

SKU:

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

NBX-TRX-3G-ST


3G/HD/SD-SDI Fiber Optic Transceiver ST Connectors

The NBX-TRX-3G-ST from MultiDyne provides a miniature solution to transmit and receive 3G/HD/SD-SDI signals over single-mode fiber optic cable using ST fiber optic connectors at distances up to 10km.

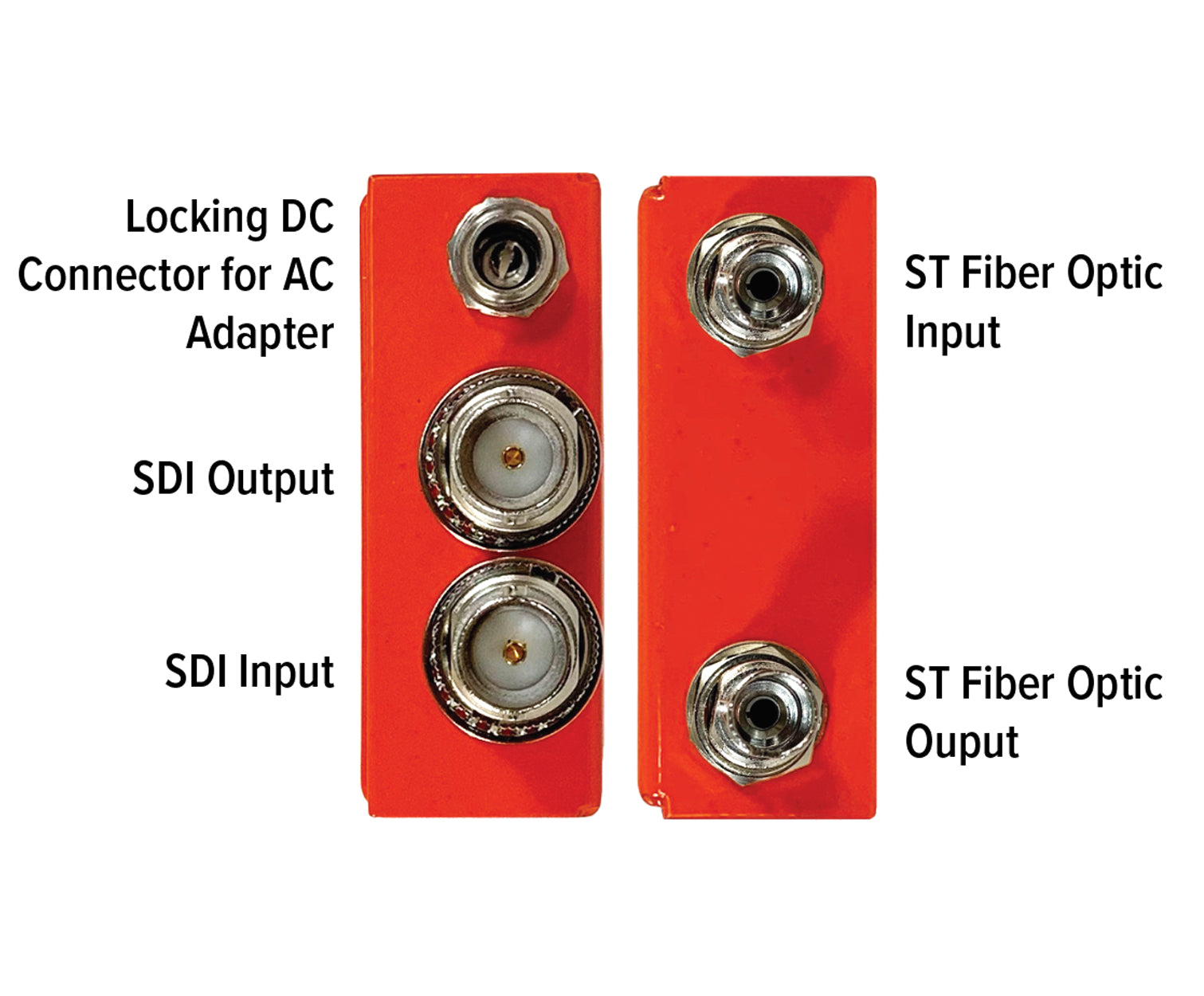

The unit accepts one SDI signal on a BNC connector and provides one optical output of this signal on an ST connector over single-mode cable with a 1310 nm wavelength.

The NBX-TRX-3G-ST also provides one SDI fiber optic input on an ST connector with a wavelength range of 1270 nm to 1610 nm and offers one output of this signal on a BNC connector.

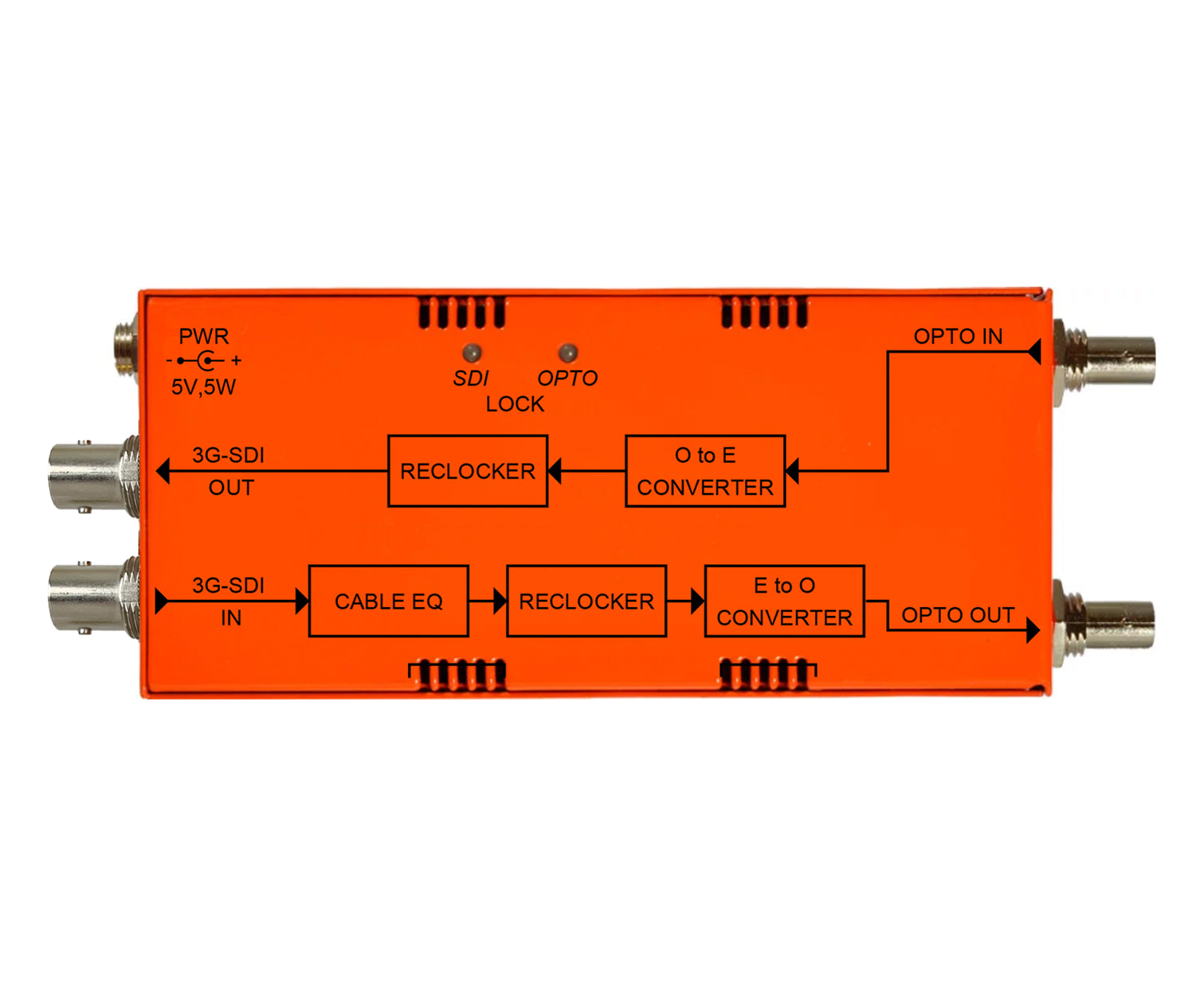

The NBX-TRX-3G-ST also provides reclocking of both the incoming and outgoing SDI signals on the BNC connectors. LED indicators provide a GREEN status indication to show that the reclockers are locked to a valid SDI signal or a RED status indicating a valid SDI signal is not present.

Power to the NBX-TRX-3G-ST is provided by an external AC Adapter with a locking DC connector supplied with the module.

Features

  • Excellent Value
  • Compact Size
  • Rugged Steel Enclosure
  • Highest of Quality Components

Applications

  • Live Broadcast
  • Arenas and Stadiums
  • Shared Control Rooms
  • Campus Facilities

Detailed Specifications

Included with Product

Warranty

View full details
