Muxlab SDI/HDMI Bi-directional Converter

$214.00 CAD

Sale Sold out

SKU:

Version 500745 - No Display 500746 - with onboard display

All efforts are made to ensure accuracy of stock and pricing info on site. There may be delays in updates from time to time. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

Muxlab SDI/HDMI Bi-directional Converter

2 versions available:

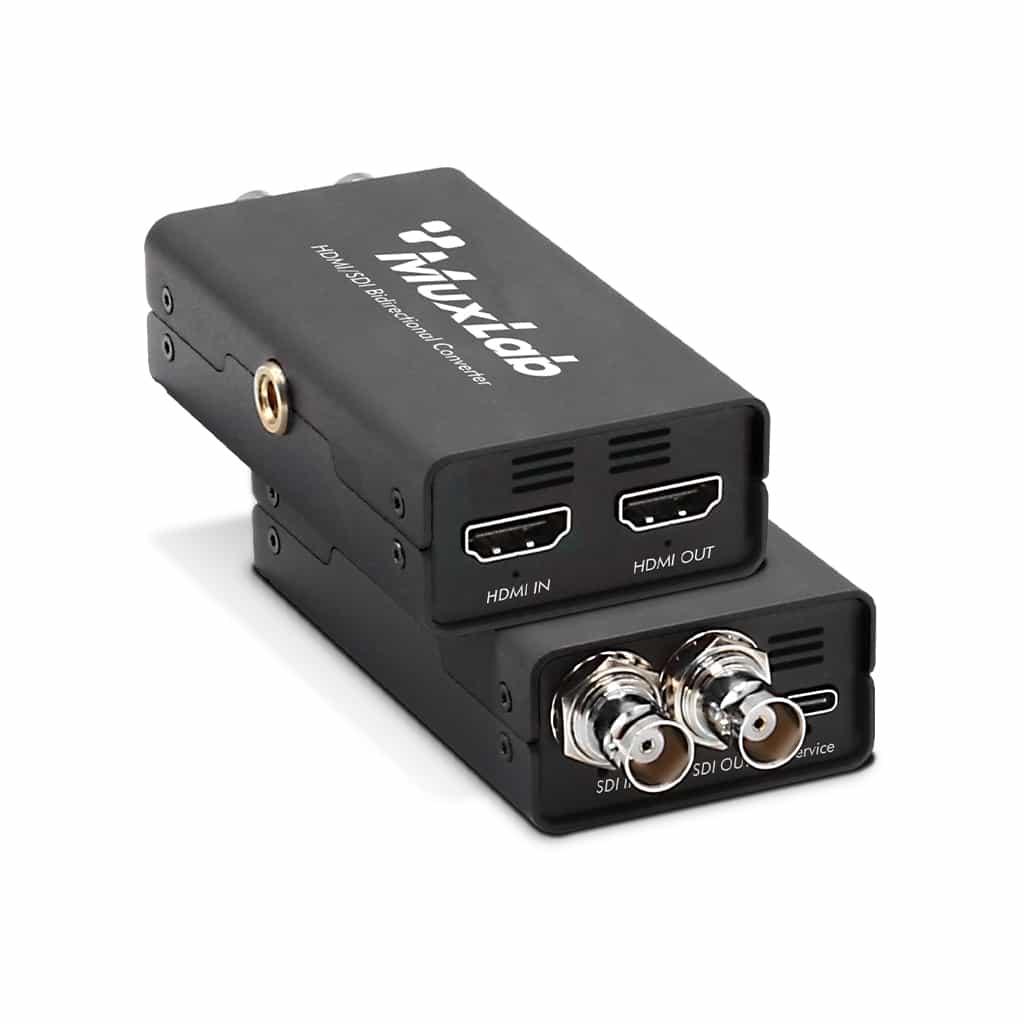

500745 - SDI/HDMI Bi-directional converter - No Power Supply

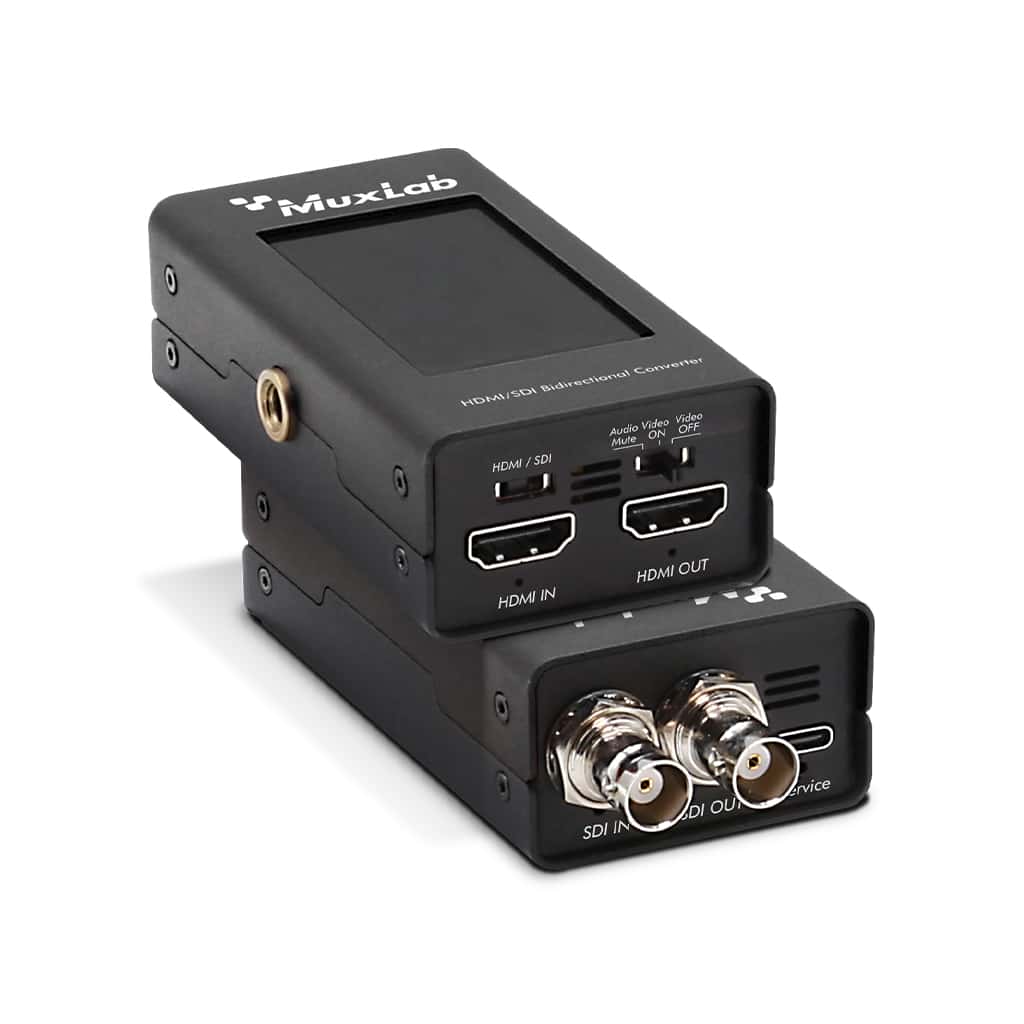

500746 - SDI/HDMI Bi-directional converter with onboard display - No Power Supply

Please click on SKU above for full product PDF with technical specifications.

The SDI/HDMI Bidirectional Converter is based on 3G-SDI signal design. The SDI input supports up to 3G-SDI Level A and B signals and is backward compatible with HD-SDI and SD-SDI signals. The HDMI input supports up to 1080p60 and is compatible with 1080i, 720p, 576i and 480i resolution. The 500745 design can achieve SDI to HDMI and HDMI to SDI dual functions. The device use pure hardware architecture with fast startup, low power consumption and no delay output.
The SDI/HDMI Bidirectional Converter is equipped with USB-C interface to power the device and upgrade software. It can be power using mobile device power supply such as a power bank. The equipment is equipped with a ¼ hot shoe screw, which is convenient for professional users to fix equipment.

Applications:

Video production & Broadcasting
Studio-to-studio & post production
Outside broadcasting vehicle
Mobile video & Live events
SDI Camcorders
Medical imaging
