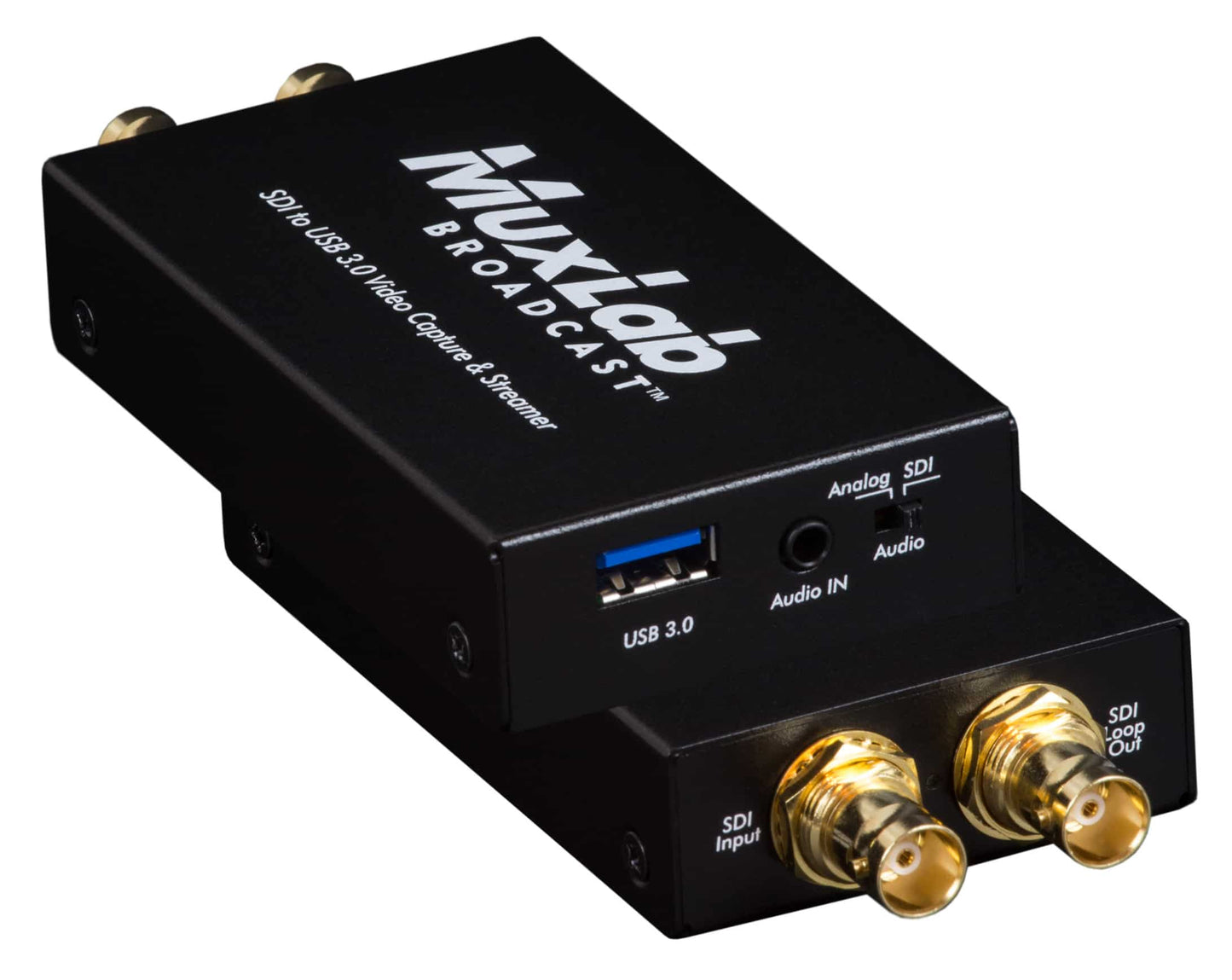

Muxlab SDI to USB 3.0 Video Capture and Streamer

Muxlab 500705  SDI to USB 3.0 Video Capture and Streamer

Please click HERE to access the full technical PDF brochure.

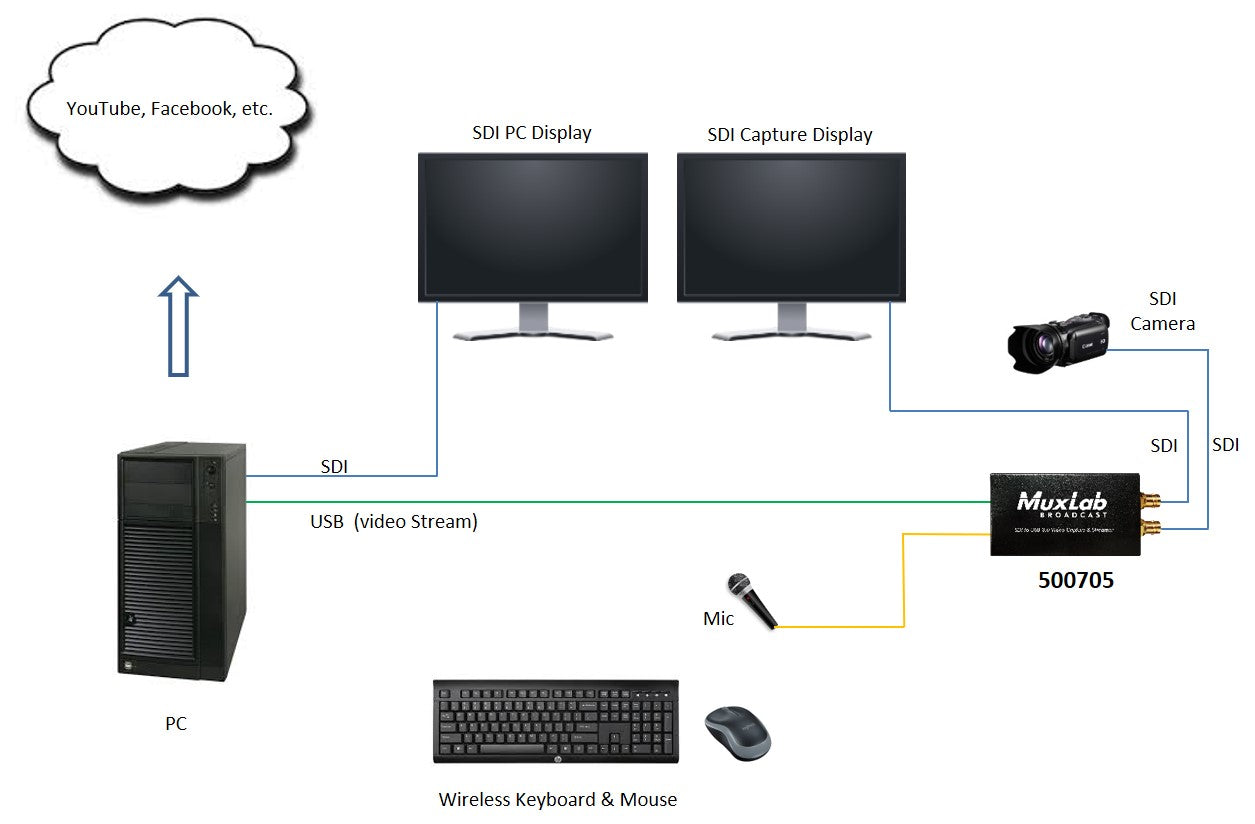

The SDI to USB 3.0 Video Capture & Streamer, with Audio In (500705) allows the user to record from SDI video sources to a PC over USB 3.1 Gen 1 (USB 3.0). The unit supports an SDI Input port for the source and SDI Loop Out for a monitor. The 500705 is capable of connecting to a 3G/HD/SD-SDI (1080p @ 60Hz) source and will stream at up to 1080p/60 over the USB 3.1 Gen 1 port to a PC or similar device to record and/or send the video to a broadcasting service such as YouTube, Facebook, and other broadcasting services. The device is compatible with OBS Studio, AMCap, etc., and supports a variety of SDI sources such as Cameras, Computers, Media Players, and many others.
