Multidyne

MultiDyne | NBX-2RX/TX-3G-ST

MultiDyne | NBX-2RX/TX-3G-ST

Regular price $999,999.00 CAD
Regular price Sale price $999,999.00 CAD
Sale Sold out

SKU:NBX-2TX-3G-ST

Transmitter or Receiver

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

NBX-2RX-3G-ST

3G/HD/SD-SDI Dual Fiber Optic Receiver ST Connectors

The NBX-2RX-3G-ST from MultiDyne provides a miniature solution to receive two 3G/HD/SD-SDI signals over single-mode fiber optic cable using ST connectors at distances up to 10km.

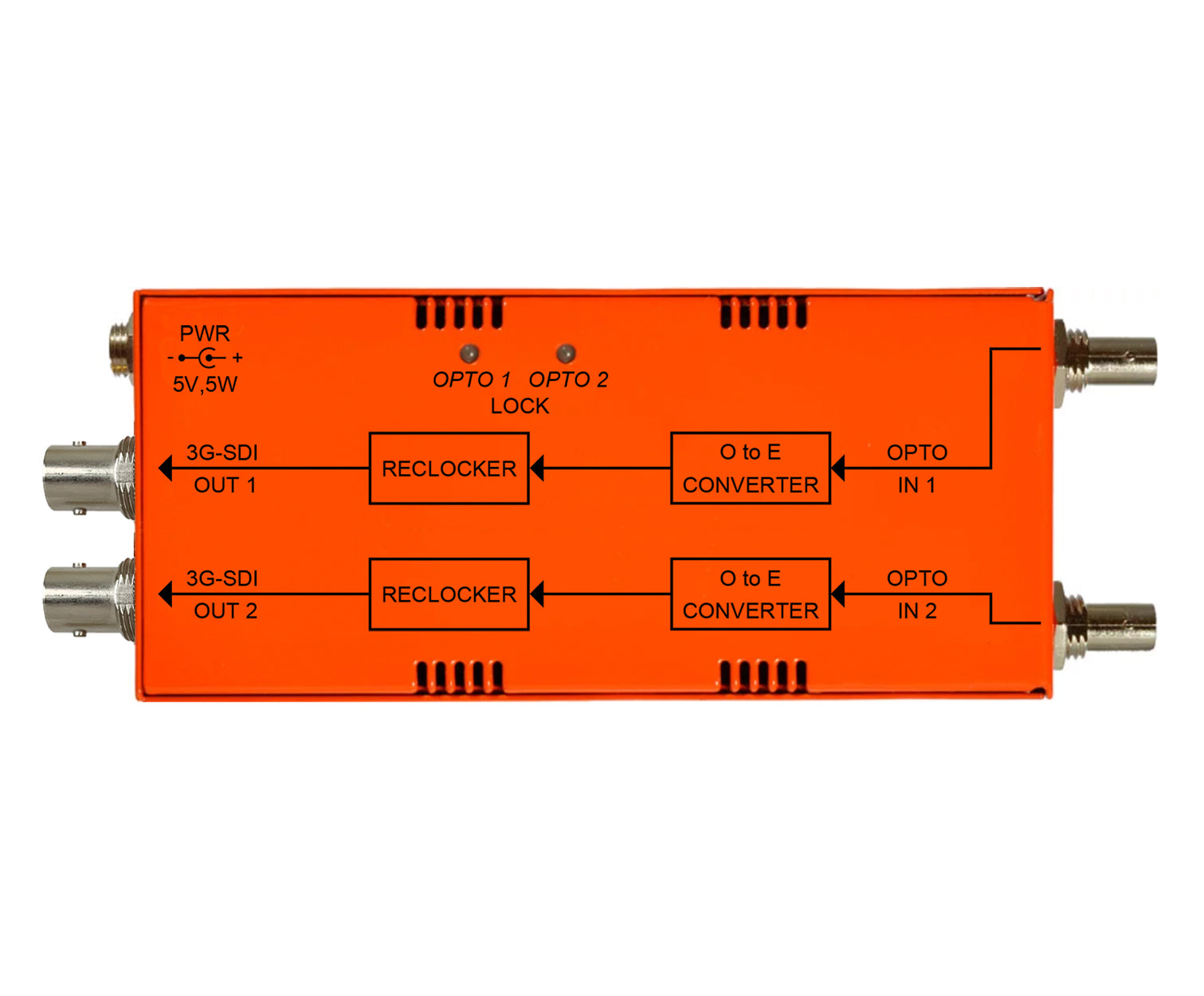

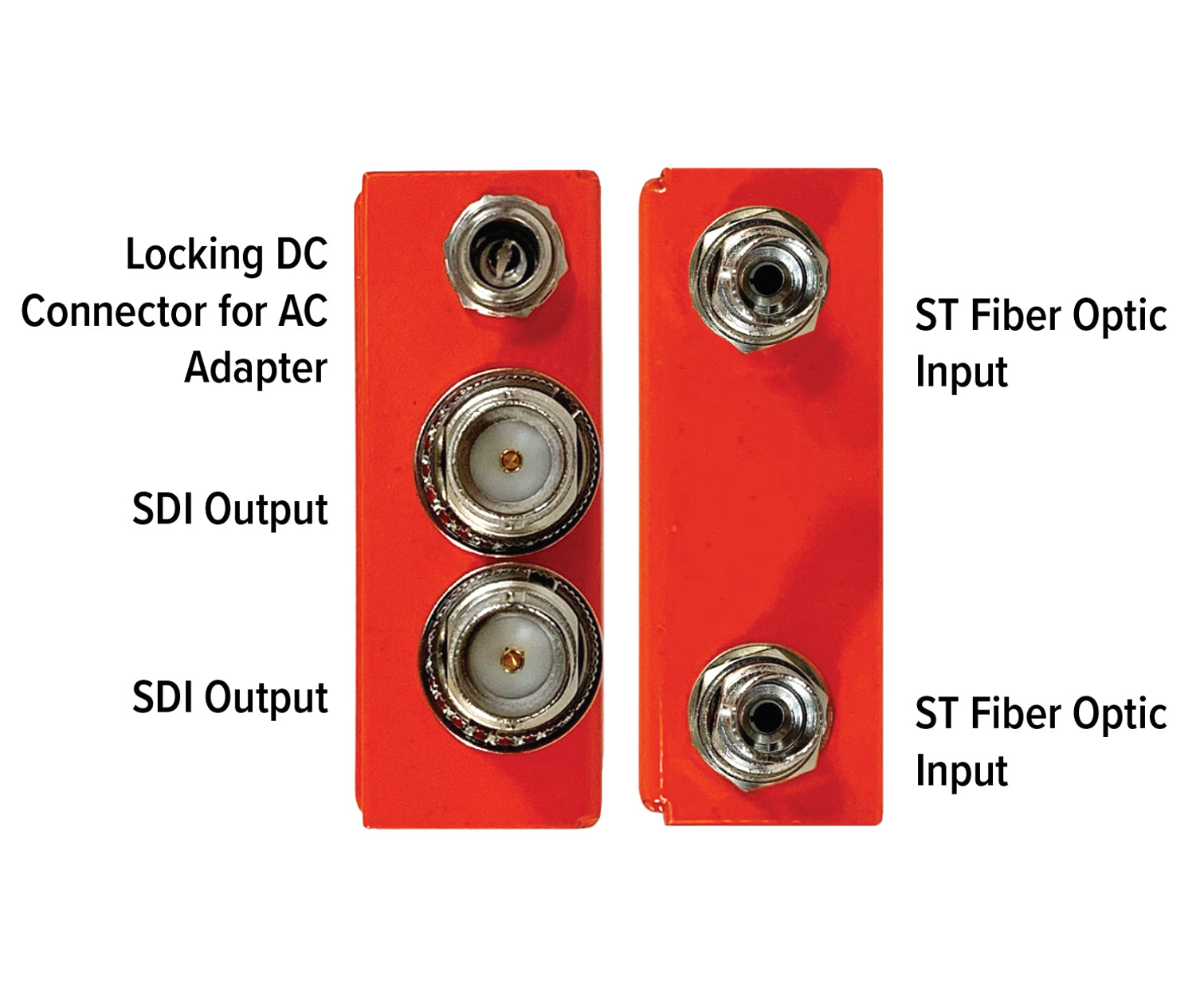

The NBX-2RX-3G-ST provides two SDI fiber optic inputs on ST connectors with a wavelength range of 1270 nm to 1610 nm and offers one output of each SDI signal on a 75 Ohm BNC connector.

The NBX-2RX-3G-ST provides reclocking on both of the outgoing SDI signals on the BNC connectors. Dual Color LED indicators provide a GREEN status indication to show that the reclockers are locked to valid SDI signals or a RED status indication to show a valid SDI signal is not present.

Power to the NBX-2RX-3G-ST is provided by an external AC Adapter with a locking DC connector supplied with the module.

Features

  • Excellent Value
  • Compact Size
  • Rugged Steel Enclosure
  • Highest of Quality Components

Applications

  • Live Broadcast
  • Arenas and Stadiums
  • Shared Control Rooms
  • Campus Facilities

NBX-2TX-3G-ST

3G/HD/SD-SDI Dual Fiber Optic Transmitter ST Connectors

The NBX-2TX-3G-ST from MultiDyne provides a miniature solution to transmit two 3G/HD/SD-SDI signals over single-mode fiber optic cable using ST fiber optic connectors at distances up to 10km.

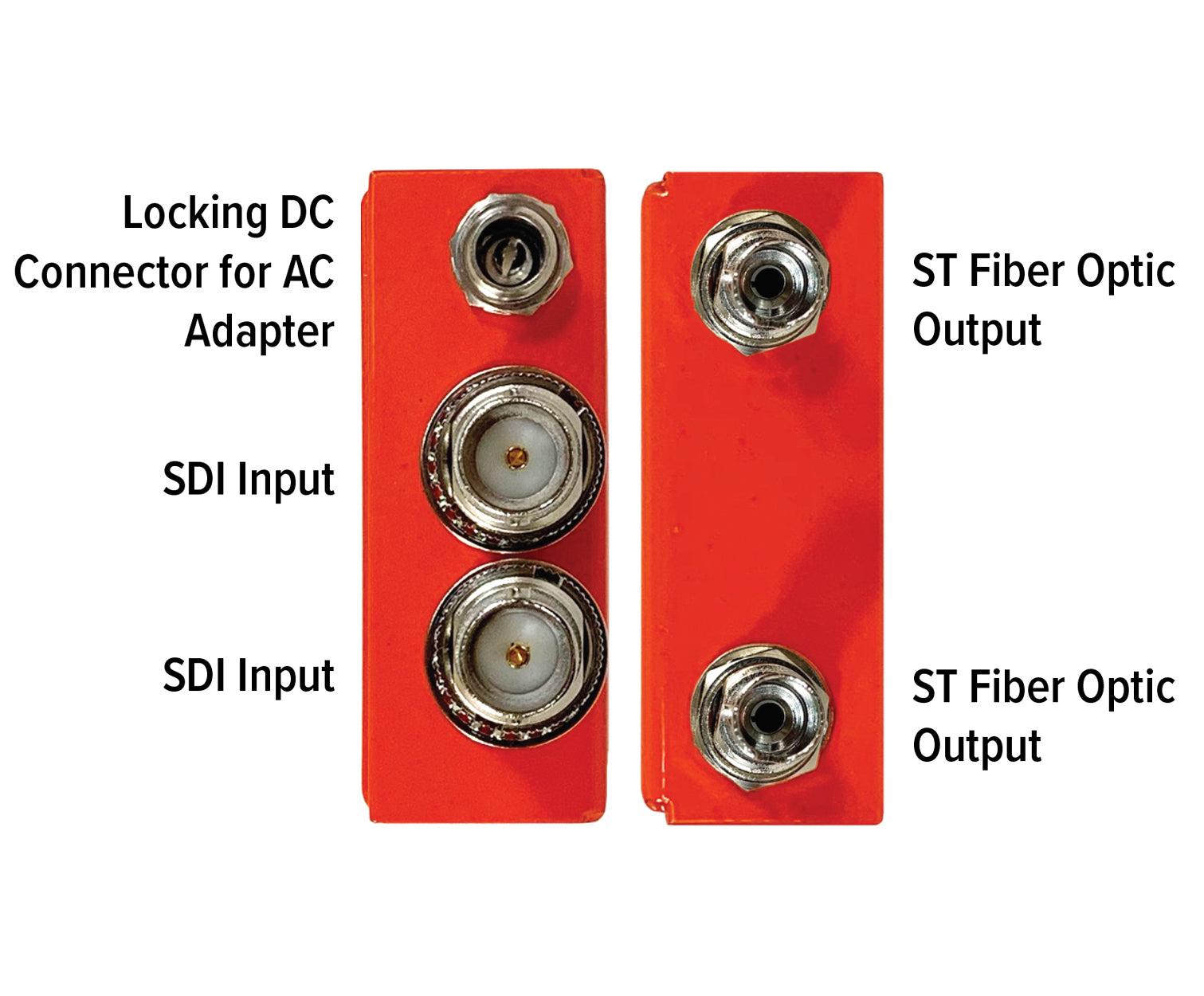

The unit accepts two SDI signals on 75 Ohm BNC connectors and provides one optical output of each signal on an ST connector over single-mode fiber optic cable with a 1310 nm wavelength.

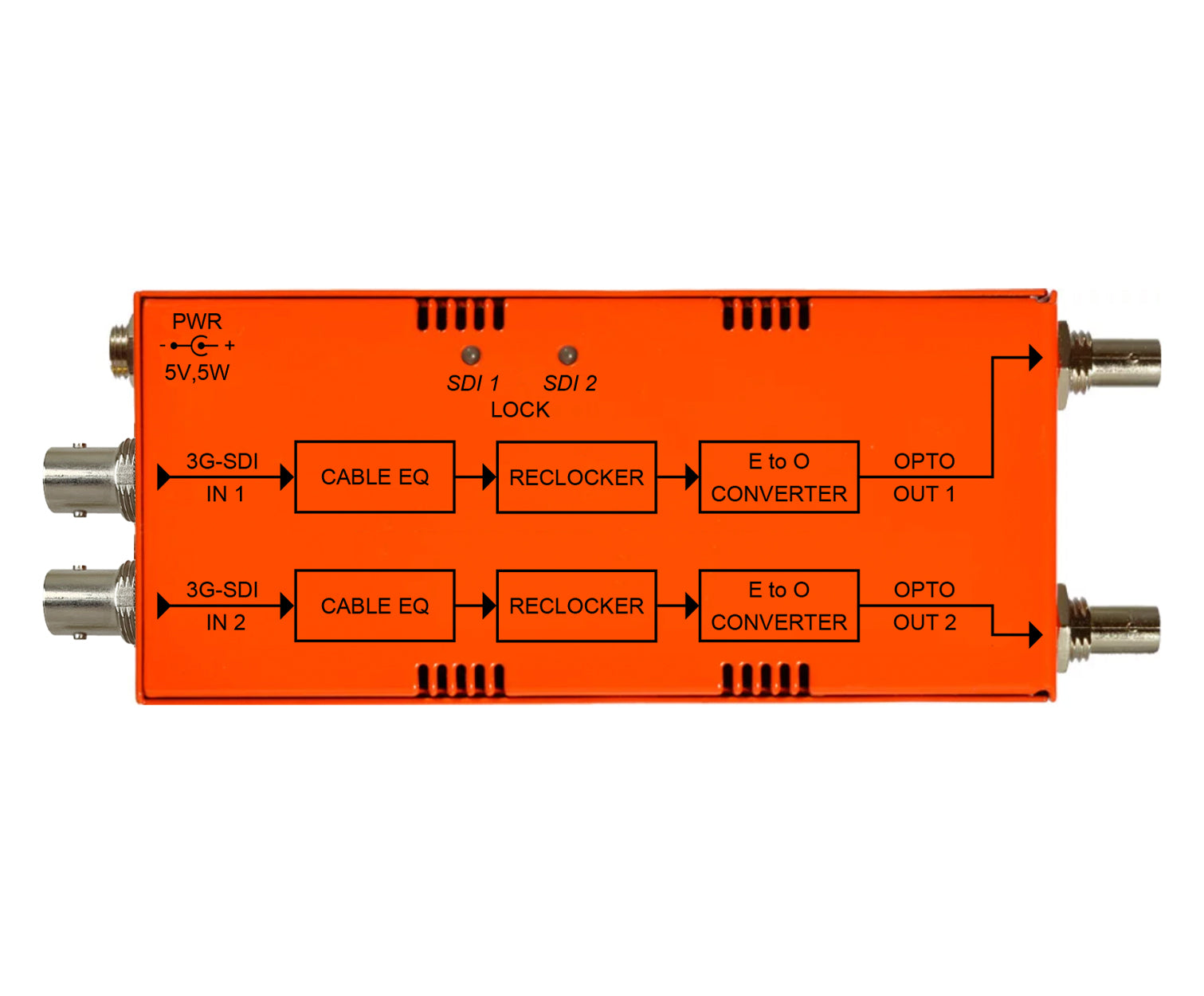

The NBX-2TX-3G-ST provides reclocking on both of the incoming SDI signals on the BNC connectors. Dual-color LED indicators to provide a GREEN status indication to show that the reclockers are locked to valid SDI signals or a RED status indication to show valid SDI signals are not present at the inputs.

Power to the NBX-2TX-3G-ST is provided by an external AC Adapter with locking DC connector supplied with the module.

Features

  • Excellent Value
  • Compact Size
  • Rugged Steel Enclosure
  • Highest of Quality Components

Applications

  • Live Broadcast
  • Arenas and Stadiums
  • Shared Control Rooms
  • Campus Facilities
