MultiDyne | NBX-3G-HDMI | 3G/HD/SD-SDI to HDMI Converter
MultiDyne | NBX-3G-HDMI | 3G/HD/SD-SDI to HDMI Converter
SKU:NBX-3G-HDMI
Couldn't load pickup availability
All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca
NBX-3G-HDMI
3G/HD/SD-SDI to HDMI Converter
The NBX-3G-HDMI from MultiDyne provides a miniature solution to convert a 3G/HD/SD-SDI signal to an HDMI signal in a package small enough to hang right behind your monitor.

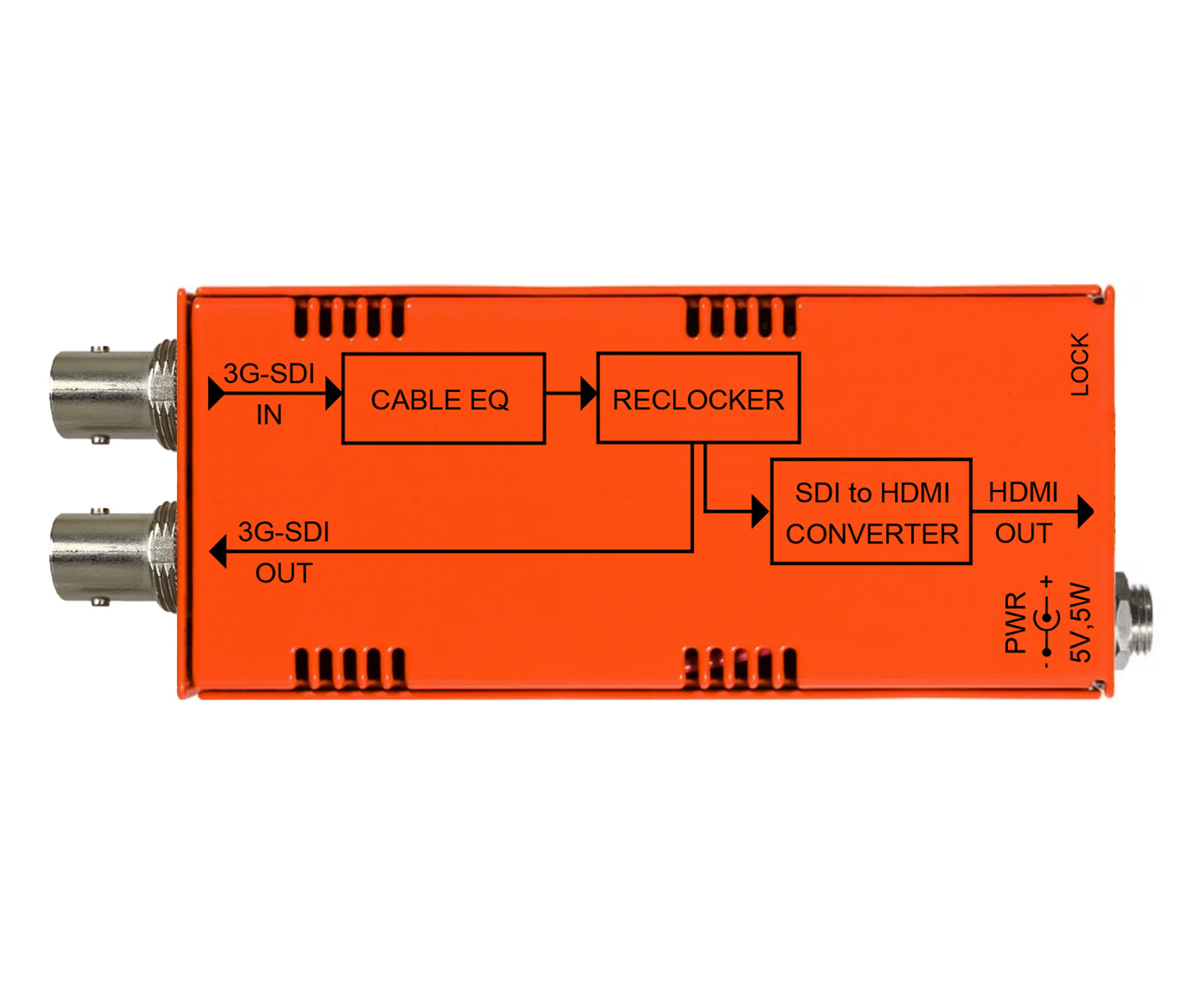

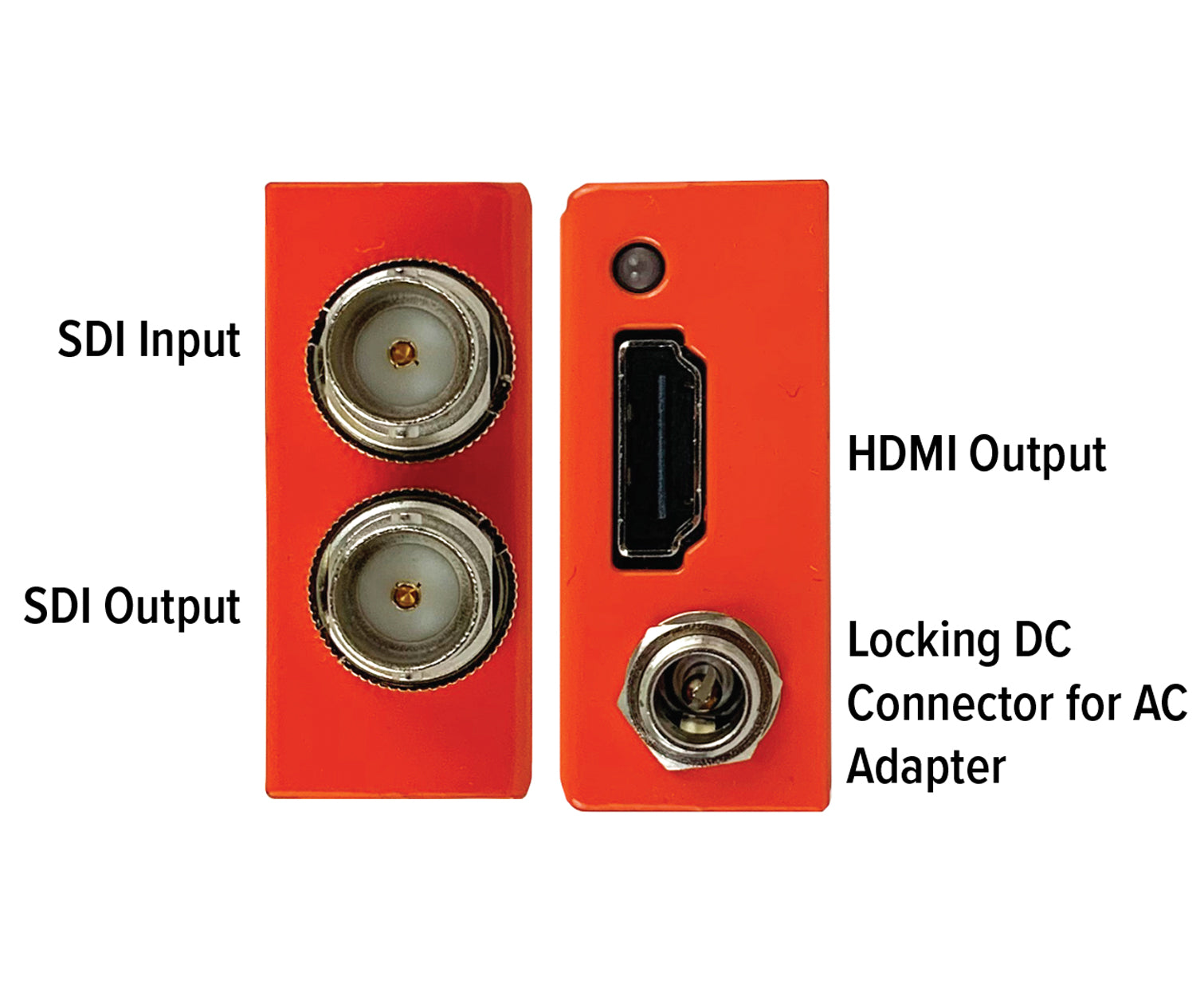

The unit accepts one SDI signal on a BNC connector and provides one reclocked SDI output on a BNC as well as one HDMI output on a standard HDMI connector.
The NBX-3G-HDMI provides reclocking of the incoming SDI signal on the BNC connectors. A dual-LED indicator provides a GREEN status indication to show that the reclocker is locked to a valid SDI signal or a RED status indicating a valid SDI signal is not present.
Power to the NBX-3G-HDMI is provided by an external AC Adapter with a locking DC connector supplied with the module.Â
Features
- Excellent Value
- Compact Size
- Rugged Steel Enclosure
- Highest of Quality Components
Applications
-
Live Broadcast
- Arenas and Stadiums
- Shared Control Rooms
- Campus Facilities
