MultiDyne | NBX-3G-HDMI-DMX | 3G/HD/SD-SDI to HDMI Converter w/Multichannel Audio Downmix

3G/HD/SD-SDI to HDMI Converter w/Multichannel Audio Downmix

The NBX-3G-HDMI-DMX provides a unique monitoring solution for broadcast use to convert an SDI signal to an HDMI signal while providing additional audio outputs.

In addition to mono & stereo mode, the NBX-3G-HDMI-DMX can also provide a Lt/Rt multichannel down-mix which allows for 5.1 audio to be mixed down to stereo.

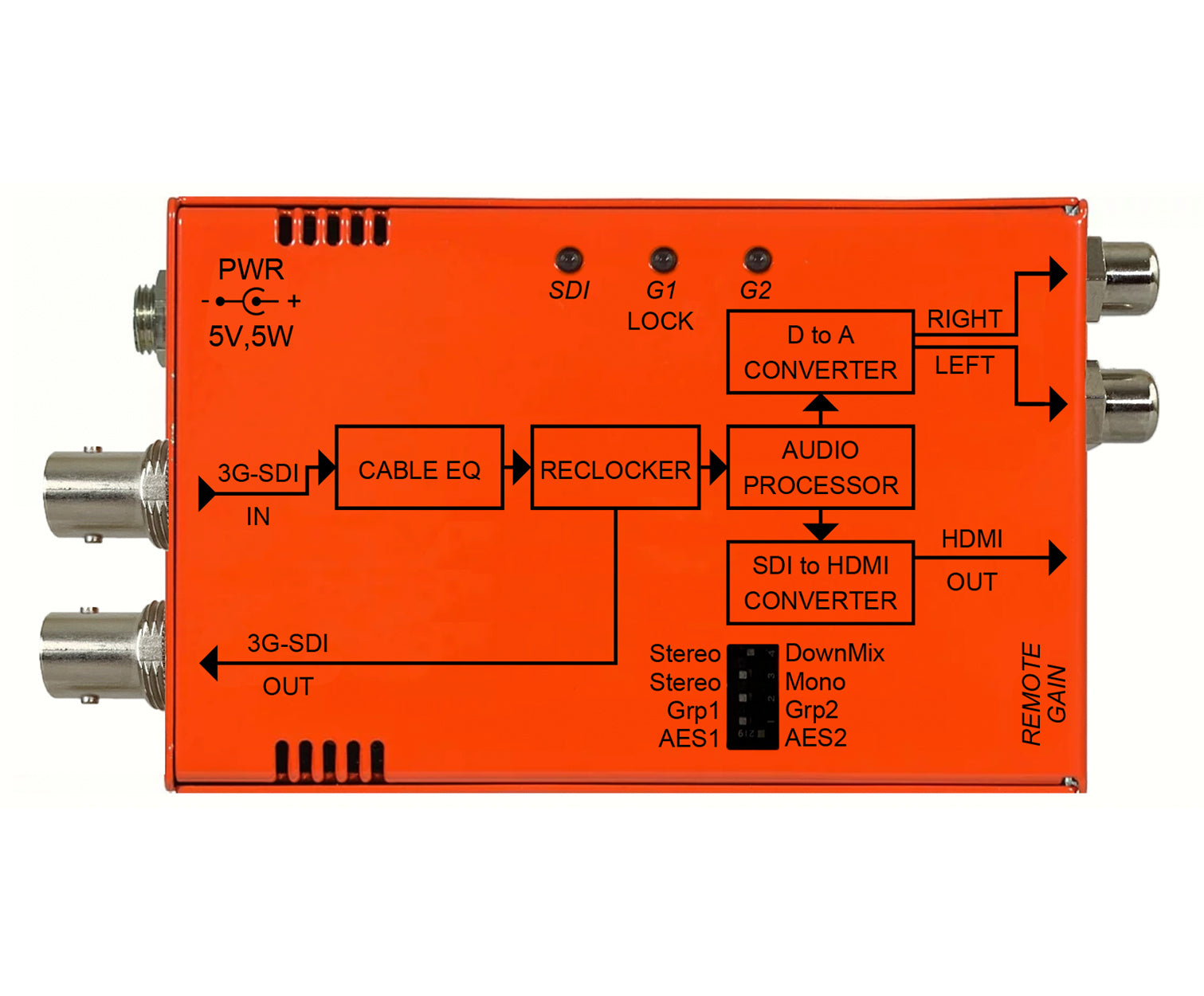

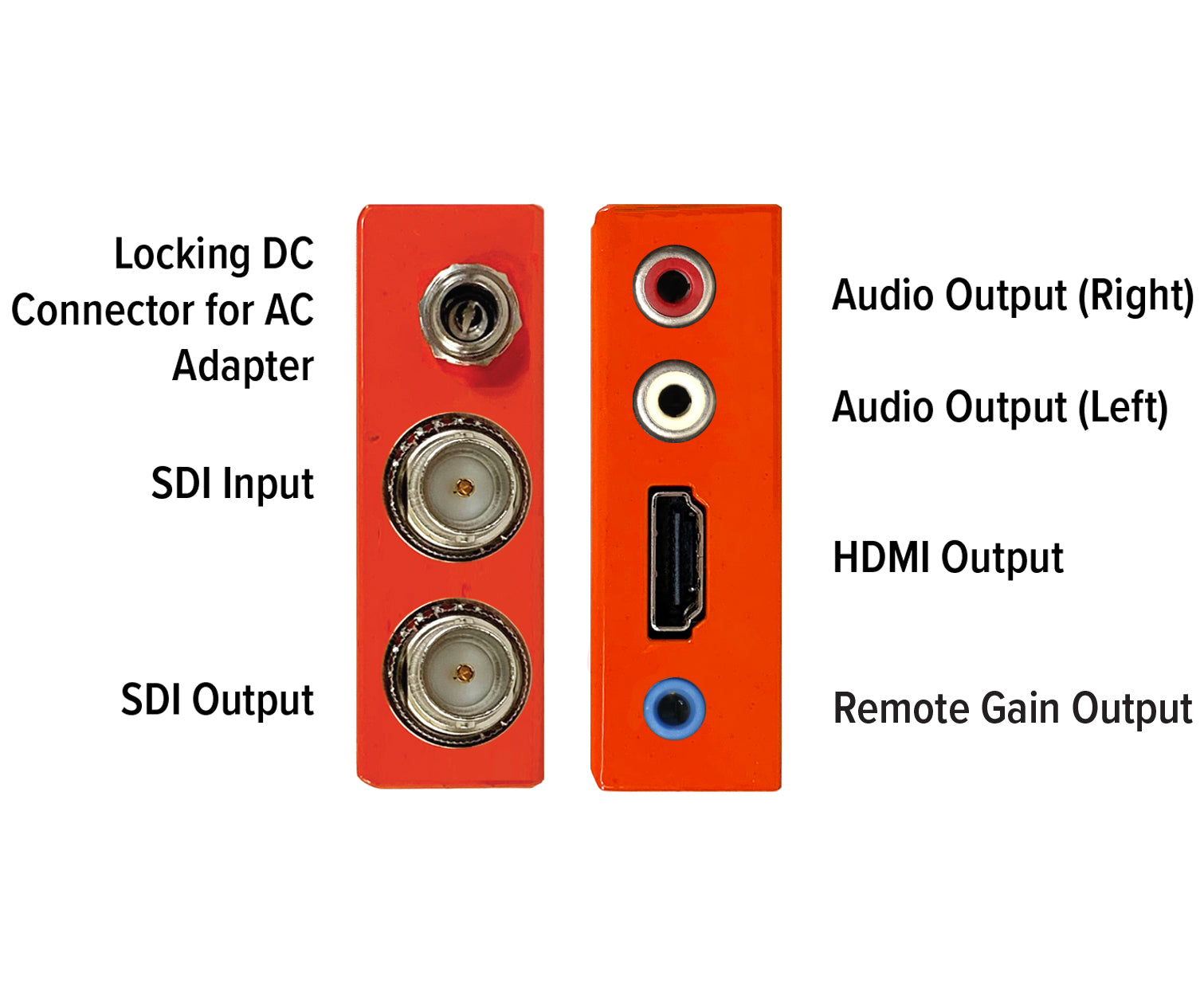

The NBX-3G-HDMI-DMX accepts on SDI signal and provides one reclocked output. An HDMI output of the input signal is available on a standard HDMI connector. Two RCA connectors are also provided for the additional audio outputs.

Selecting the mode for the audio outputs is done via recessed mounted DIP switch.

Three LED’s located on the front of the unit provide a status indication that a valid SDI signal is present on the SDI input along with G1 and G2 LED’s indicating if audio is present in Group 1 and 2 of the SDI signal for up to eight channels of audio. If a valid SDI signal is present the SDI LED will be illuminated green if a valid SDI signal is not present the LED will be illuminated red. The G1 and G2 LED’s will be illuminated green if audio is present in those groups.

Power is provided to the NBX-3G-HDMI-DMX using the included 5VDC adapter that uses a threaded locking DC power connector for added protection against loss of power.

Features

• Excellent Value
• Compact Size
• Rugged Steel Enclosure
• Highest of Quality Components

Applications

• Live Broadcast
• Arenas and Stadiums
• Shared Control Rooms
• Campus Facilities
