MADI 1x4 Reclocking Distribution Amplifier

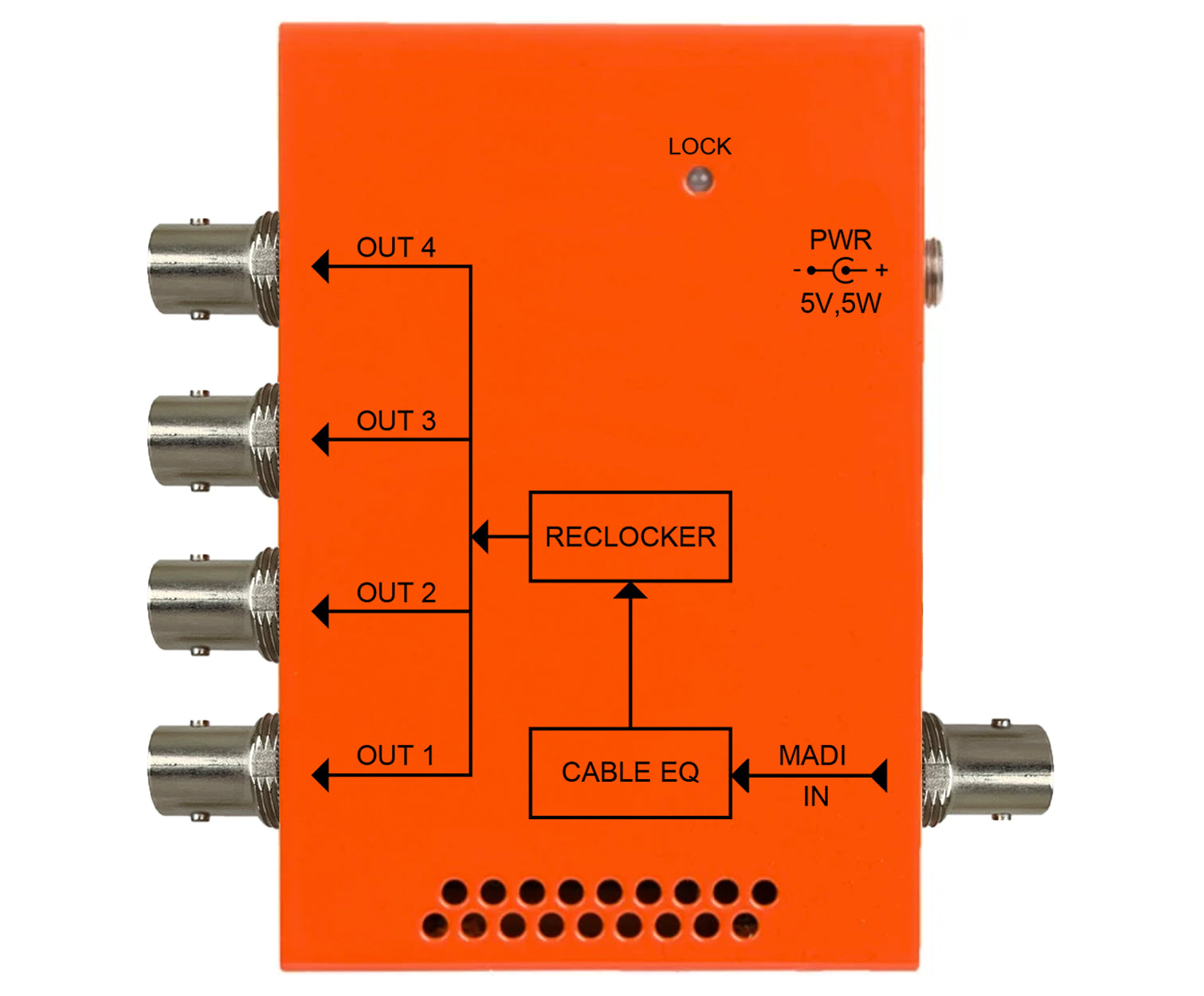

The NBX-DA-1X4-MADI is a 1x4 MADI reclocking distribution amplifier designed for broadcast use. The unit accepts one unbalanced 64 channel MADI signal on a 75 Ohm BNC connector and provides up to 4 unbalanced outputs on 75 Ohm BNC connectors.
The NBX-DA-1X4-MADI supports up to 64 channels of audio with a 48kHz sampling rate.
A dual-color LED indicator will illuminate green indicating the NBX-DA-1X4-MADI is locked to a valid MADI signal at the input or it will be illuminated red indicating that the NBX-DA-1X4-MADI is not locked to a valid MADI signal.
The NBX-DA-1X4-MADI has a rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.
