NBX-DE-2AES-4AA
3G/HD/SD-SDI Audio De-Embedder 2 AES/EBU + 4 Analog Audio Outputs
The NBX-DE-2AES-4AA is a 3G/HD/SD-SDI audio demultiplexer designed to simultaneously extract 2 AES/EBU signals as well as 2 stereo analog audio signals from an SDI signal with embedded audio.

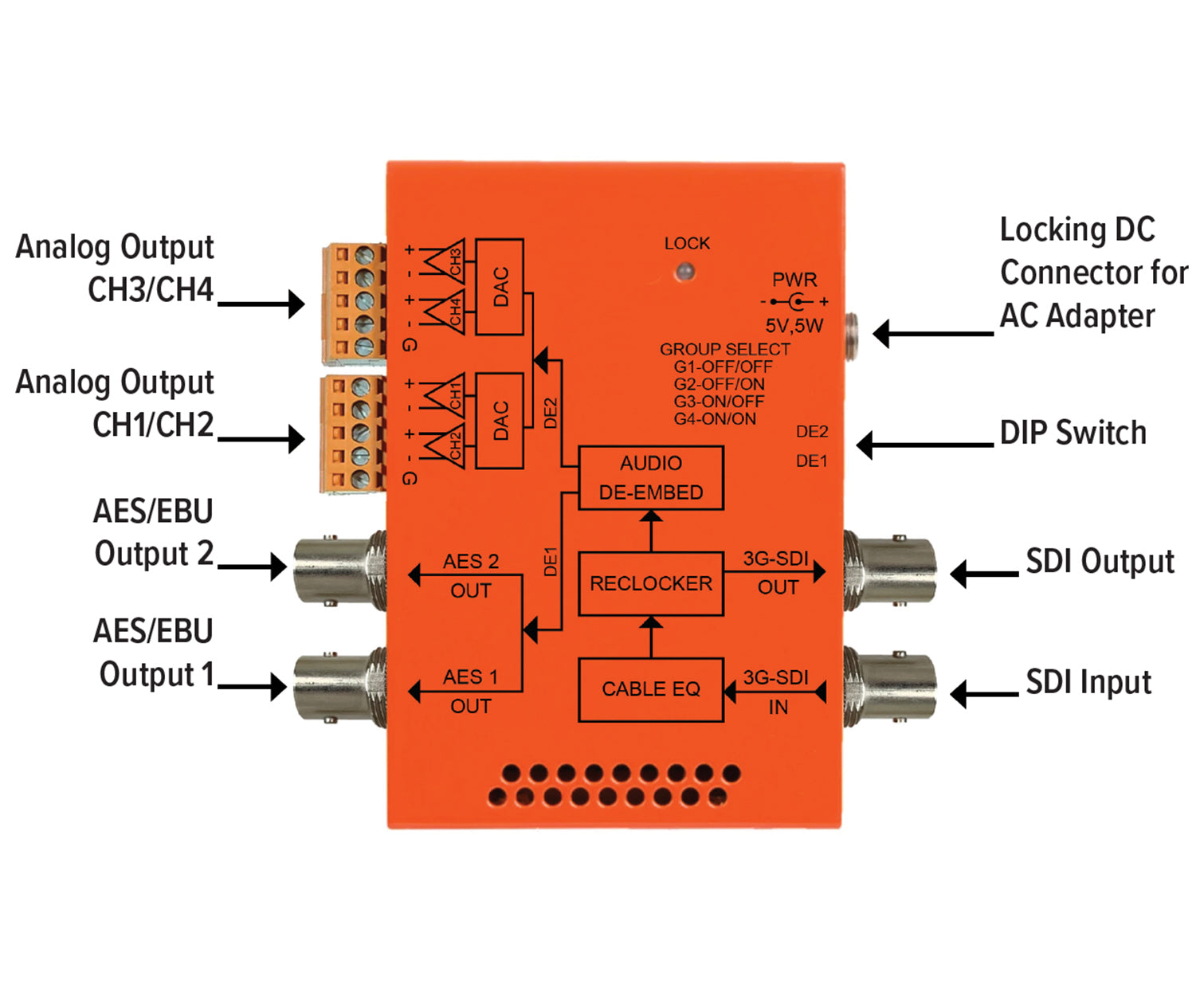

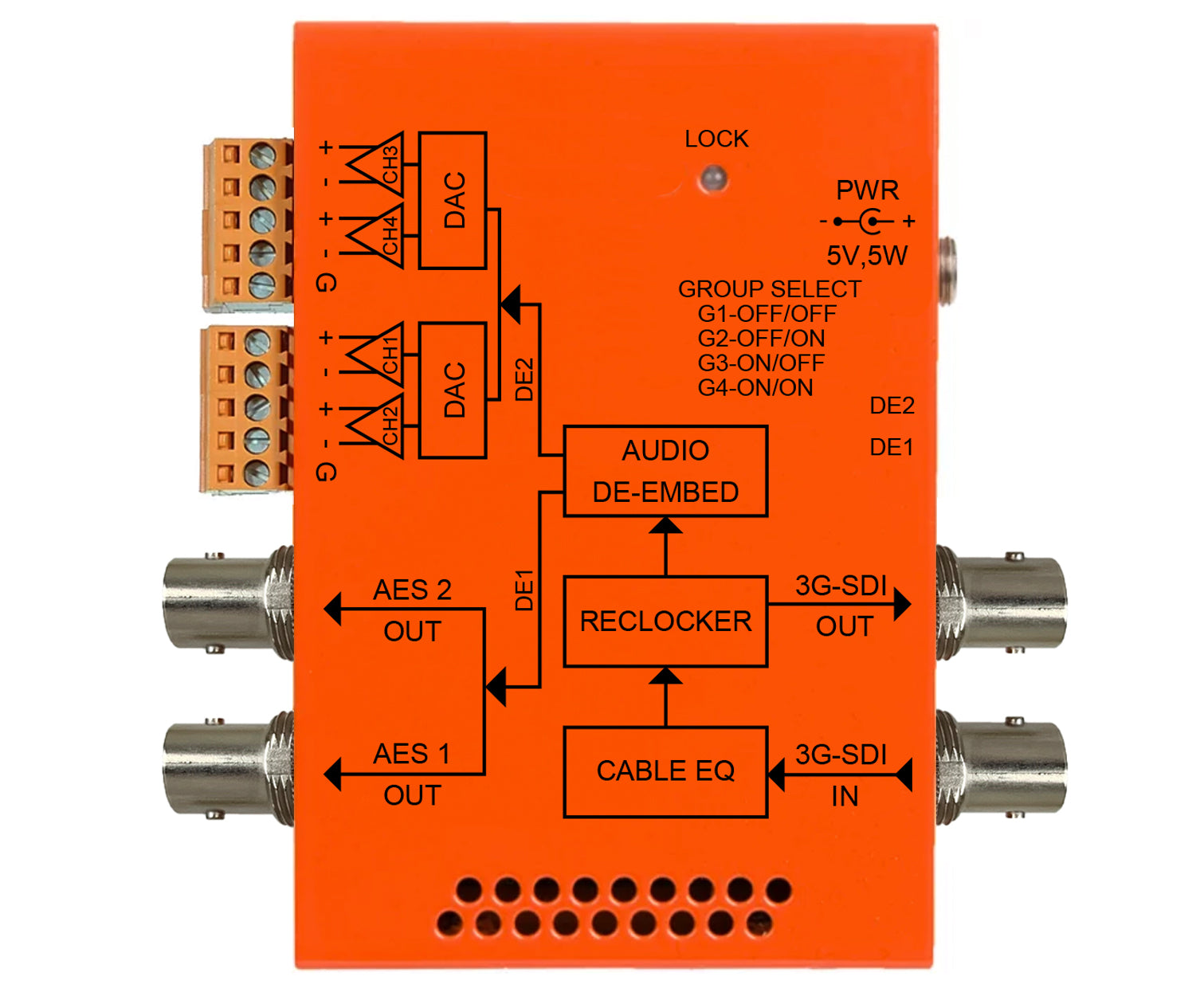

The NBX-DE-2AES-4AA accepts a 3G/HD/SD-SDI signal on a BNC connector a reclocked output of that signal is also available on a BNC connector. A recessed DIP switch allows the user to extract and assign any of the 4 groups of audio to both the AES/EBU outputs as well as the analog audio outputs. The 2 unbalanced AES/EBU signals are on 75 Ohm BNC connectors while the balanced stereo analog audio outputs are on 5 pin pluggable terminal block connectors.
A dual-color LED will illuminate green indicating the NBX-DE-2AES-4AA is locked to a valid SDI input signal or the LED will be illuminated red showing the unit is powered but not locked to a valid input signal.
The NBX-DE-2AES-4AA has a rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.
Features
- Excellent Value
- Compact Size
- Rugged Steel Enclosure
- Highest of Quality Components
Applications
- Live Broadcast
- Arenas and Stadiums
- Shared Control Rooms
- Campus Facilities
