MultiDyne | NBX-TRX-12G-ST | 12G-SDI Over Fiber Optic Transceiver ST Connectors

MultiDyne | NBX-TRX-12G-ST | 12G-SDI Over Fiber Optic Transceiver ST Connectors

Regular price $999,999.00
Regular price Sale price $999,999.00
Sale Sold out

SKU:NBX-TRX-12G-ST

NBX-TRX-12G-ST

12G-SDI Over Fiber Optic Transceiver ST Connectors

The NBX-TRX-12G-ST from MultiDyne provides a miniature solution to transmit and receive 12G-SDI signals over single-mode fiber optic cable using ST fiber optic connectors at distances up to 10km.

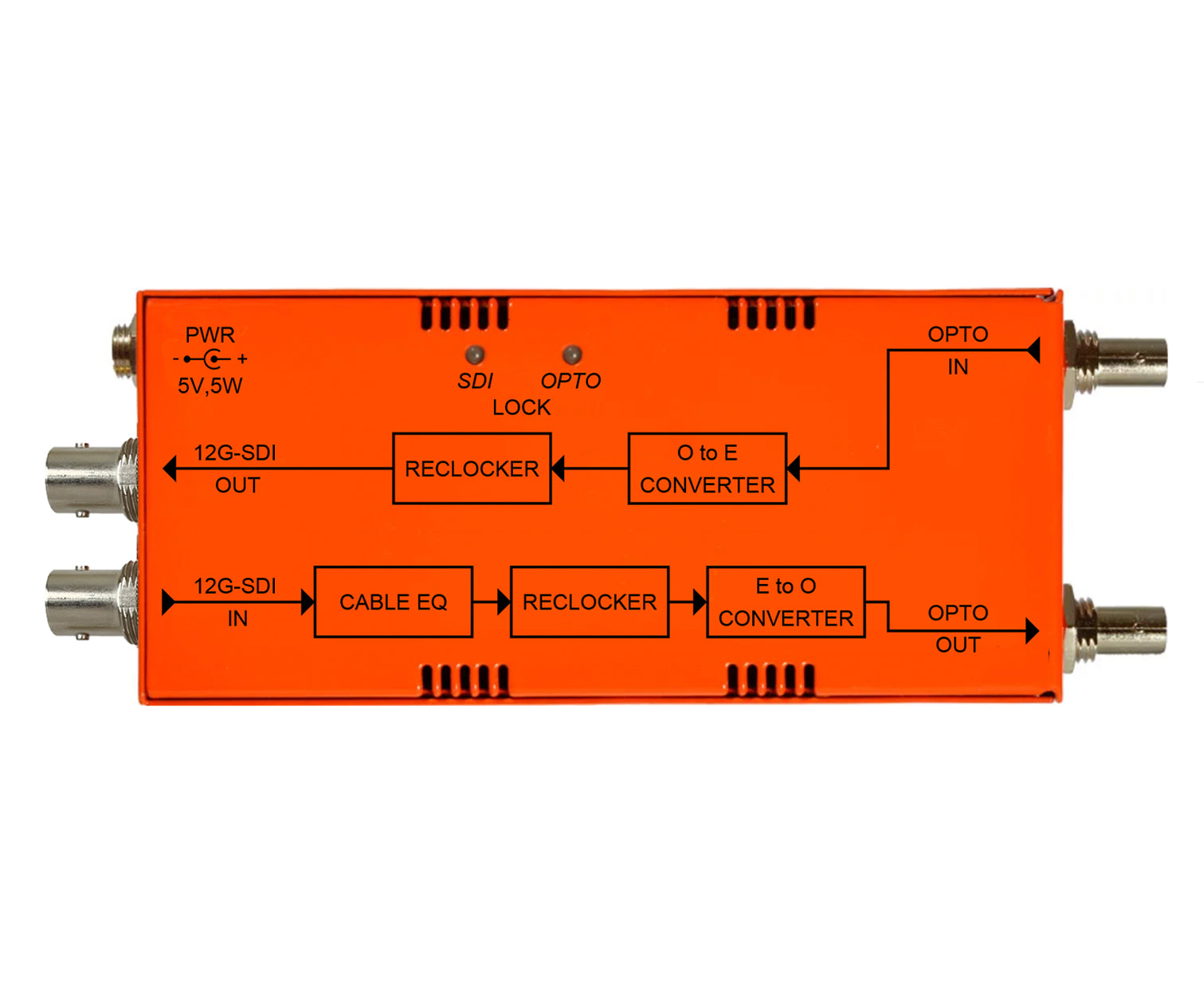

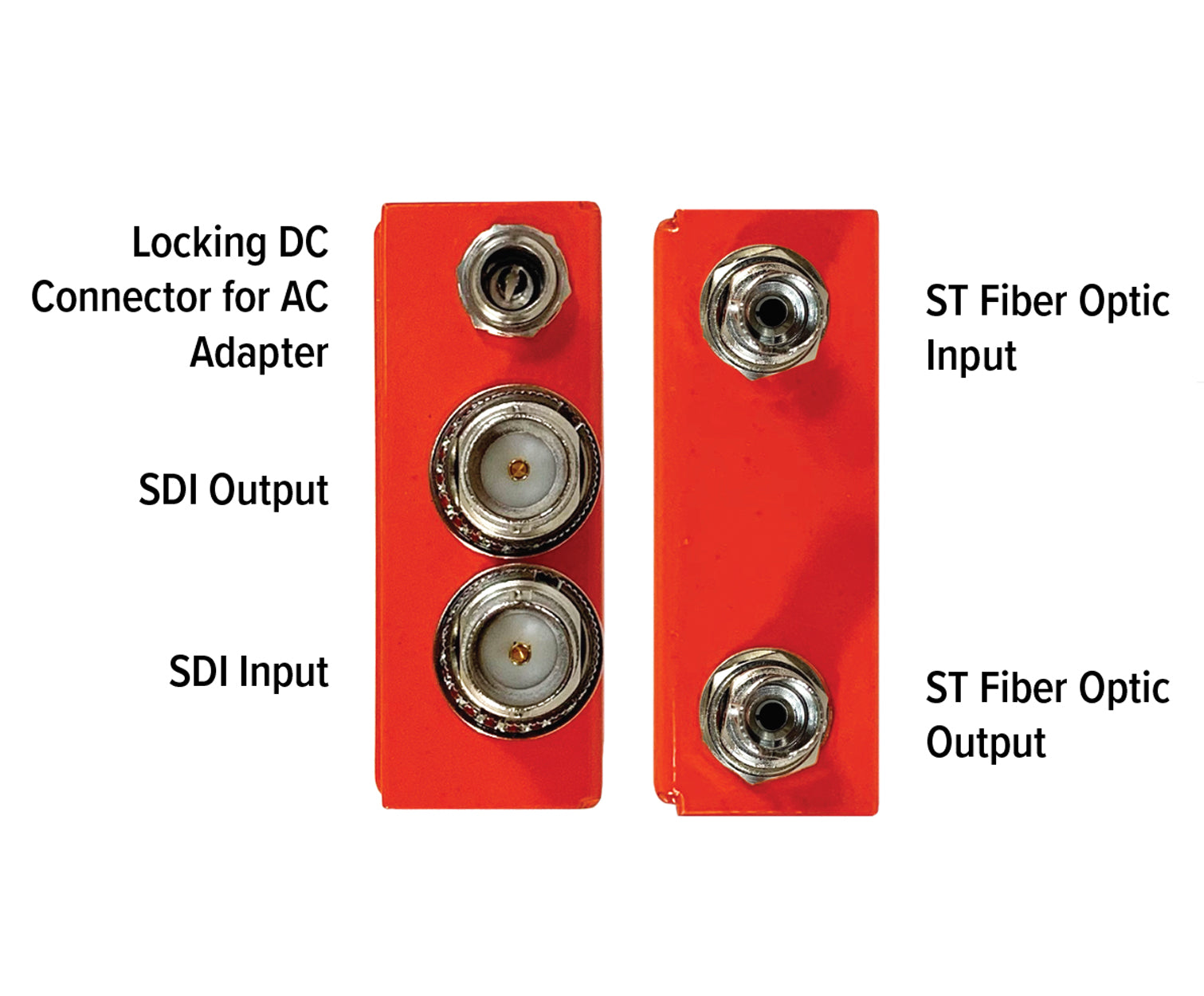

The unit accepts one SDI signal on a BNC connector and provides one optical output of this signal on an ST connector over single-mode cable with a 1310 nm wavelength.

The NBX-TRX-12G-ST also provides one SDI fiber optic input on an ST connector with a wavelength range of 1270 nm to 1610 nm and offers one output of this signal on a BNC connector.

The NBX-TRX-12G-ST also provides reclocking of both the incoming and outgoing SDI signals on the BNC connectors. LED indicators provide a GREEN status indication to show that the reclockers are locked to a valid SDI signal or a RED status indicating a valid SDI signal is not present.

Power to the NBX-TRX-12G-ST is provided by an external AC Adapter with a locking DC connector supplied with the module.

Features

  • Excellent Value
  • Compact Size
  • Rugged Steel Enclosure
  • Highest of Quality Components

Applications

  • Live Broadcast
  • Arenas and Stadiums
  • Shared Control Rooms
  • Campus Facilities
