NBX-TRX-3G-LC
3G/HD/SD-SDI Fiber Optic Transceiver LC Connectors
The NBX-TRX-3G-LC from MultiDyne provides a miniature solution to transmit and receive 3G/HD/SD-SDI signals over single-mode fiber optic cable using LC fiber optic connectors at distances up to 10km.

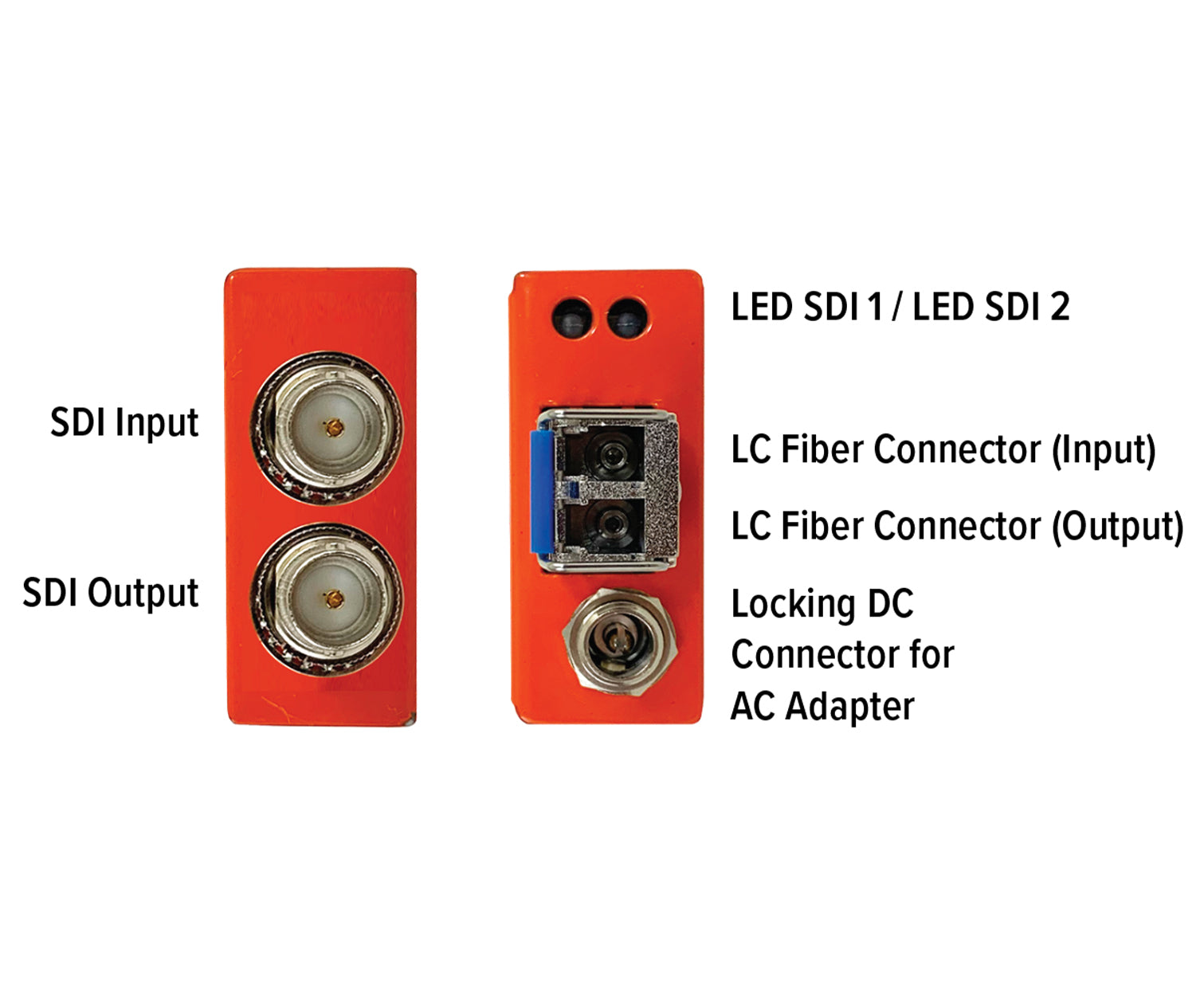

The unit accepts one SDI signal on a BNC connector and provides one optical output of this signal on an LC connector over single-mode cable with 1310 nm wavelength.Â
The NBX-TRX-3G-LC also provides one SDI fiber optic input on an LC connector with a wavelength range of 1270 nm to 1610 nm and offers one output of this signal on a BNC connector.

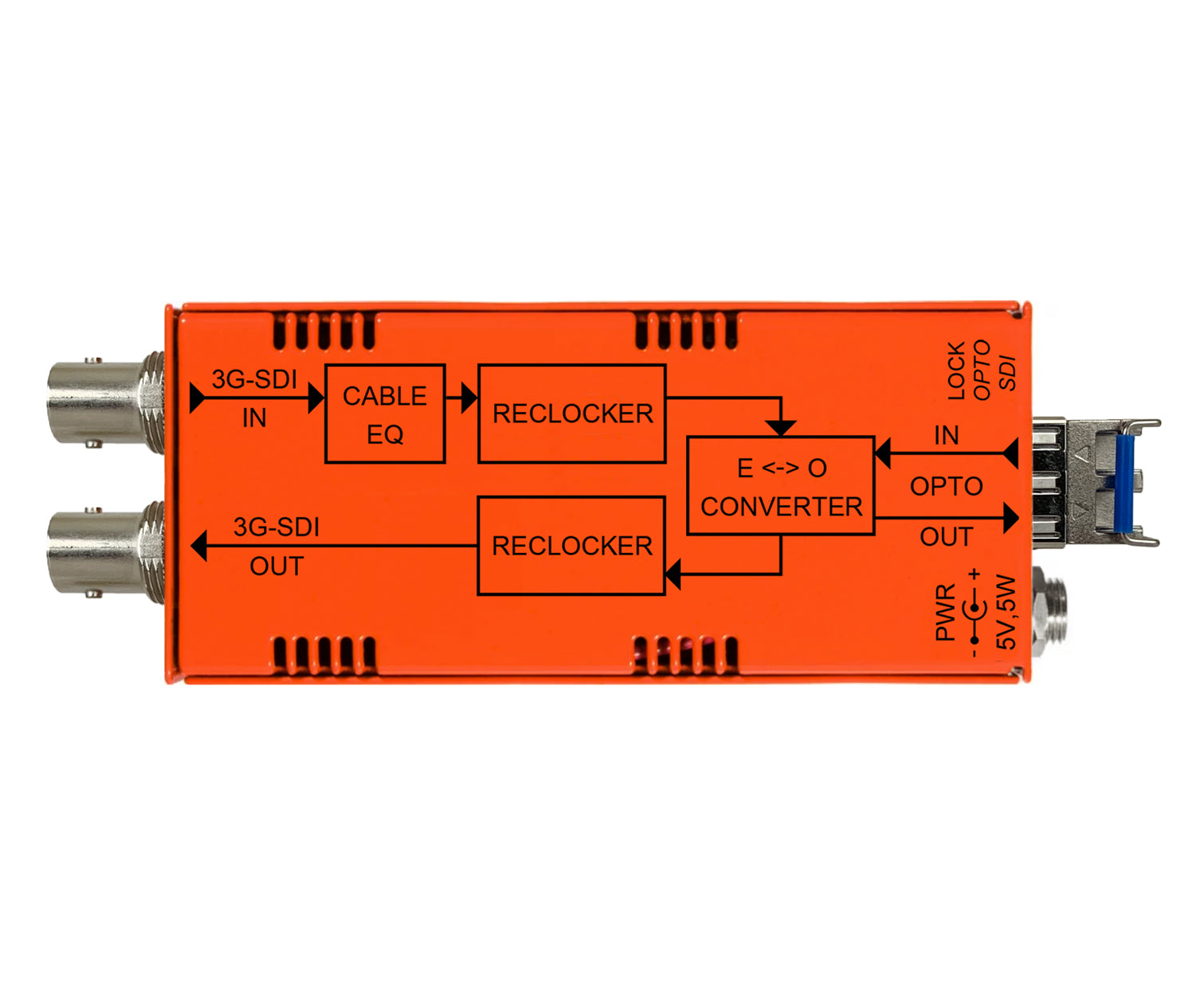

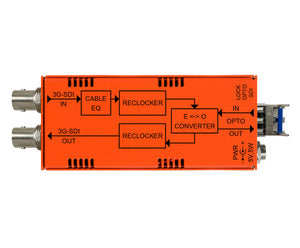

The NBX-TRX-3G-LC provides reclocking of both the incoming and outgoing SDI signals on the BNC connectors. LED indicators provide a GREEN status indication to show that the reclockers are locked to a valid SDI signal or a RED status indicating a valid SDI signal is not present.
Power to the NBX-TRX-3G-LC is provided by an external AC Adapter with a locking DC connector supplied with the module.
Features
- Excellent Value
- Compact Size
- Rugged Steel Enclosure
- Highest of Quality Components
Applications
- Live Broadcast
- Arenas and Stadiums
- Shared Control Rooms
- Campus FacilitiesÂ
