You've Seen Low-Delay.
Now Experience
Zero-Delay.

The average latency for RF-based wireless video transmission is 30.8ms. But the human eye can detect a delay as low as 13ms. That’s why we designed Ranger: the only wireless video solution to achieve true zero-delay (<1ms) with visually lossless picture quality. And now with 6GHz support (U-NII 5), you gain access to 12 newly-opened RF channels – allowing you to operate without interference.


ZERO-DELAY
Go from TX to RX in .001 seconds –
perfect for IMAG and live event
production.


VISUALLY LOSSLESS 4K HDR
Transmit video in exceptional detail – superior to HEVC and H.264 solutions.


AES-256 ENCRYPTION
Keep your video transmission
confidential and secure.


GRANULAR FREQUENCY CONTROL
Make adjustments to the frequency of
your signal in 5MHz increments.


LICENSED & UNLICENSED FREQUENCIES
Operate from 4.9GHz to 6.4GHz on licensed and unlicensed bands.


INTERCOMPATIBLE
Pair any previous and current Ranger systems together.

Ranger Products Comparison:

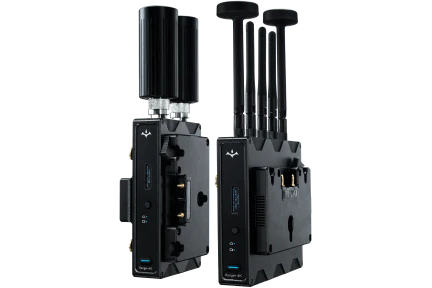

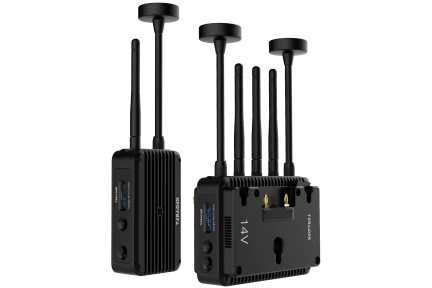

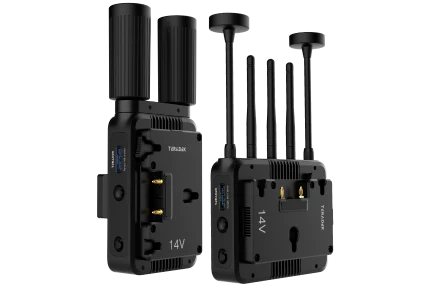

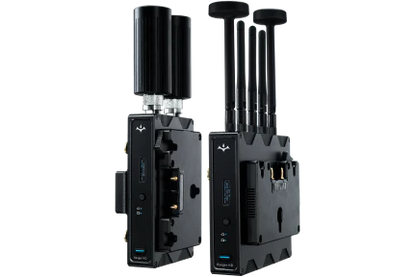

         Ranger Mk I HD Ranger Mk I 4K Ranger Micro Ranger Mk II

SDI 1080p60

SDI 4K60

X X

HDMI 1080p60

HDMI 4K30

X X

HDMI 4K60

X X

HDR

Input Scaler

Range (in feet)

Up to 1500 Up to 5000 750, 2500, 5000 750, 2500, 5000

Frequencies Supported

Licensed

Licensed

Licensed

Licensed

4.850-5.150 GHz 4.850-5.150 GHz 4.850-5.150 GHz 4.850-5.150 GHz
5.350-5.470 GHz 5.350-5.470 GHz 5.350-5.470 GHz 5.350-5.470 GHz
5.850-5.925 GHz 5.850-5.925 GHz 5.850-5.925 GHz 5.850-5.925 GHz

Unlicensed

Unlicensed

Unlicensed

Unlicensed

5.150-5.250 GHz (Non-DFS) 5.150-5.250 GHz (Non-DFS) 5.150-5.250 GHz (Non-DFS) 5.150-5.250 GHz (Non-DFS)
5.250-5.350 GHz (DFS) 5.250-5.350 GHz (DFS) 5.250-5.350 GHz (DFS) 5.250-5.350 GHz (DFS)
5.470-5.725 GHz (DFS) 5.470-5.725 GHz (DFS) 5.470-5.725 GHz (DFS) 5.470-5.725 GHz (DFS)
5.725-5.850 GHz (Non-DFS) 5.725-5.850 GHz (Non-DFS) 5.725-5.850 GHz (Non-DFS) 5.725-5.850 GHz (Non-DFS)
5.925-6.425 GHz (UNII-5) 5.925-6.425 GHz (U-NII-5)

AES-256 Encryption

RF Power

19 dbm EIRP 19 dbm EIRP 21 dbm EIRP 21 dbm EIRP

Multicast

1:6 1:6 1:6 1:6

Battery Mount Options

Gold Mount Gold Mount External (TX) Gold Mount
V- Lock Mount V- Lock Mount Gold Mount (RX) V-Lock Mount
V-Lock Mount (RX)
×
