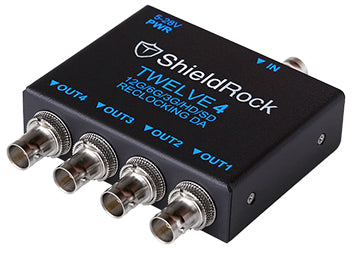

Shieldrock TWELVE4 - 12G Re-Clocking SDI DA -1:4

Shieldrock TWELVE4 - 12G Re-Clocking SDI DA -1:4

Regular price $483.00 CAD
Regular price Sale price $483.00 CAD
Sale Sold out

SKU:TWELVE 4

All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day.  For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

Shieldrock TWELVE4 - 12G SDI DA -1:4

Minimal footprint modules used to split 4x, re-clock and extend Ultra-HD video signals over coaxial cables. Supports: NTSC/PAL, 720p, 1080p/i, and 4K at up to 60fps.

For full product specifications in PDF form, please click HERE

Detailed Specifications

Video Interface:
• 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
• SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
• Supports AES10 multi-channel (MADI) audio
Video Format:
• 4K/UHD 2160p 23.98/24/25/29.97/30/48/50/59.94/60
• 2K/HD 1080p 23.98/24/25/29.97/30/48/50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 23.98/24/25/29.97/30/48/50/59.94/60
• SD 525i29.97 NTSC, 625i25 PAL
Electrical:
• Input 5-28 VDC
• Power 1W max
Mechanical:
• Dimensions 3.77 x 3.23 x 0.86in (95.9 x 82.0 x 21.9mm)
• Weight 130g

Included with Product

Warranty
