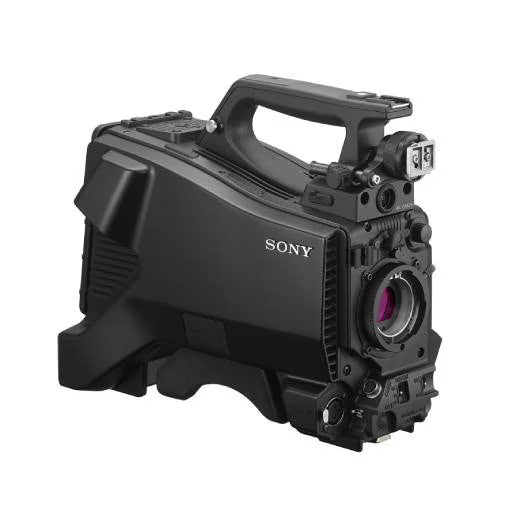

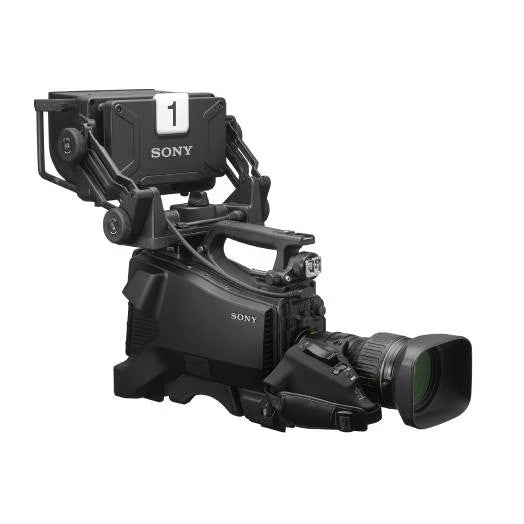

Sony HXC-FZ90 Studio Camera System
Sony HXC-FZ90 Studio Camera System
Regular price
$9,999,999.00 CAD
Regular price
Sale price
$9,999,999.00 CAD
Unit price
per
SKU:HXC-FZ90HN
Couldn't load pickup availability
All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca
Sony HXC-FZ90 Studio Camera System
Specifications
Please click here to download the full product specifications in PDF form.
General
Power Consumption
Approx.56W (Camera body only)
Operating Temperature
-10°C to +45°C
14°F to +113°F"
14°F to +113°F"
Storage Temperature
-20°C to +60°C
-4°F to +140°F"
-4°F to +140°F"
Dimensions (W x H x D)1
(Body) 160 x 266 x 326 mm
(Body) 6 3/8 x 10 1/2 x 12 53/64 inches
(Body) 6 3/8 x 10 1/2 x 12 53/64 inches
Mass
(Body) Approx. 3.8 kg
(Body) Approx. 8 lb 6 oz
(Body) Approx. 8 lb 6 oz
Camera Section
Pickup Device
2/3-inch type 4K CMOS
Effective Picture Elements
3840 x 2160 (H x V)
Signal Format
4K 2160: 59.94p, 50p, 60p, 30p, 29.97p, 25p, 24p, 23.98p
HD 1080: 59.94p, 59.94i, 50p, 50i, 60p, 29.97PsF, 25PsF, 24PsF , 23.98PsF,
HD 720: 59.94p, 50p SD 59.94i, 50i
HD 1080: 59.94p, 59.94i, 50p, 50i, 60p, 29.97PsF, 25PsF, 24PsF , 23.98PsF,
HD 720: 59.94p, 50p SD 59.94i, 50i
Lens Mount
B4 Mount Lens
Built-in Filters
CC: Electrical
ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
Sensitivity (at 2000 lx, 3200K, 89.9% reflectance)
F10 (59.94 Hz), F11 (50 Hz)
Signal-to-noise Ratio
-62dB
Horizontal Resolution
2,000 TV lines
Gain
–6, –3, 0, 3, 6, 9, 12
Shutter Speed
1/100, 1/150, 1/200, 1/250, 1/500, 1/1000, 1/2000
Shutter Speed (Slow Shutter (SLS))
Support
Input/Output
Audio Input (CH1)
XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
MIC +48V: When supplying +48 V phantom power to microphones
LINE IN: 0dBu, balanced
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
MIC +48V: When supplying +48 V phantom power to microphones
LINE IN: 0dBu, balanced
Audio Input (CH2)
XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
MIC +48V: When supplying +48 V phantom power to microphones
LINE IN: 0dBu, balanced
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
MIC +48V: When supplying +48 V phantom power to microphones
LINE IN: 0dBu, balanced
Supplied Accessories
Camera Operation Guide (1)
Operating Instructions (CD-ROM 1), JP, GB, FR, DE, IT, ES, CS
7 inch Large Viewfinder (1)
Viewfinder Operation Guide (1)
Viewfinder Operation Manual (CD-ROM 1), GB, CS
2/3-inch type HD Portable Lens (1)
Lens Mount Cap (1)
Flange back adjustment chart (1)
Cable clamp belt (1)
V-shoe (1)
Viewfinder Hood (1)
Viewfinder Cable 20pin (1)
Tally Number Plate (0~9)
Warranty booklet (1)
Operating Instructions (CD-ROM 1), JP, GB, FR, DE, IT, ES, CS
7 inch Large Viewfinder (1)
Viewfinder Operation Guide (1)
Viewfinder Operation Manual (CD-ROM 1), GB, CS
2/3-inch type HD Portable Lens (1)
Lens Mount Cap (1)
Flange back adjustment chart (1)
Cable clamp belt (1)
V-shoe (1)
Viewfinder Hood (1)
Viewfinder Cable 20pin (1)
Tally Number Plate (0~9)
Warranty booklet (1)
