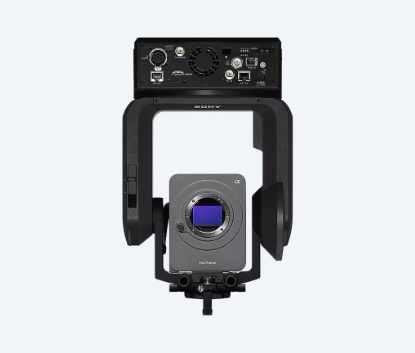

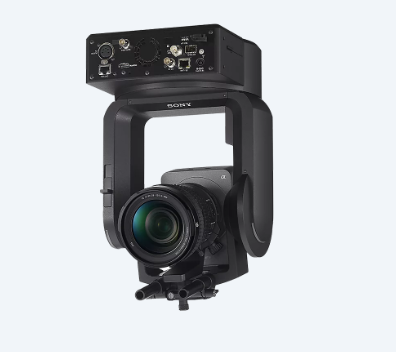

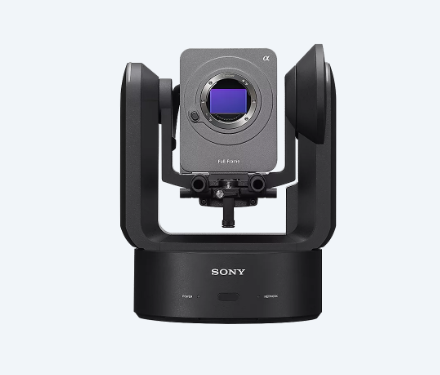

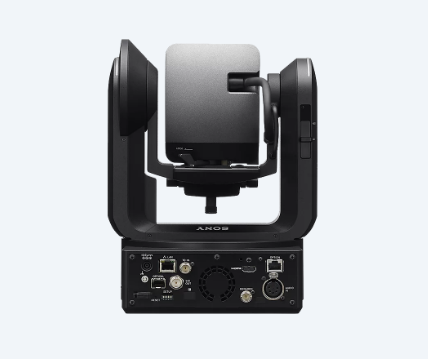

ILME-FR7
Cinema Line Full-frame PTZ Interchangeable Lens camera with 15+ stop dynamic range, 4K (QFHD) high-frame-rate 120fps, Fast Hybrid & Real-time Eye AF, and S-Cinetone™ colour science. E-mount lens.
RM-IP500
PTZ Camera Remote Controller
Compatible with SONY FR7 PTZ, the RM-IP500 is an easy, ergonomic PTZ control for multiple remote cameras for live events production and contents creation.
Specifications below:
Supplied Accessories
Body cap
HDMI cable fixing plate
REMOTE COMMANDER (RMT-RC1)
AC Adaptor
Power cord
Before Using This Unit
Warranty booklet
HDMI cable fixing plate
REMOTE COMMANDER (RMT-RC1)
AC Adaptor
Power cord
Before Using This Unit
Warranty booklet
Recording Format (Video)
[XAVC Intra] XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I
Recording Format (Proxy Audio)
XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video)
XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR
1920 x 1080, 9 Mbps
1920 x 1080, 9 Mbps
Recording Format (Audio)
LPCM 24 bits, 48 kHz, 4 channels
Recording Frame Rate
[XAVC Intra] XAVC-I DCI4K mode:4096 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, 24p XAVC-I QFHD mode:3840 x 2160/59.94p, 50P, 29.97p, 23.98p, 25p XAVC-I HD mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p [XAVC Long] XAVC-L QFHD mode:3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p XAVC-L HD 50 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p XAVC-L HD 35 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p
Recording/Playback Time
[XAVC Intra] XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80
Imaging Device (Type)
35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
Number of Pixels (total)
Approx. 12.9 megapixels
Number of pixels (effective)
Approx. 10.3 megapixels
Built-in Optical Filters
Clear, linear variable ND(1/4ND to 1/128ND)
ISO Sensitivity
ISO 800/12800 (Cine EI mode, D55 Light source)
Focus Type
Fast Hybrid AF (phase-detection AF / contrast-detection AF)
Focus Point
627 points
Focus Area
Wide / Zone / Flexible Spot
Other Focus Features
Eye AF (Human)
AF Subj. Shift Sensitivity
AF Transition Speed
Face detection (Face/Eye Priority, Face/Eye Only AF)
Real-time Tracking AF
AF Subj. Shift Sensitivity
AF Transition Speed
Face detection (Face/Eye Priority, Face/Eye Only AF)
Real-time Tracking AF
Output Format / SDI
4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF
Output Format / HDMI
4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 720 x 480 / 59.94p, 720 x 576 / 50p
Clear Image Zoom
QFHD/4K: 1.5x, HD: 2x
Shutter Speed
64 frame to 1/8000 sec
Slow and Quick Motion Function
XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
White Balance
Preset, Memory A(2000K-15000K)/ATW
Gain
-3 to 30 dB (every 1dB), AGC
Gamma Curve
SDR Mode :S-Cinetone, Standard, Still, ITU709 HDR mode : HLG_Live, HLG_Natural
Latitude
15+ stop
Pan/Tilt Angle
Pan: -170 deg. ~170 deg.
Tilt: -30 deg. ~195 deg.
Tilt: -30 deg. ~195 deg.
Pan/Tilt Speed
Pan: 0.02 deg. to 60 deg./s
Tilt: 0.02 deg. to 60 deg./s
Tilt: 0.02 deg. to 60 deg./s
Quietness
NC35 or less
Preset Position
100
Audio Input
XLR-type 5-pin (female) (x1), line/mic/mic +48 V selectable
Mic Reference: -30 to -80 dBu
Mic Reference: -30 to -80 dBu
SDI Output
BNC (x1),
12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
HDMI Output
Type-A connector(x1)
Genlock In
BNC (x1), 1.0 Vp-p, 75 Ω
Optical Output
SFP+ compliant video is same as SDI, video output only
DC Input
DC jack(x1)
Network
RJ-45(LAN) (x1), 1000BASE-T
Remote Control
RJ-45(OPTION) (x1)
Red Tally IO/Green Tally IO
Red Tally IO/Green Tally IO
IR Remote Control
Yes
TC Input/TC Output
BNC (x1), TC IN only
Protocols IPv6
TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
Protocols IPv4
TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS
Video Resolution
4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
Compression Format
H.264: High/Main/Baseline Profile
H.265: Main/Main10 Profile
H.265: Main/Main10 Profile
Maximum Frame Rate
H.264: 59.94fps
H.265: 59.94fps
H.265: 59.94fps
Bitrate Control Mode
CBR/VBR
Range of Bitrate Setting
512 Kbps~80 Mbps
NDI|HX capability
Yes Option
Mass
Approx. 4.6 kg(body only)
Approx. 10 lb 2.3 oz
Approx. 6.0 kg(with SELP28135G LENS)
Approx. 13 lb 3.6 oz(with SELP28135G LENS)
Approx. 10 lb 2.3 oz
Approx. 6.0 kg(with SELP28135G LENS)
Approx. 13 lb 3.6 oz(with SELP28135G LENS)
Dimensions (W x H x D)[[F_WI0001]]
Approx. 227 x 289 x 233 mm(body without protrusions)
Approx. 9 x 11 1/2 x 9 1/4 inch(body without protrusions)
Approx. 9 x 11 1/2 x 9 1/4 inch(body without protrusions)
Power Requirements
DC 19.5 V
PoE++(IEEE802.3bt Type 4 Class 8 compliant) 41.1 V~57.0 V
PoE++(IEEE802.3bt Type 4 Class 8 compliant) 41.1 V~57.0 V
Power Consumption
≦80 W(DC 19.5 V)
≦71.3 W(PoE++)
≦71.3 W(PoE++)
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
-4 °F to +140 °F
Ceiling Mount
Yes (with Ceiling Bracket option)
Tally Ramp
Left(x1)/Right(x1), Red/Green
