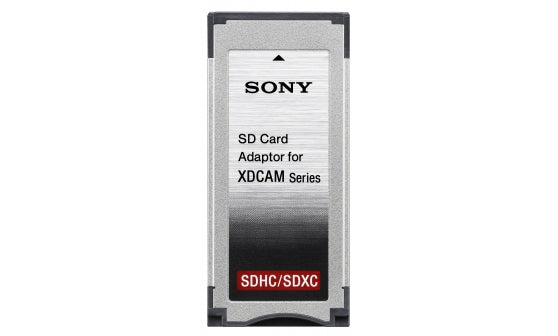

Sony MEAD-SD02 Adaptor for using SD Card™ with XDCAM EX products
Sony MEAD-SD02 Adaptor for using SD Card™ with XDCAM EX products
Regular price
$999,999.00 CAD
Regular price
Sale price
$999,999.00 CAD
Unit price
per
SKU:MEAD-SD02
Couldn't load pickup availability
All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca
Specifications
Interface
ExpressCard/34
External dimensions
Approx. 34 mm × 5 mm × 75 mm (1 3/8 × 7/32 × 3 inches) (Width × Height × Depth)
Mass
Approx. 20 g (0.7 oz.) (not including "SD Card" media)
Designed for XDCAM EX
The MEAD-SD02 has been specifically developed by Sony to operate with XDCAM EX hardware and recommended Class 10 SDHC SD Cards like Sony SD cards of the UX series (SF-16UX, SF-32UX), or SDXC Cards of UHS speed class 1.
ExpressCard form factor
The MEAD-SD02 adaptor has the shape of ExpressCard/34 so it can be slotted into the ExpressCard slot of XDCAM EX equipment and other ExpressCard compatible hardware, such as a Windows PC or Mac.
PC Compatible
SD Card media recorded with MEAD-SD02 by XDCAM EX hardware works on a PC without any need for drivers. Folders and files of XDCAM EX are shown in the NLE operation window or in Clip Browser in the same way as with SxS media.
PXU-MS240 Compatible
The PXU-MS240 240GB HDD back up unit for SxS media is fully compatible with the MEAD-SD02 adaptor – simply slot the adaptor with SD Card into the PXU-MS240 unit to record content onto the MS240's hard drive.
Additional information
Supported devices are:
(as of February 2013)
PMW-EX1, PMW-EX30: Ver1.20 or later
PMW-EX3, PMW-10MD: Ver1.10 or later
PMW-EX1R, PMW-350: Ver1.10 or later
PMW-F3, PMW-100, PMW-150, PMW-200
Notes:
This adaptor cannot be used with the SBAC-US10.
The above devices support only SDHC media.
Operation is not guaranteed for SDXC media.
(as of February 2013)
PMW-EX1, PMW-EX30: Ver1.20 or later
PMW-EX3, PMW-10MD: Ver1.10 or later
PMW-EX1R, PMW-350: Ver1.10 or later
PMW-F3, PMW-100, PMW-150, PMW-200
Notes:
This adaptor cannot be used with the SBAC-US10.
The above devices support only SDHC media.
Operation is not guaranteed for SDXC media.
