HD Source

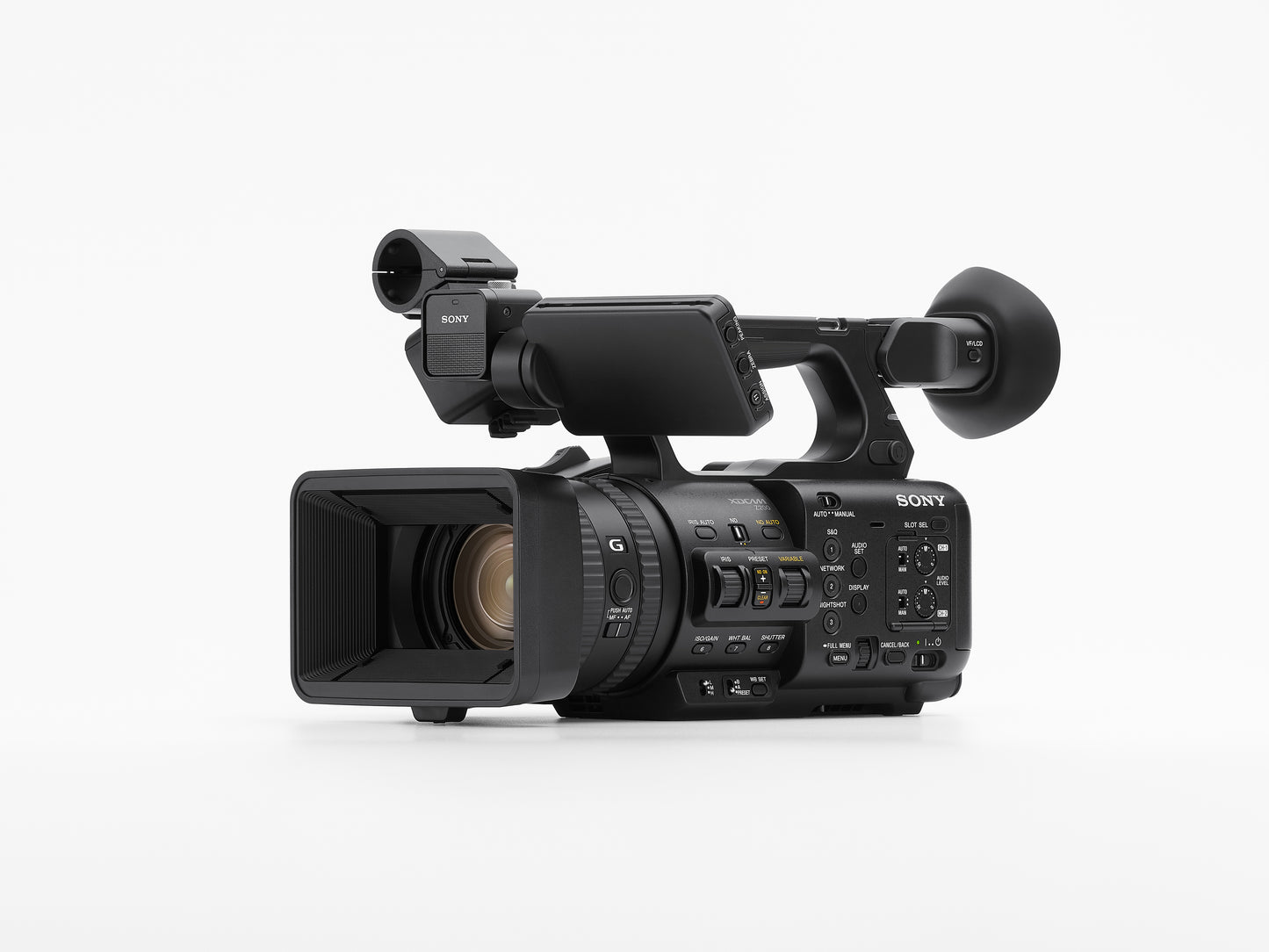

Sony PXW-Z200
Sony PXW-Z200
Regular price
$6,099.99 CAD
Regular price
Sale price
$6,099.99 CAD
SKU:PXW-Z200
Quantity
All efforts are made to ensure accuracy of stock and pricing info on site. There may be delays in updates from time to time. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

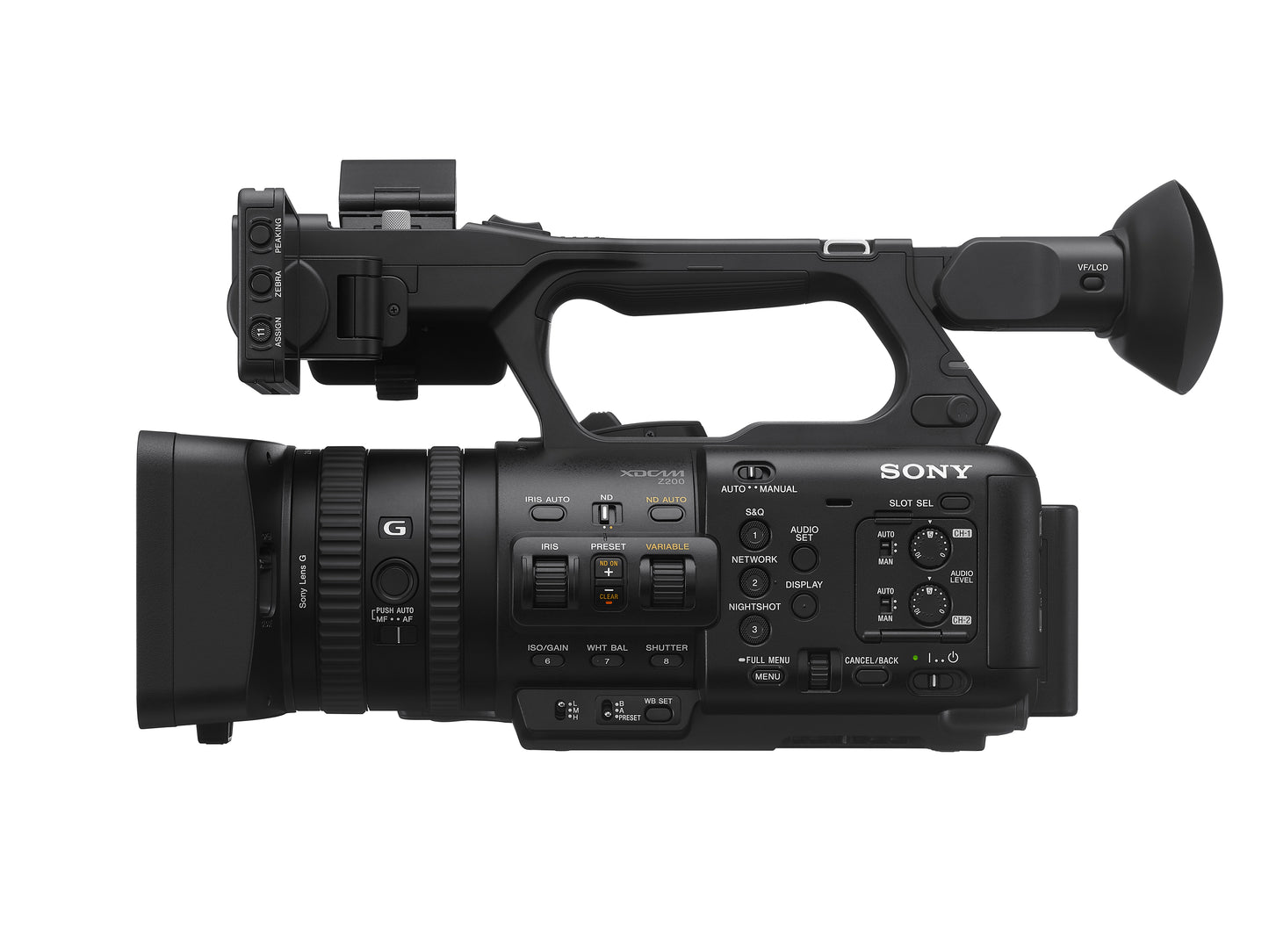

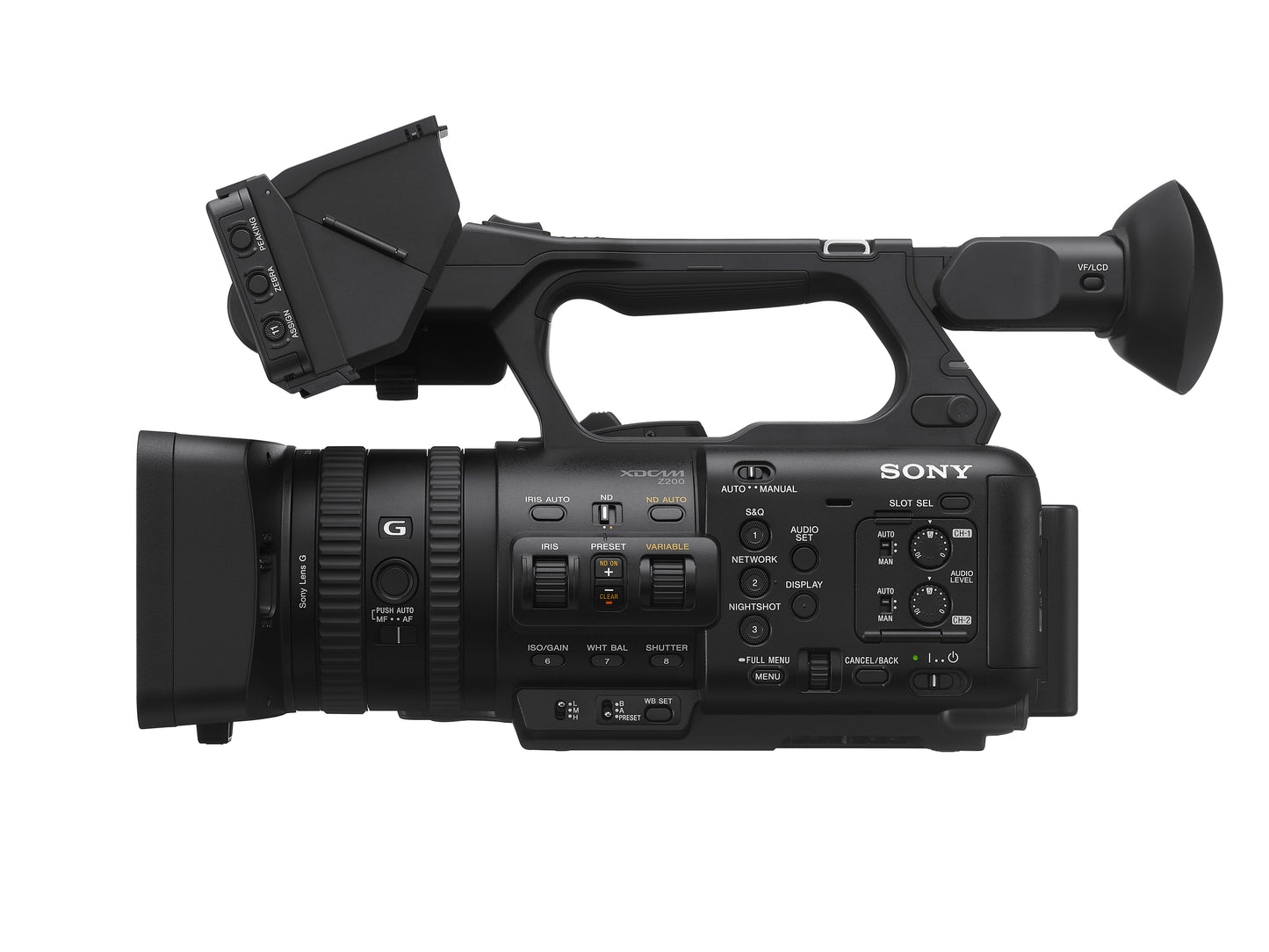

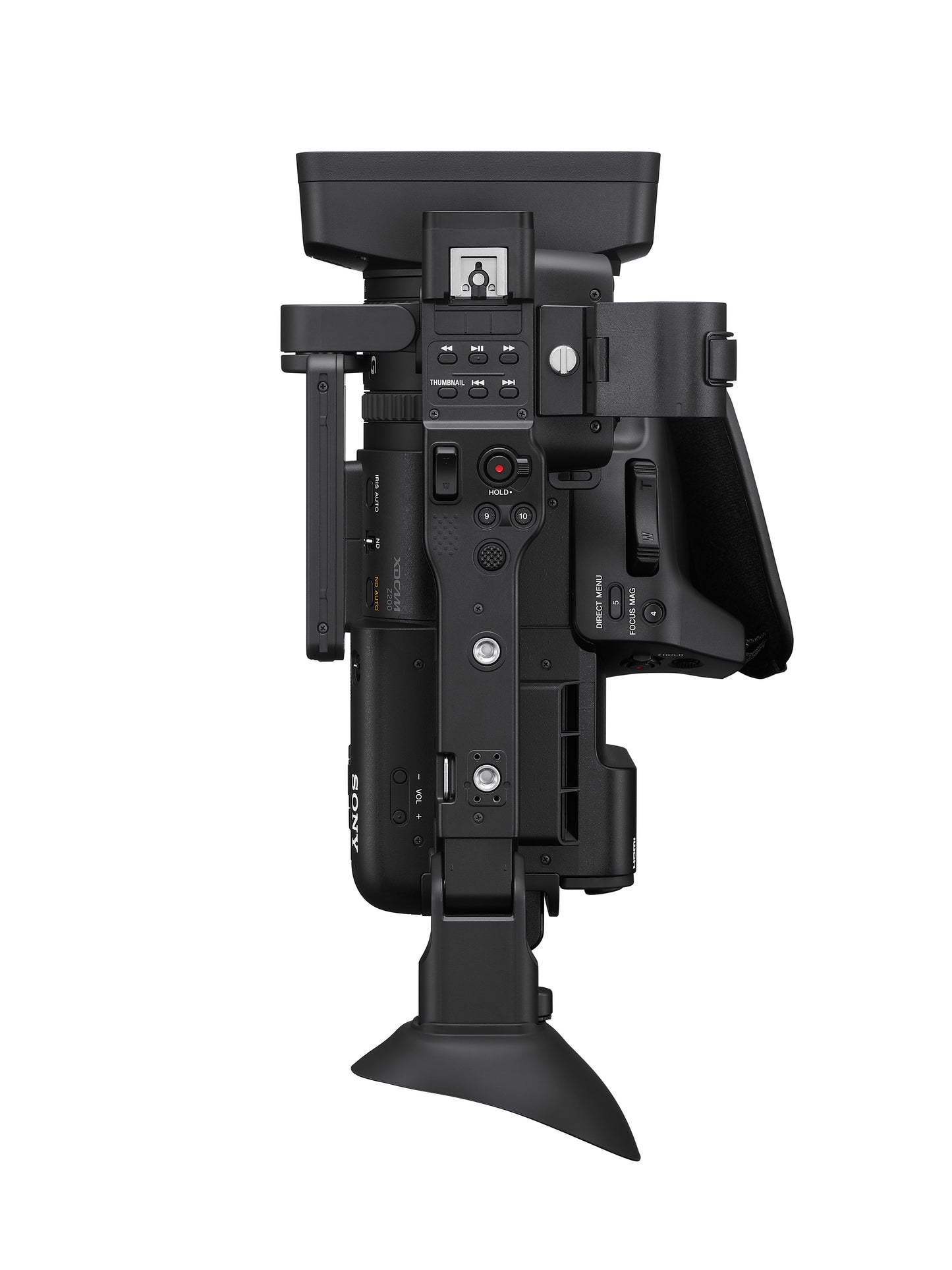

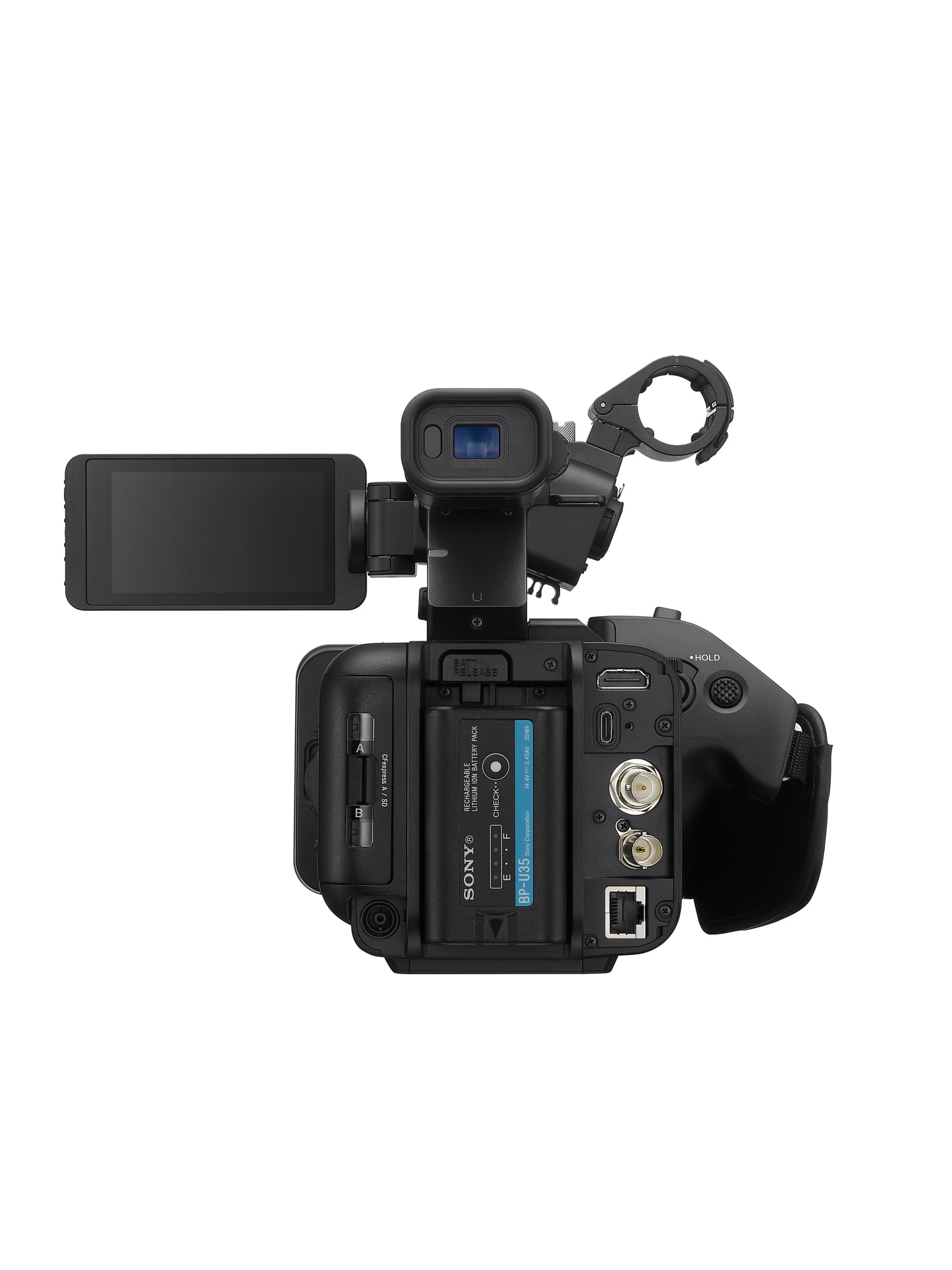

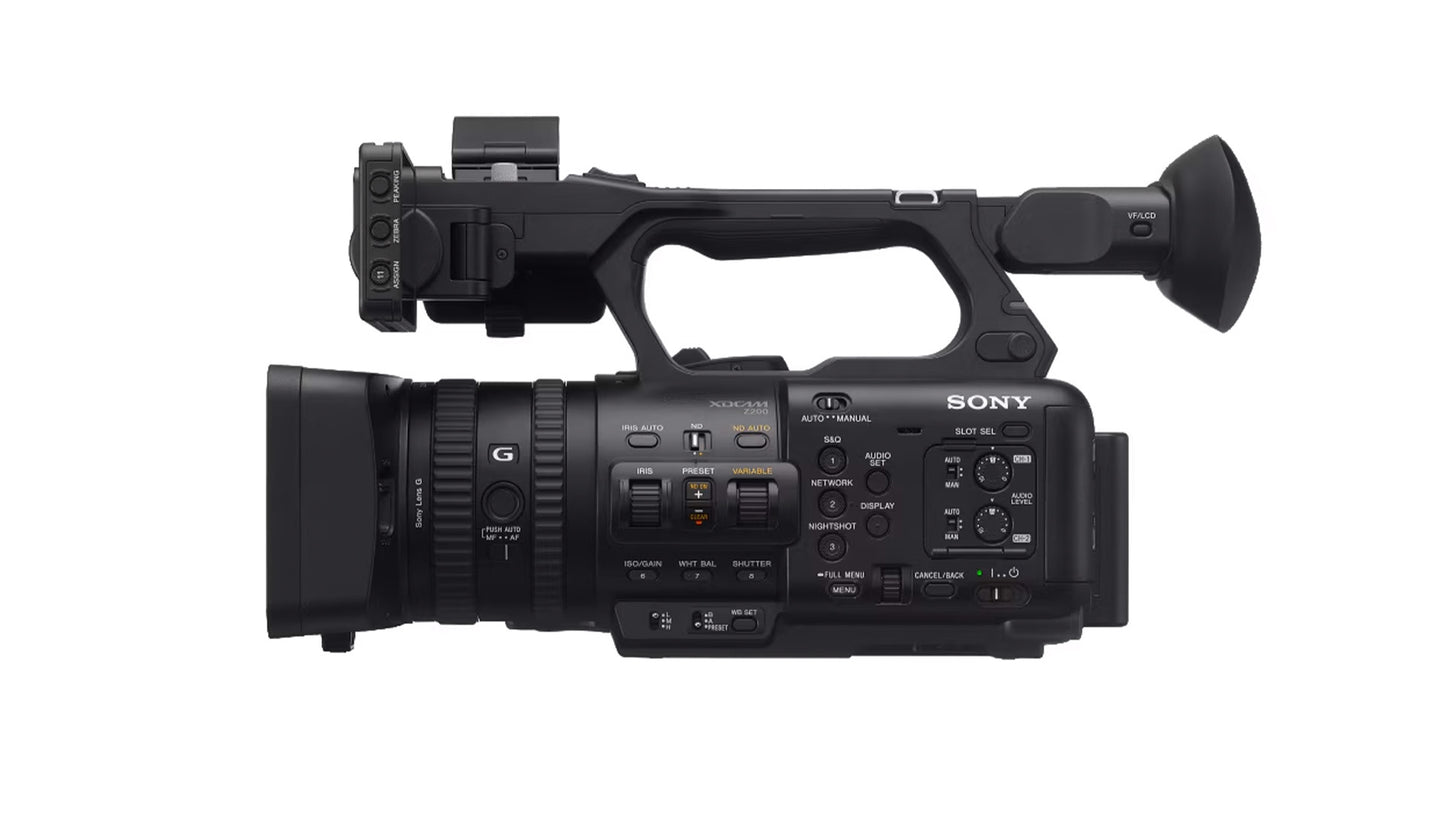

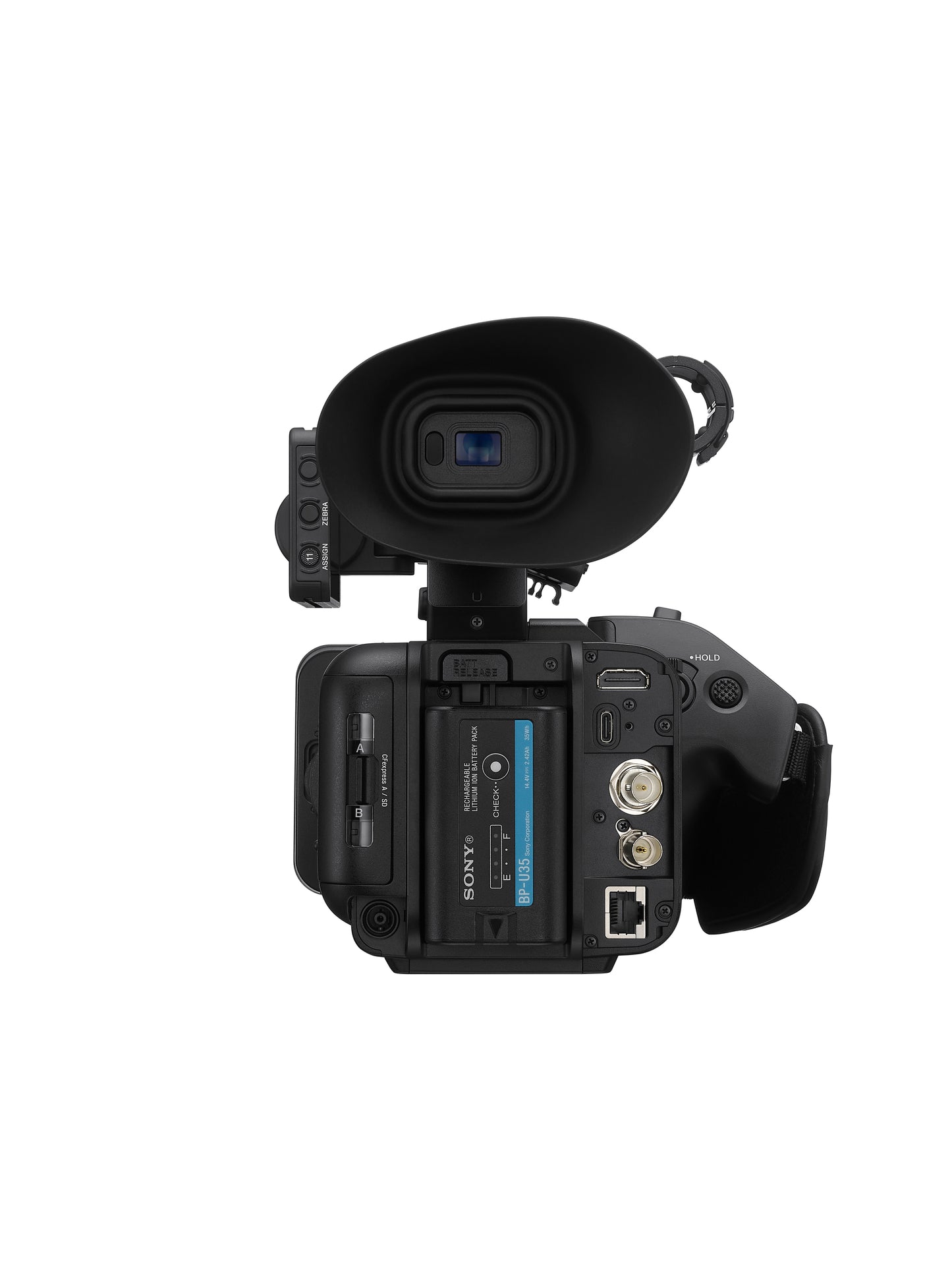

Sony PXW-Z200/PXWZ200
Shoot, record and stream in 4K HDR, with a 20x optical zoom, AI-powered Subject Recognition AF, integrated 2.4 GHz / 5 GHz* Wi-Fi and 12G-SDI connectivity.
* 5 GHz communication may be restricted in some countries and regions.
General
Camera Type
Solid state memory camcorder
Mass (Main Body Only)
Approx. 1960 g (4 lb 5.1 oz.)
Mass (including Supplied Accessories and Battery)
Approx. 2400 g (5 lb 4.7 oz.) 1*
Dimensions (W x H x D)
Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)
Battery
BP-U35, BP-U70, BP-U100
Battery
Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
Power Requirements
DC 19.5 V
Normal Power Consumption
Approx. 20 W
Maximum Power Consumption
Approx. 37 W
Operating Temperature
0 to 40 ℃ (32 ℉ to 104 ℉)
Storage Temperature
-20 to 60 ℃ (-4 ℉ to 140 ℉)
Battery Operating Time (Continuous Shooting)
90 minutes*2
Recording Format (Video)
XAVC S: MPEG-4 AVC / H.264
XAVC HS: MPEG-H HEVC / H.265
XAVC HS: MPEG-H HEVC / H.265
Lens
Zoom Ratio
20x
Focal Length
f=7.71-154.21 mm
Focal Length (35 mm Format Equivalent)
24-480 mm
Iris
F2.8-F4.5
Focus Range (from the front of the lens)
Approx. 10 mm to ∞
Filter Diameter
72 mm
Camera Section
Imaging Device (Type)
1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
Number of Pixels (Total)
Approx. 20.9 megapixels
Number of Pixels (Effective)
Approx. 14.0 megapixels max.*3
Built-in ND Filter
Linear variable ND (1/4 ND - 1/128 ND)
Minimum illumination
1.2 lx (typ)*4
RAW Output
-
Optical Low-Pass Filter
Yes
Shutter Type
Electronic shutter
Shutter Speed
1/8000 sec to 64F
Slow & Quick Motion (S&Q)
Yes
White Balance
2000 K - 15000 K
Gain
-3 to 36 dB (Every 1 dB)
Base Look
S-Cinetone, ITU709, 709tone, s709, 709 (800%), S-Log3, HLG (Live / Mild / Natural)
Image Stabilization (Type)
Lens shift mechanism and electronic
Image Stabilization (Mode)
Active / Standard / Off
Lens Compensation
Peripheral Shading, Chromatic Aberration, Distortion
ISO Sensitivity
ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable lower limit and upper limit)
Focus Type
Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point
Max. 475 points (Phase-detection AF)
Focus Recognition Target
Human
Other Focus Features
AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
Proxy Recording
Yes
Clear Image Zoom
Approx. 1.5x (4K), approx. 2x (HD)
Interface
Audio Input
3.5 mm Stereo minijack, XLR 3-pin (Female) x2
Multi Interface Shoe
Yes (With Digital Audio Interface)
Built-in Microphone
Built-in, stereo
Headphone Terminal
Yes (3.5 mm Stereo mini jack)
Built-in Speaker
Built-in, monaural
Recording System (Audio)
LPCM 4ch (48 kHz 24 bit)
SDI Output
BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A / B), HD-SDI
HDMI Output
HDMI connector (Type-A)
TC/UB
Yes
Timecode Input/Output
BNC, TC IN/OUT Switchable
Genlock Input
-
Multi/Micro USB Terminal
-
USB Terminal
Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
DC Input
Yes
Remote
Yes (2.5 mm Stereo mini-mini-jack)
Remote (Wireless)
Yes (Bluetooth remote control)
Wired LAN
Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Wireless LAN (Built-in)
Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band)) *5 *6
PC Interface
Mass-storage / MTP
Other Function
FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)
Monitoring
Type (Viewfinder)
1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
Number of Dots (Viewfinder)
2,359,296 dots
Magnification (Viewfinder)
Approx. 1.07x *7 with 50 mm lens at infinity,-1 m-1
Diopter Adjustment (Viewfinder)
-4.0 to +3.0 m-1
Eye Point (Viewfinder)
Approx. 22 mm from the eyepiece lens, at -1 m-1 *8
Type (LCD Screen)
8.8 cm (3.5-type) type TFT
Touch Panel (LCD Screen)
Yes
Number of Dots (Total) (LCD Screen)
2,764,800 dots
Media
Type
SLOT A: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
SLOT B: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
SLOT B: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
NFC
NFC
-
Streaming
Protocols
RTMP, RTMPS, SRT
Video Data Format
MPEG-4 AVC / H.264
MPEG-H HEVC / H.265
MPEG-H HEVC / H.265
Video Resolution
3840 x 2160 (using RTMP / RTMPS), 1920 x 1080, 1280 x 720
Audio Data Format
AAC-LC 2ch (16 bit 48 kHz)
Accessibility
Accessibility Functions
Enlarge Screen, Screen Reader
Accessory
Supplied Accessory
AC adaptor, Power cord, Battery charger, Rechargeable Battery, LCD hood, Lens hood, Eyecup, Microphone holder, Cold shoe kit
Notes
1*
When attaching lens hood, LCD hood, microphone holder, eyecup and BP-U35.
2*
Using BP-U35, normal power consumption.
3*
The number of effective pixels will vary depending on the shooting mode and settings.
4*
3840 x 2160 / 29.97p mode, F2.8, +36 dB gain, SS=1/30 (sec), BaseLook=ITU709.
5*
(Configuration method / Access method) WPS or manual / infrastructure mode. When connecting to smartphones, the camera can always work as a base without a wireless access point. (Security: WEP / WPA-PSK / WPA2-PSK / WPA3-SAE)
6*
The model shipped to countries with legal restrictions on 5 GHz band communication does not support 5 GHz communication. Please check the regulations in your country or region.
7*
35 mm camera equivalent.
8*
CIPA standard.
9*
Design and specifications are subject to change without notice.
Detailed Specifications
Detailed Specifications
Included with Product
Included with Product
AC adaptor, Power cord, Battery charger, Rechargeable Battery, LCD hood, Lens hood, Eyecup, Microphone holder, Cold shoe kit
