Steadicam Elite

Steadicam Elite

The STEADICAM® Elite™ is a next-generation lightweight sled designed for operators who need a medium payload capacity, smarter ergonomics, and integrated electronic stabilization control—without stepping into full-size rig territory. Built with a rigid unibody top stage, powered by a 3-Axis Volt™ gimbal, and engineered with broadcast-ready infrastructure, Elite delivers the performance flexibility demanded by today’s hybrid cinema and live-production workflows.

Whether flying compact cinema builds or broadcast configurations, the Elite keeps your workflow lighter, faster, and more responsive on set.

Available as Sled Only without monitor, or as a Turn-Key Kit with our Steadicam G-50X Arm and all new Elite Lightweight Vest, and 7" SDI Monitor.

Key Features:

•       Integrated 3-Axis Volt with Pan Control

The Elite transforms stabilization from passive balance into active control assistance, not only helping maintain horizon during long takes and dynamic moves but giving ability to control rotational inertia for ultimate pan stability opening up a whole new world of tracking and whip pans, and long lens work.

•   12V/24V Power Distribution at 8A

Elite supports 12V with Hotswap and 24V selectable power distribution, no external adapters. No compromises. Just plug in and power the build you actually want to fly.

•     30 lb (14kg) Camera Payload Capacity

More payload headroom and fewer compromises when configuring builds. Enables operators to carry production-ready camera packages instead of stripped-down versions.

•       Rigid Unibody Top Stage

Strong torsional rigidity reduces vibration transfer allowing increased capacity and strength for a greater variety of builds.

•       Fine-Adjust Stage Controls

Side mounting controls for speed and ease of access for precision adjustments.

•       Dual Sliding & Pivoting Battery Mounts

Allows for easier dynamic balance and optimal monitor and battery positioning.

•       Universal Yoke-Style Monitor Mounts

Supporting a wide range of monitor sizes and viewing configurations for every operator preference, including 9x16 format.

•       Ultra Secure Docking Bracket

Available Configurations

Elite Sled ONLY:

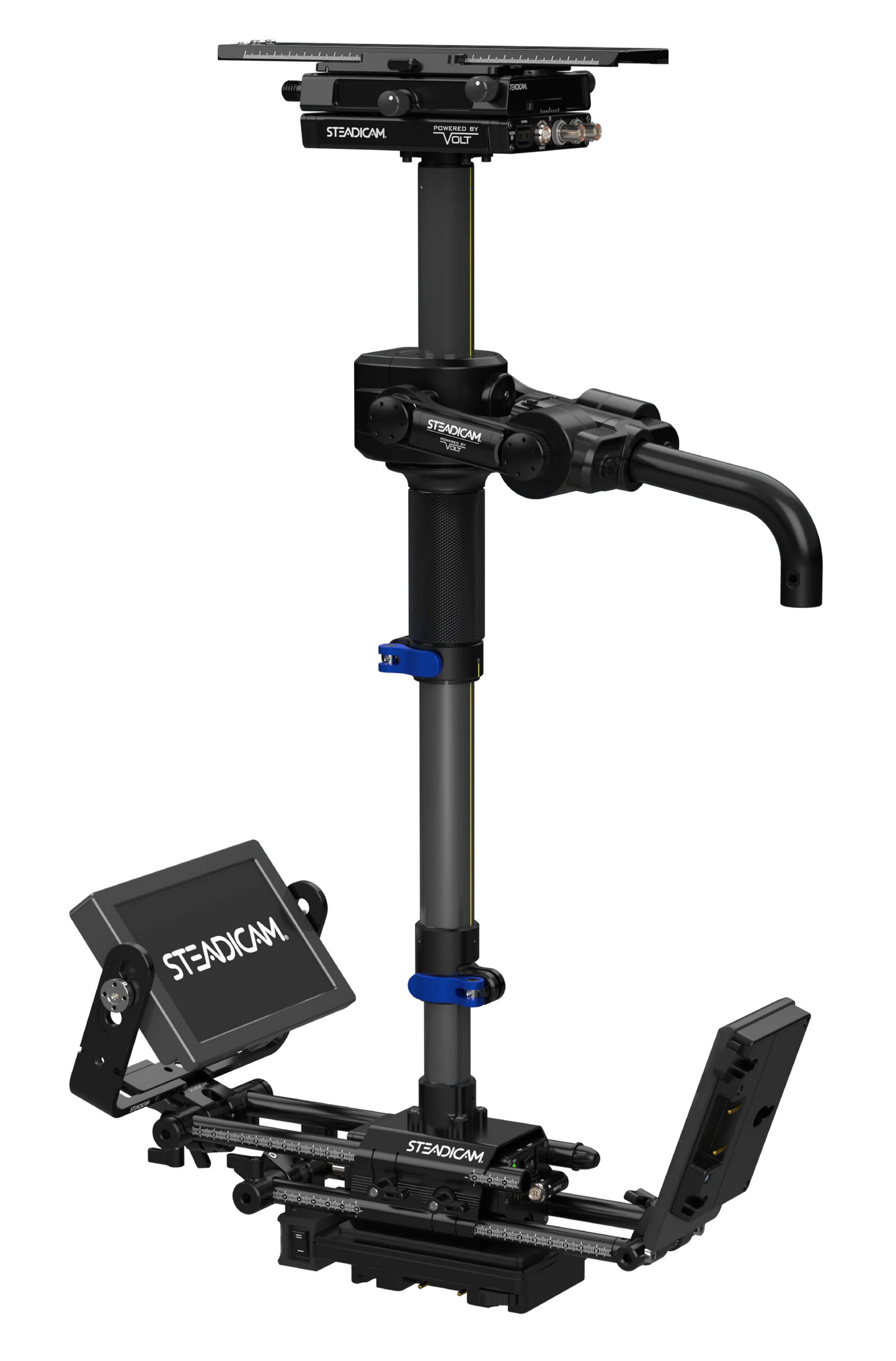

• STEADICAM® Elite sled (Monitor Not Included)
• Lightweight sled but with a 30lb/14kg max payload
• 2 stage carbon fiber post
• All new configured top stage and camera plate with integrated Volt 3 as standard
• Selectable 12/24V 8A with Hot Swap
• All new pivoting lower battery mount under post
• Universal Monitor Bracket with 9x16 facility.
• All new secure docking bracket
• ½” Gimbal Handle post
• Choice of Gold Mount or V-Mount battery configuration
• Ideal for operators to integrate Elite into an existing Steadicam system.

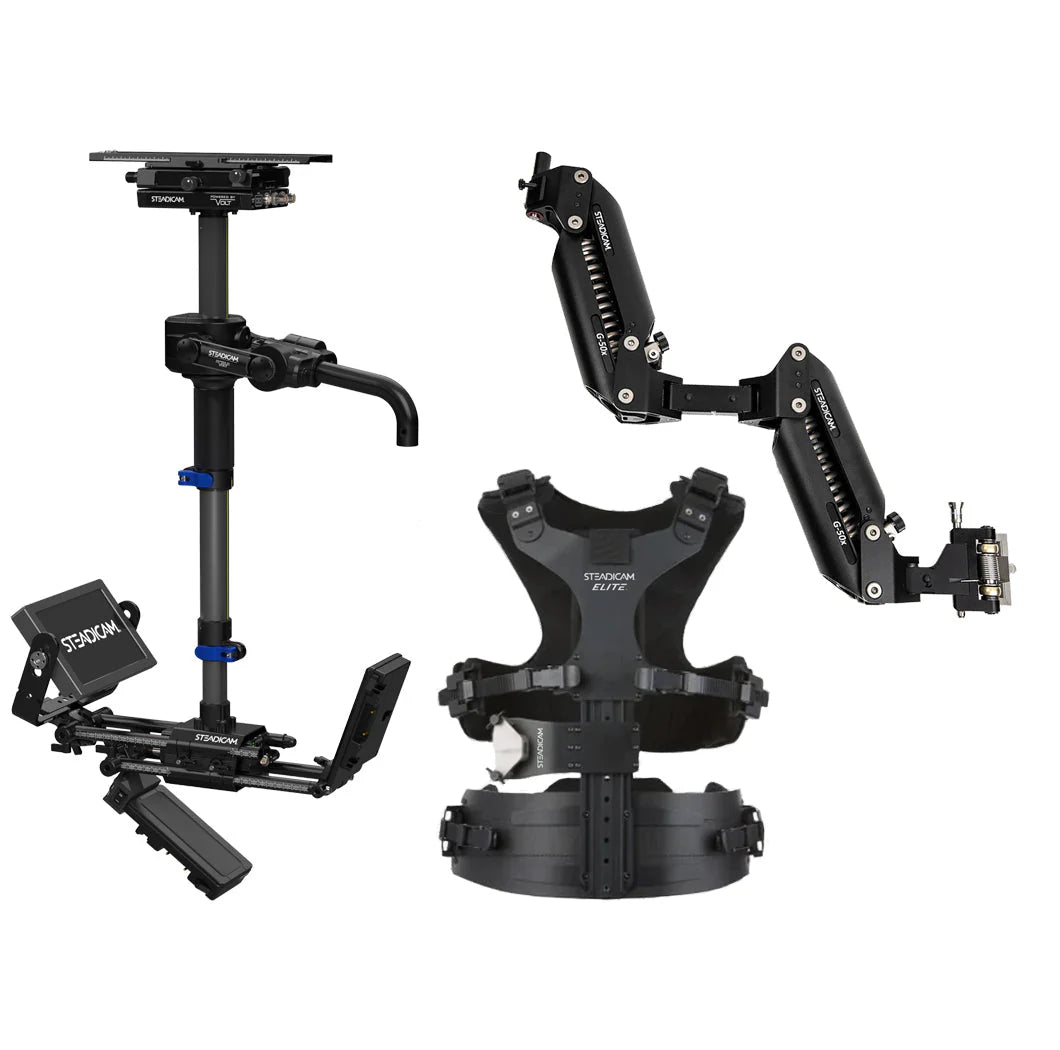

Elite Kit:

• STEADICAM® Elite sled
• STEADICAM® Elite Series Vest
• STEADICAM® G-50x Arm with ½” Post
• 7" SDI High Brightness Monitor
• Choice of Gold Mount or V-Mount battery configuration
• Designed as a ready-to-deploy solution for operators entering the 30lb / 14kg max payload class with a ready to go system.
