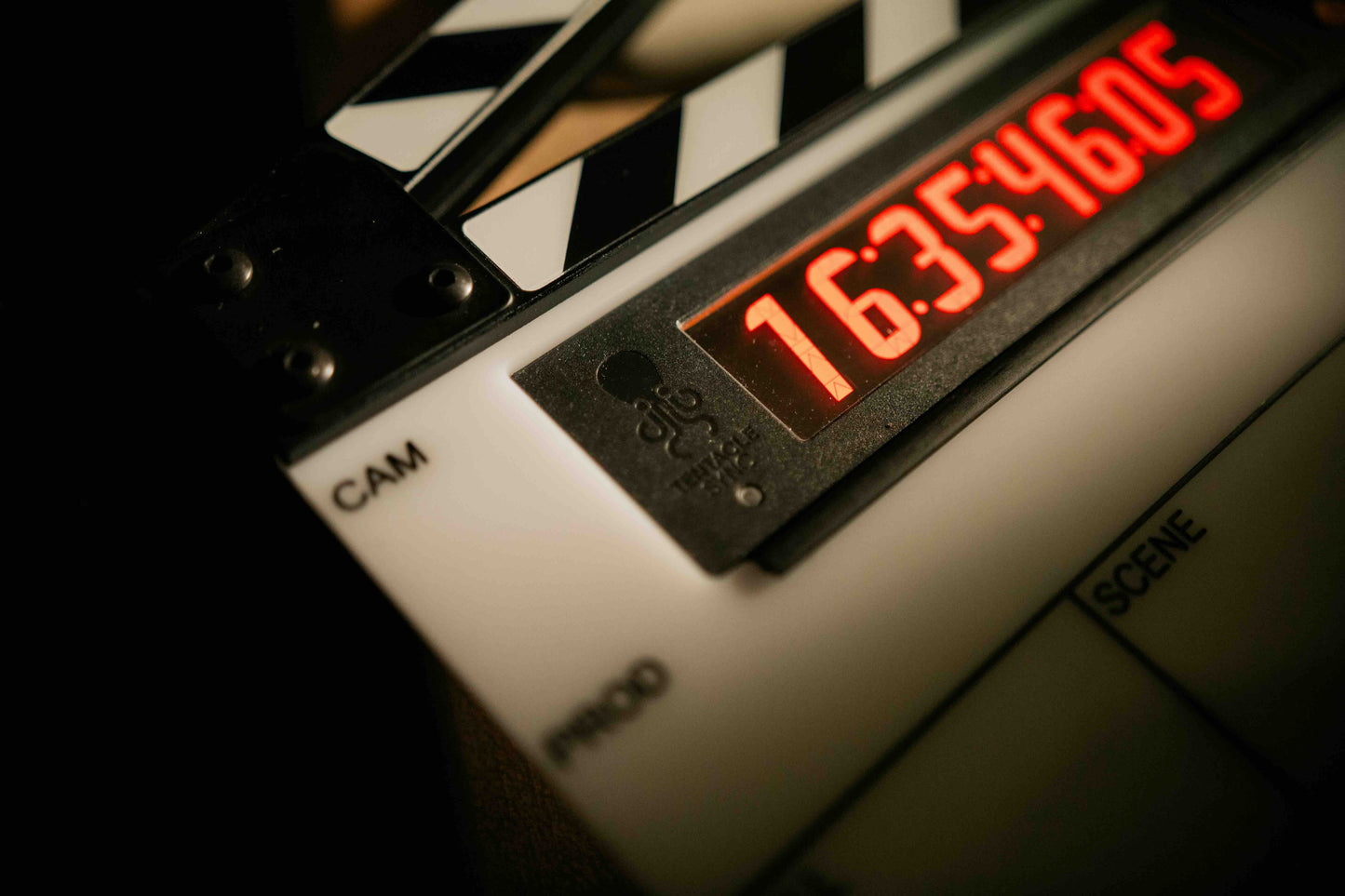

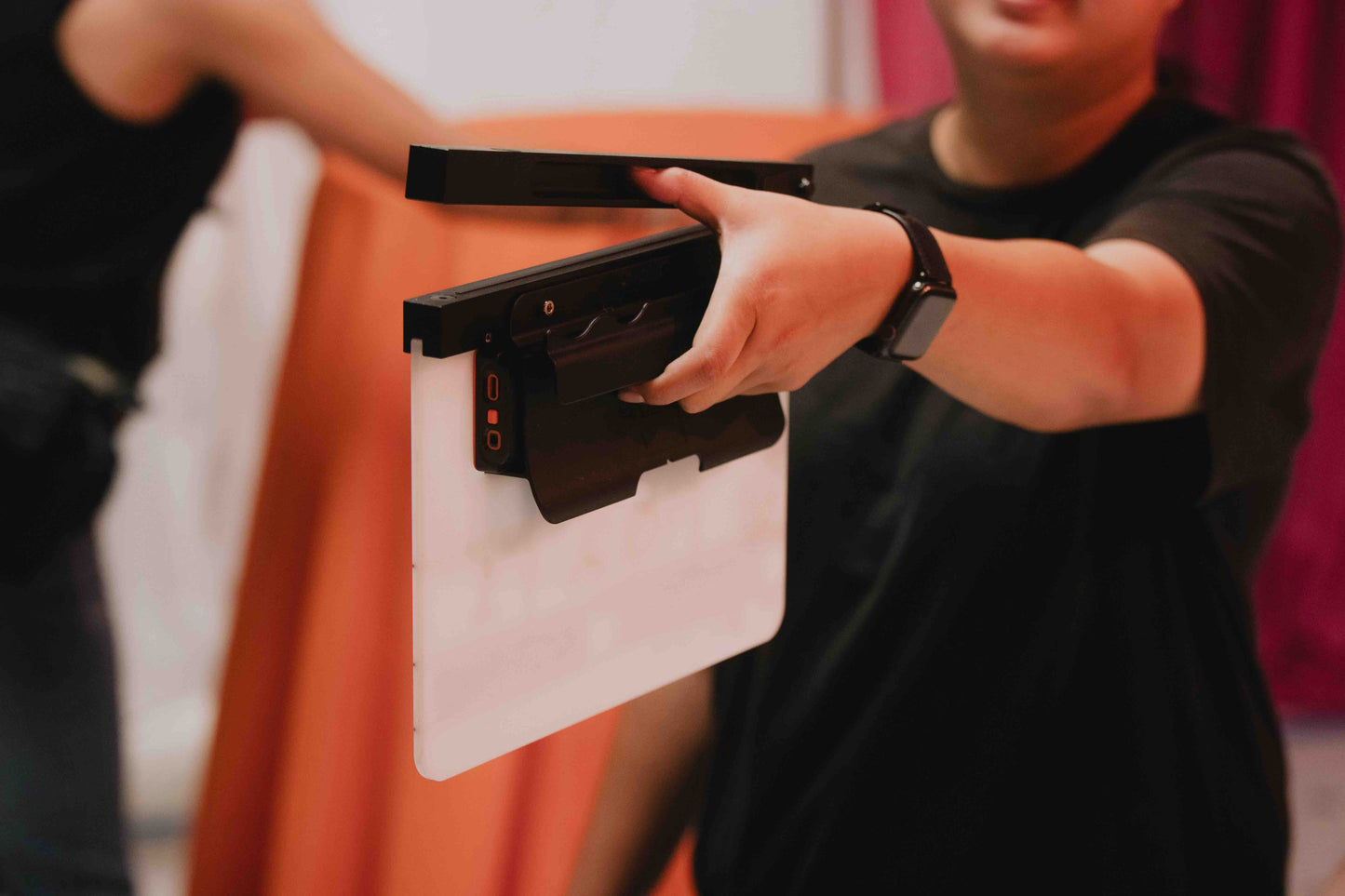

Tentacle Sync TB1-SL Timebar Timecode Slate and Display

Features:

  • Precision-engineered Acrylic Board (Roll/Scene/Take Layout)
  • Durable Clapper Sticks
  • Custom-designed TIMEBAR Holder/Mount
  • High-contrast OLED Technology with a Wide Viewing Angle
  • Typical Battery Runtime in Slate Mode minimum 2 weeks
  • Control, Sync & Operate all devices via Bluetooth®
  • Timecode Generator with TC In & Out
  • Timer & Stopwatch Functionality
  • Text Display
  • Tentacle Sync Studio Software License included (macOS)
  • Limited Two Year Warranty
  • TIMEBAR Designed and Manufactured in Germany

Specifications:

 Connectivity

3.5 mm Jack                    Timecode In/Out
USB Connection                USB-C (USB 2.0)
USB Operating Modes                                      Charging, Firmware Update

 Control & Synchronization

Bluetooth® 5.2 (Low Energy)
Remote Control & Monitoring         Tentacle Setup App (iOS/Android)
Synchronization Via Bluetooth® or Jam-Sync via cable
Timecode In/Out LTC via 3.5 mm Jack
Drift High Precision TCXO (0.2 ppm) / Accuracy less than 1 Frame Drift in 24 hours (-30°C to +85°C)
Frame Rates 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF and 30 (60) fps

 Power

Power Source Built-in rechargeable Lithium Polymer Battery
Battery Capacity                                    2200 mAh
Operating Time Slate Mode Minimum 2 weeks
Operating Time Continuous Mode 6 hours (highest brightness) to 80 hours (lowest brightness)
Battery Charging Time Standard Charge: 4-5 hours, Fast Charge: 2 hours

Display Modes

Timecode Timecode / User Bits / Custom Text
Timer Countdown of three preset values (set different values in Setup App)
Stopwatch Running Time (keeps running in the background while operating in other modes)
Message Text of three preset messages (edit messages in Setup App)

Hardware

Dimensions.                                                  280 x 226 x 43 mm / 11 x 8.9 x 1.7 inches
Weight 786 g / 27.7 oz (including battery)
