SONY UPX898MD ANALOG A6 BLACK & WHITE PRINTER
SONY UPX898MD ANALOG A6 BLACK & WHITE PRINTER
SKU:UPX898MD
Couldn't load pickup availability
All efforts are made to ensure accuracy of stock info on site. There may be delays in updates due to "over the counter sales" during the day. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

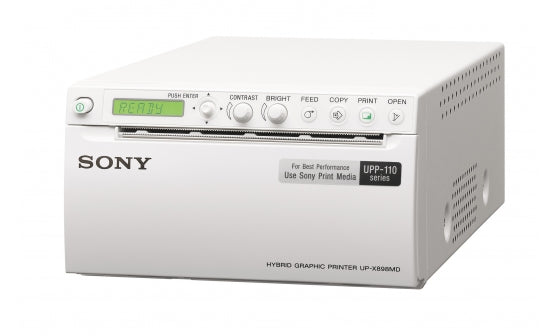

Sony UPX898MD Analog A6 Black & White Printer
Compatible Media: UPP-110HD, UPP-110HG, UPP-110S/5. For more info, please click on link below:
Detailed Specifications
Detailed Specifications
Printing Method:
Direct thermal printing
Resolution:
325 dp
Gradations:
8 bits (256 levels) processing
Picture Elements:
Digital: 4096 x 1280 dots
Video NTSC: 720 x 504 dots
Video PAL: 720 x 604 dots
Picture Area:
Digital: 320 x 100 mm/12 5/8 x 3 7/8 inch (Max)
STD Video NTSC: 94 x 73 mm, Video PAL: 94 x 71 mm (WIDE1) when “SIDE:OFF” is selected
SIDE Video-NTSC: 124 x 96 mm, Video-PAL: 127 x 96 mm (WIDE1) when “SIDE:ON” is selected
Paper Size:
Paper width of 110 mm (4 3/8 inches)
Printing Time:
High-speed mode:
Approx. 1.9 seconds/image (at standard setting)
Normal speed mode:
Approx. 3.3 seconds/image (at standard setting)
Picture Memory
Digital: 4,096 x 1,280 x 8 (bit)
Video: 10 frame memories (850 k x 8 bits per frame)
Interface
USB terminal (type A) for USB flash drive (X1)
Hi-Speed USB (USB 2.0) (x1)
VIDEO INPUT: BNC type (x1)
NTSC or PAL composite video signals
1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated)
VIDEO OUTPUT: BNC type (x1) Loop-through
REMOTE: Stereo mini jack (x1)
Printer Driver Software
Microsoft Windows 7 32/64 bit, 8 32/64 bit, 10 32/64 bit
Power Requirements
AC 100 V to 240 V, 50/60 Hz
Input Current
1.3 A to 0.6 A
Operating Temperature
5°C to 40°C (41°F to 104°F)
Operating Humidity
20% to 80% (no condensation allowed)
Storage and Transport Temperature
-20°C to +60°C (-4°F to +140°F)
Storage and Transport Humidity
20% to 80% (no condensation allowed)
Dimensions (W x H x D)
154 x 88 x 240 mm (6 1/6 x 3 1/2 x 9 1/2 inches)
Mass
2.5 kg (5 lb 8 oz)
