X SIDE IO FOR KOMODO X
X SIDE IO FOR KOMODO X
SKU:X/SIDE-BLACK
X/SIDE IO FOR KOMODO X

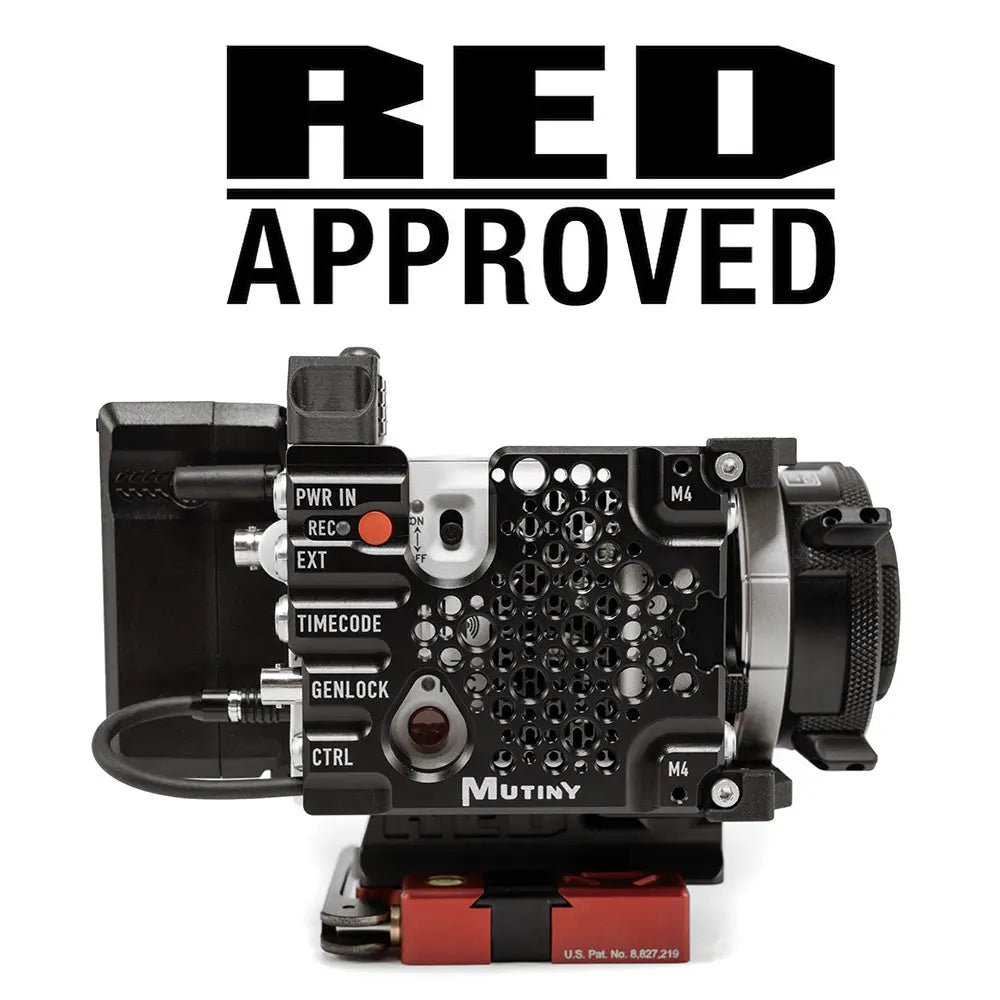

X/SIDE is officially RED APPROVED!

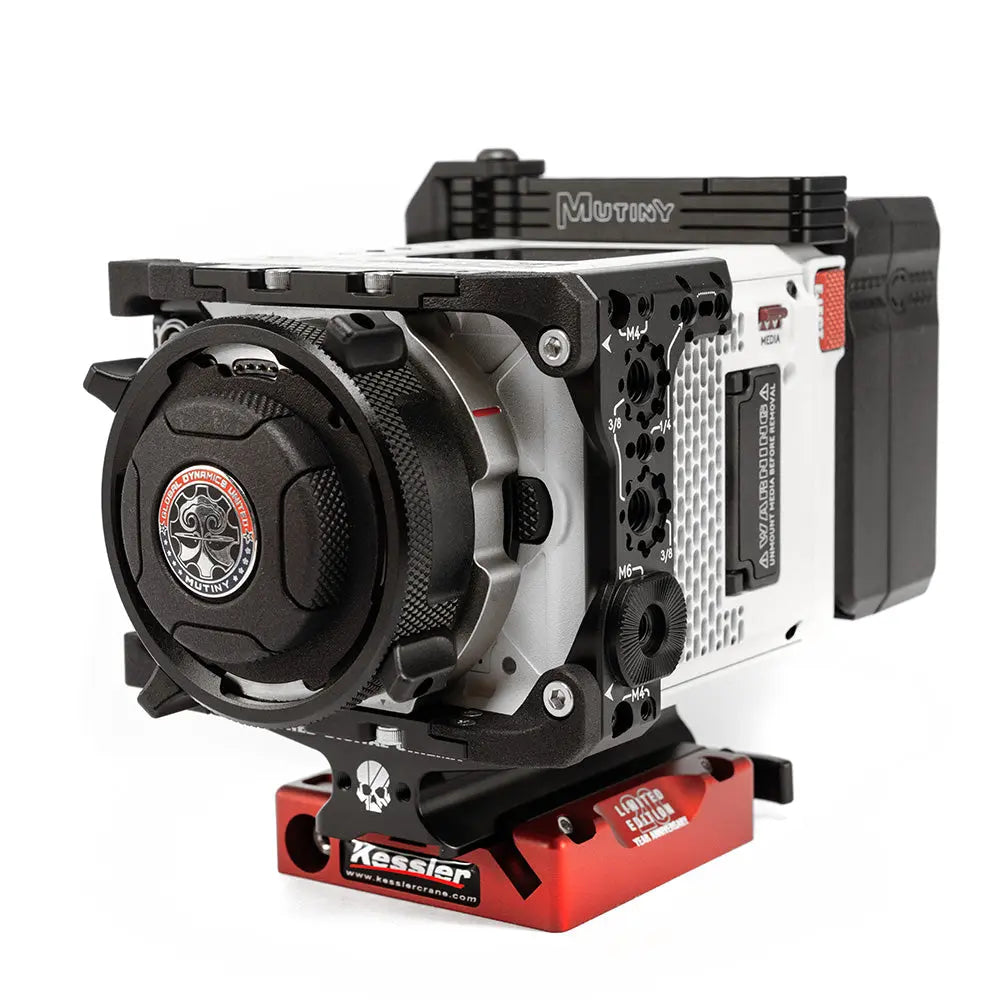

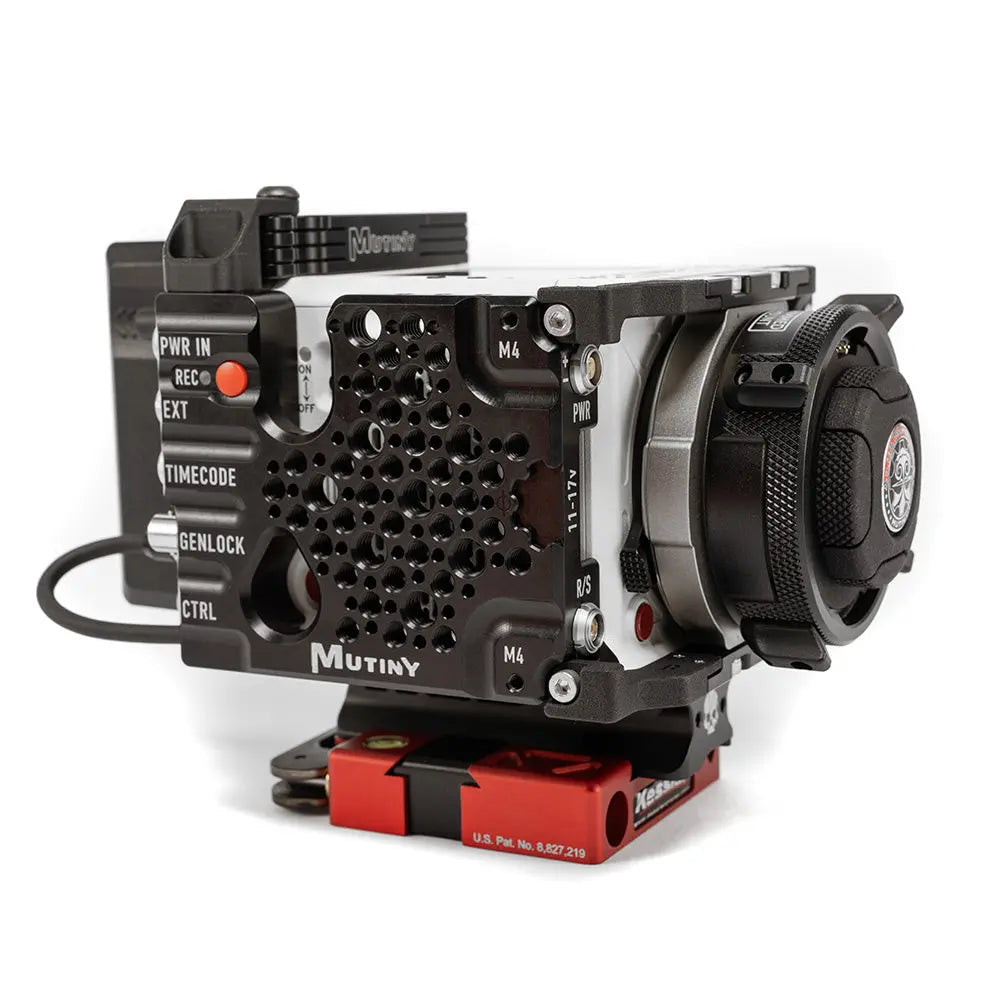

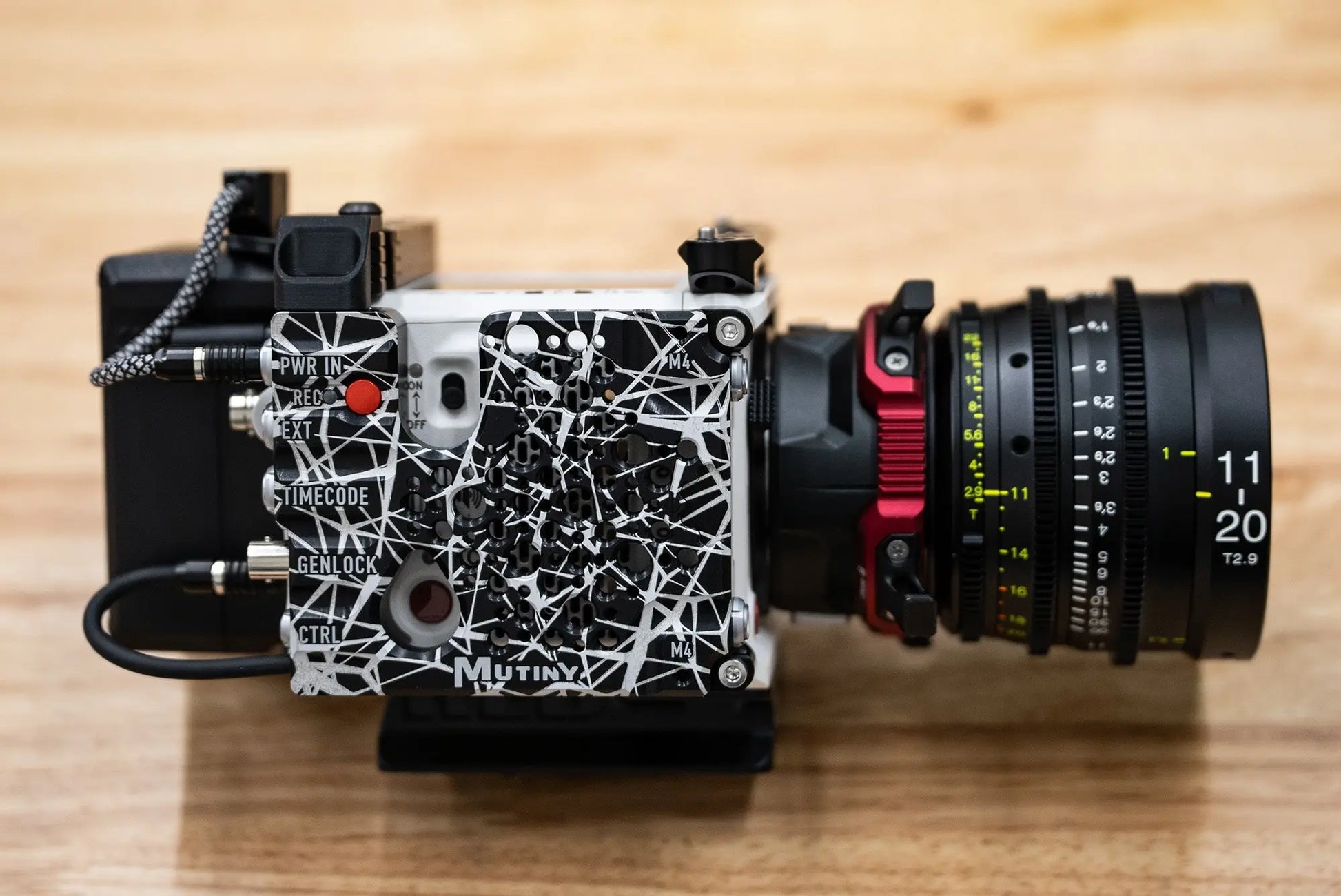

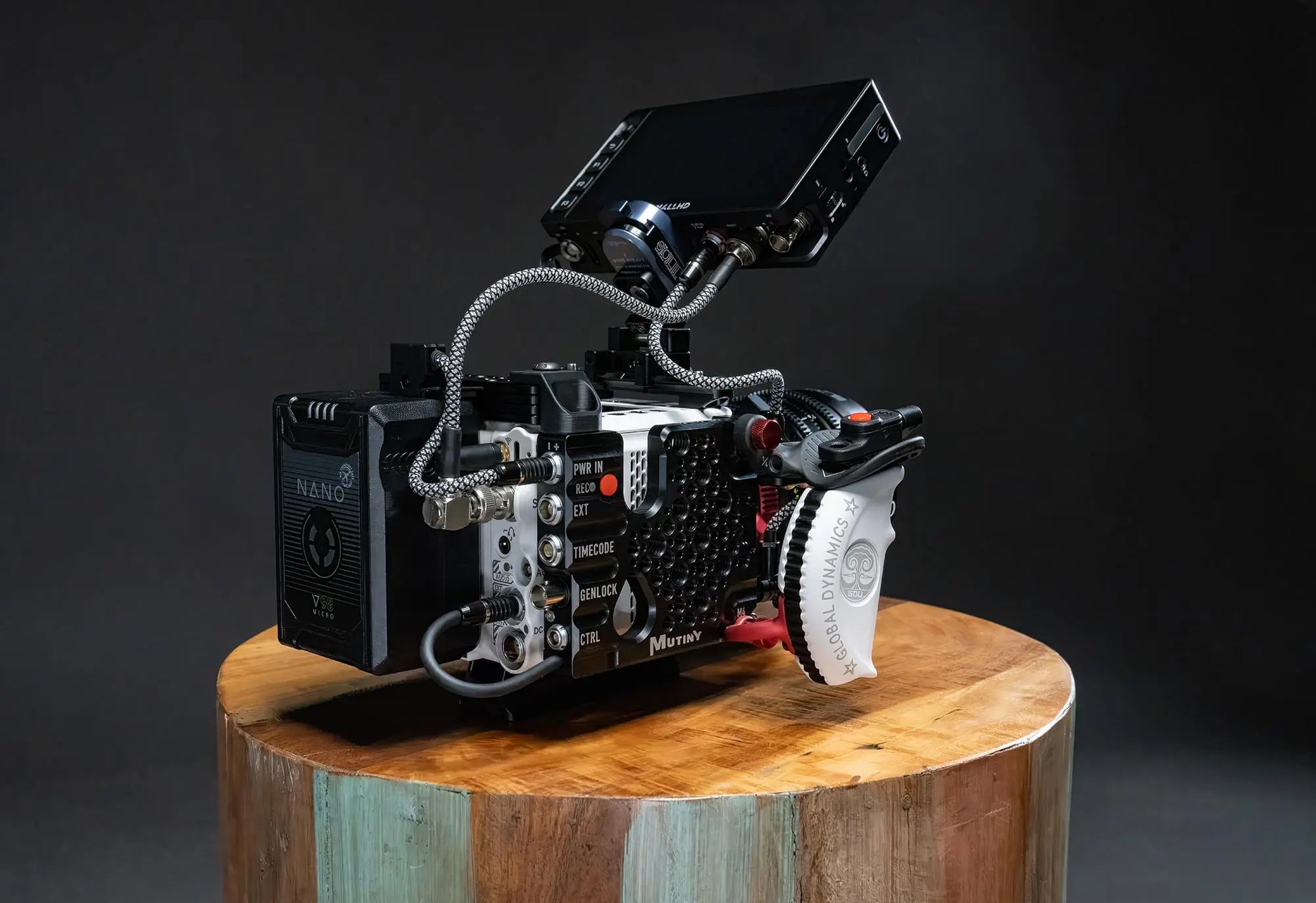

X/SIDE is an IO cheese plate with front of camera power distribution for the KOMODO X camera. X/SIDE is designed, CNC machined and assembled in the USA. X/SIDE meets RED's airflow requirements even if all holes are utilized. NOTE: You cannot use the outrigger handle with X/Side but almost every other handle is compatible (GDU Atlas for example). *Obviously the X/SIDE requires power if you want to use the power passthrough ports on the front. Keep that in mind when ordering.

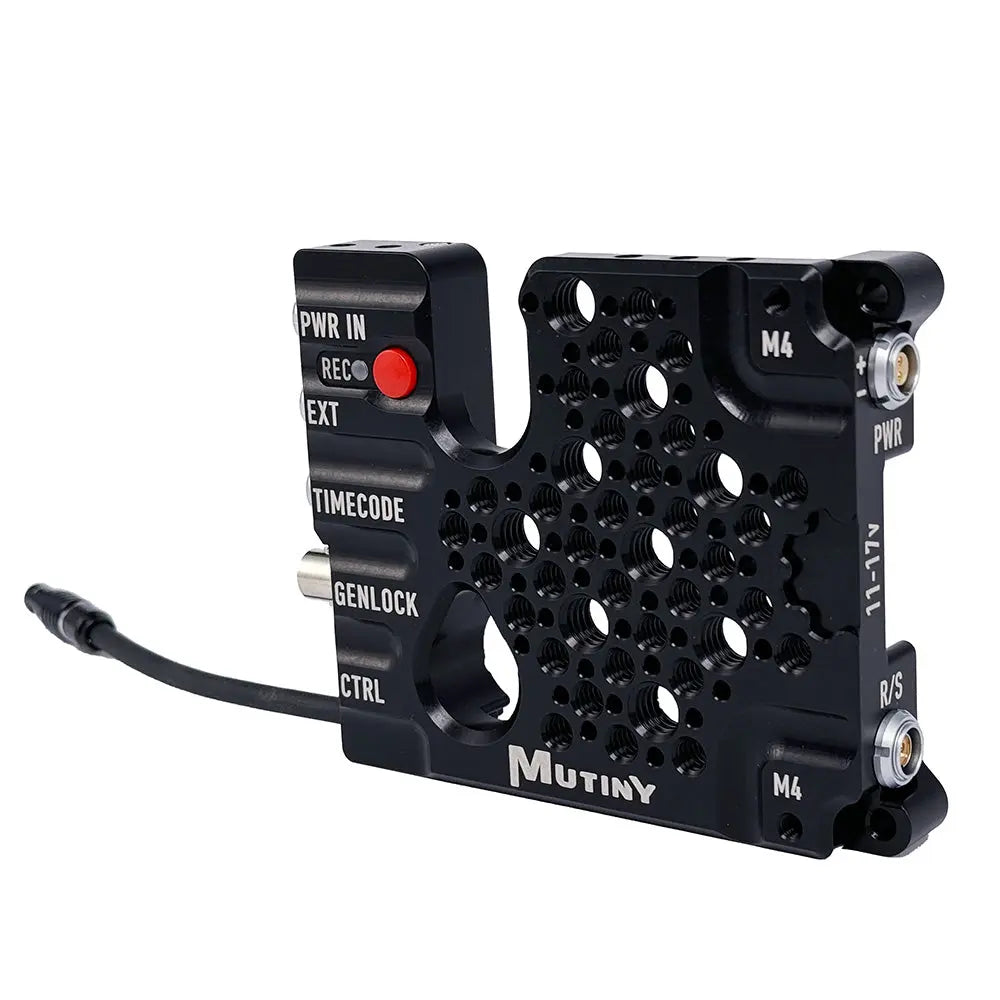

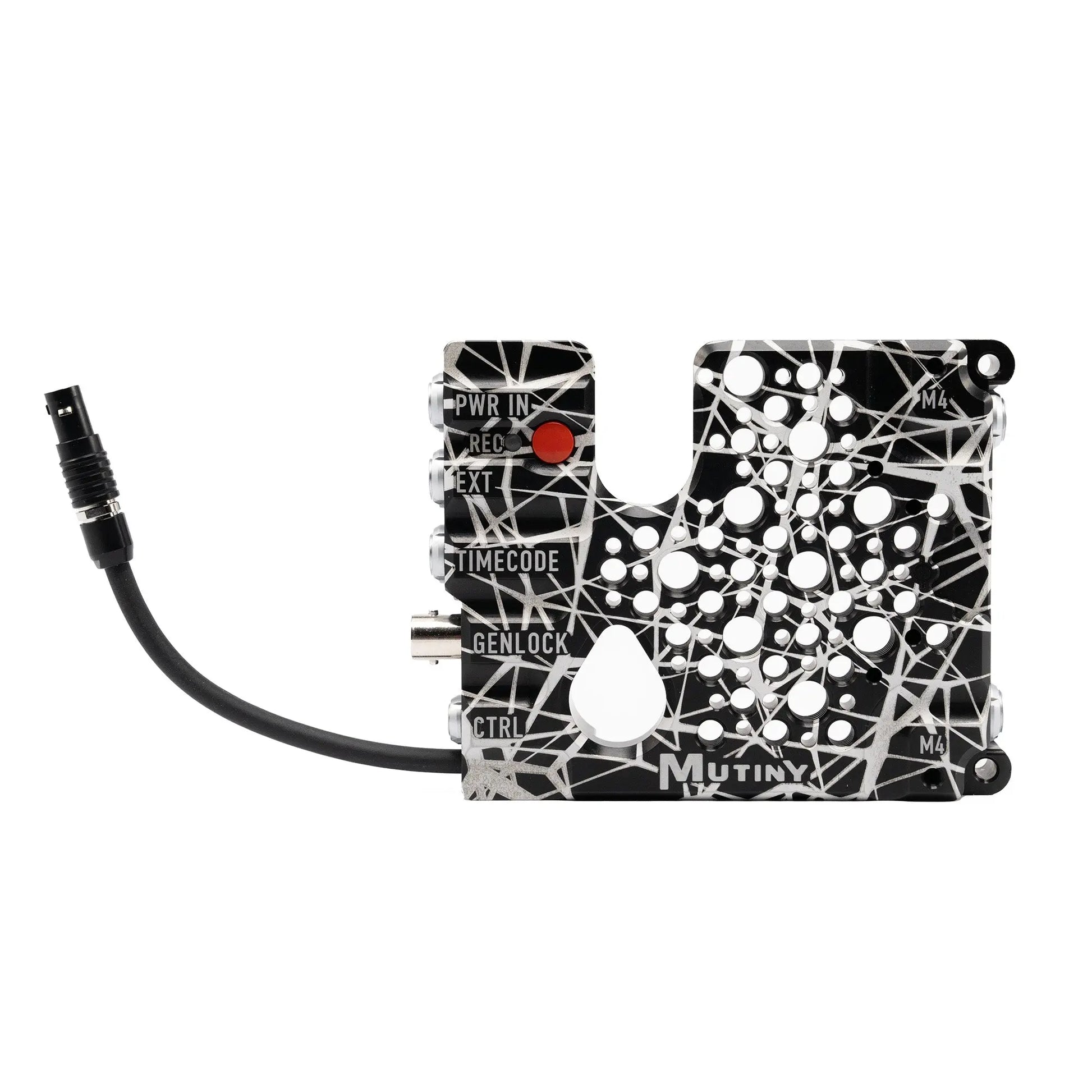

X/SIDE FEATURES:
Power IN - 2pin 0B lemo type power input connector
EXT 9pin 0B input cable (from camera to X/SIDE)
EXT 9pin 0B passthrough connector (for SmallHD camera control, redundancy and other accessories)
Timecode 5pin 0B connector for timecode IN/OUT
Genlock BNC connector
CTRL 4pin 00B connector (for SmallHD camera control, C-Force, Arri HI-5 etc)
Fischer 3 R/S power passthrough on front side 11-17v for trigger and power
2pin 0B power passthrough on front side 11-17v for powering monitor or other accessories
REC button built in for easy access
Tally REC Light built in (*To turn this feature on, in the camera menu, go to system settings, GPO function, then select Recording Indicator Out.)
Camera direct and X/Side to X/Block braces included
1/4-20 tapped holes with Arri Standard pin locators
3/8-16 tapped holes with Arri standard pin locators

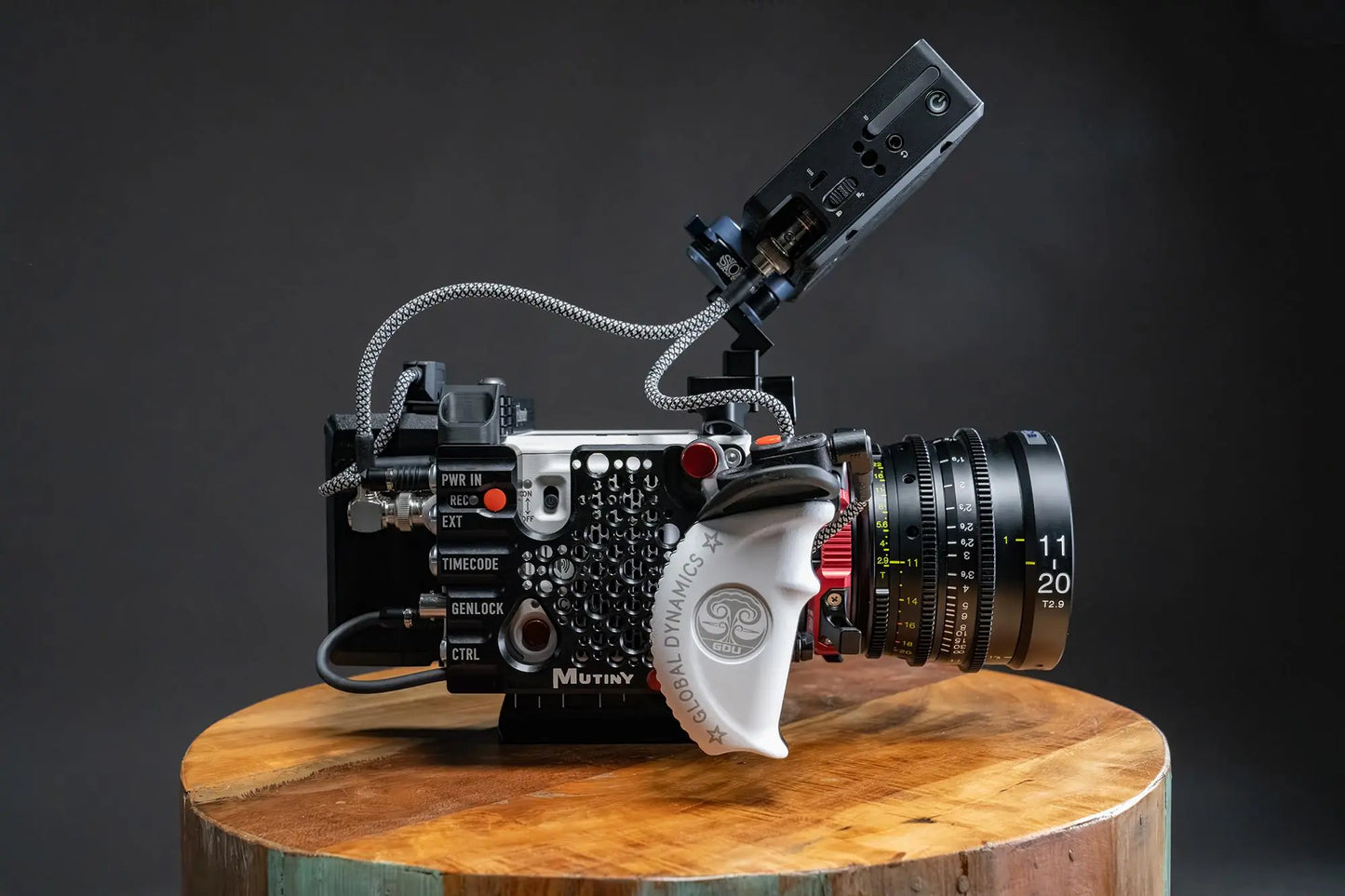

M4 holes for GDU Atlas handles
You can also use X/SIDE to shoot vertical video

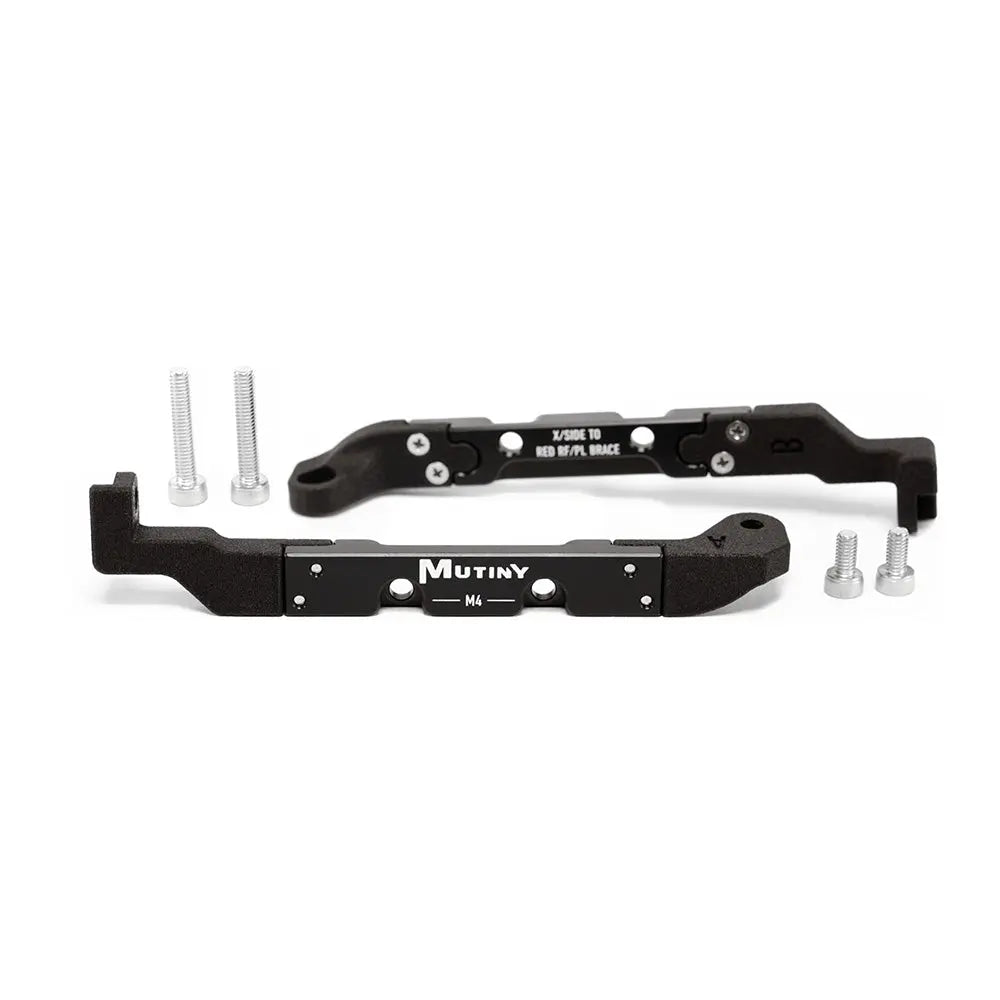

Optional brace kit for RED PL mount.

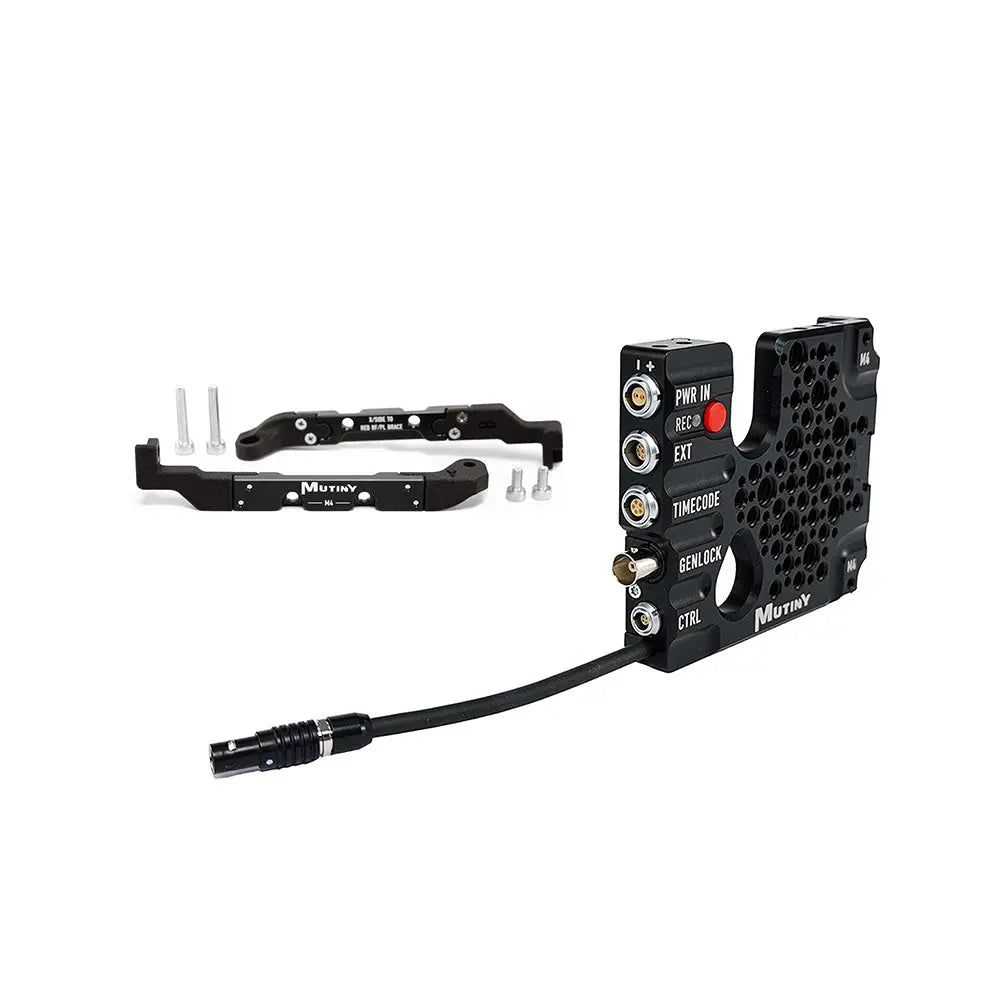

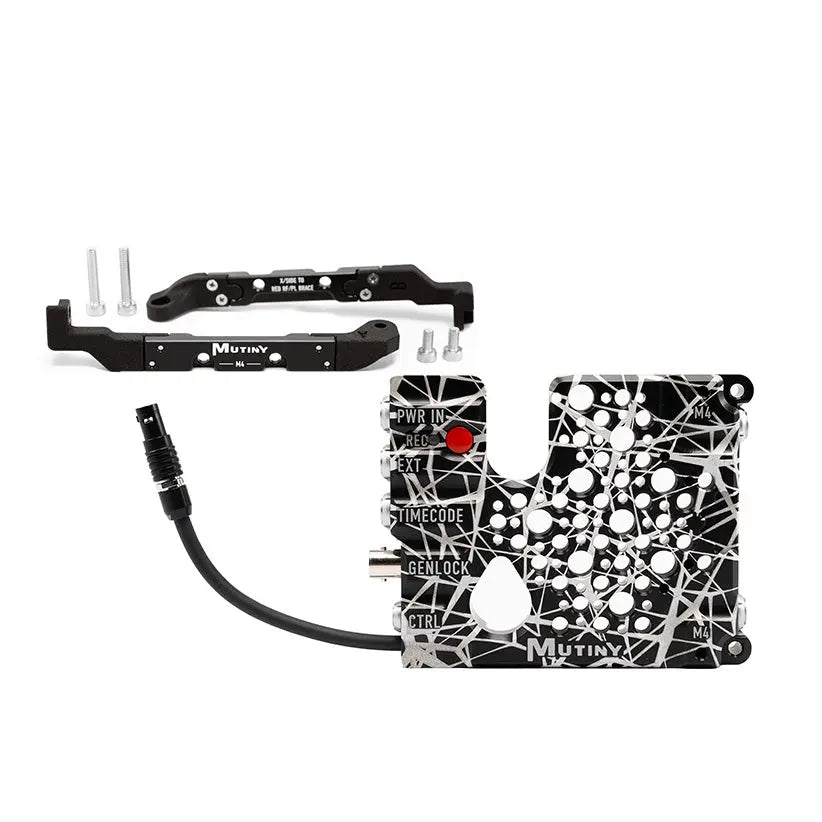

Includes:
2x M4 x 20mm screws
1x 3mm HEX key
1x X/BLOCK bracing plate with screws
1x Direct to X bracing plate with screws
