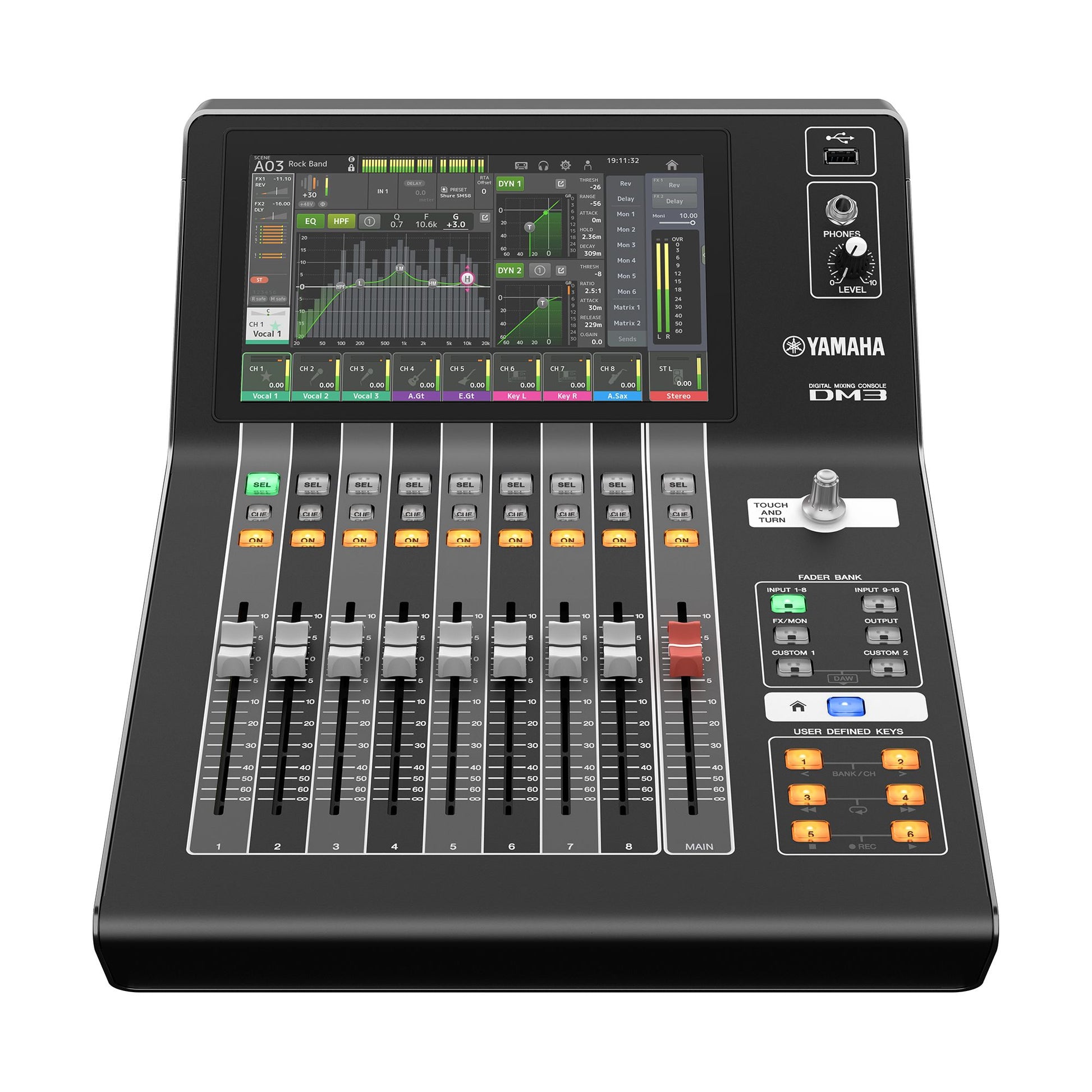

Yamaha DM3 Digital Mixer

$2,200.00 CAD

Sale Sold out

SKU:DM3S

Interface Standard Dante

Quantity

All efforts are made to ensure accuracy of stock and pricing info on site. There may be delays in updates from time to time. For most accurate info, please contact us at 416-251-1571 or sales@hdsource.ca

Yamaha DM3 Digital Mixer - Standard or Dante. Please see detailed specifications below

For details on Integration with the Roland V-160HD, please click HERE

Detailed Specifications

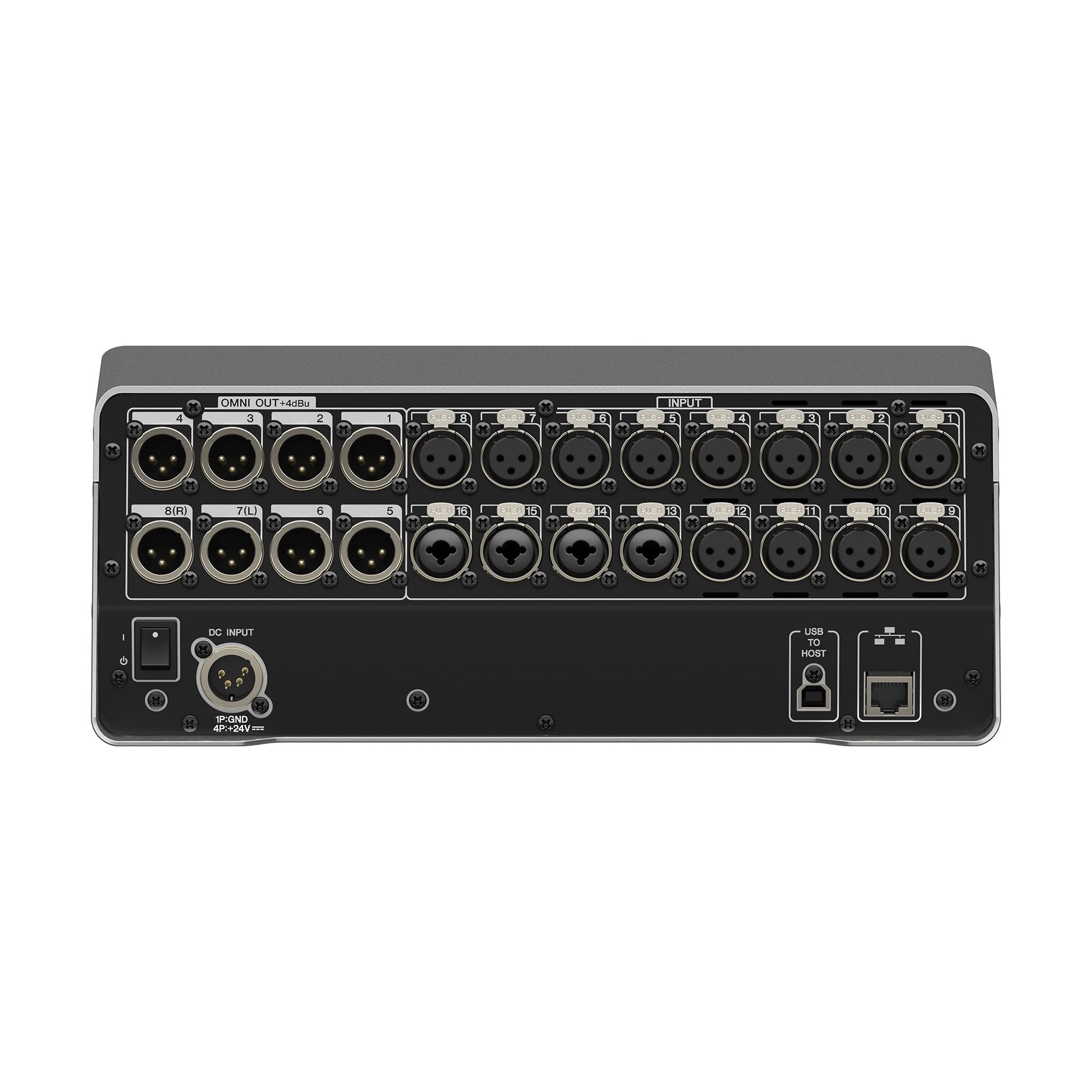

DM3S Standard Digital Mixing Console

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg

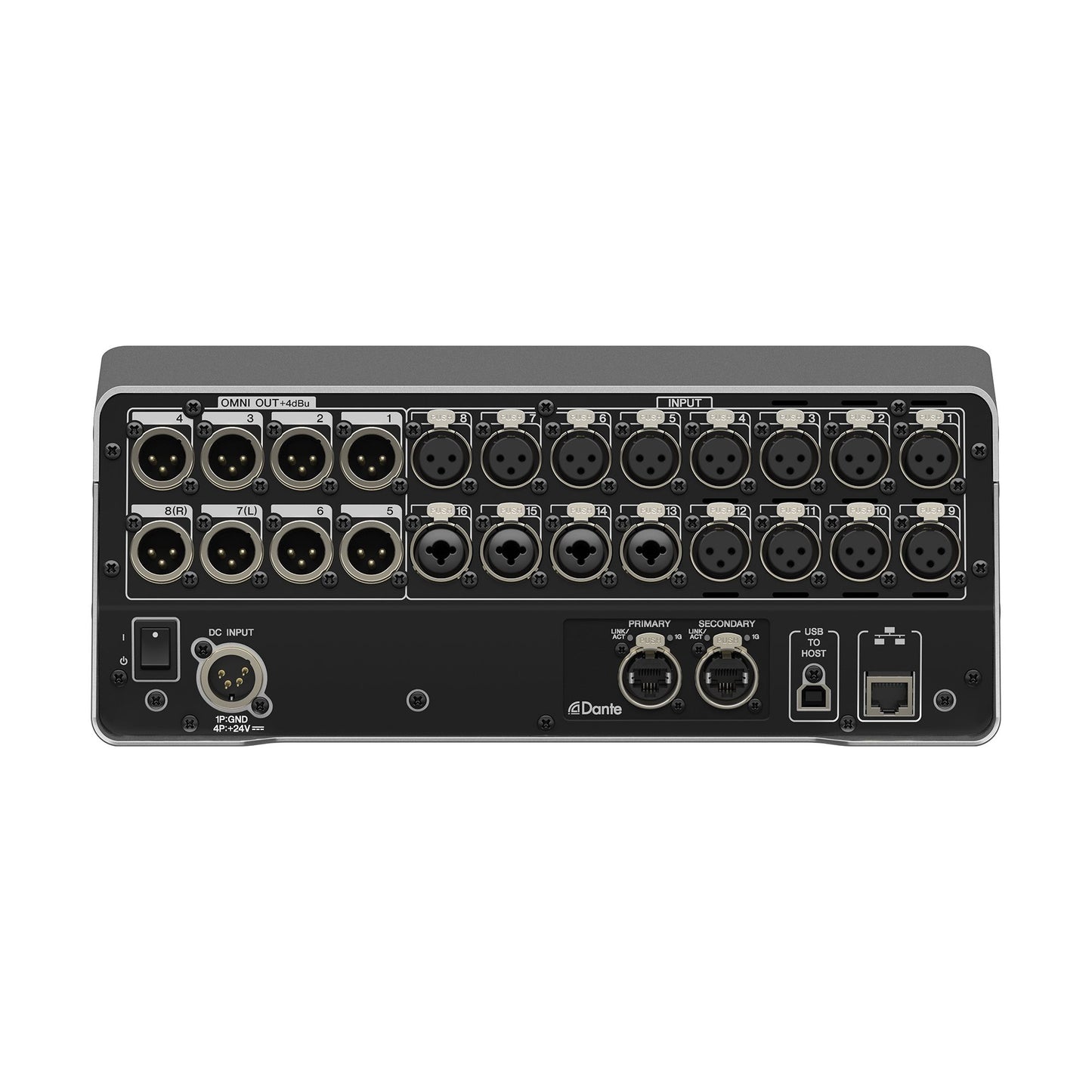

DM3 Digital Mixing Console

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications.

8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
Dante: 16 inputs, and 16 outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg
